LK2-106MT New Trend High Efficient Dual Press Automatic Platen Foil Stamping & Die Cutting Machine in One Pass

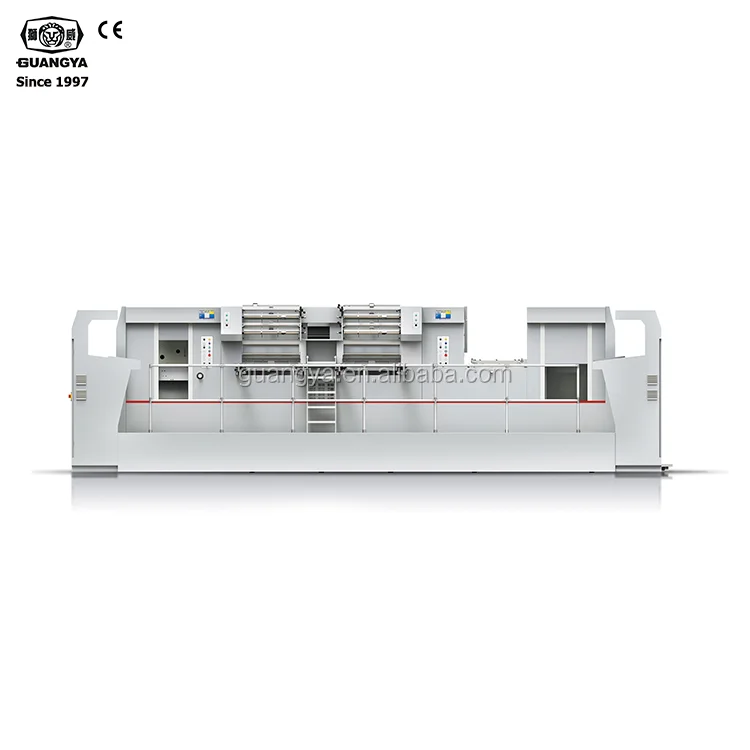

LK-2 106MT

Product Description

In order to meet various request of printing and packaging market, we designed the LK2-106MT Dual-Press Automatic Foil Stamping and Die Cutting Machine, which is the latest research and development and manufacturing of new equipment with a higher degree of intelligence.



It can make the following job in one processing,

Stamping + Stamping
Stamping + Die cutting
Embossing + Die cutting
Stamping + Embossing



This machine adopts numerous advanced pneumatic and servo driving processing technology from home and abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.



It could die cutting, hot stamping and pressing convex on different after printing packaging products, such as higher than 90gsm paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper, plastic card, PVC and so on.



Superior ability to adapt and convenient operation which make machine work stable and safety when machine speed reach 6500 sheets per hour. This machine will provide you to enjoy the comfortable operation and faster return on investment.



Specifications

Model

LK2-106MT

Max. sheet size

1060×770mm

Min. sheet size

450×370mm

Max.die cutting size

1050×750mm

Max.stamping size

1050×750mm

Inner chase size

1100*790mm

Gripper margin

8-17mm

Accuracy of die cutting

±0.1mm

Paper range

90-2000g/m2(cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated)

Maximum cutting force

300T

Max. mechanical speed

7500s/h

Max.stamping speed

6500s/h

Press 1 foil pulling shafts

longitudinal 3,transversal 2

Press 2 foil pulling shafts

transversal 2

Press 1 Zones individually heated

12 heating zones ( each zone can be adjusted independently, max 200 )

Press 2 Zones individually heated

12 heating zones ( each zone can be adjusted independently, max 200 )

Max. foil diameter

250mm

Max.delivery pile height

1250mm

Max.feeding pile height

1350mm

Main motor power

30kw

Heating pipe power

48kw

Servo motor power

24kw

Total Machine power

105kw

Machine weight

40T

Air requirements

0.6Mpa, >0.37m3/min

Overall machine dimensions

9645×4145×2610mm

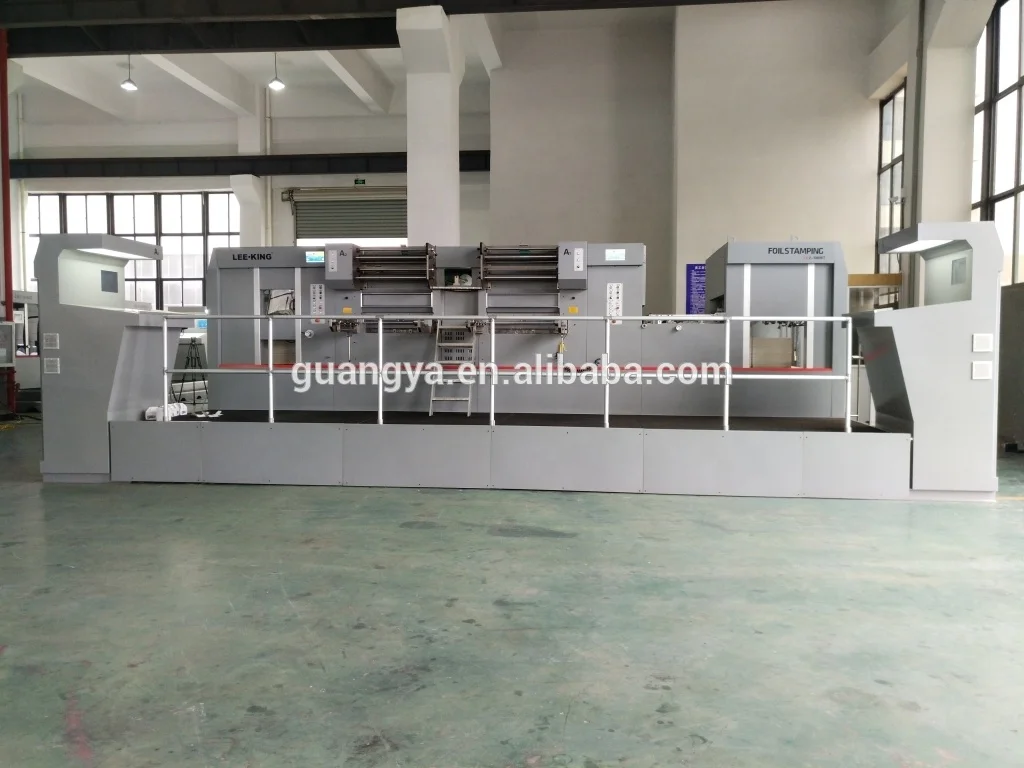

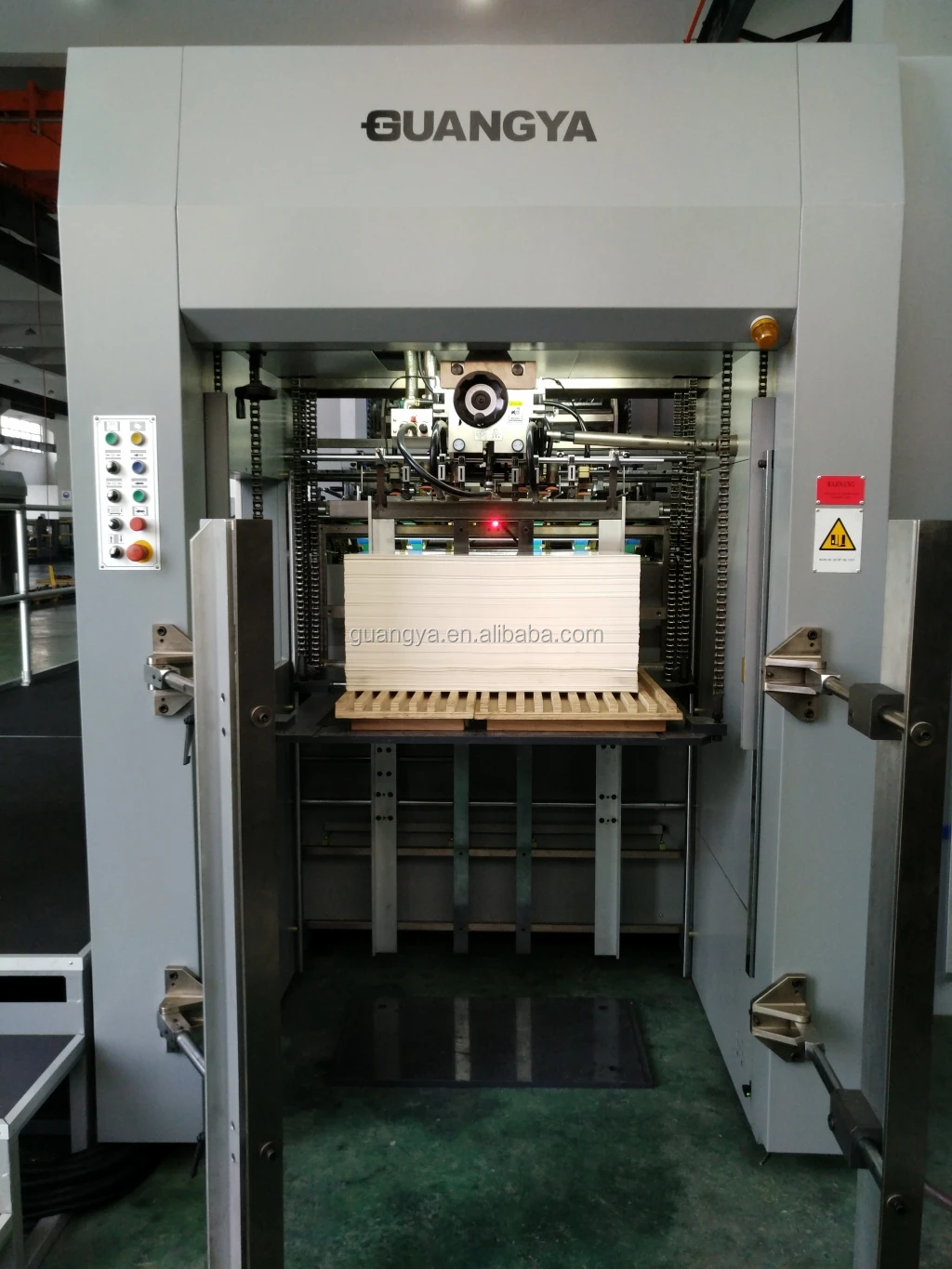

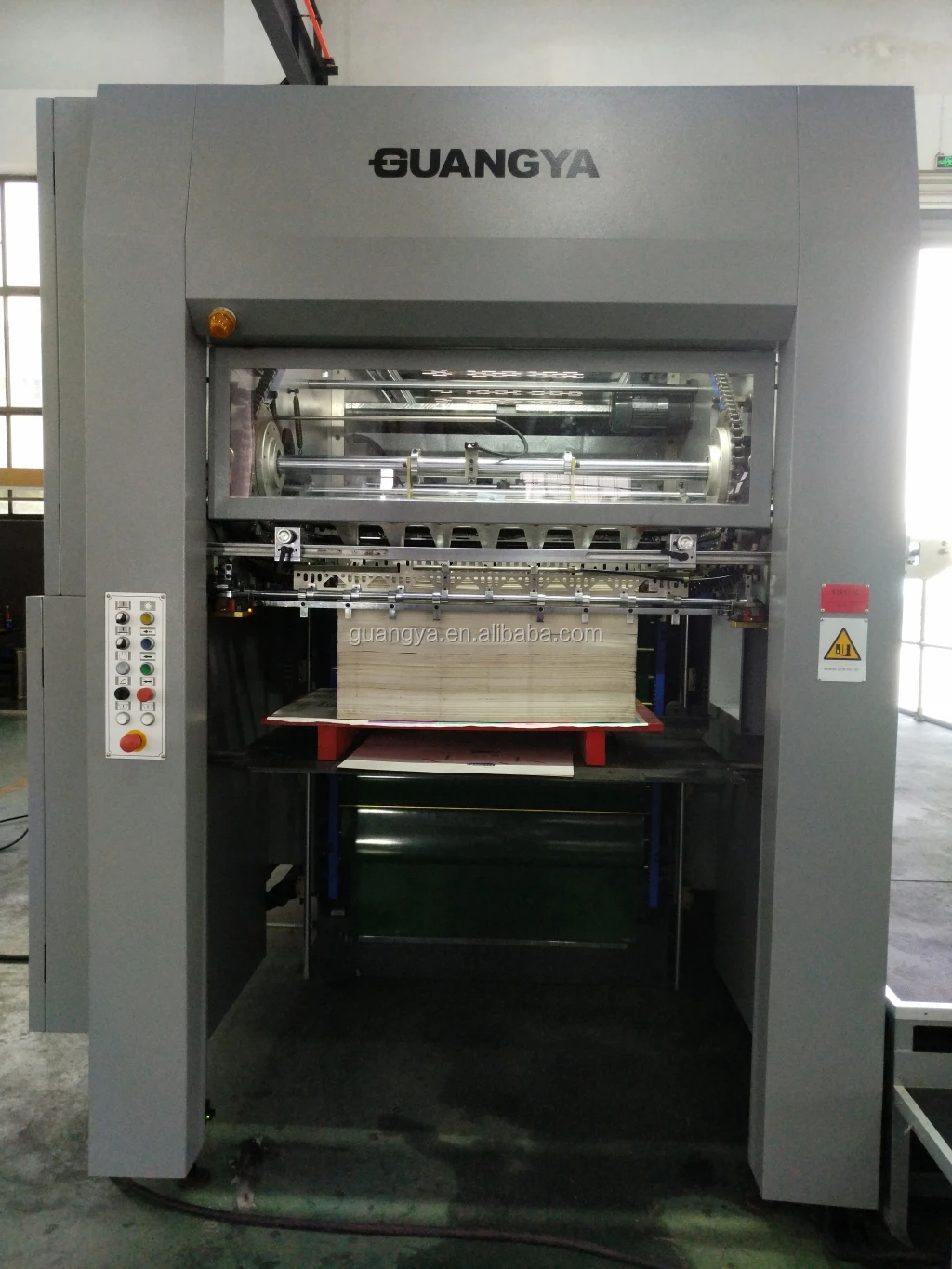

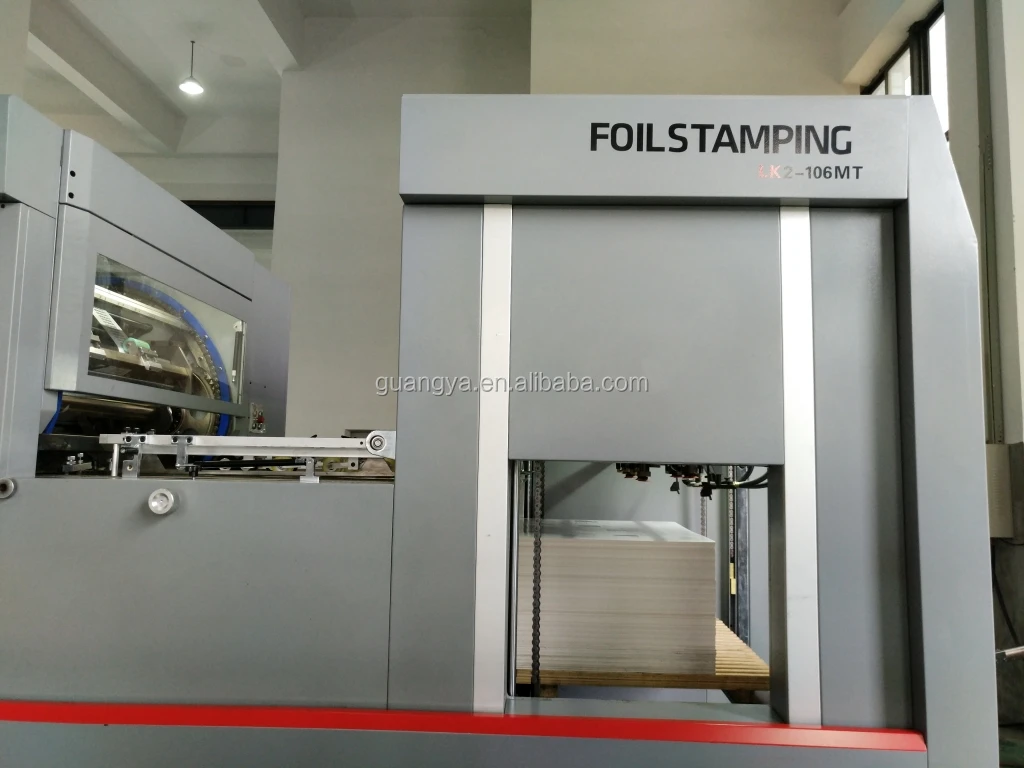

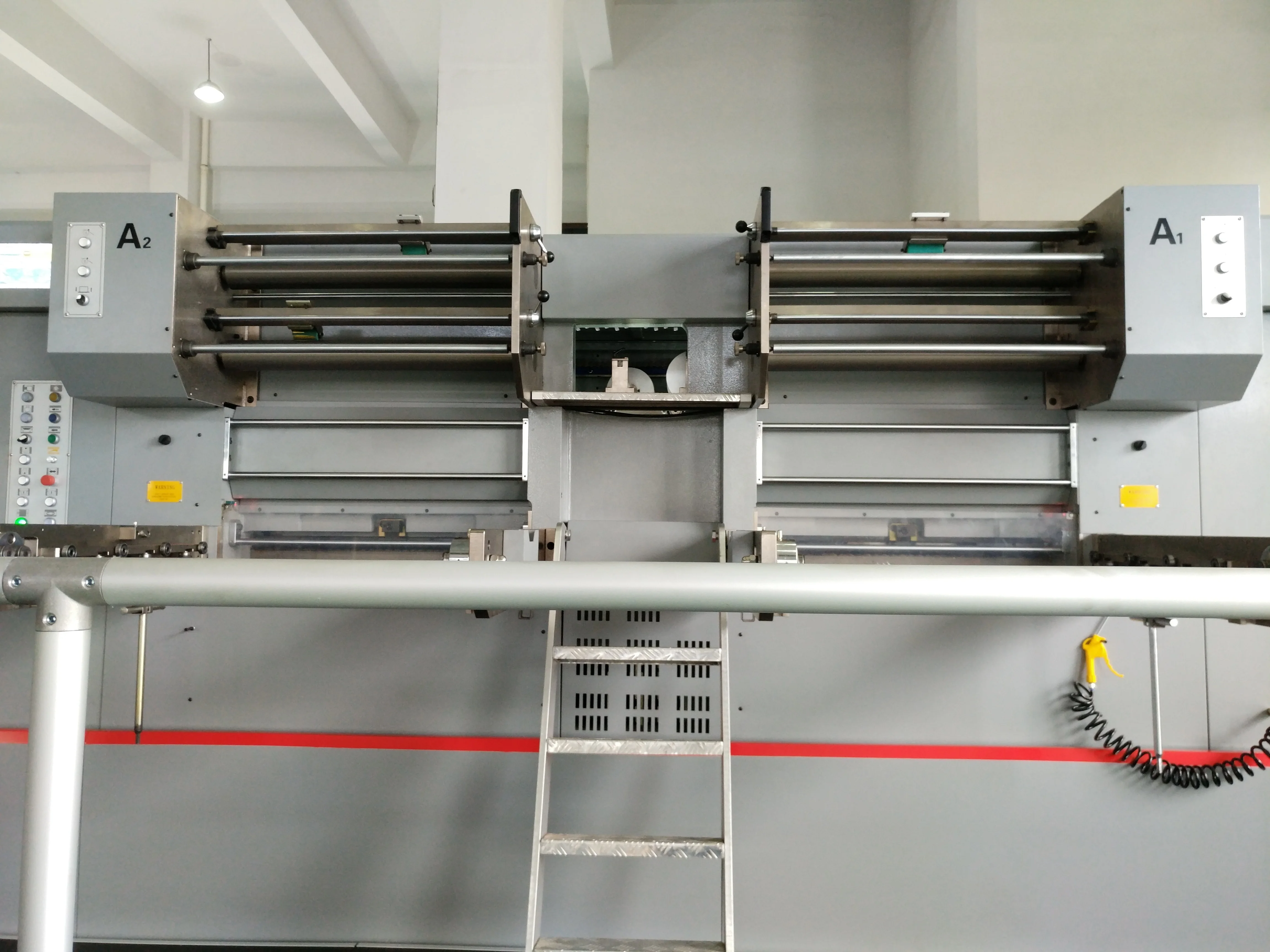

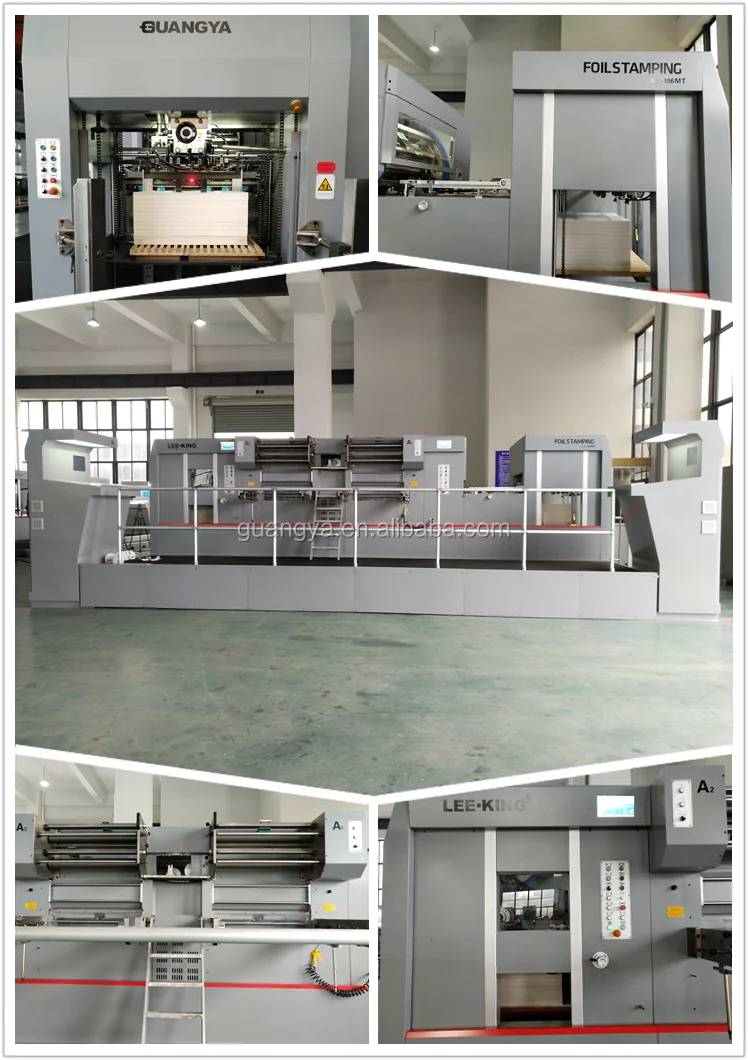

Machine Details


Foil stamp sample

Samples of hot foil stamping & embossing,

stamp sample

Die cut sample

Sample of die cutting & creasing,

cut sample

Our Services

The Unique Human Care And Profession Passionate Sales Service System

We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 7 days with professional knowledge. We focus on customer service, all year non-stop service, personal training and so on. Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on. Realizing the idea of focusing on customer success, creating value to customer.


Company Information

Zhejiang Guangya Machinery Co., Ltd. was established in 1996, especially founded as a high technology manufacturer of print finishing equipment (Die Cutting Machine & Hot Foil Stamping Machine).

At present, Guangya machines can be found in over 80 countries, the products have gain the acceptance of customers all over the word.

Also Guangya has become one of the leading suppliers for solutions of the print finishing equipment in China.

Guangya hope to be your deal business partner to develop the prosperous future together.

fac18 750

FAQ

1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been in making die cutting machine and hot foil stamping machine for over 22 years.


2. Where is your company located? How can I visit there?
Our new factory address: No.258, Haize Road, Binhai New Zone, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.

The nearest transportation center is Wenzhou airport or Ruian train station.

3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.



4. What’s your advantages ?

--22 years' experience: We have been in making die cutting machine and hot foil stamping machine for over 22 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply: Our team will reply you soon.

--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
