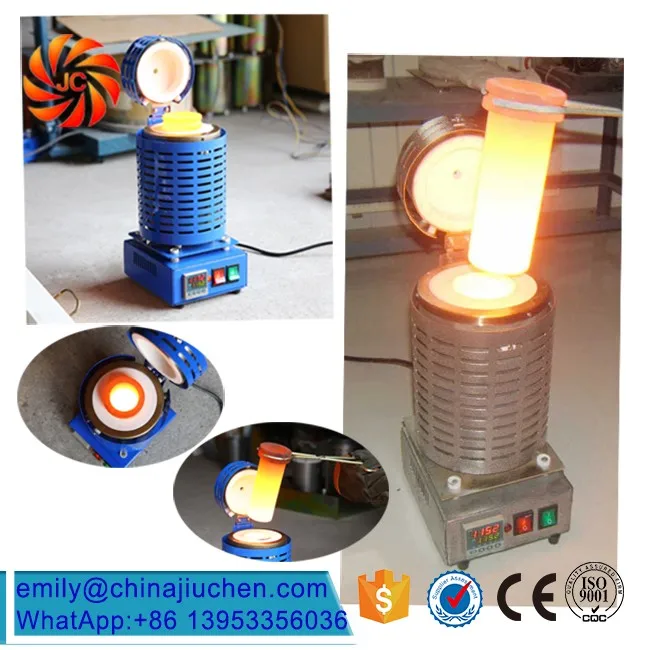

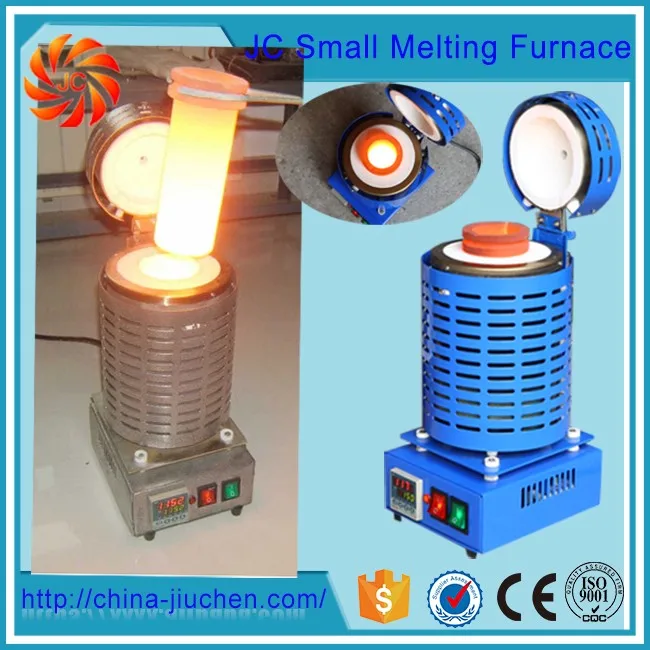

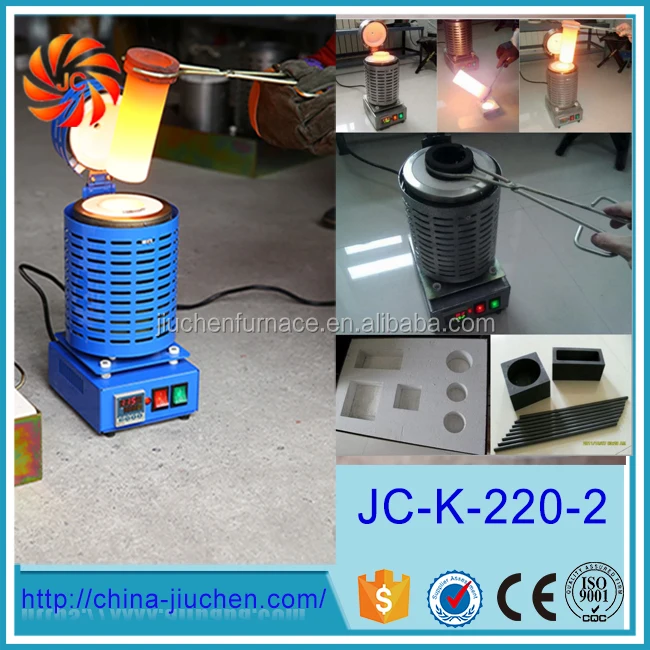

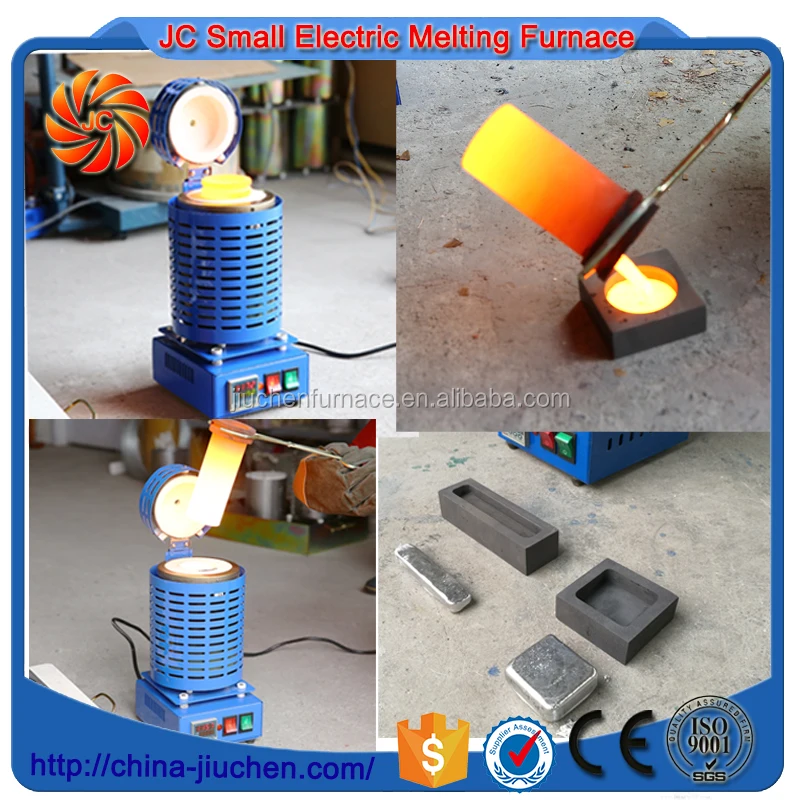

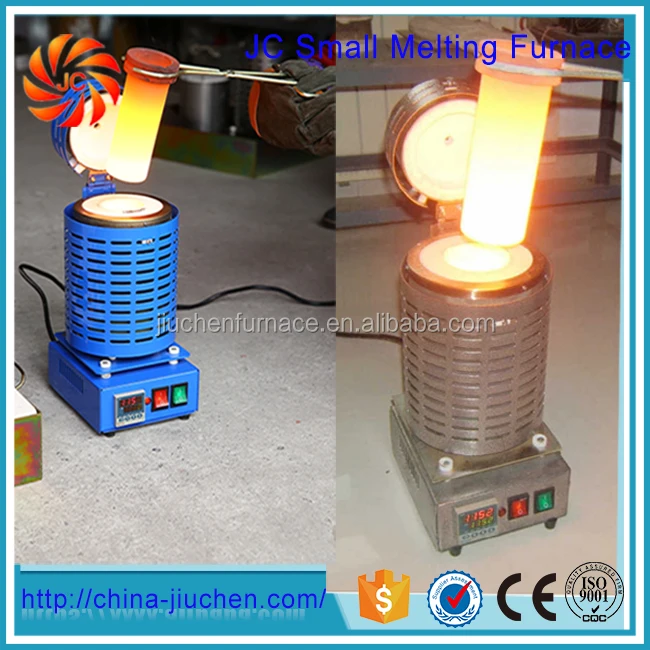

4KG Small Electric Copper Aluminum Gold Silver Ingot Melting Furnace

 Gold ingot melting furnace is an ideal supporting unit for Jewellery Casting, Gold & Silver Refining, Alloying, etc. It is Available with 1 Kg,2Kg,3Kg,4Kg melting capacity. JC Melting pot is well designed for easy and safe operating,JC melting pot comes with a High Quality Graphite Crucible, Crucible Holding Tong, and Safety Gloves We are professional manufacturer and supplier of Digital Electric Gold Melting Furnace in China.

This Digital Electric Gold Smelting Furnace is an ideal supporting unit for Jewellery Casting, Gold & Silver Refining, Alloying

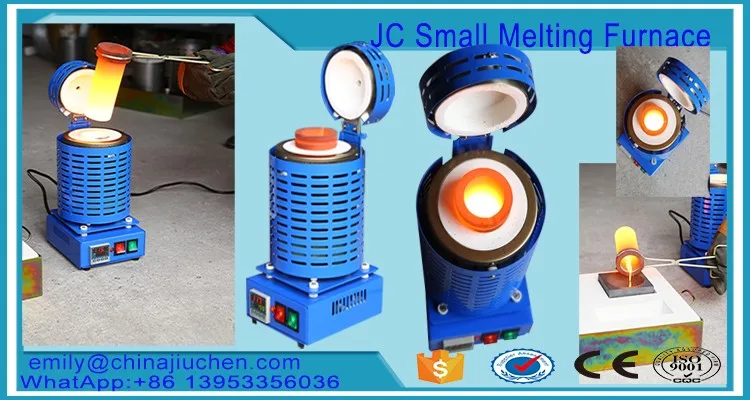

Gold ingot melting furnace is a compact electric furnace for melting scrap, reclaiming, alloying, and refining various metals. It is perfect for pouring melted metals in casting operations when making bars or buttons. The unit is designed to heat up quickly (15 -20 minutes for different materials) and allow you to take the molten material with the included tongs to pour directly from the 2 kilogram crucible.

Description:

- Available 110- 130volt version only.

-Model JC-K-110-2
- Capable of melting up to 4 kg of gold. (Also you can choose 1kg 2kg 3kg 4kg kilo on same furnace)
- This is specially designed and constructed for melting metals for and alloying.
- Time proportional control of temperature for preventing overshoot of melting temperature

-Low voltage technology for high reliability (lower the voltage higher the life of coil)
-Solid state relay provides zero crossing switching for enhancing the life of the coil
-Fan is provided to keep the transformer cool
-High density ceramic-wool insulation prevents heat loss which in turn increases efficiency.

Specification
Model	JC-K-110-2
Input voltage	1 PHASE 110-130V 50-60HZ
Application	Alu, Gold, Lead, Silver
Power	1500watts
Heating Rate Heat up to 1150C	15MINS （1500W）
Working temp	2102F (1150C) Temperature controlled with an accurate digital thermostat
Opening Chamber Size	Ø63mm(4kg furnace is Ø80)
Capacity	1kg 2kg 3kg 4kg can fit one machine.                                               4kg capacity is coming with this furnace machine.

Gold ingot melting furnace Advantage

* PID Digital Temperature Controller
* SSR relay.
* Easy to operate & maintain
* Low Maintenance Heating Element.
* Heat On/Off Indicator
* Safe & Shock Hazard free
* Transformer based (low voltage)
* Nichrome, Lanthal (DST or A1) heating coils are used for
* quality uniform heating.

Melted metal: Aluminum, Copper, Gold, Lead, Silver, Sterling Silver, Tin & Zinc

Metal/Alloy	Metal Composition	Melting Point	Nominal&Range of Pouring Temp
Gold	Au	1063	1160	1140-1180
Silver	Ag	961	1080	1050-1105
Aluminum	Al	657	730	700-740
Brass	70%Cu 30%Zn	100	1150	1000-1180
Copper	Cu	1083	1160	1130-1180
Zinc	Zn	419	520	450-580
Lead	Pb	327	400	360-415

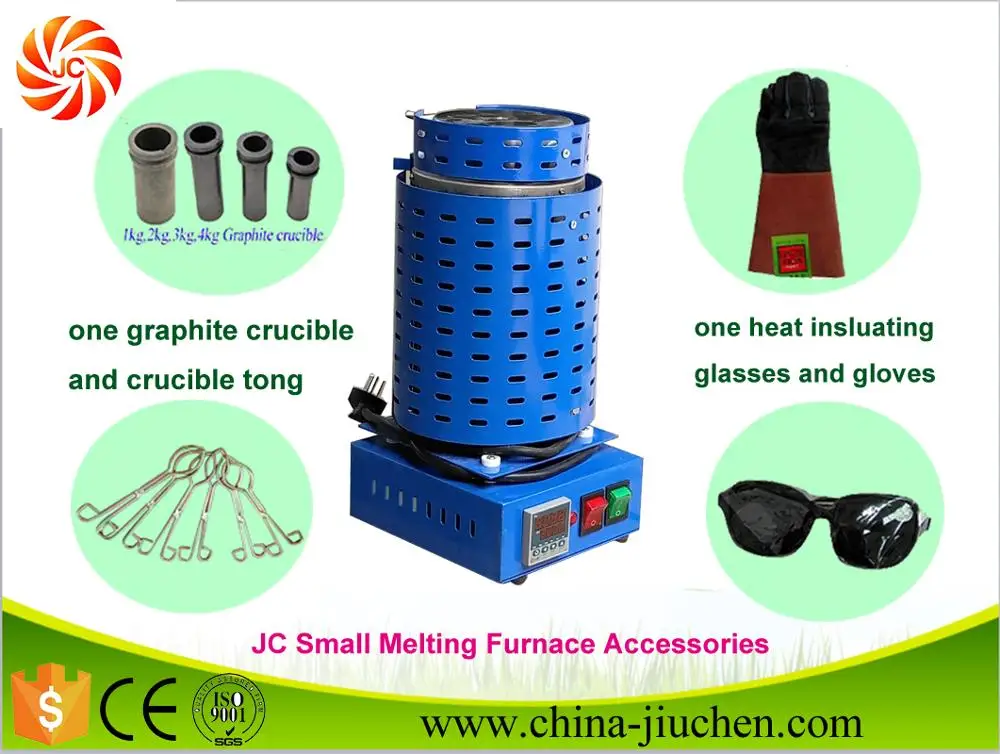

_{Package Included}

Model JC-K-110-2(110V 1.5kw) Red,Blue ,Gray color is optional
1- 4 kg graphite crucible.

1-crucible tongs.
1-stirring rod.1-replacement fuse.

1-insulating heat glasses.1- gloves.

Product Feature

Copper melting Pot Feature

Precise temperature control, easy to read digital display
and LED on/off indicator light.
Single point temperature control (Temperature only, no
control for heeating and cooling rate and dwell).
Complete accessories are included for for immediate use,
heavy duty graphite crucible
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
and Logo are Welcome ,
Competitive Prices ,

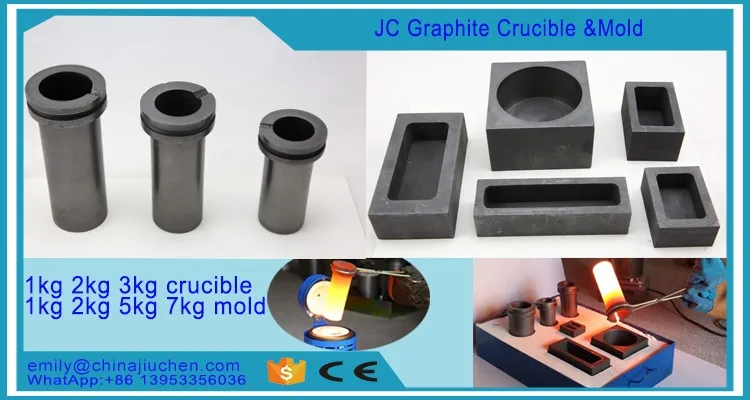

Crucible Size

Note: One furnace standard package including one 1kg crucible.

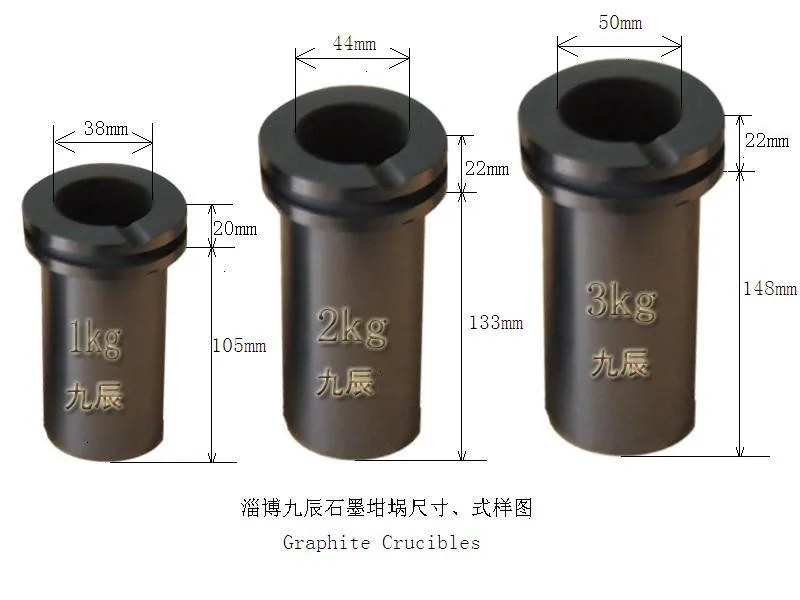

 Dimension Drawings for 1kg 2kg 3kg crucible

One furnace can use 1kg 2kg 3kg 4kg crucible

If you need more crucibles, price is extra.

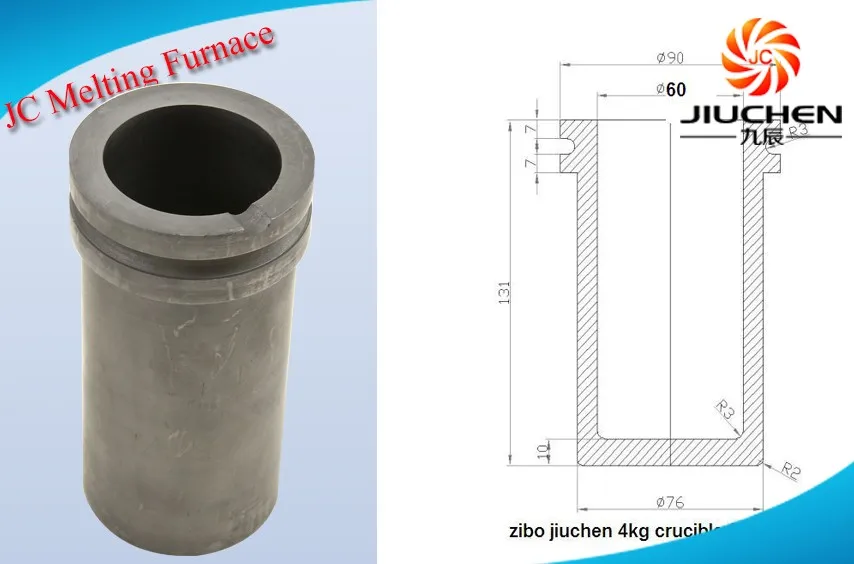

Dimension Drawings for 4kg crucible

Use JC high-quality graphite crucible with the . This crucible has a groove in the rim to accept the specially designed crucible tongs for added safety Use this high-quality graphitecrucible with the Smelting Furnace. This crucible has a groove in the rim to accept the specially designed crucible tongs for added safety.

The crucible consists of pure graphite, and is therefore the first choice for melting furnace, since high heat resistance is ensured. The crucible was formed by turning, thus maintaining the stability of the mineral completely. An outlet notch facilitates the easy pouring and filling of the melt.

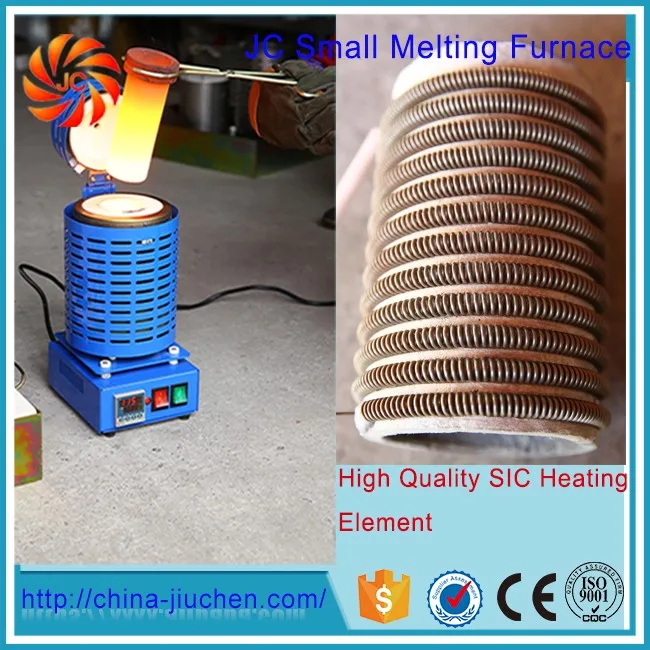

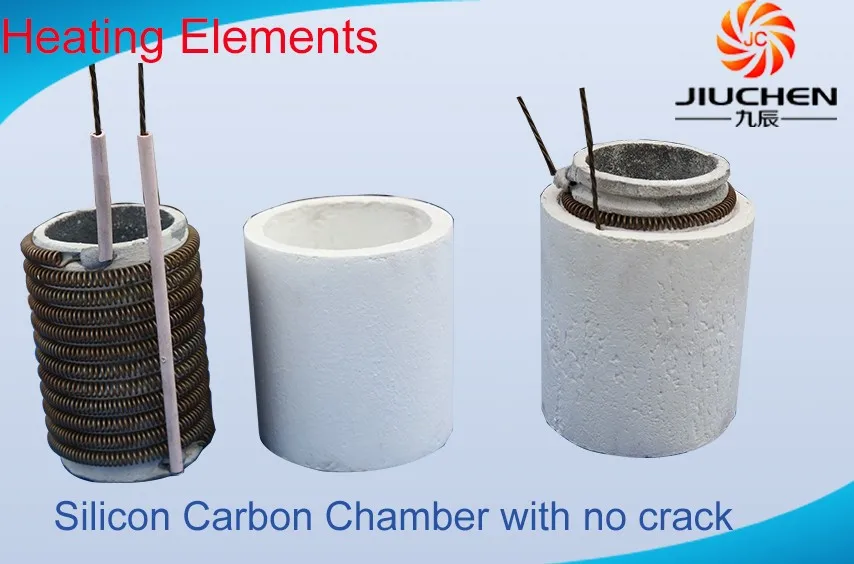

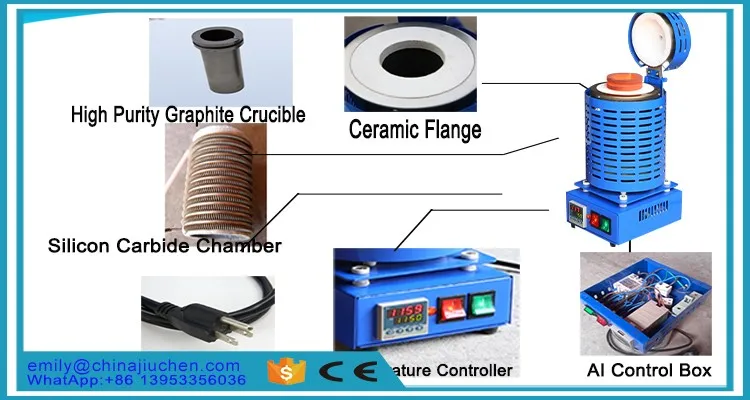

Heating Elements

High Quality Heating Elements
1.It comes with durable construction and made of double walled stainless steel.
2.For enhanced thermal efficiency ceramic fiber is used between outer and inner chambers.
3.The temp is regulated by a microprocessor based digital controller which ensures temp stability of +/-1°C.
4. For safe operation of the equipment, over temperature controller protects the heating elements.
 5.Heating elements are easy to replace, made of international standard quality material and fluxes resistant.

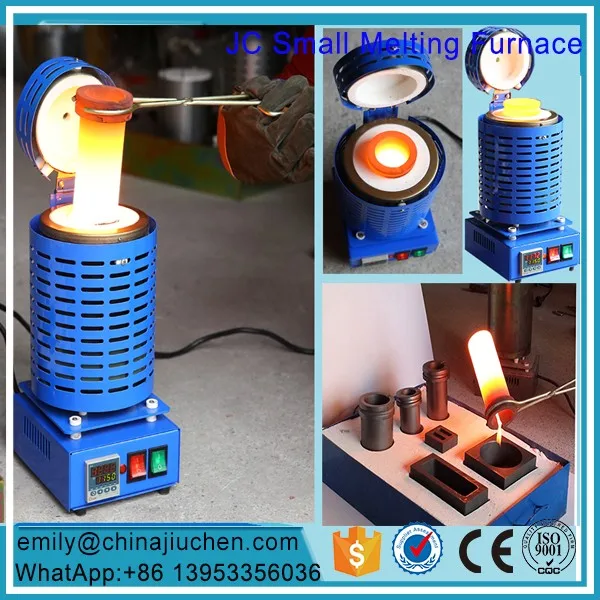

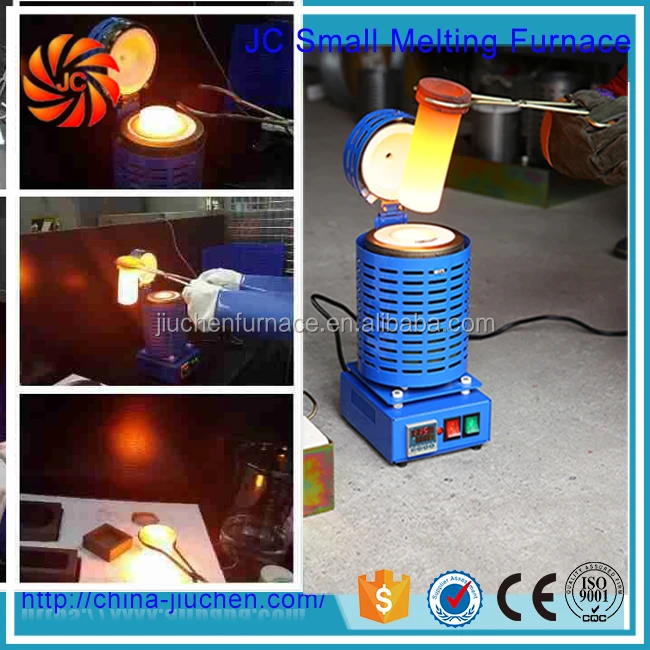

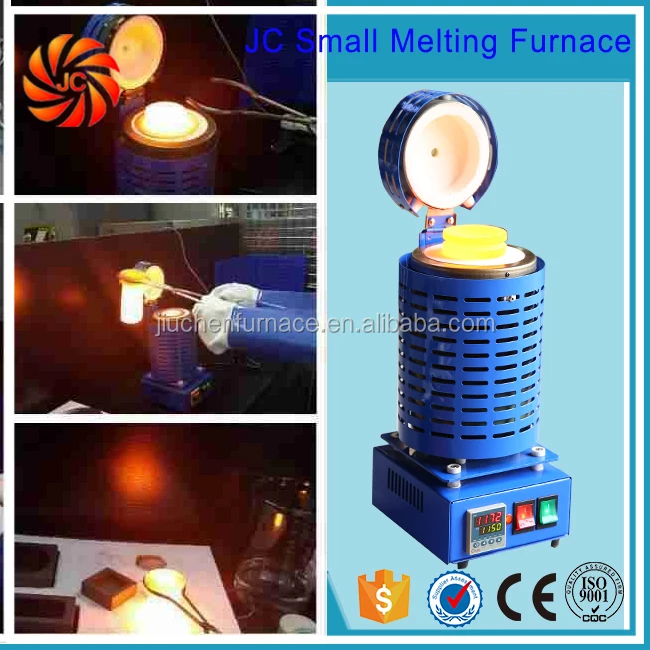

Operation Process

Smelting
1. Open furnace cover, put the crucible by tongs with melting material into the furnace, close Lid.
2. Turn on the red switch, press the red button to start the melting process, the round indicator light will be light. Then the thermostat control melting automatically.
IV. Pour metal liquid process.(Note:Make sure bear on insulating gloves and glasses during operation)
1. After 15minutes, setting temperature is reached.
2. Wait for 5minutes, open the lid with insulating gloves and glasses to check
3. If melted, metal liquid will appear, it not melted, go on melting.
4. Put it on the insulating tray, wait for cooling with 10 second.
5. Pour the melten into the mould, put the crucible in the tray hole.

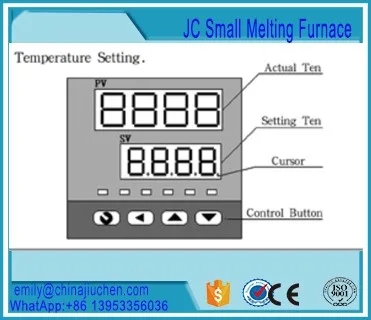

Setting Temperature

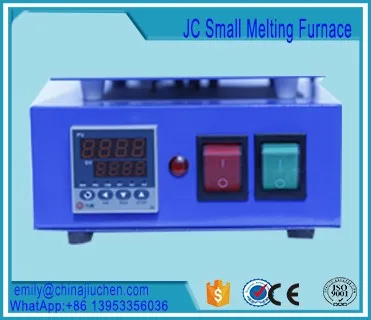

<sub>Be sure the front power switch is in the OFF position, green switch for power supply switch, red switch for heating switch.
2. Connecting the furnace to your electrical supply, turn on the green switch, the top read-out (PV) displays the actual temperature inside the crucible during operation. The bottom readout (SV) displays the setting temperature 1150℃/2102F you enter into the furnace.
The setting temperature suits melting gold, silver, copper etc. The temperature thermostat allows you to set the desired melting temperature between room temperature to 1150℃/2192F.</sub>

Contact Way

Contact Person

Ms.Emily Peng

Mobile &Whatsapp:86-13953356036



Welcome to contact me on WeChat Sweep



Warranty&Delivery

Warranty:One year for temperature controller including temp display,Relay,etc.
Six month for heating elements including chamer,heating coil etc.
Instruction:1.Connecting switch power supply,electricity,light switch is,
2.temperature controller with the digital furnace is slowly rising,
3. in the process of operation,the furnace temperature degrees will spread,user shall not move and
collision,avoid scald and damage,
