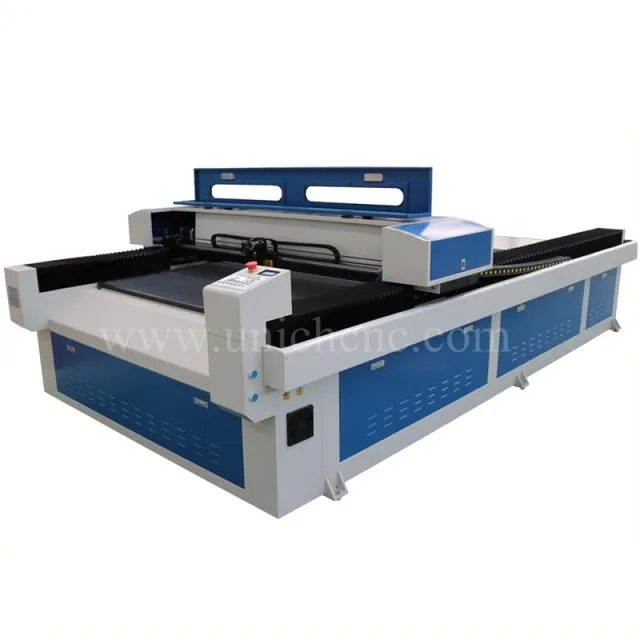

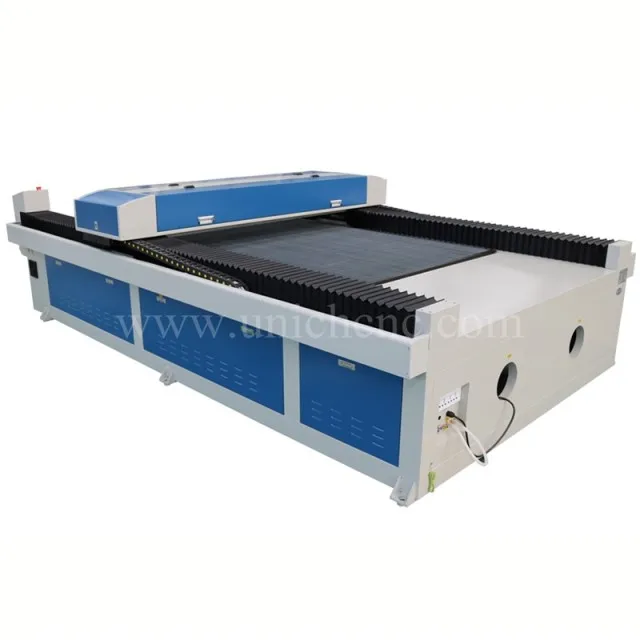

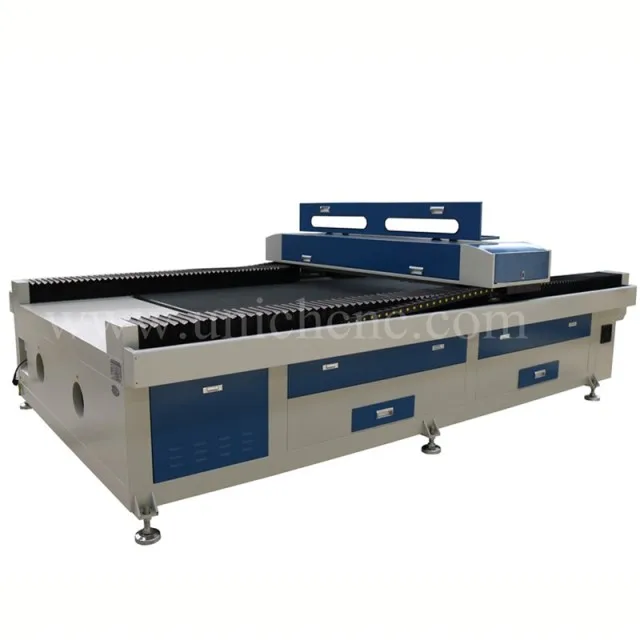

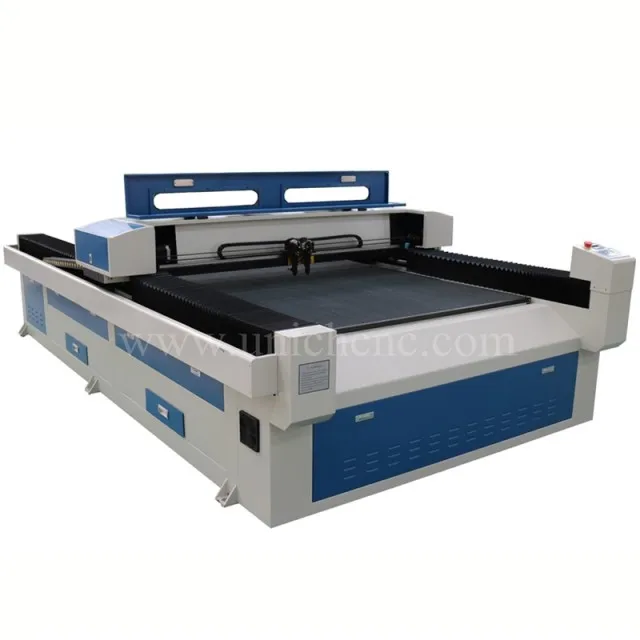

new product Multi-heads co2 laser engraver/acrylic laser cutting machines price
Please contact Rebecca: skype: export01_18
>> Technical Parameters >>
Machine model:

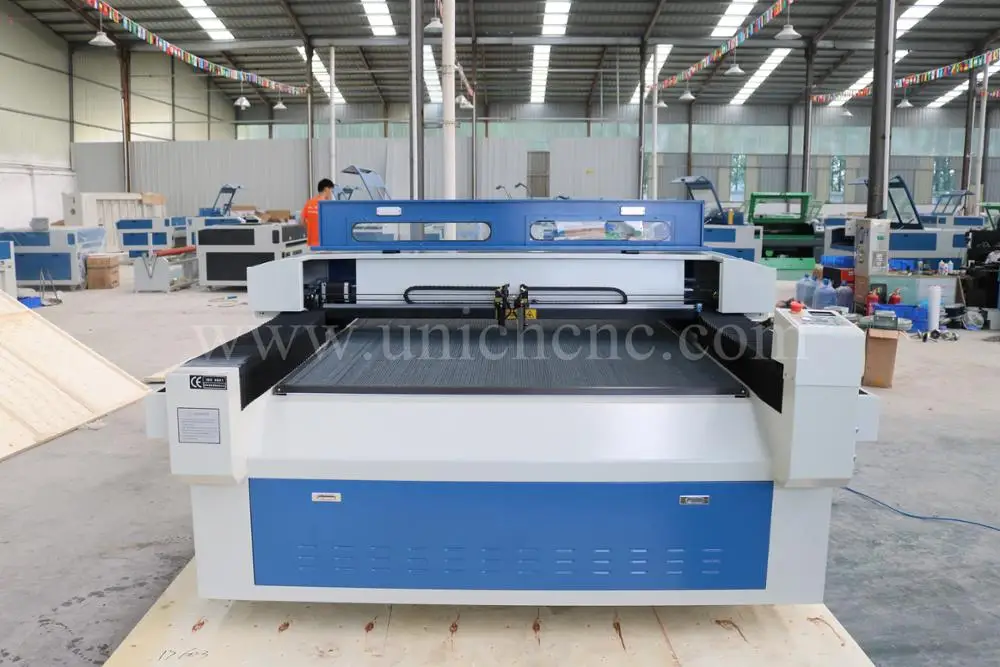

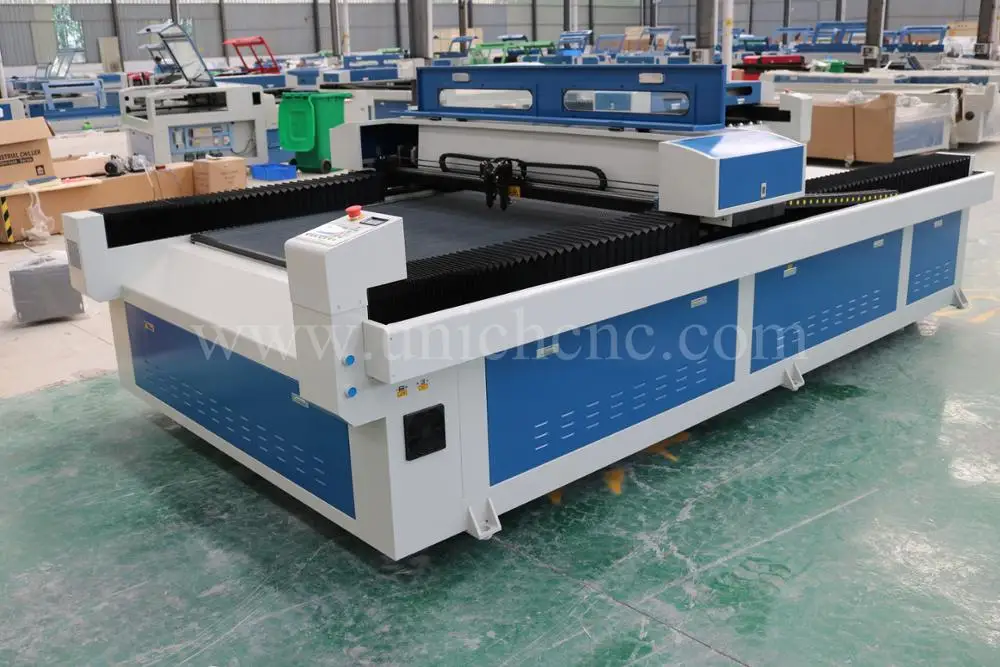

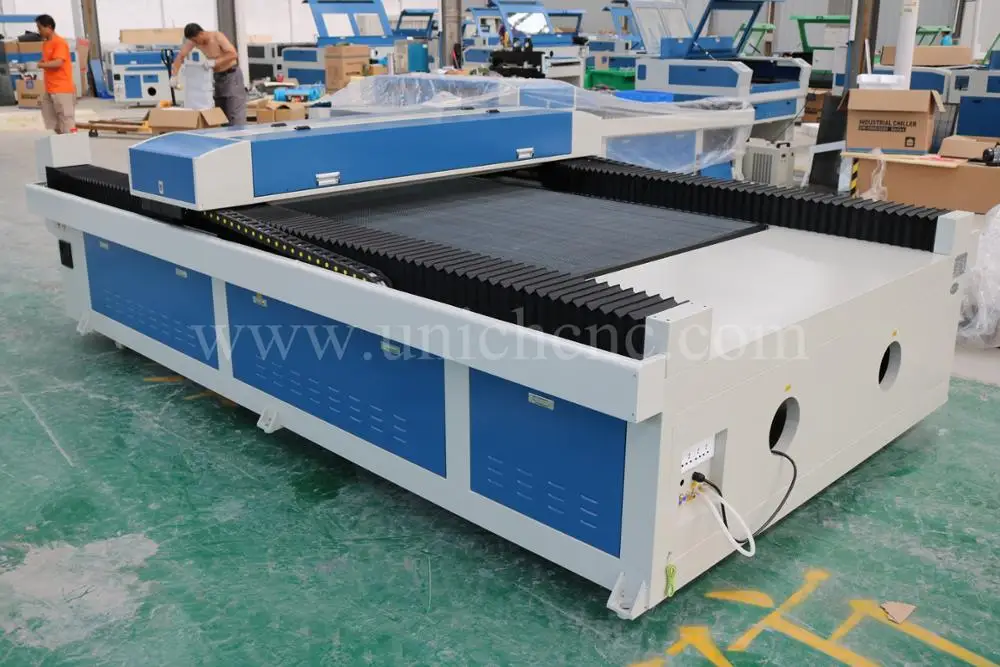

LM-1325 laser cutting machine
Laser type:
Sealed CO2 laser tube, wavelength: 10.64μm
Laser power:
80W / 100W / 150W / 180W
Cooling mode:
Circulating water cooling
Laser power control:
0-100% software control
Control system:
DSP offline control system
Max. engraving speed:
60000mm/min
Max cutting speed:
50000mm/min
Repetition accuracy:
0.01mm
Min. letter:
Chinese: 1.5mm; English: 1mm
Table size:
1300x2500mm
Working voltage:
110V/220V,50~60Hz
Working conditions:
temperature: 0-45°C, humidity: 5%-95%
Control software language:
English / Chinese
File formats:
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc
Applicable industry
Applicable Industries of 1325 laser cutting machine:
Widely used in the line of advertising board, Sheetmetal structure, high and low Voltage elictric cupboard
industry, spare parts of the textile machines, hardware, metal handicraft article, kitchen wares, cars, machines,
elevators, spare parts of the elictric devices, spring pieces, spare parts of the subway and so on.
Applicable materials
Applicable Materials of 1325 laser cutting machine:
Nonmetal materials such as double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic,
garments, paper, leather, marble, granite, tiles and etc.
>> Machine Features >>
1. CO2 Glass sealed laser tube China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.
2. Laser Power 40W~180W, good quality and stable output to extend the laser tube service time.
3. Singapore imported lens and mirrors High transmittance, good focusing, reflecting effect.
4. DSP control system, Leetro Controller, Ruida controller Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. Tiwan Linear guide rails
8. Lasercut 6.1 software or Ruida work 8.0, user’s manual
9. Tool box
Machine parts

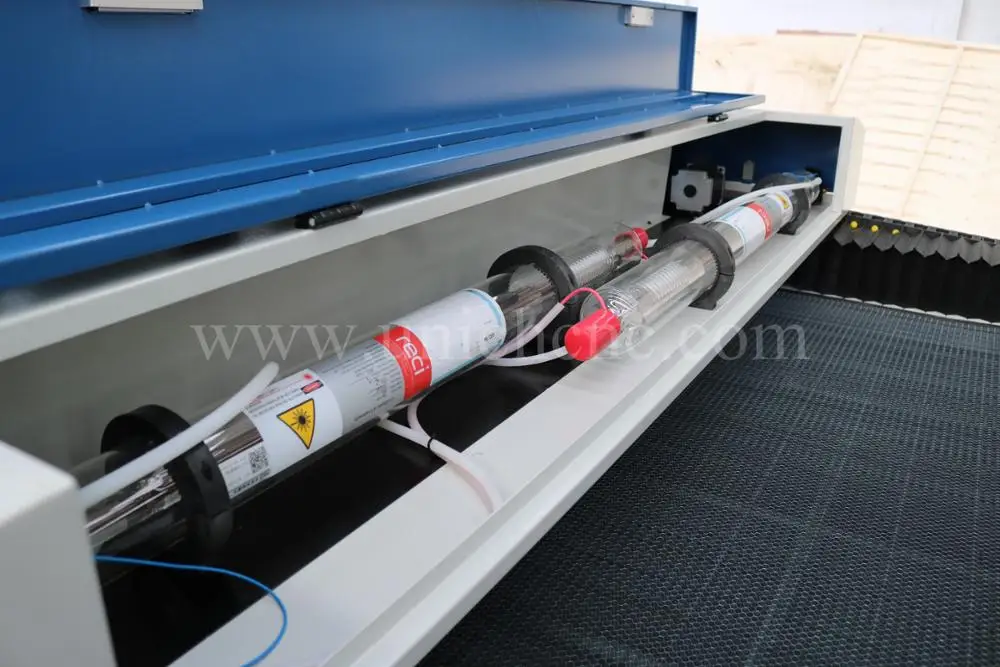

80/100/130/150W Reci laser tube, water cooled by water chiller CW3000/5000/5200
260W Yongli laser tube,wate cooled by water chiller CW6000

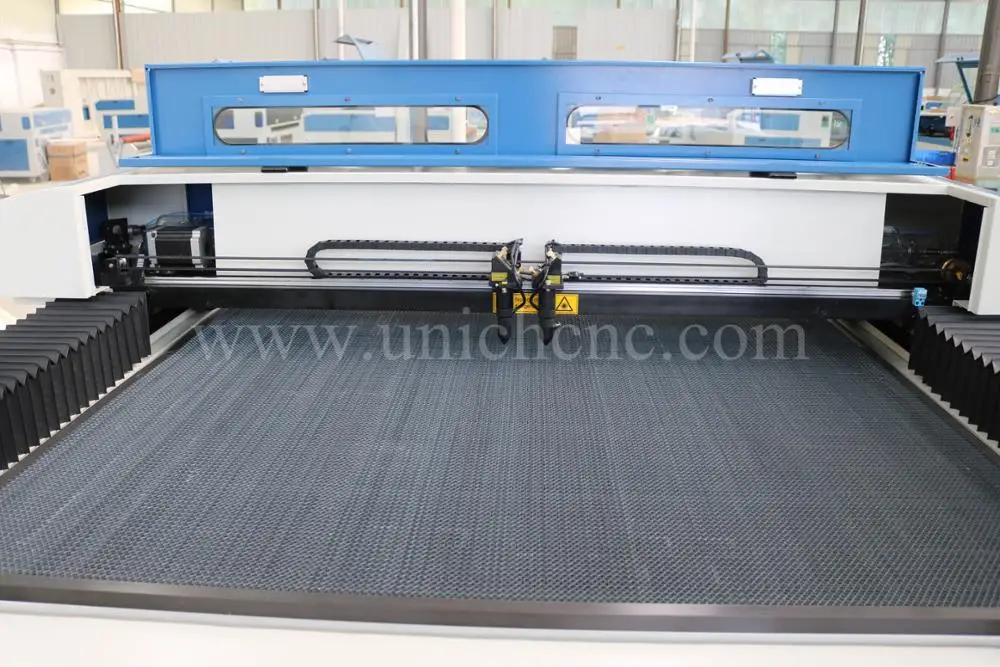

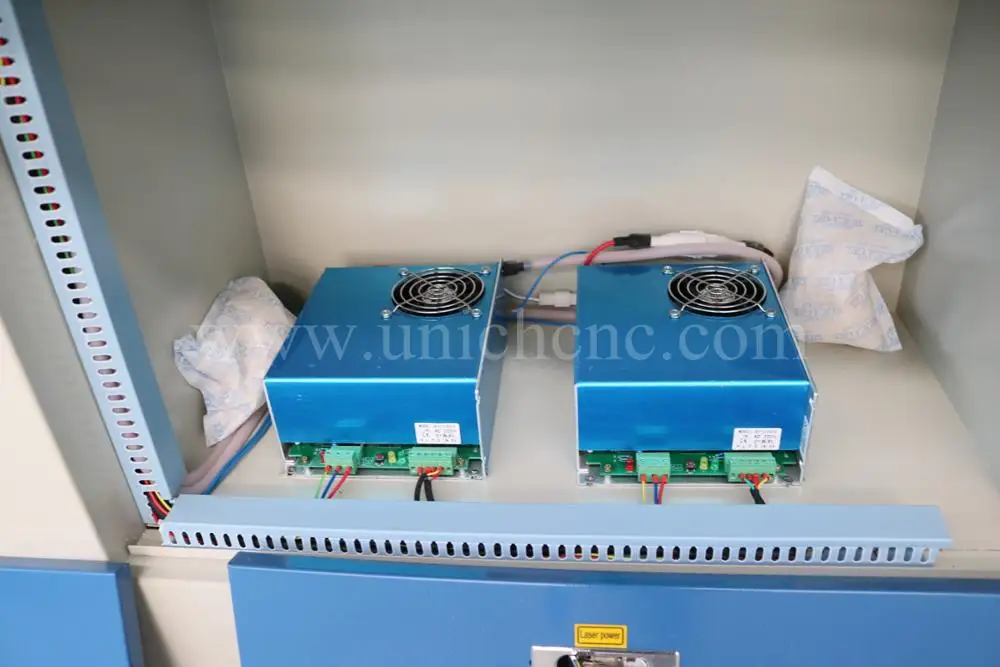

Laser head , laser tube , laser supply

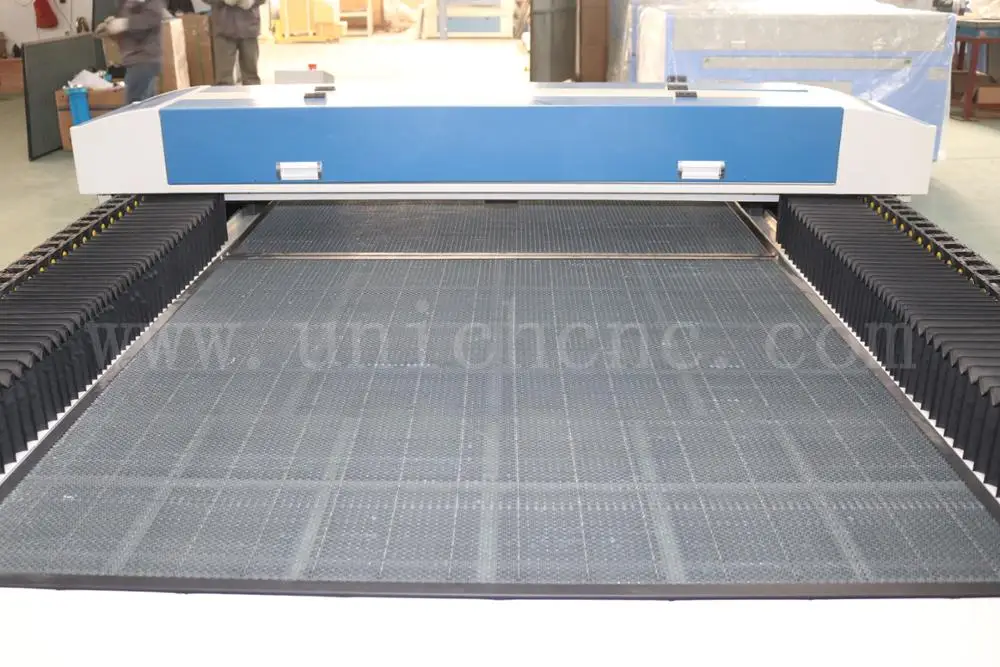

Honeycomb talbe for soft materials (another type of table : Blade table for hard materials )

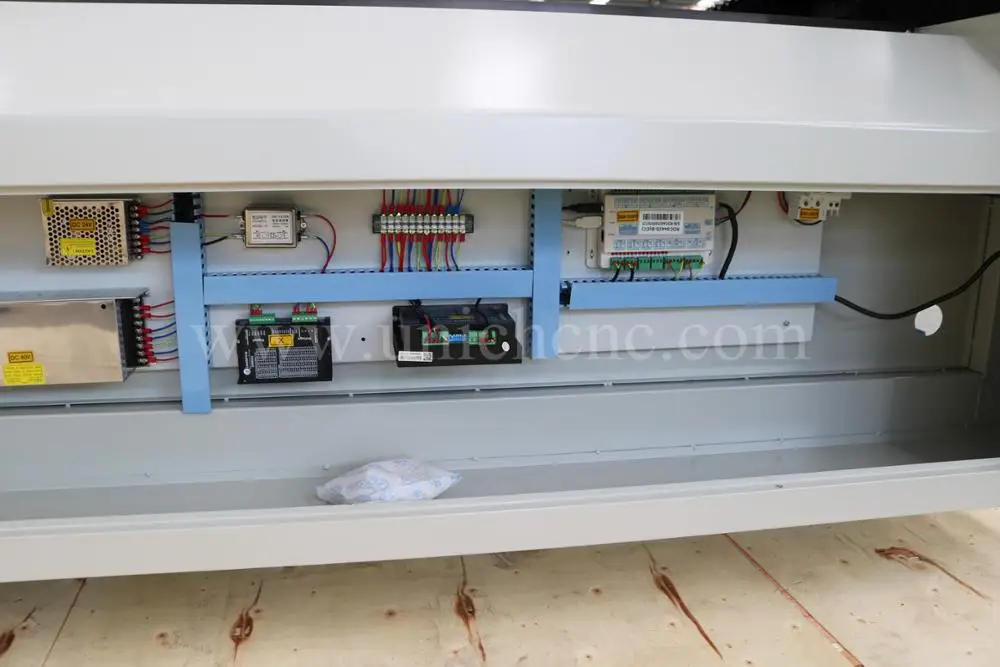

Control box

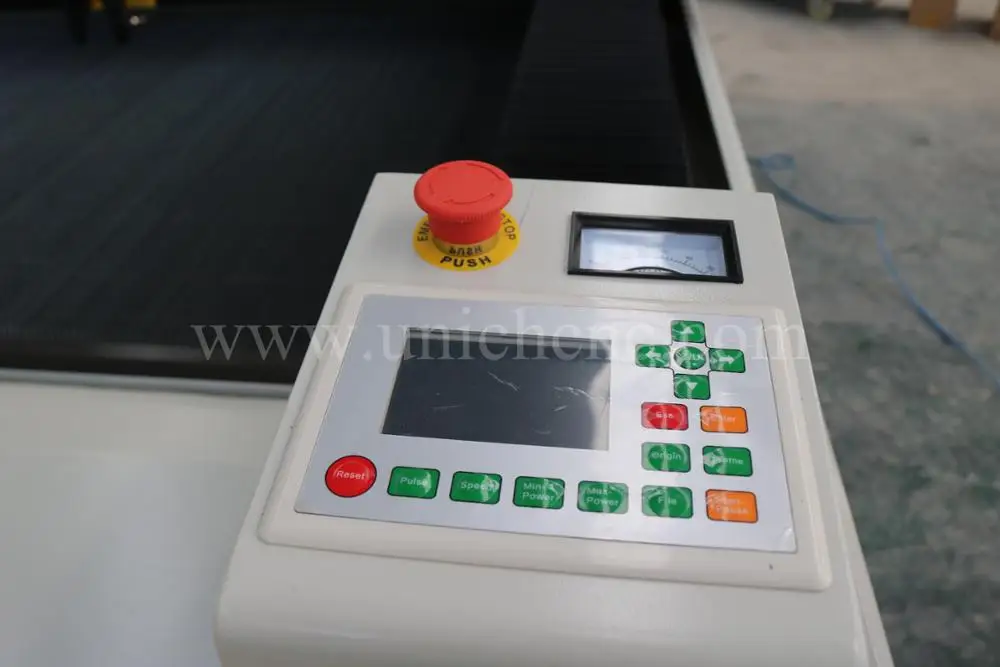

off-line control panel

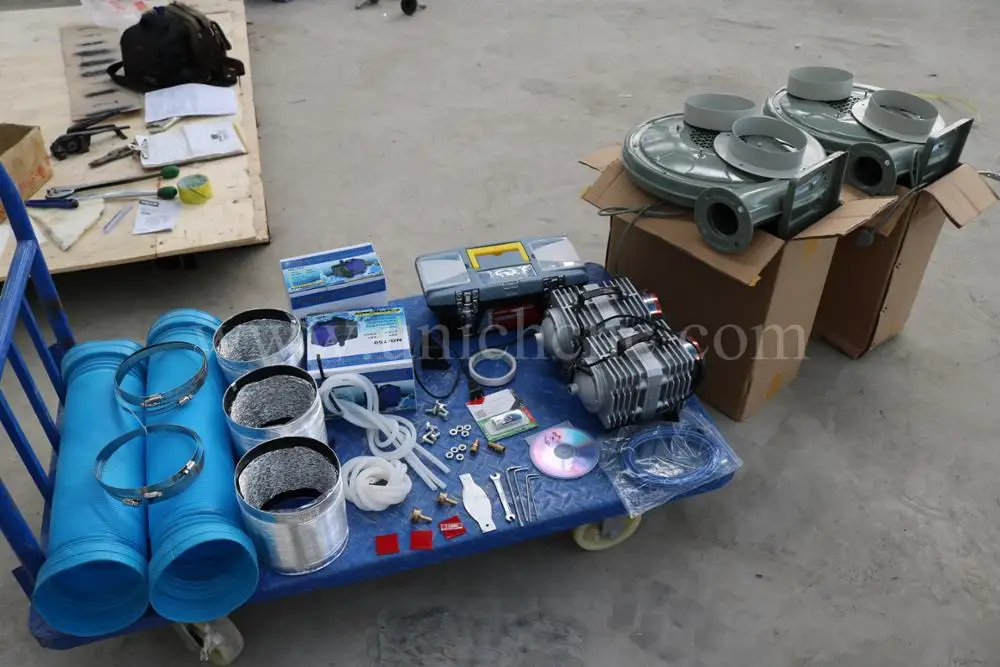

Others parts
Package
Firstly
Packed the laser machine with plastic sheet for clearing and damp proofing.
Secondly
Then put the laser machine in the plywood case for safety and clashing.
Thirdly
Transport the plywood case into the container.
Shipping
Sea Port
We usually shipping your machine by sea, so if it convenient to you, pls tell me your nearest shippin port.
How to protect my order? Trade Assurance is a free payment protection service for buyers. The service is offered by participating suppliers, and is designed to protect your payment
if your order is not shipped on time, or if the pre-shipment product quality (optional) does
not match the terms agreed on your contract. Your payment is protected up to 100% of an
amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
After sale service:
1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant. 4.We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery
7. Our staff can be sent to your company to install or adjust if necessary.
Dear sir,
If you are interested in our products or our services, please do not hesitate to contact me, you will get the best reliable products in reasonable prices here.
Control box
