Underwater Video Camera LED IP68 Fishing 8pcs Mini Camera Night Vision Infrared Underwater Camera CE FCC Rohs DC 4 24V 3rd Eye
- Category: >>>
- Supplier: Shenzhen 3rd Eye Electronics Co. Limited
Share on (60687851073):
Product Overview
Description
IP68 fishing underwater video camera for water well pipe sewer chimney inspection camera infrared camera with long cable for sewer/ endoscope (8 LED/IR850/IR940 lights , 90deg, 520tvl hd )
Product description of underwater video camera:
MCV8 waterproof video camera has 8pcs LED/IR940nm/IR850 lamps and with 0.008Lux excellent night vision. High quality glass cover and durable case design make it as top 10 underwater video camera on the market. It can be widely used as fishing underwater camera, pipe inspection camera, sewer camera, marine camera,deep water inspection camera. It is also can be used in home security inspection. It is a best camera for you to choose for home application or fishing entertainment.
Features of underwater video camera:
>>>>>Max cable 200m<<<<<
- Small Size: easy to install into narrow room and slim tube, etc.;
- Light Weight: easy install without causing unnecessary damage on object surface;
- High resolution, high sensitivity, high SNR;
- Day & night dual mode auto switch;
- Low Illumination, high quality video record function;
- Low Current and power consumption;
- CMOS sensor generation IV+DSP chip offer true color & HD video
Specification of underwater video camera:
| PICK UP ELEMENT | Single chip 1/3 CMOS |
| SYSTEM | NTSC /PAL |
| NUMBER OF PIXEL | NTSC:656(H)×492(V) PAL: 786(H)×576(V) |
| SENSOR DIMENSION | 4.75mm(H)×3.55mm(V) |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines |
| SENSITIVITY | MCV8-LED 8m |
| LENS & VIEW ANGLE | 0.5mm F1.2 / 90 ° |
| LED Control | 1:Light(Default) 2:On-Off 3:Self-Motion |
| LIGHTS SOURCE | 8 White lighting LED lamps |
| VIDEO OUT | 1.0V p-p/75ohm |
| LED Control OUT | 1:AV(Default) 2:On-Off 3:Photosensitive Resistor |
| WEIGHT | 12g |
| SIZE | 18.5*35mm |
| WORK CURRENT | DC5V:70mA(Lamp Off)/185mA(Lamp On);DC12V:35mA(Lamp Off)/ 85mA(Lamp On) |
| POWER REQUIREMENT | DC5-24V |
| OPERATING TEMPERATURE | - 10° C ~ +50°C ,less than 90% RH |
| WATERPROOF RATE | IP68 |

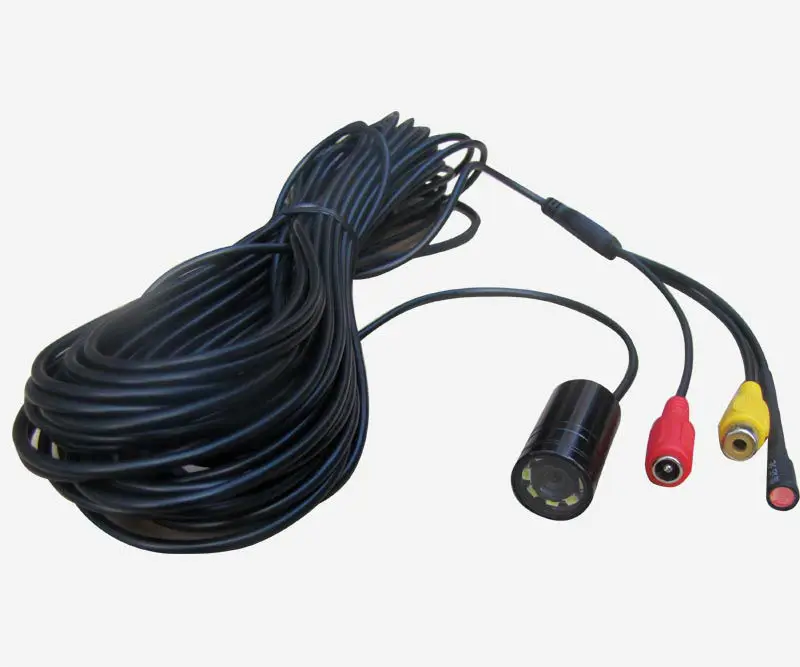

| CABLE LENGTH | Default:0.5m Longest: About 200meters |

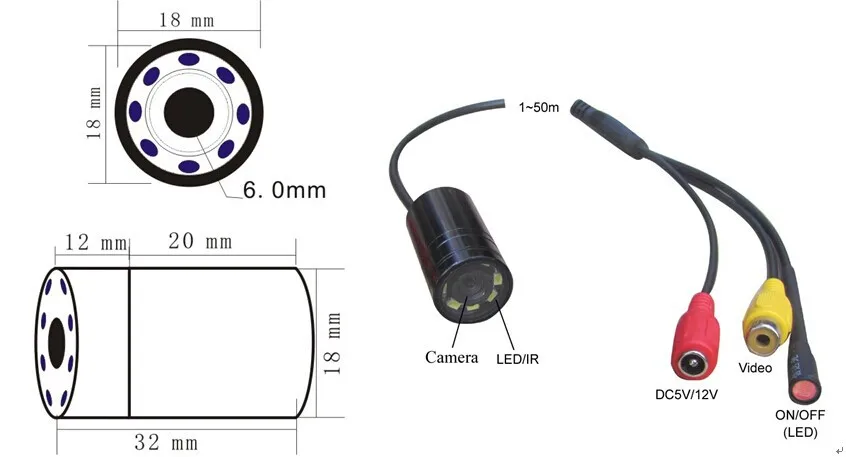

| CONNECTION | PIN1 Red DC5V PIN2 Black GND PIN3Yellow VIDEO OUT |
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care.

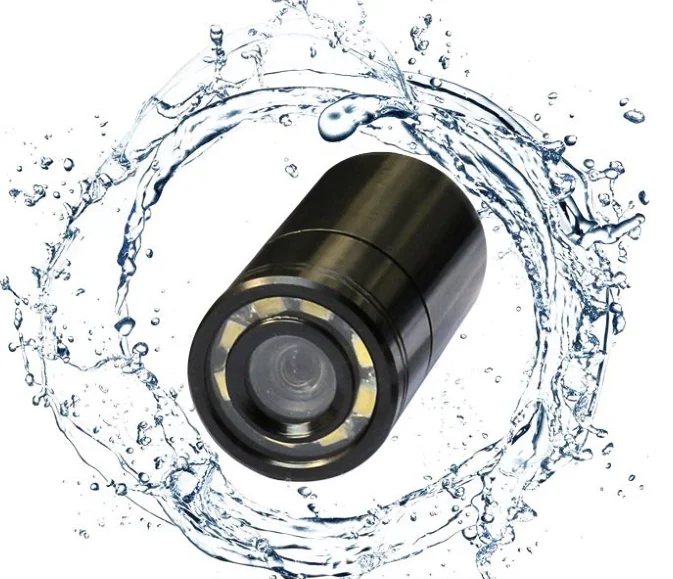

Photoes of underwater video camera MCV8:

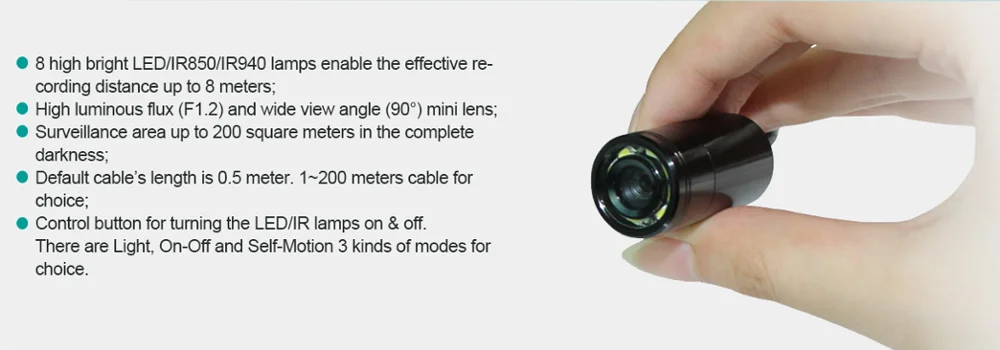

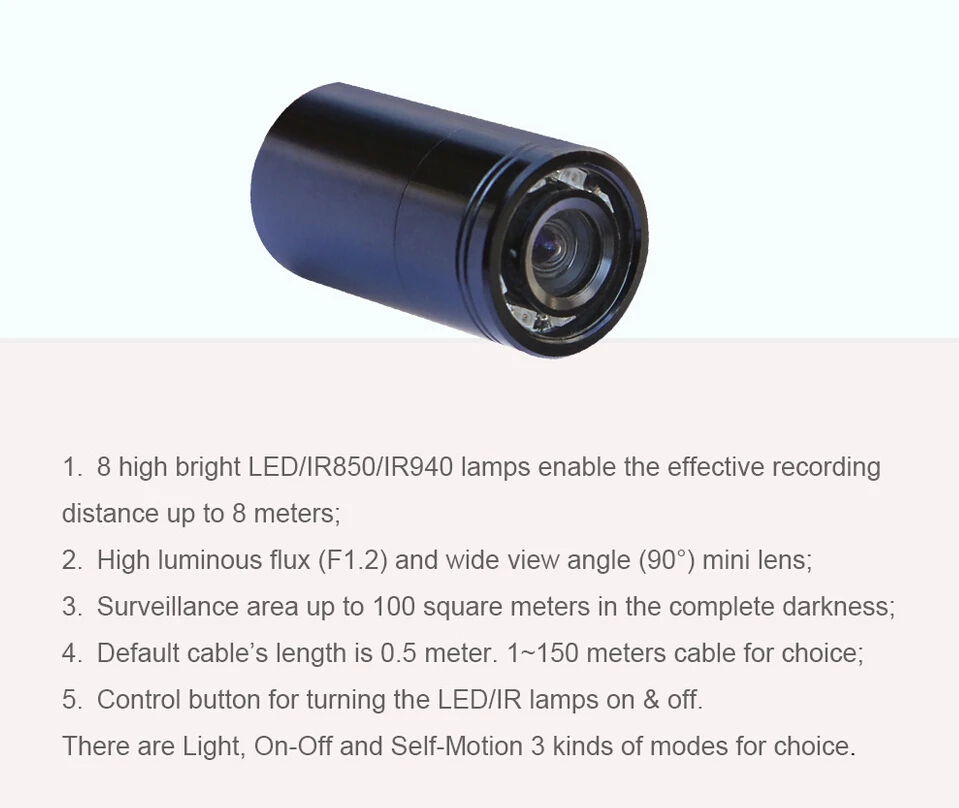

Led control:1)light ; 2) Hand switch; 3)Self motion

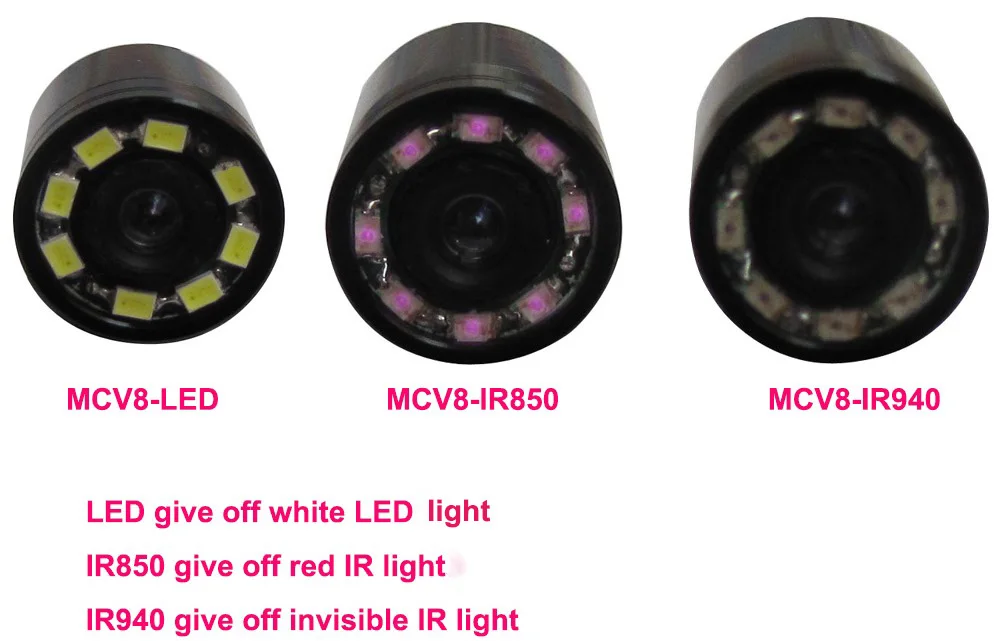

3 kinds of lamps: white LED/IR850/IR940
Please kindly advise which LED control and lamp do you need when place order!
Product details of underwater video camera MCV8:
Package of underwater video camera:
1 x Mini small underwater video camera
1 x User Manual
1 x Power adapter
1 x AV cable
1 x Package box
