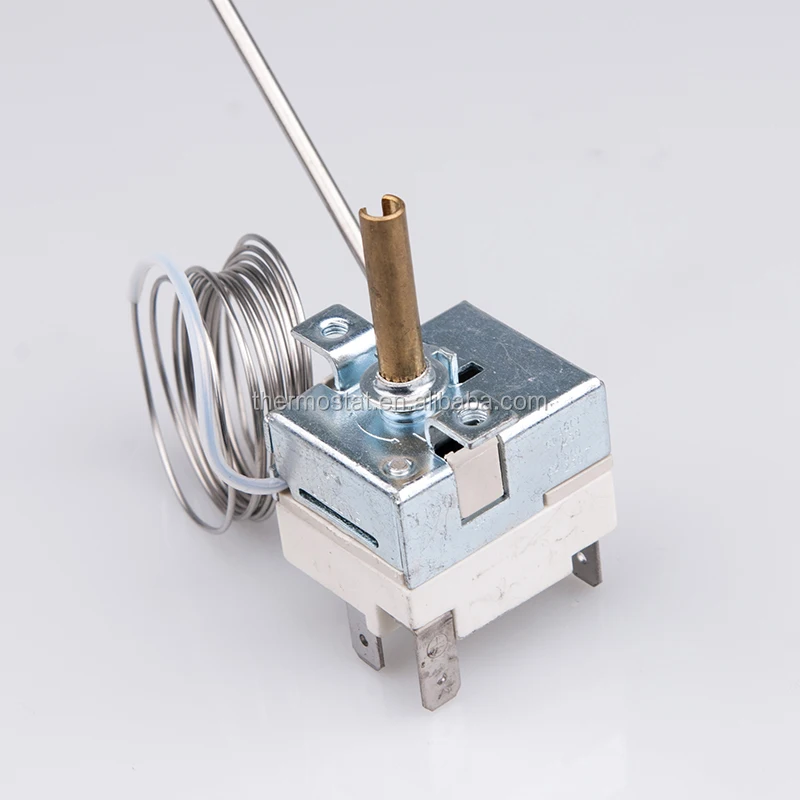

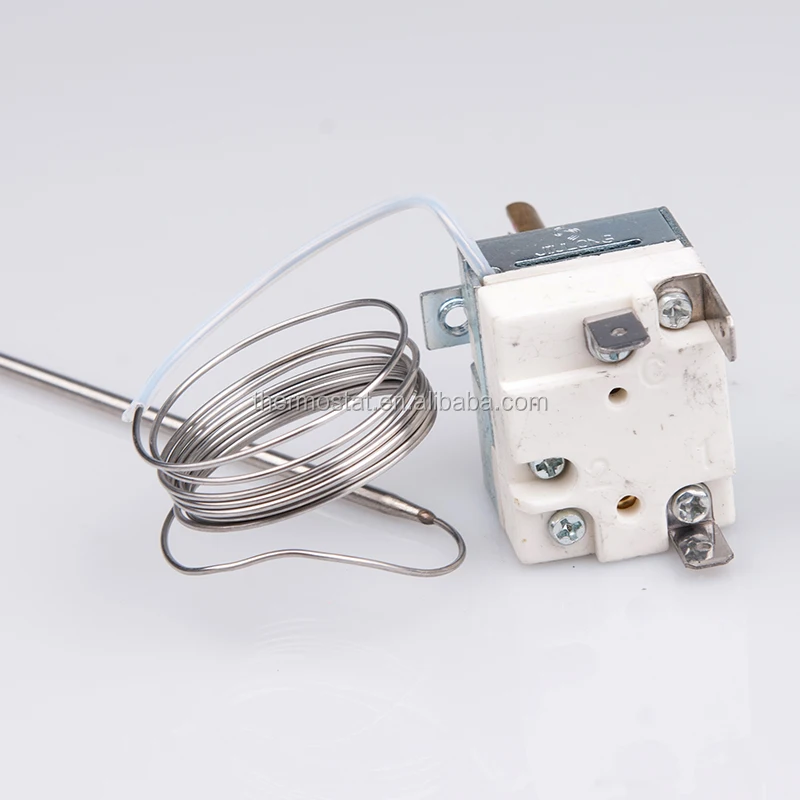

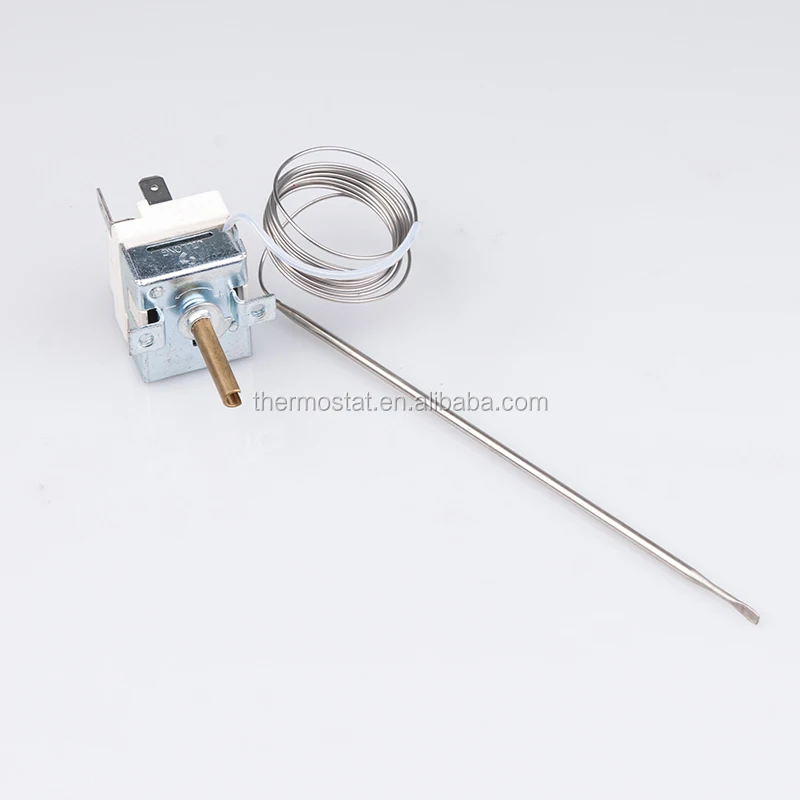

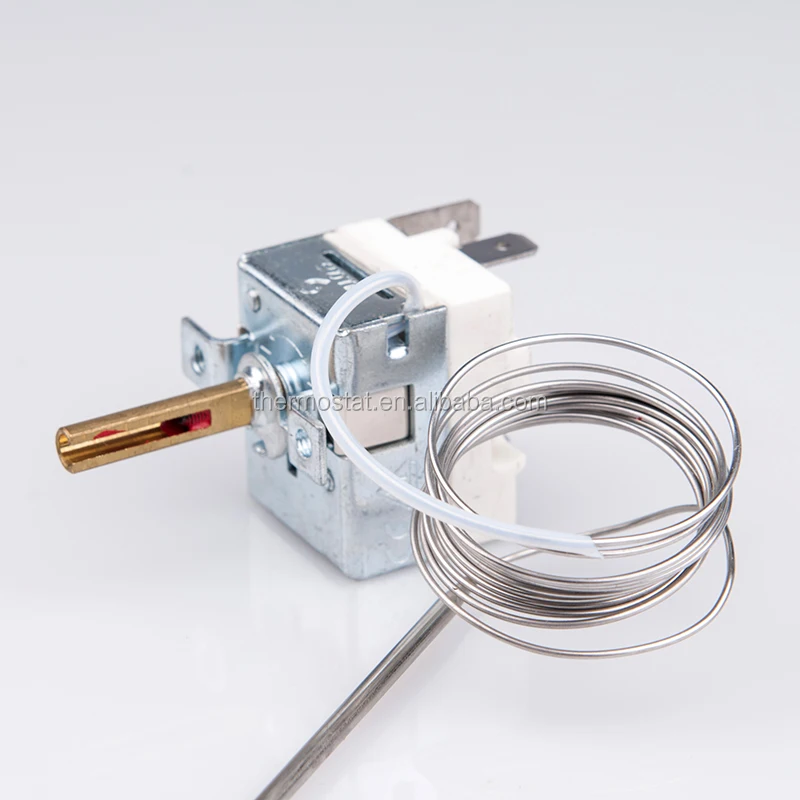

Electric thermostat Jiulong Air fryer thermostat

Product Overview

Description

electric thermostat Jiulong Air fryer thermostat

Specifications

ITEM NO.	H SERIES THERMOSTAT
Temperature Range	-35~320℃
Differential	Customize
Reset type	Auto-Reset
Voltage	250V
Electrical rating/Standard Load	16A
Wiring Diagram	SPST,SPDT
Life of product	100000 times
Breaking Capacity	1800V/min
Maximum ambient temperature	150℃
Insulation Resistance	100MΩ
Contact Resistance	50mΩ
Diameter of Sensing Bulb	φ3~φ8
Direction of Terminal	Customize
Length of Capillary	Customize
Material of Capillary	Stainless Steel/Copper
Material of Sensing Bulb	Stainless Steel/Copper
Material of Terminal	Stainless Steel/Copper







Installation Remark:

1.    when installing, the whole capillary need to be close tightly to the surface of the temperature control part, so that it will control accurately.

2.    The capillary can not be crimped by pressure when installing, in case effecting its function.

3.     Please protect the thermostat from entering electrically conductive gas or other conductive substance, and pls do not contaminate the surface, in case effecting the insulation resistance function.

4.     Be careful to carry the switch box, as it's ceramic body.

5.     Capillary bend radium minimum:5mm



Purchasing Remark

1.    The shaft size and its rotary angle could be designed by by customers.

2.    The control temperature and performance characteristics could be up to the Specific products and temperature control matching test.

3.    Please kindly send us your drawing with detail requirement, our engineer team will design accordingly for you.
