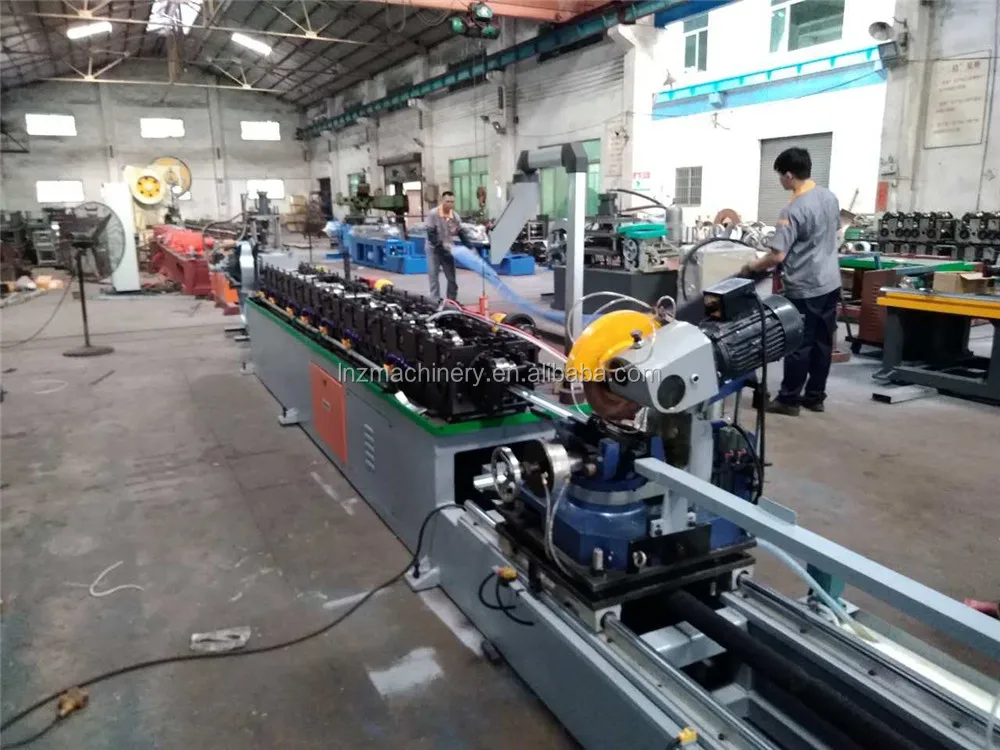

LMS DUCT TDC flange Roll forming machine

Product Overview

Description



T20 FLANGE FORMING MACHINE SPECIFICATION



WORKING PROCESS
Decoiler— Roll forming — Straightening — Automatic Cutting — Flange product







PARAMETER



Raw Material: Galvanized Steel
Material width:Need to test it after the machine is ready, then we can confirm
Material thickness: 0.6-0.7 mm
Decoiler Loading: 10,00KG
Total Power: 5.5KW
Speed: 6-8 meters/minute
Power Supplier: 380V,50Hz, 3Phs

Coiler  1 SET

(1) Material Diameter: Ø 1600mm
(2) Material Width: 230mm
(3) Max. Coiler Inner Diameter : Ø 460 – Ø 650 mm
(4) Expansion mold: Manual with brake system
(5) Max loading capacity: 1000kg



Roll Forming

(1) Rollers: 15 Sets
(2) Side Wall: 25mm
(3) Base Plate: 16mm
(4) Roller Material : Cr12Mov with heat treatment HRC58-60℃
(5) Main Shaft Diameter: Ø 38mm
(6) Upper shaft: 6206
(7) Down shaft: 6207
(8) Feeding : With guild wheel
(9) Motor: 3kw
(10) Drive Mode: 250 Reduction gear box
(11) Straighten Roller: 1 set

(12) Cutter: HSS
(13) Cutting mode: material stops then cuts
(14) Cutting power: 1.3/1.8kw
(15) Length control: photoelectricity
(16) Length tolerance: ±0.5mm
(17) Run Out Table: 6 meter steel channel

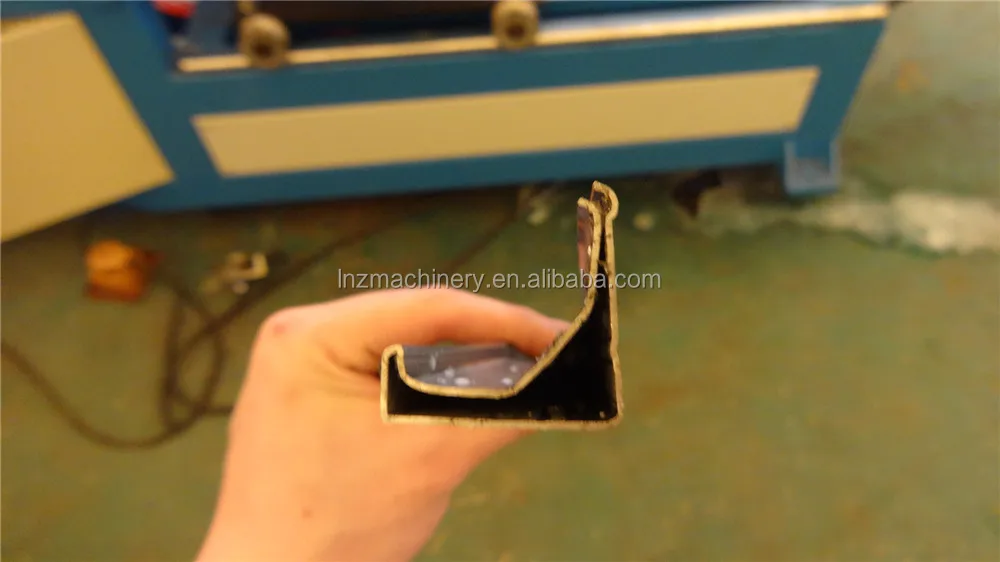

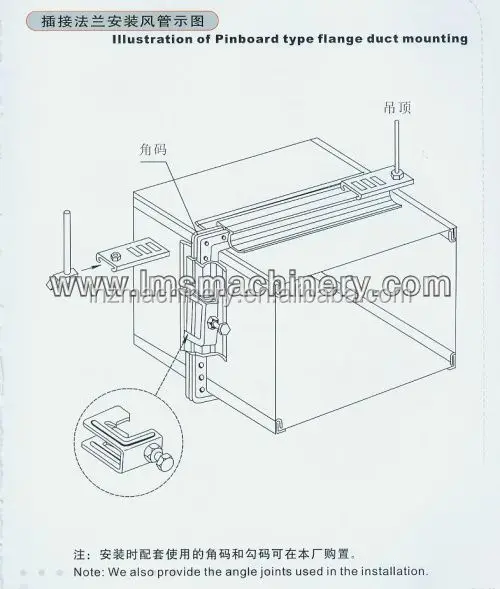

(18) Finished Flange: Neutral, without any mark
(19) Precision: According drawing,flange and corner from customer
