Aluminum Alloy Frame metal greenhouse rolling benches for Agricultural Greenhouse

Product Overview

Description

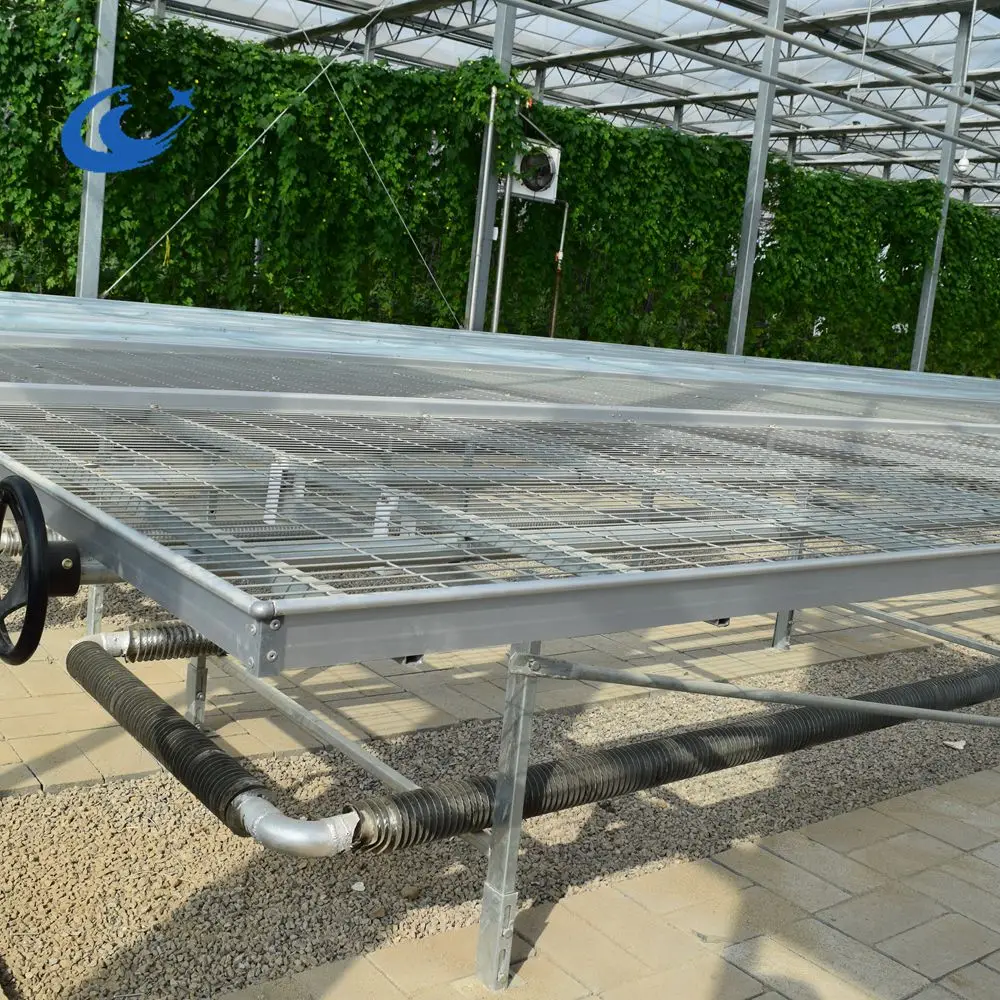

Greenhouse wire mesh rolling bench is designed to cut labor, increase greenhouse service efficiency and prolong its service life. Our rolling benches are designed for in-ground installation and used for saving space in high production process. Overall it offering superior strength and longevity.

The standard size of movable wire mesh seedbed is 2.5m×1.65m×0.75m(L×W×H), and customization is also acceptable according to your requirements. Generally the aperture of movable seedbed is 130 mm × 30 mm (L × W), and the position of seedbed could be fine-tuned by hand-wheel.

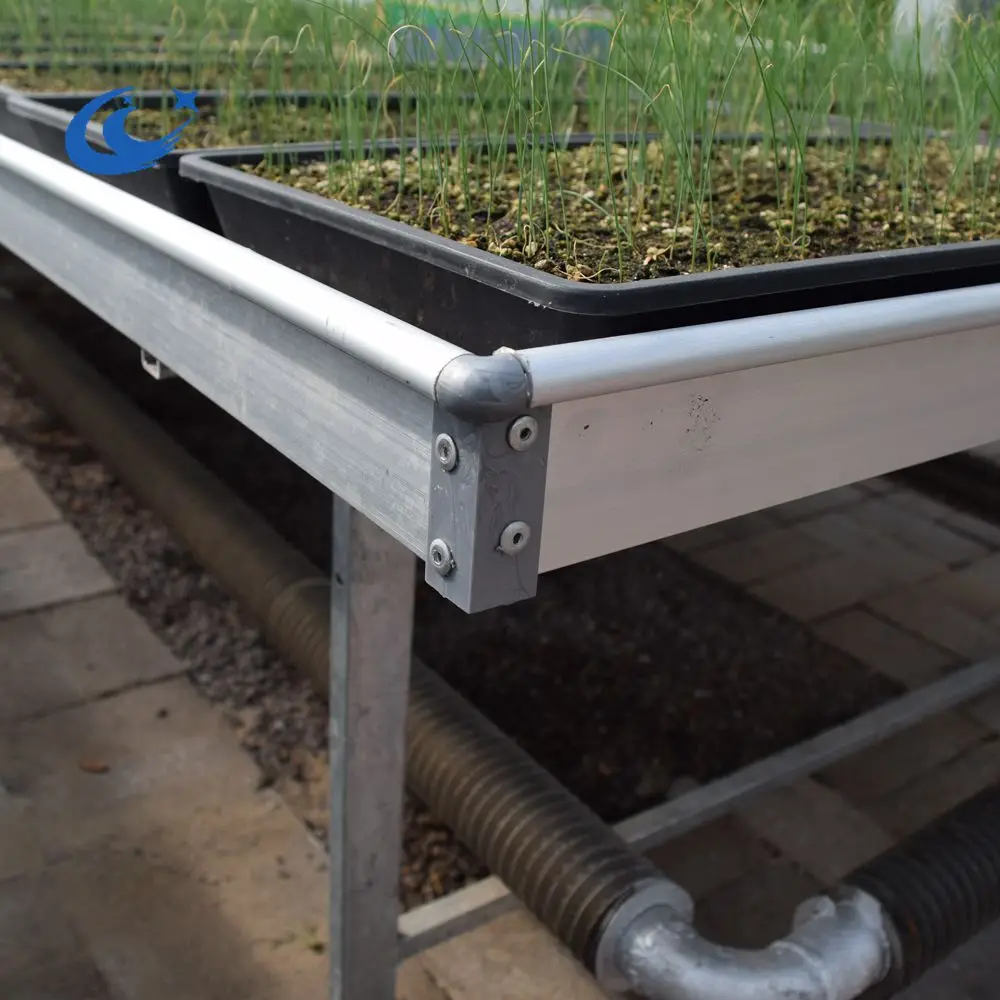

1. Manual drive, easy operation and movement. High quality aluminum alloy frame. The surface treatment of steel pipes, bracket and seedbed networks is hot dip galvanizing, which particularly suitable for hot and humid environment greenhouse.

2. The range of trimming is 30cm, which can make the utilization of greenhouse area upon 80%.

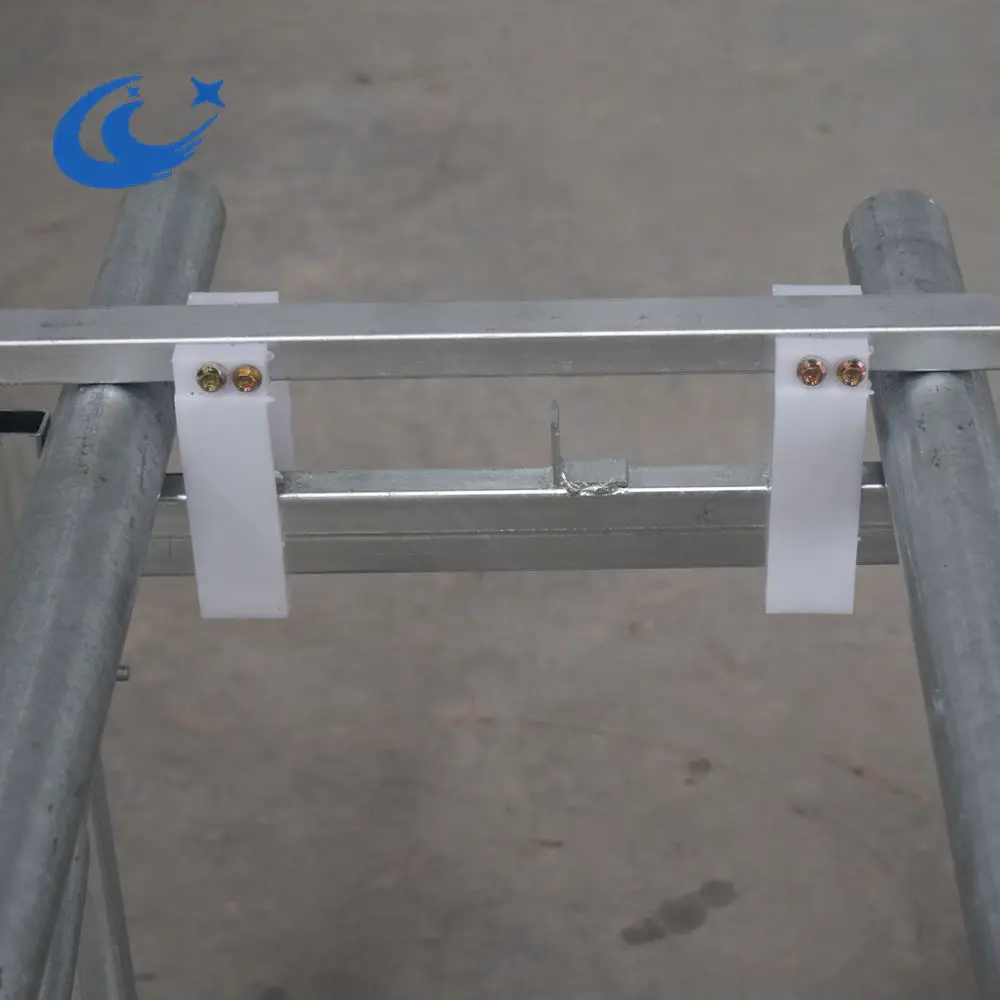

3. Anti-tilt device prevent the inclination problem caused by the plants weight.

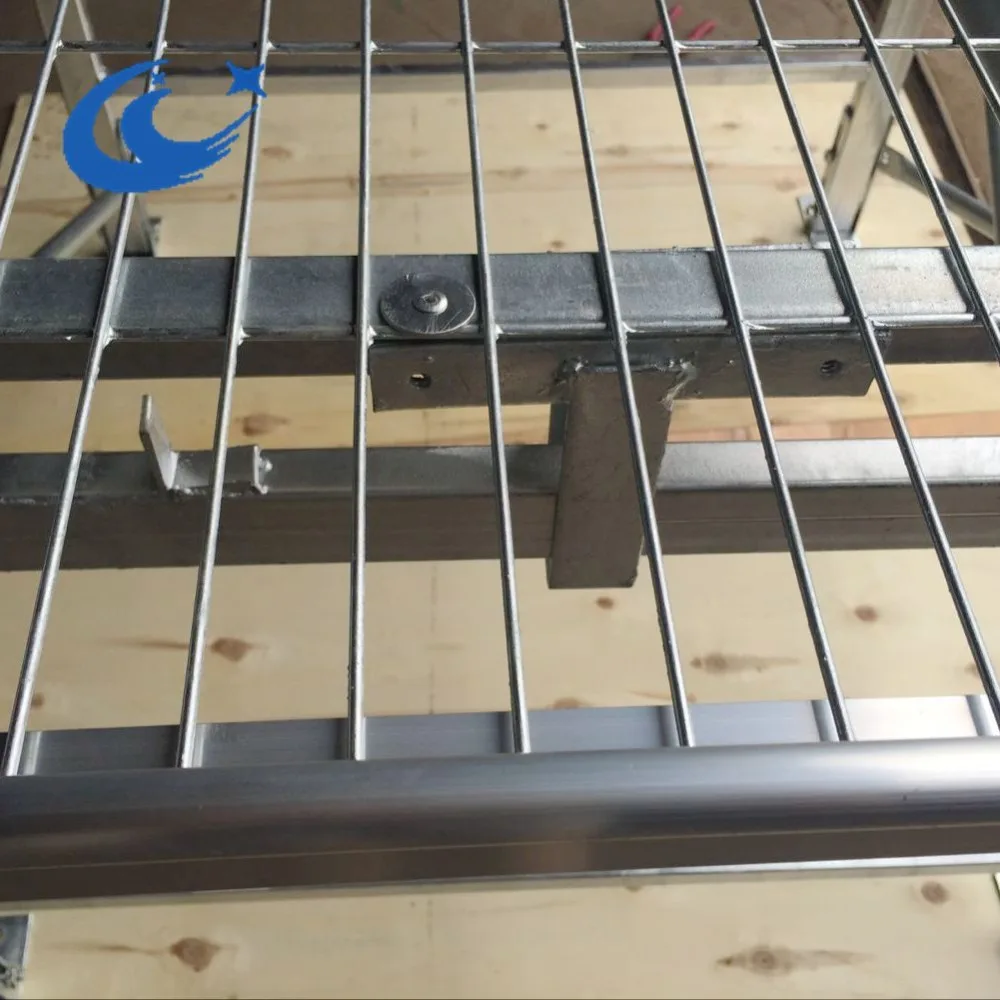

Wire Mesh Top Panel
Wire Diameter	3.0mm×3.0mm, 3.2mm×3.5mm, 4mm×3.0mm
Mesh Size	120mm×25mm, 130mm×30mm, 125mm×50mm, 50mm×50mm
Surface  Treatment	Hot dip galvanized

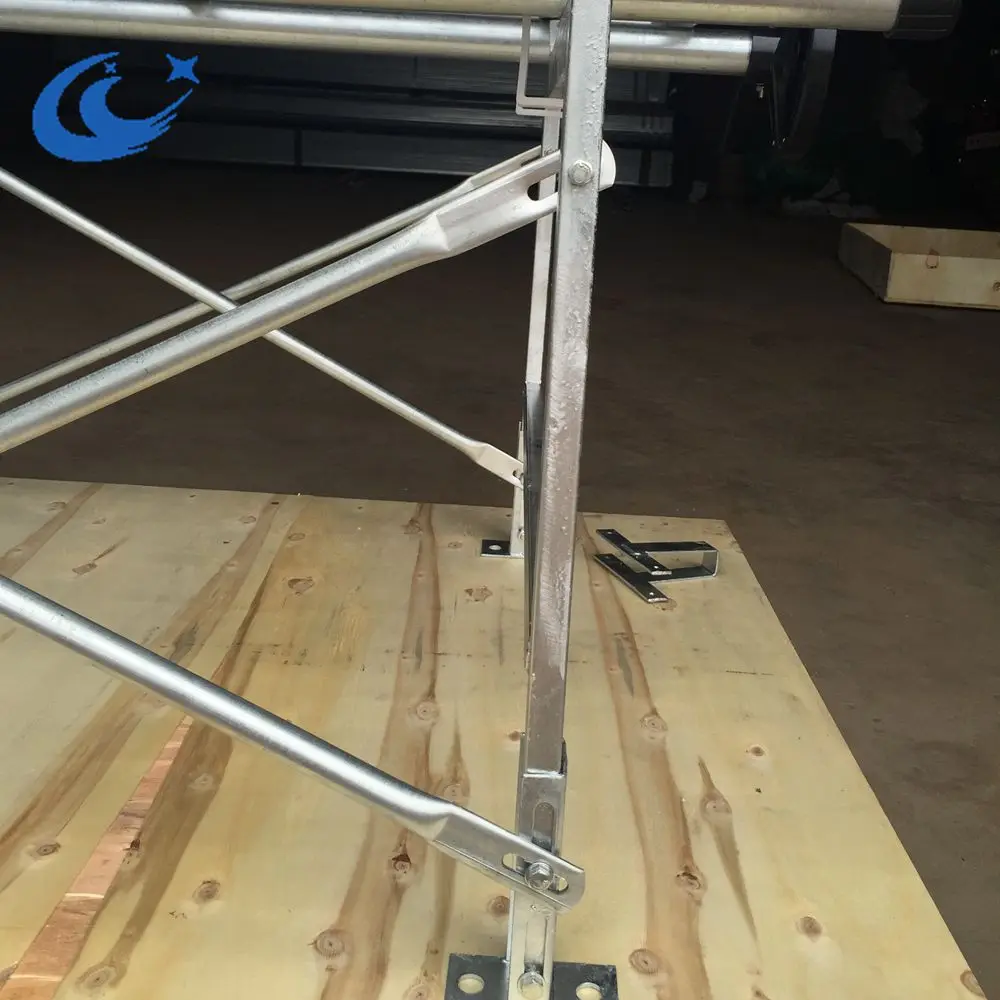

Steel Rolling bench
Height	60cm (can be change between 60-65cm)
Width	Max width 2.5m, can be customized according to the customer’s requirements.
Length	Max length 30m, can be customized according to your needs
Load Range	50kg/m2
Surface Finish	Hot dip galvanized
