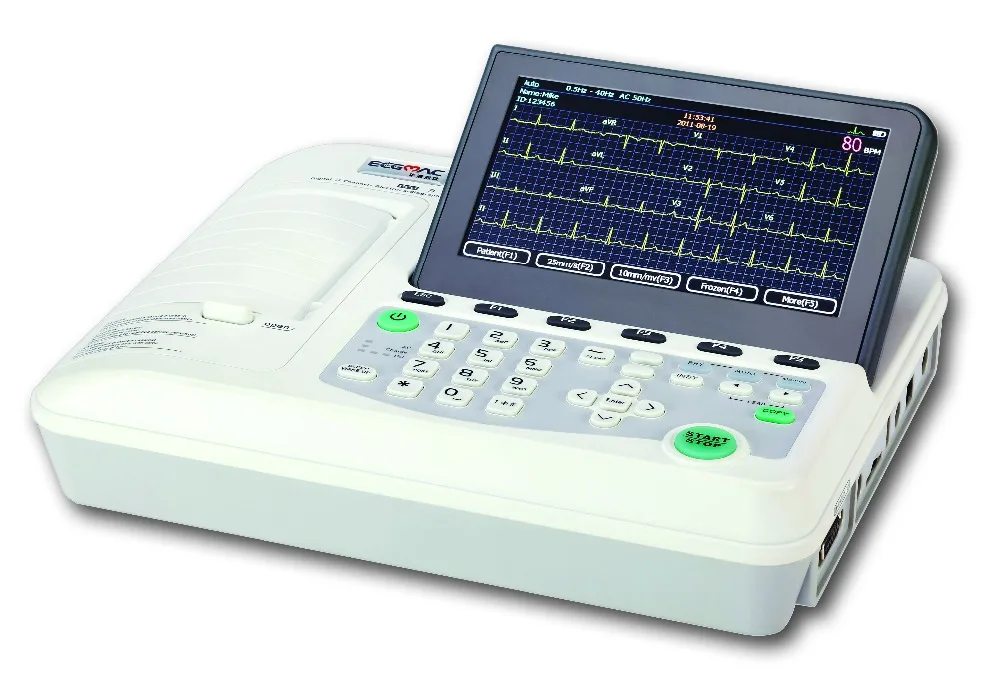

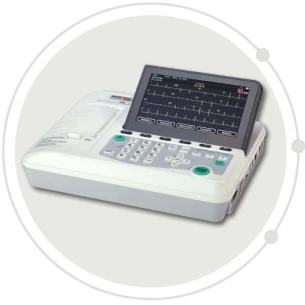

Vet ECG for animals veterinary ecg machine

a) Model……….. EM-310

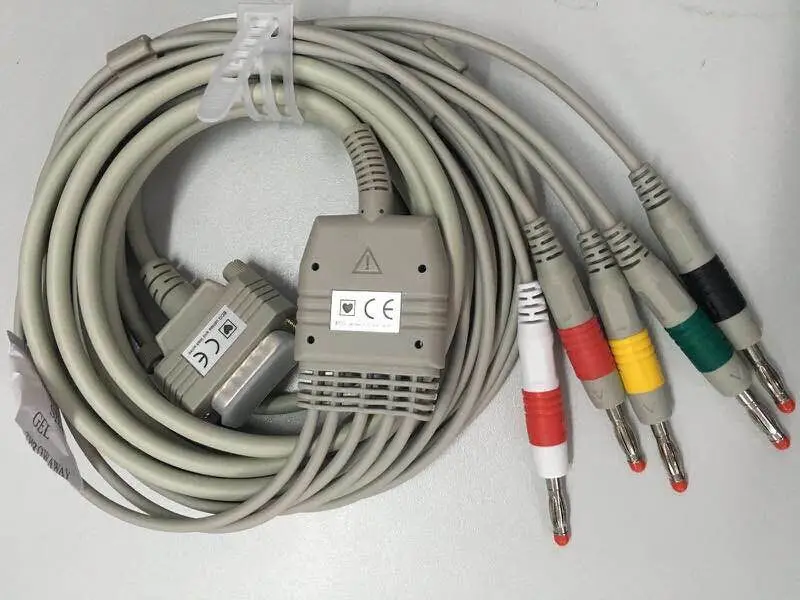

b) Leads…………Standard 3 leads

c) Input Circuit……….. Floating ground inputting with anti-defibrillation protective circuit

d) Acquisition Mode: ……….. Simultaneous 3 leads acquisition

e) Inputting Circuit: ………..≤0.1μA

f) Display: ……….. 7 inch TFT color screen

g) Storage……….. Bulit-in 8G SD card 20000 reports （optional）

h) Filter ……….EMG filter: 25 Hz / 35 Hz / 45 Hz (-3 dB) AC filter: 50/60 Hz ≤ -20 dB

i) Recording Modes: ……….. Manual: 1 CH, 2CH, 3CH ,Rhythm, Automatic: 3*2+1

j) Inputting Impedance……….. ≥50 MΩ（10 Hz）

k) Animal Leakage Current………..＜10μA

l) Time Constant………..≥3.2s

m) Paper Speed……….. 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s （±5%）

n) Frequency Response……….. 0.05～150 Hz (-3 dB)

o) Noise Level……….. ≤15 μVp-p

p) Standard Sensitivity……….. 10 mm/mV±0.2 mm/mV

q) Sensitivity: ……….. 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV，(±5% )

r) Calibration Voltage……….. 1 mV±5%

s) CMRR……….. ＞98 dB

t) Power Requirements: ……….. AC:100～220 V, 50/60Hz, 30 VA～100 VA

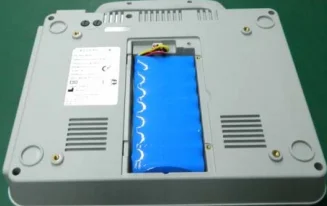

a) DC: 14.8 V/2200 mAh

u) Safety Level: ……….. Class I, type CF

v) Recording Paper……….. 80mm*20m

w) Dimension: ……….. 310 mm×244 mm×65 mm

x) Net Weight……….. 2.25 (not including battery)
