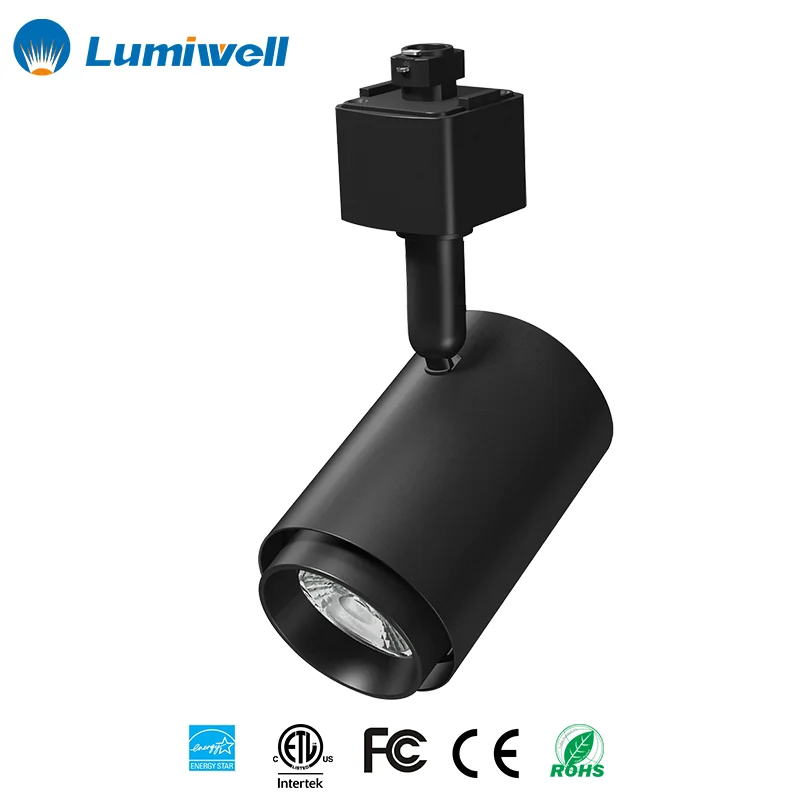

Energy Star ETL DLC High CRI 95Ra Dimmable COB LED Track Light Head With Track Rail
- Category: >>>
- Supplier: Shenzhen Lumiwell Lighting Co. Ltd.
Share on (60687919729):
Product Overview
Description
Product Description
Product Introduction
The Energy Star ETL DLC approved 95Ra dimmable COB LED track light head is inspired by Action Movie Star Bruce Lee's "BE LIKE WATER". The water-drop design is unique and patented, which is beautiful and self-cleaning. Nearly 50% energy saving compared to ceramic metal halide due to the high efficacy over 90lm/W. CRI82 and CRI95 options and within 4-step MacAdam ellipses offer high quality lights for high end application, such as clothing stores, shoes stores, jewelry stores, museum and showroom.
Main Features
1. LM80 qualified CREE COB LED, no shadow, strong penetrability, anti-glare, 95lm/W
2. Integral driver, isolated circuit
3. Smooth dimming range from 100% to 10%, and compatible with most dimmers, such as Lutron, Leviton, Smart Home, Arctic Lighting etc
4. Over 0.95PF, high CRI 82/95Ra
5. Can point almost anywhere with 350 degree rotation and 90 degree pivot

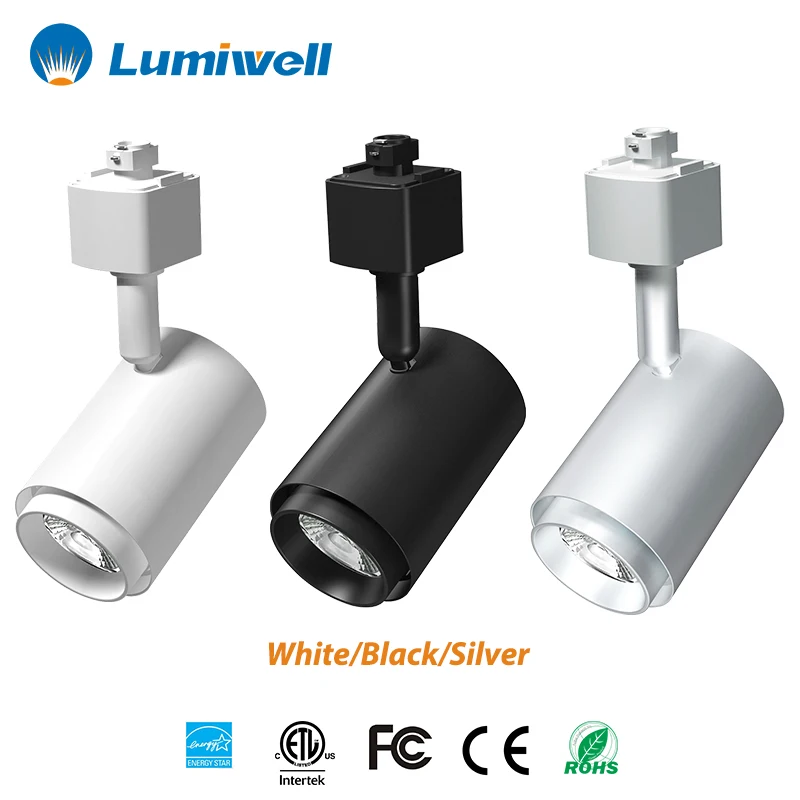

6. Unique, integrated driver, invisible wires, finish color: white, black, and silver
7. Instant start, noise free, no UV and IR, environment-friendly
8. Compatible Track Systems: Halo, Juno, Lightolier and GLOBAL
9. Self-cleaning thanks to the water drop shape
10. Passive cooling achieved by innovative thermal design
Accessory Optional

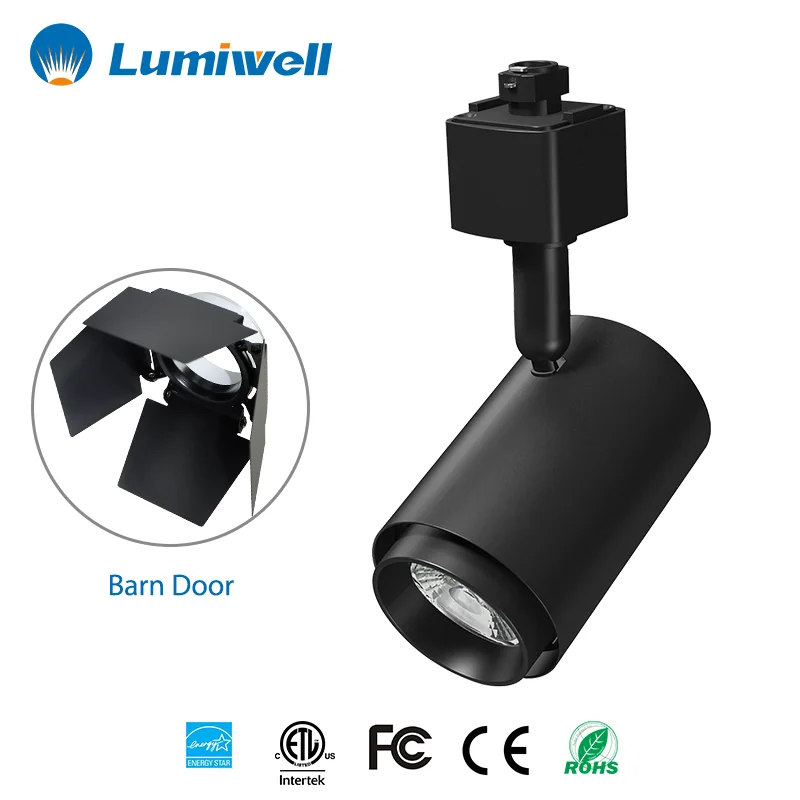

1. Barn Door

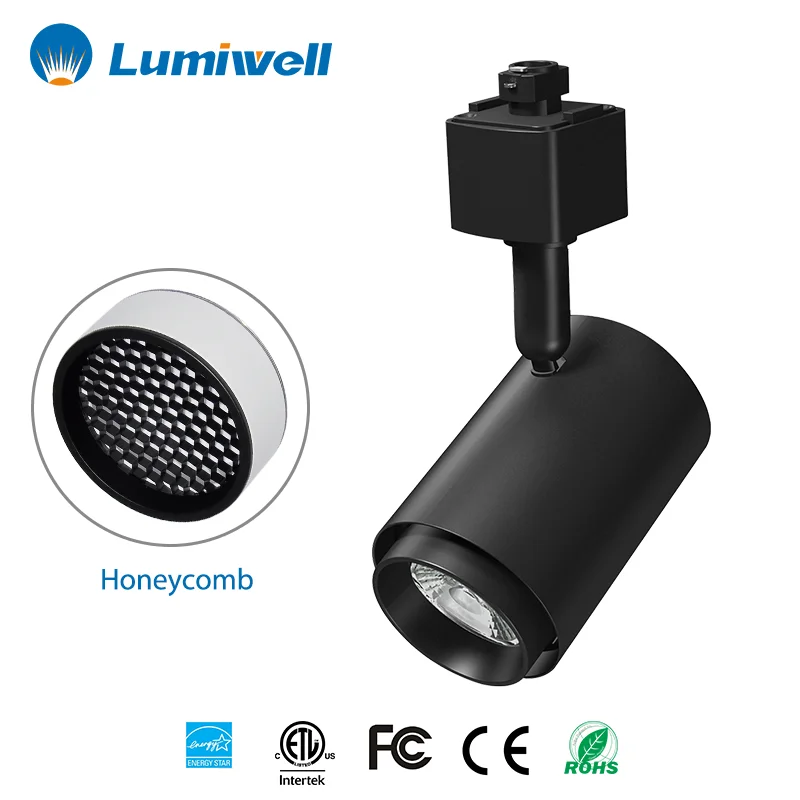

2. Honeycomb Louver
3. Wall Washer
4. Snoot
Specifications
Model No. | LW-TRA10W | LW-TRA14W | LW-TRA22W | LW-TRA34W | LW-TRA36W | ||||
Power | 10W | 14W | 22W | 34W | 36W | ||||
Voltage | AC120V | AC100-240V | |||||||
Lumens | 800lm | 1400lm | 2100lm | 3300lm | 4000lm | ||||
CCT | 2700K/3000K/4000K/5000K | ||||||||
CRI | 82Ra/95Ra | ||||||||
Beam Angle | 24/40/60° | 15/24/40/60° | 24/40/60° | ||||||
Dimming | Triac Dimming | Triac Dimming | Triac Dimming | Triac Dimming | - | ||||
Adaptor | Halo, Juno, Lightolier and GLOBAL Optional | ||||||||
Lifespan | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs | ||||
Certificate | Energy Star, cETLus | cETLus, DLC | cETLus, DLC | cETLus, DLC | cETLus, DLC | ||||
Size L*W*H | 3.74"x2.36"x5.63" | 4.25"x3.94"x6.73" | 4.25"x3.94"x6.73" | 5.55"x4.37"x7.4" | 5.55"x4.37"x7.4" | ||||

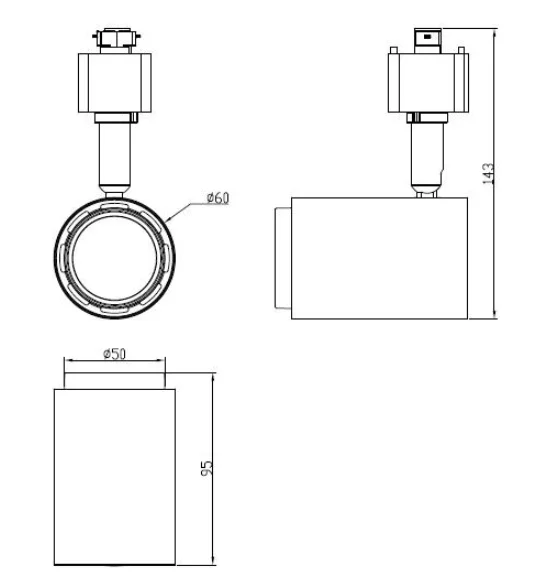

Dimension
Installation Process
Safety instructions for lamp installation
1. In no circumstances should you forget to turn on the power before you make any lamp installation or wire connection.
2. Do not touch the lens or reflector when you install a lamp or adjust the position of a lamp.
3. For personnel's safety, power cables must reach the standard requirement in Instruction Book.
4. Lamps can be directly installed on the surface of ordinary combustible (ordinary combustible: ignition temperature is 200 ℃ at the very least. And material shape or intensity will be maintained at this temperature, such as wood or similar material made of wood with thickness>2mm).

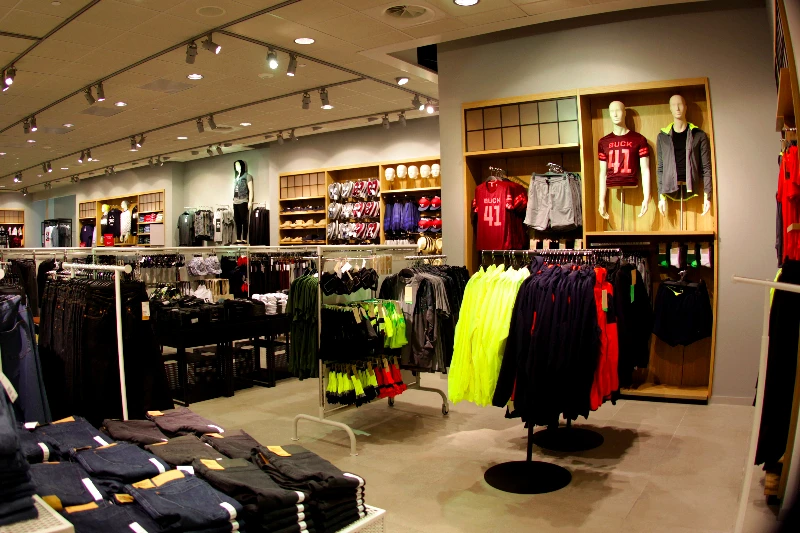

Applications
Widely used for:
Clothing/Shoe/Furniture/Jewelry stores
Supermarkets
Hotels
Auto shops
Museum/Showroom
More Products
Advantage
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order for your evaluation. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass order needs 2-3 weeks after payment received.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also available.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
