Bridge type Hydraulic Large scale Granite Factory Block Cutting Machine

Product Overview

Description

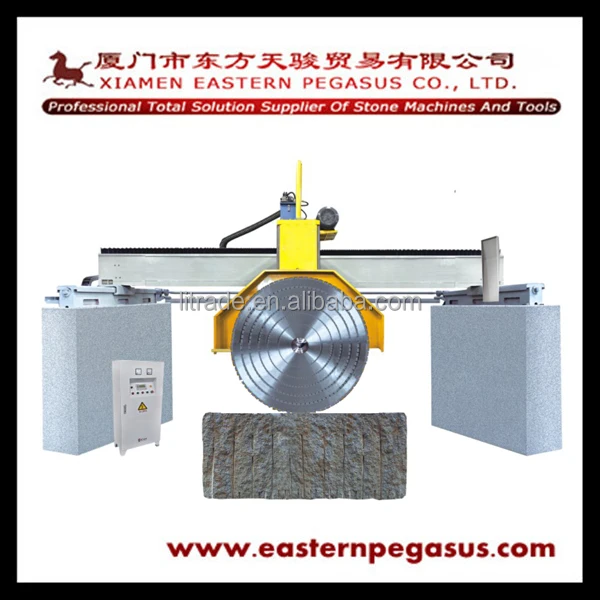

Bridge-type Hydraulic Large-scale Granite Factory Block Cutting Machine

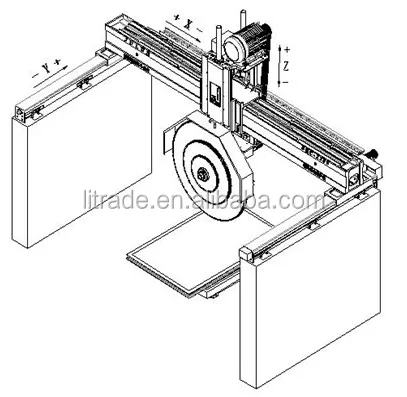

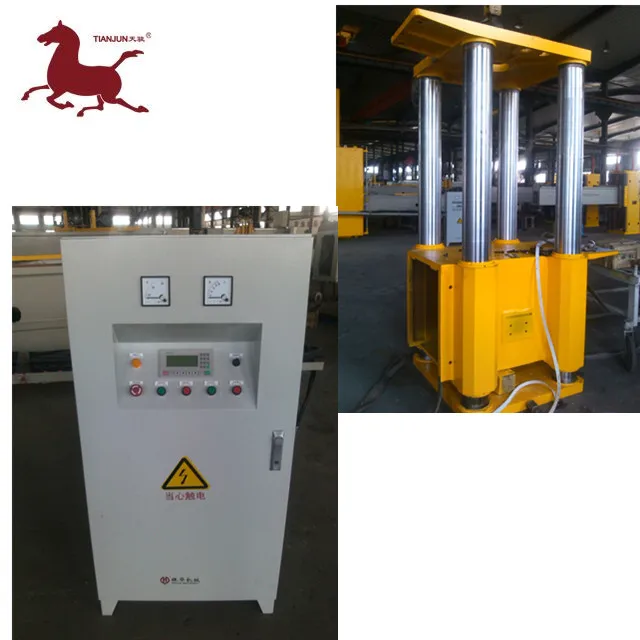

It adopts a large-span bridge type and beam structure. The principal axis system adopts 2-stage deceleration mechanism, thus increasing the principal axis working torque. The up-down adopts a hydraulic system to carry out stable high-speed cutter raising and low-speed cutter feeding.



The large block can be put directly on the ground, thus increasing the processing stability and saving machine maintenance costs greatly.





Model		TJYH-3000
Blade Diameter	mm	3000
Beam Size	mm	8700*580*770(L*W*H)
Up/down Column Size	mm	190
Max. Processing Size	mm	3200*2300*1300(L*W*H)
No. of Blades	pcs	5
Main Motor Power	kw	55
Total Weight	kgs	12000
Drive Model		hydraulic
Water Consumption	m3/h	15
