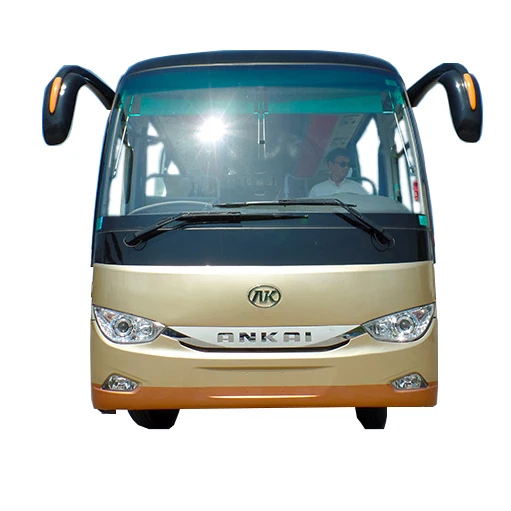

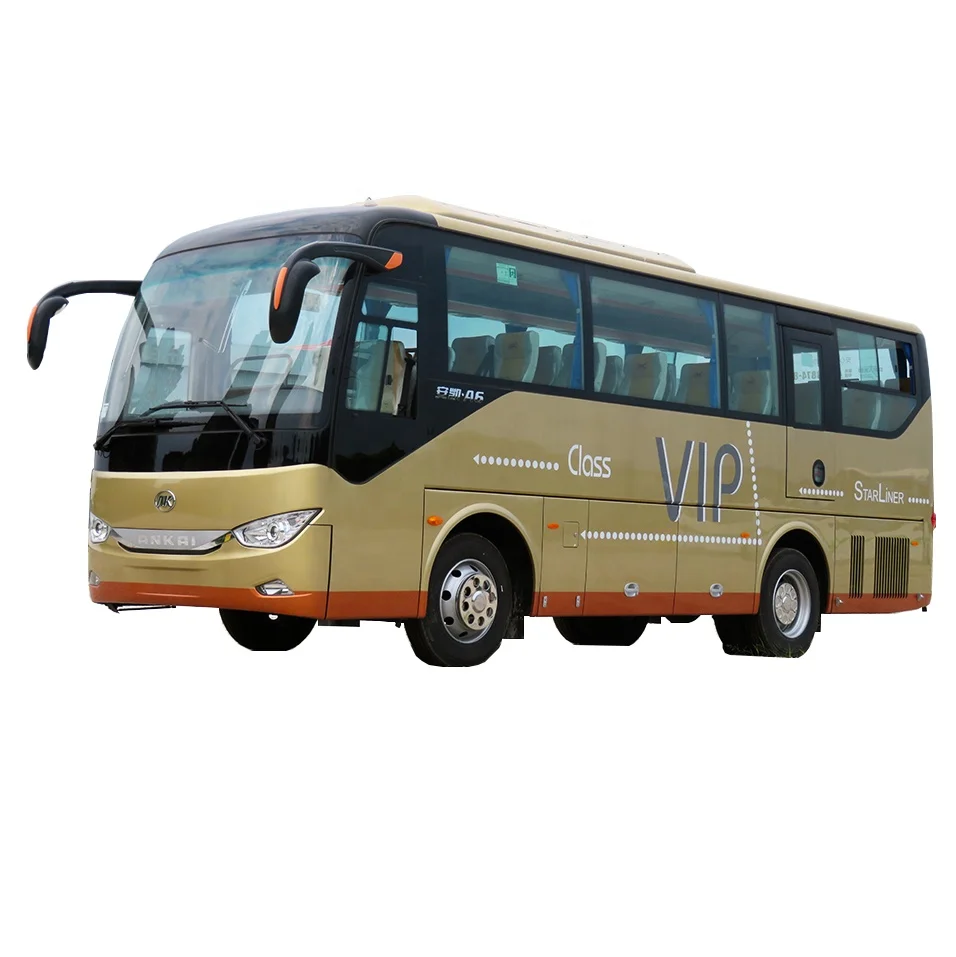

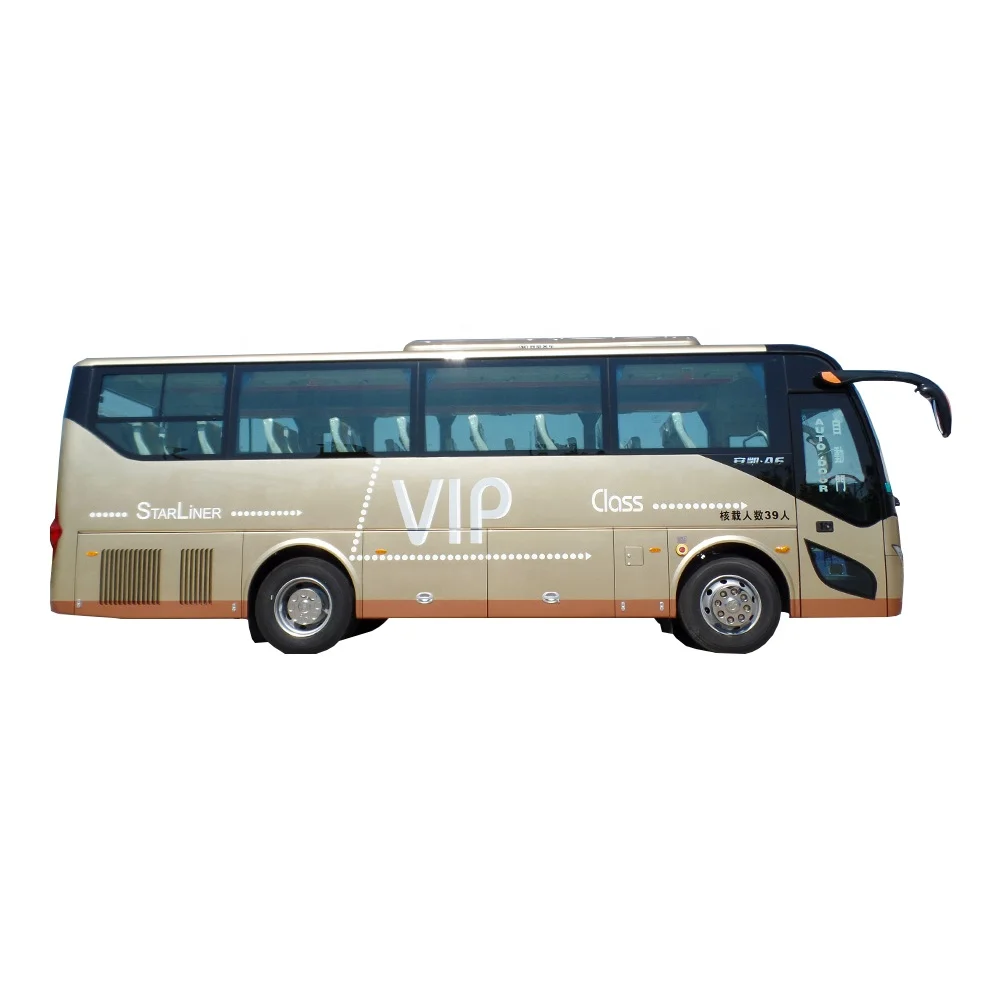

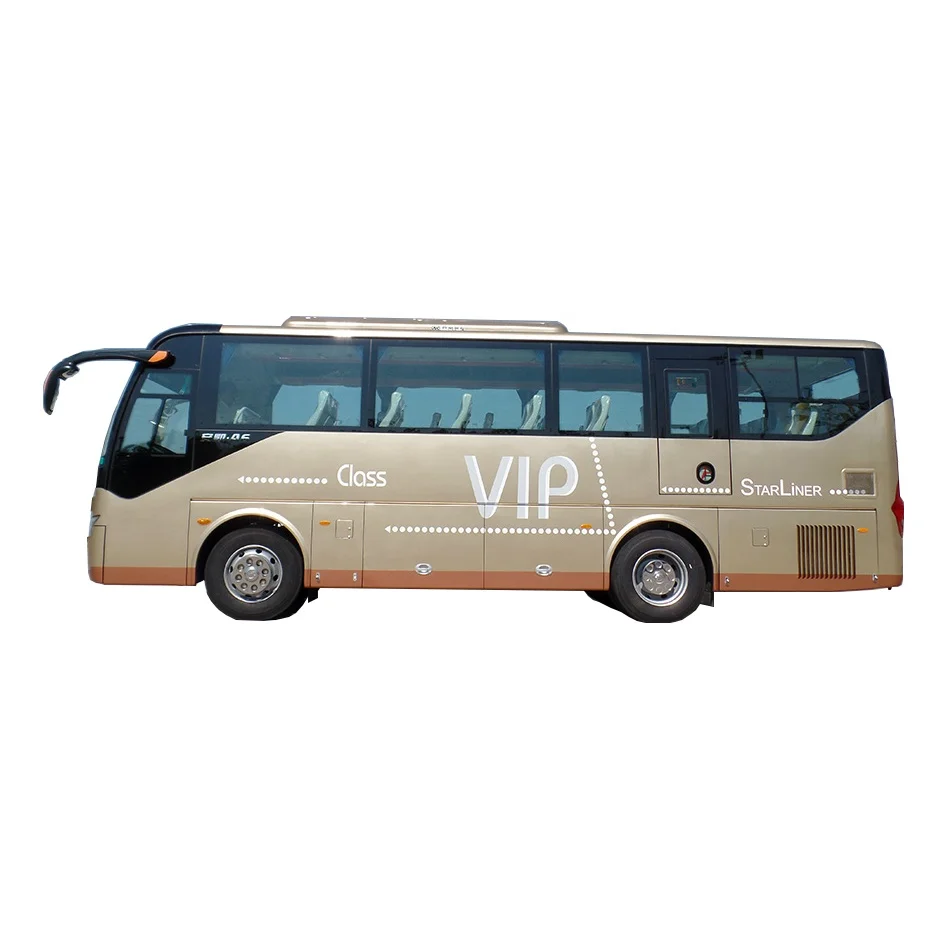

Promotion Price JAC Ankai 45-50 Seater Passenger Coach Bus Sales
| Dimension L*W*H (mm) | 10490×2500×3550(3620) | |
| Approach/Departure Angle (0) | 10°/8° | |
| One stage height/interior height(mm) | ≤410 / 2050 | |
| Wheel base (mm) | 5300 | |
| track(mm)(Front/Rear) | 2060/1860 | |
| Overhang Fr/Rr (mm) | 2110/3080 | |
| Curb weight (kg) | 10000(10400) | |
| Max. Total Mass (kg) | 14500 | |
| Max. Speed (km/h) | 110 | |
| Fuel tank(L) | 280 | |
| Luggage rack capacity | 5.85 | |
| Seat quantity | 56+1+1 | |
| Principal Assembly | ||
| Engine Model | YC6A260-20 | |
| Engine Position & Type | Rear, diesel, inline six-cylinder, turbocharged and intercooled | |
| Emission | EUROII | |
| Displacement(L) | 7.255 | |
| Rated power (kw/rpm) | 191/2300 | |
| Max. torque (N.m/rpm) | 960/1400-1600 | |
| Transmission | S6-100 | |
| Clutch | φ430 coil spring clutch | |
| Suspension | Leaf spring, 8/7 | |
| Front axle | 153 axle, 5500KG | |
| Drive axle | 153 axle, 11000KG | |
| Final ratio | 4.11 | |
| Brake system | Air brake, drum brake,energy storge brake, ABS(KEMI) | |
| Automatic slack adjuster | Yes | |
| Steering system | Power steering | |
| Tyre | 11R22.5 | |
| Battery / generator | 195A.hX2 / 150A | |
| Body Configuration | ||
| Air Conditioner | Non-independent roof mounted 26000W, JIEXIN | |
| Defroster | YES | |
| Video | Radio with USB function | |
| Guide seats | Yes | |

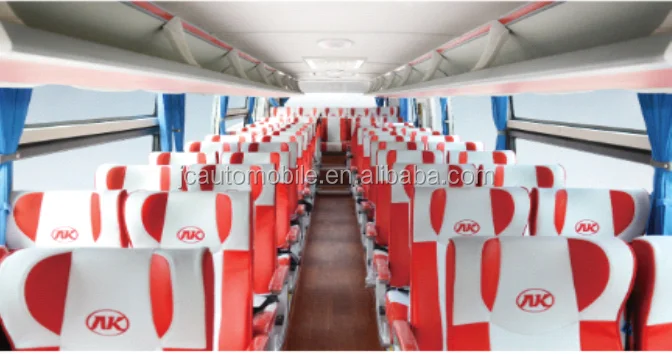

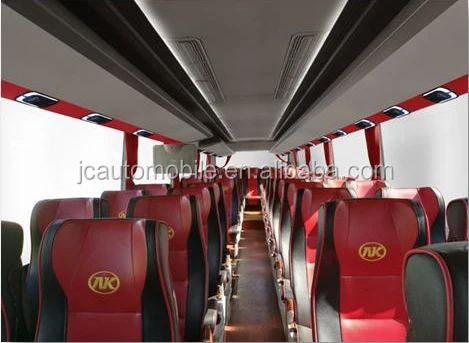

| Passenger seat | Adjustable, movable, with handrail | |
| Luggage racks | Double inner luggage racks | |
| Sunvisor/curtain | Yes(luxury folding curtain) | |
| Rear-view Mirror | Electrical heating-defrosting rabbit ear type | |
| Wheel cover | Stainless steel | |
| Instrument Cluster | Made In China | |
| Paint | Pure-colour Paint | |
| Wiper | Made In China | |
| Passenger door | Front pneumatic out-swing | |
| Luggage compartment door | Aluminum, translation type | |
| Auto extinguisher for engine | 3 pcs | |
| Roof hatch | 2 pcs, with ventilator | |
| Windshield | Laminated glass | |
| Side Window | All sealed, last row sliding/pushing | |
| Others | Sunvisors, auto step,digital clock, air horn | |

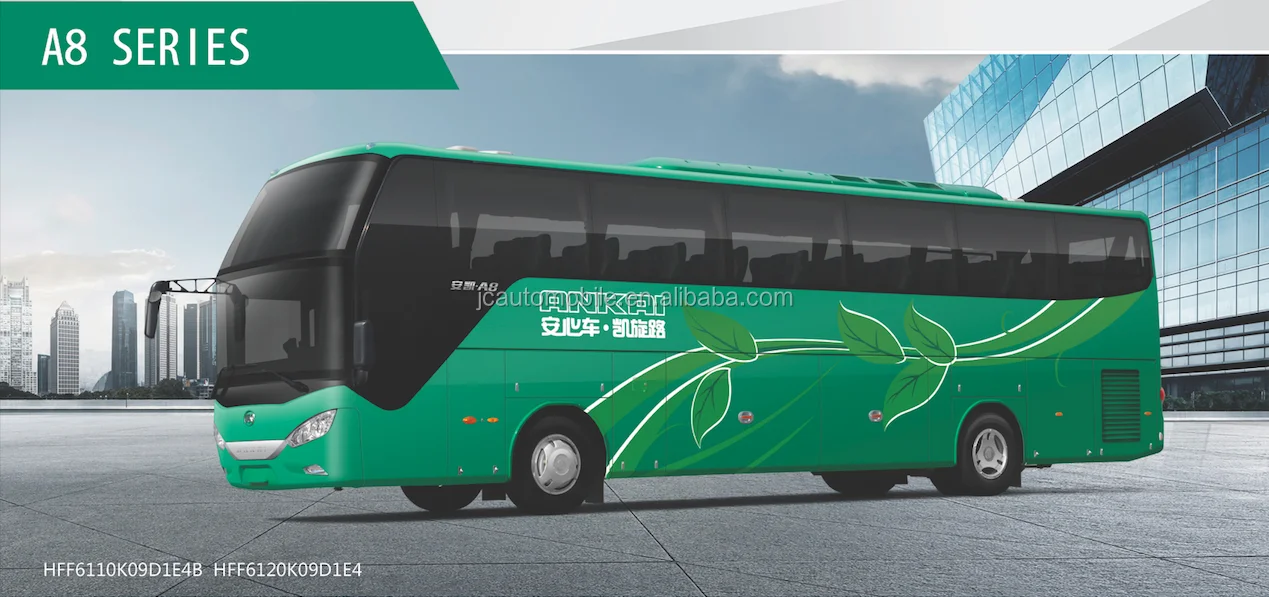

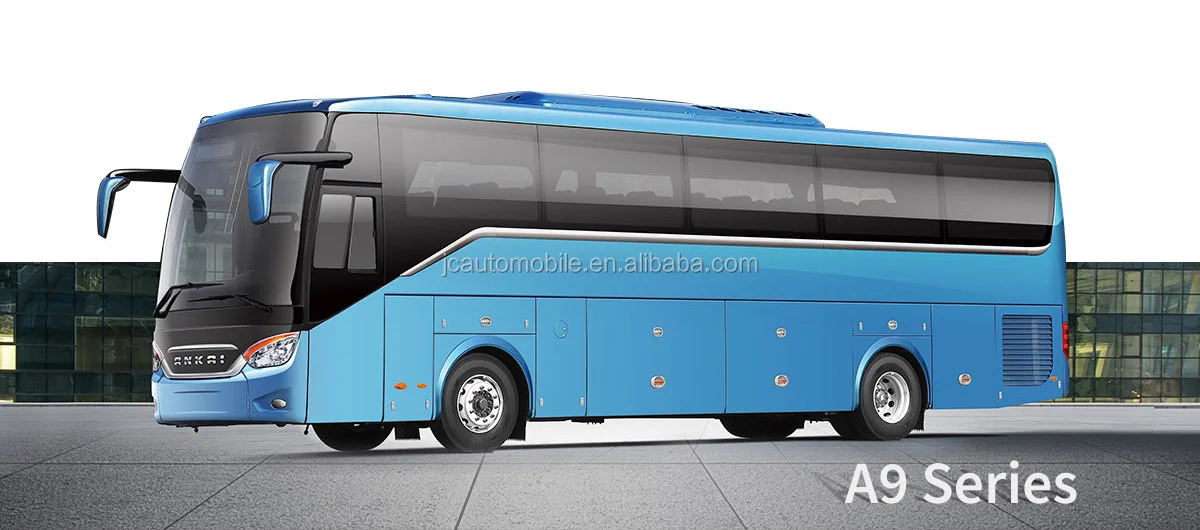

We have more models available for you and please kindly click on below photos:
