light steel keel roll forming machine machinery for u track and c stud

Share on (60688031129):


Price:$7,800.00 - $8,000.00

Quantity:


Product Overview

Description





specification

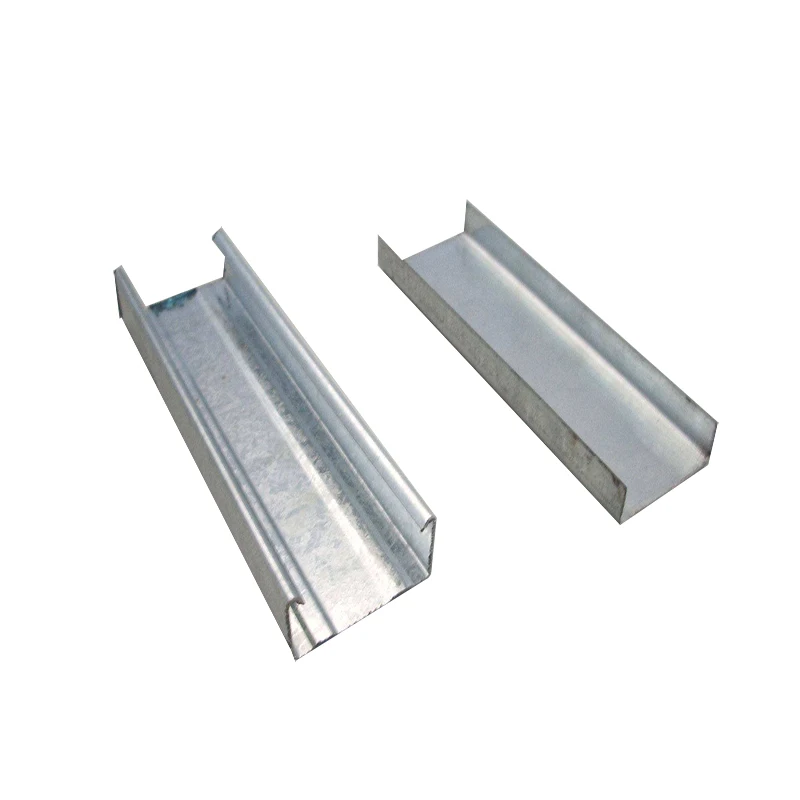

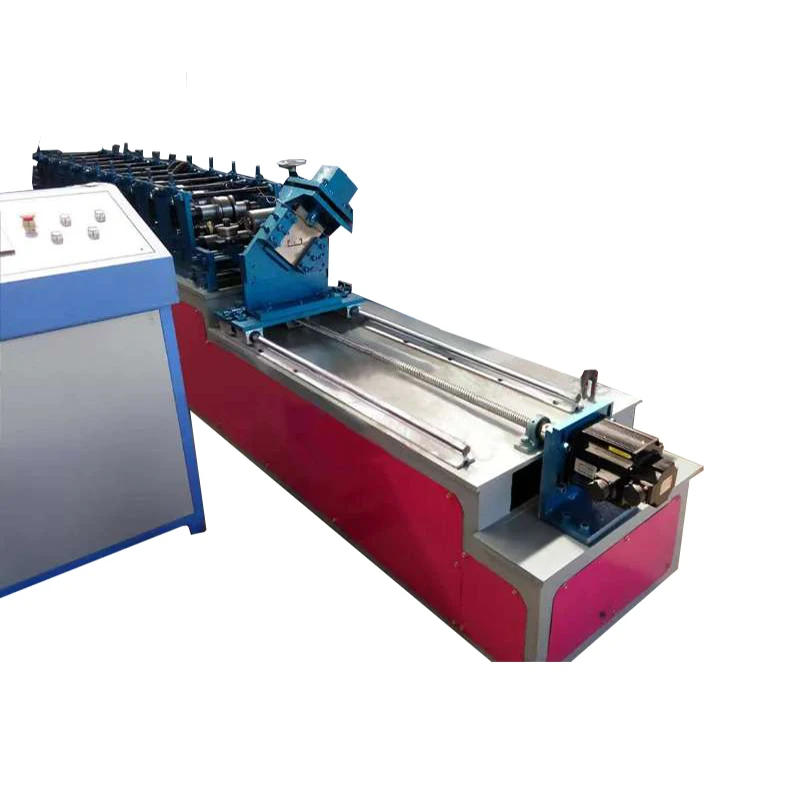

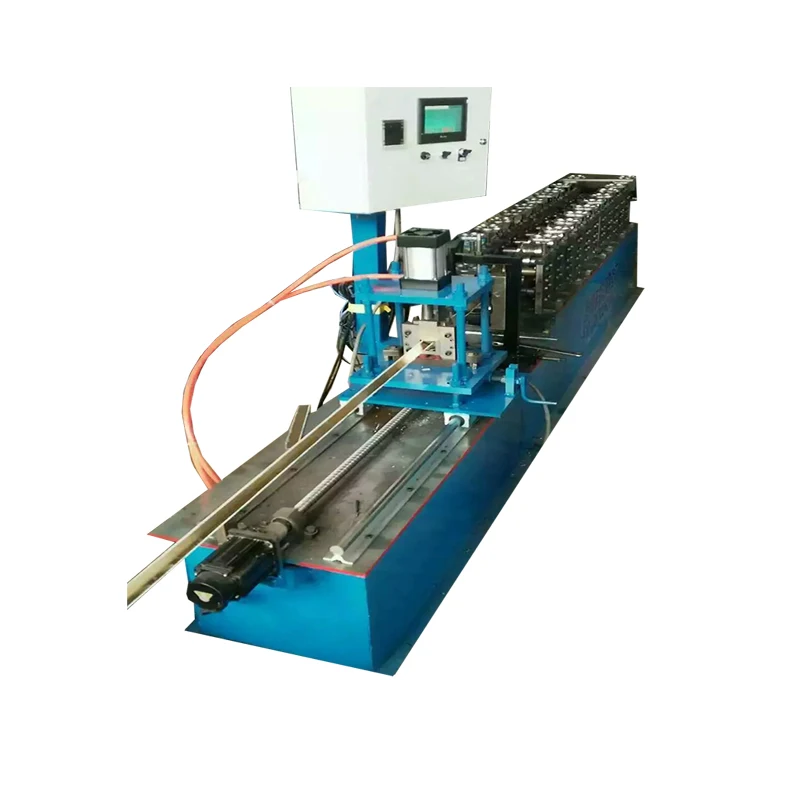

Light Steel Roll Forming Machine For C Track


















































































Length of equipment installation



11.8m


(depend on design)



Effective width of equipment



1.4m


(depend on design)



Equipment height



1.8m


(depend on design)



Equipment molding


process



A passive uncoiling machine,Seven axis automatic leveling machine,


Automatic punching equipment,Main molding equipment,


Automatic trip cutting equipment






Motor


 power



Automatic Kaiping machine






1.5kw






Punching machine






5.5kw






Host






4.0kw



Working


voltage



380V+220kw



Production speed



8 - 13 meters / min.


 The main motor is adjustable speed motor



Drive mode



Chain drive stop cutting



Machine


forming shaft

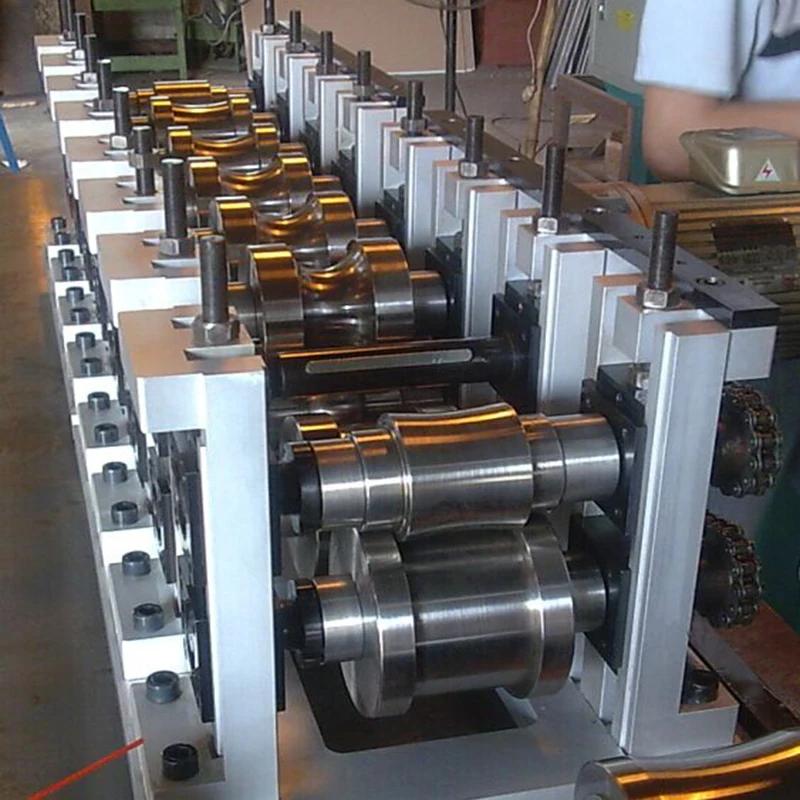

A total of 13 rows of shaft / frame: 14 thick steel plate welding molding, vertical plate thickness 18mm



Shaft material



Bearing steel shaft diameter: 55mm solid shaft



Wheel material



Bearing steel; quenched and hardened by high frequency quenching



Molding


 part



The utility model is divided into a fine type wheel, the shape is rotated, the shaping effect is good, the friction between the wheel and the raw material is reduced, and the debugging is convenient and quick.



Numerical control system



PLC panel,


KEL-320 display



Counter



The domestic photoelectric rotary encoder is adopted,


A40S6-600-2-12-ACP



Cutting


mode

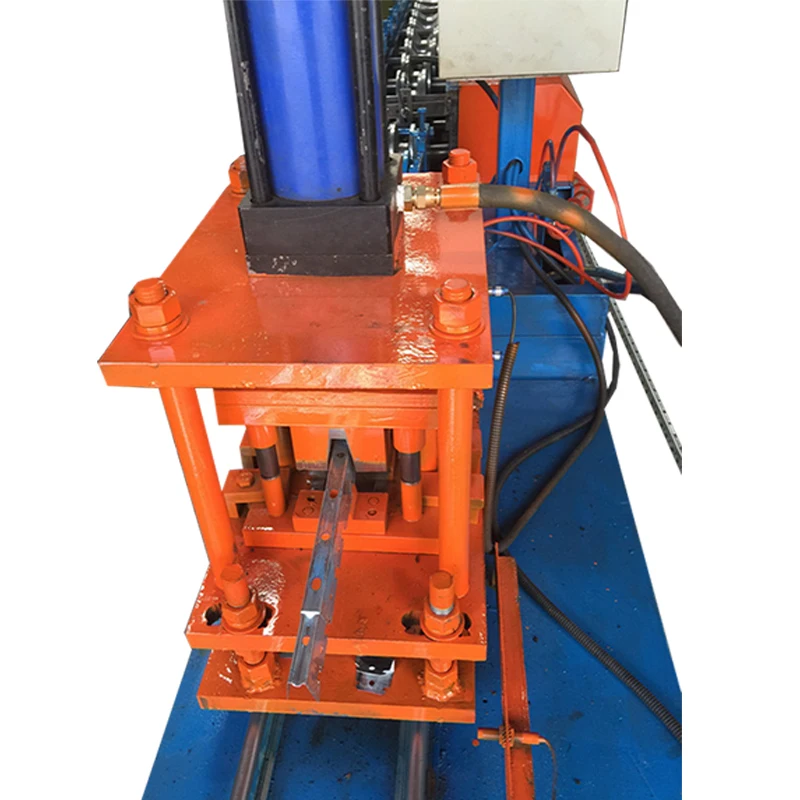

3Kw pumping station drives hydraulic shearing


equipment to realize automatic cutting



Technological process



Open book: seven axis leveling: hydraulic punching,


rolling forming, hydraulic cutting and blanking table



Thickness of pressboard



0.3 - 0.8 mm



Warranty


 period



12 months









Product details







Related Products

_04_06_07_08_09_10_11



Products application


_03_02





Packaging & Shipping


 _03_04





Company information

_03_06

Nanpi Dingtai cold bending machinery equipment Co., Ltd. has been engaged in steel structure roofing and wall pressure tile machine equipment production, at the same time committed to various related new product development and development for more than 10 years.


Dingtai has advanced production equipment and excellent development and design personnel, products with high efficiency, high precision, low processing and consumption characteristics, ranking high level in the same industry.


Our products vary from the ordinary roof and wall panel pressure tile machine to ten series steel production line equipment and equipment, all kinds of pipe bending guardrail cold bending equipment, which can fully meet the needs of steel structure building and the rail industry.


Dingtai has strong technical force, advanced and complete production line and processing equipment, and perfect testing process.


We have first-class mechanical processing equipment, physics laboratory equipment, nondestructive testing equipment and chemical analysis room. The most advanced full digital computer test method is used to produce quality grid and light steel structures and equipment.Our various equipment products have been exported to Canada, South Korea, Suriname, Sri Lanka, Mongolia and other countries.


Dingtai owns a perfect customer service service team, to provide full support to your customer service, help you get the most satisfactory equipment, ensure that you promptly solve all the problems encountered in the process of equipment usage, and our service.


Your interests and concerns are always our priority which inspires us to improve efficiency, reduce costs, enhance competitiveness to service you.


Listen carefully to your requirements and requirements, design and manufacture fully in accordance with your requirements and needs, and help you get the most reasonable equipment.


We sincerely hope to cooperate with you, mutual benefit and win-win situation.





_03_08








FAQ


1.How to maintain the machine?


Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.





2. Do you sell only standard machines?


A: No, most of our machines are built according to customers specifications, using top brand name components.





3.How many workers to operate the machine?


A:Only 1-2 workers.





4. How to visit your company?


a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West  Station(1 hour), then we can pick you up .


b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.





5. What can you do if the machine broken?


Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.





6.How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
     2) Please visit company and test machine if convenient.
