Large size solids sand pump centrifugal slurry pump for sand dredging
- Category: >>>
- Supplier: Shijiazhuang Xintuo Slurry Pump Co. Ltd.
Share on (60688039738):
Product Overview
Description

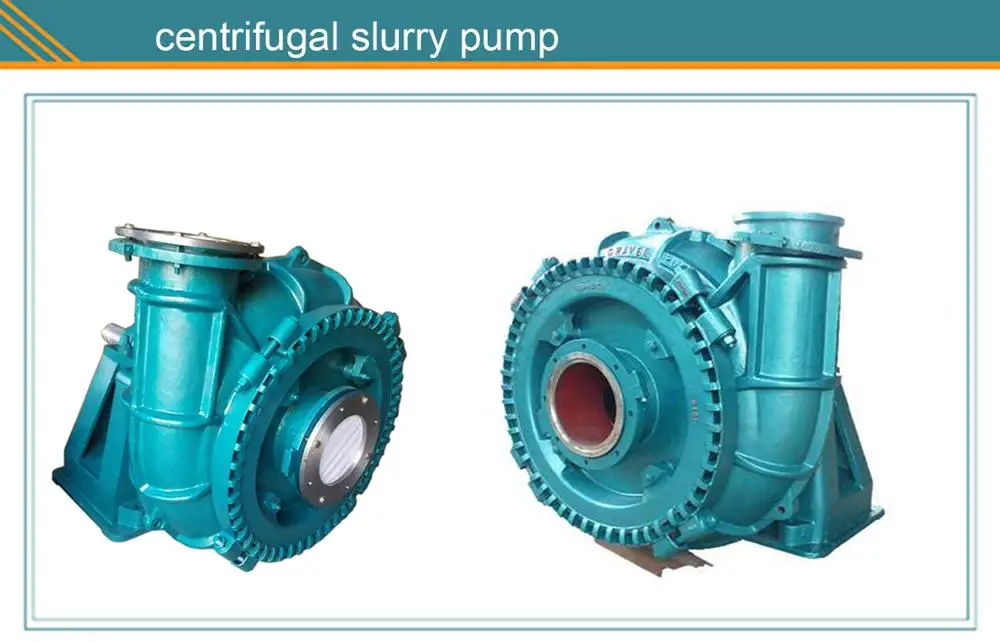

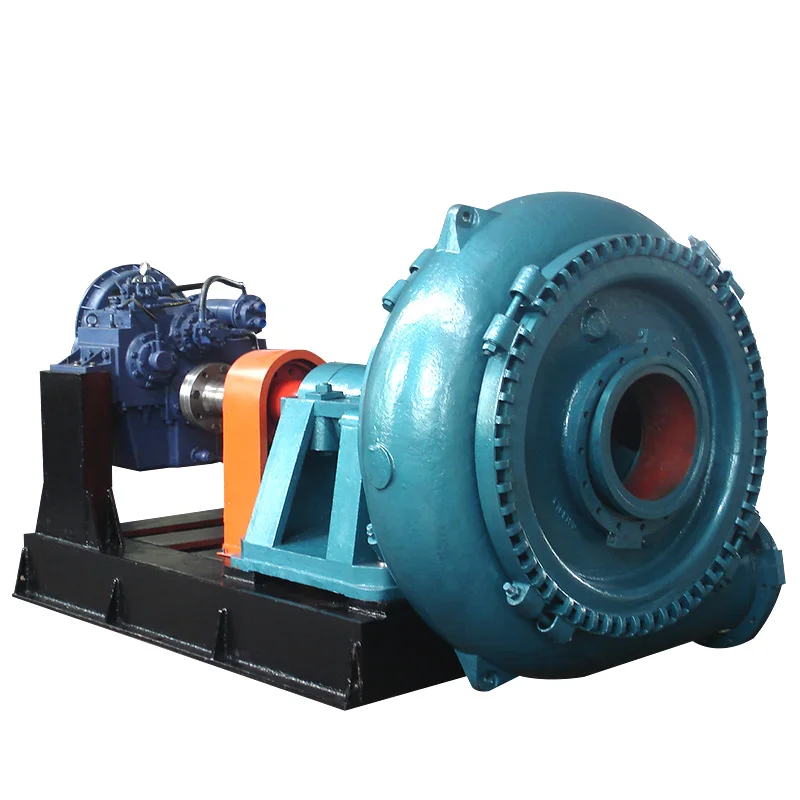

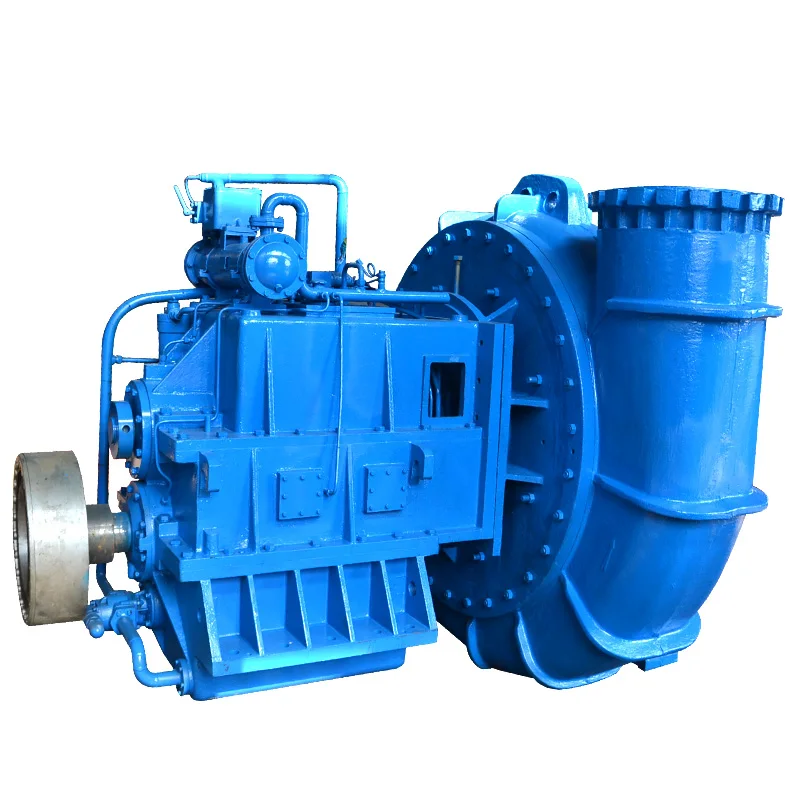

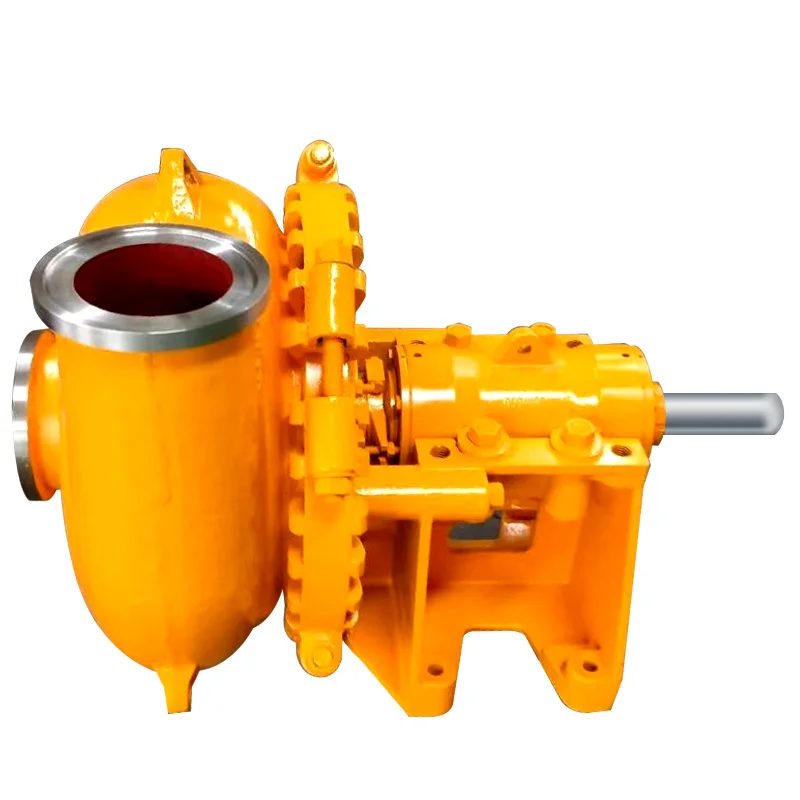

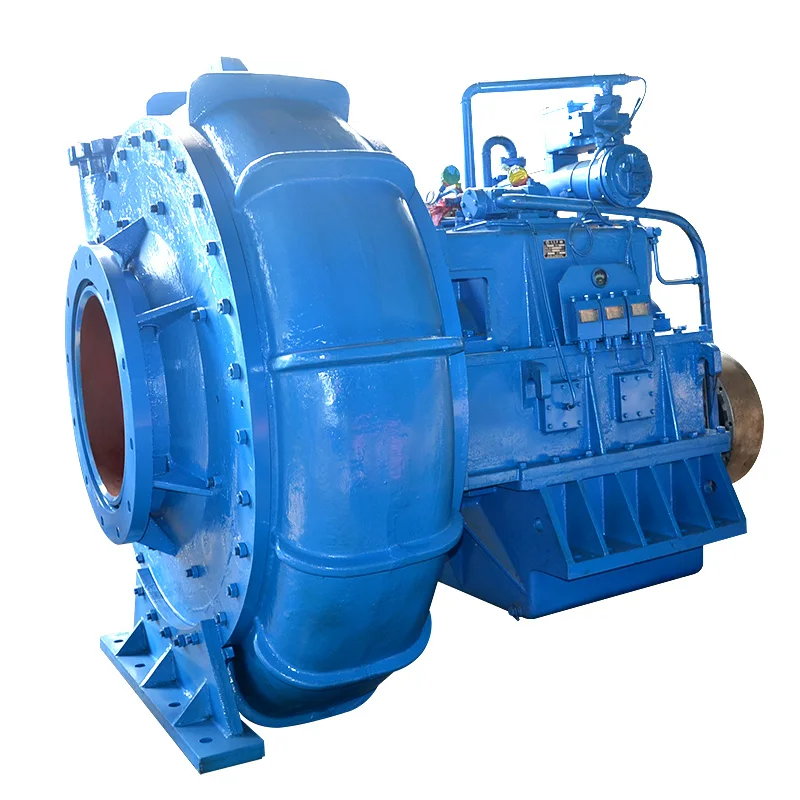

Large size solids sand pump centrifugal slurry pump for sand dredging
Advantage
Dredge pump
1. High efficiency
2. Low wear rate
3. With good wear resistance and corrosive resistance
4. ISO9001:2008
Features
Features of Dredge pump
1.Casing and spare parts are all made of high chrome alloy (Cr26 material) with anti-wear,anti-abrasive, longer life features.
2.High efficiency, lower price and top quality ,1 year warranty for Dredge pump, and 3 months for wet parts.
3.Capacity up to 1300m3/h, head up to 80m.
4.Widely used in sand sucking, gravel dredging and many kinds of mining plant. Such as gold mining, lead mining and so on.
Parameters
| Parameters for Dredge pump | ||||||
| Pump model | Base type | Maximum power(KW) | Impeller | Maximum passage size(mm) | Maximum flow(l/s) | Maximum head(m) |
| 6/4D-G | D | 60 | DG4137 | 82 | 89 | 52 |
| 8/6E-G | E | 120 | EG86137 | 127 | 215 | 50 |
| 8/6F-GH | F | 260 | FGH6137 | 140 | 280 | 90 |
| 10/8F-G | F | 260 | FG8137 | 178 | 275 | 51 |
| 10/8S-GH | S | 560 | FGH8137 | 180 | 450 | 82 |
| 12/10G-G | G | 600 | FG10137 | 220 | 480 | 60 |
| 12/10G-GH | G | 600 | GGH10137 | 210 | 800 | 80 |
| 14/12G-G | G | 600 | GG12137 | 241 | 1020 | 70 |
| 16/14G-G | G | 600 | GG14137 | 254 | 1020 | 44 |
| 16/14TU-GH | TU | 1200 | HG14137 | 230 | 1120 | 70 |
| 18/16TU-G | TU | 1200 | GG16137 | 254 | 1200 | 50 |
| 20/18TU-G | TU | 1200 | HG18137 | 330 | 1500 | 46 |
| 24/20TU-G | TU | 1200 | HG20137 | 380 | 1700 | 66 |
| 28/24TU-G | TU | 1200 | HG24137 | 380 | 3800 | 70 |
Buying Guides for Dredge pump
please provide following technical data for our reference,then we will recommend proper model:
- wide flow passage Dredge pump is used for pumping what is kind of liquid,in what is kind of place
- conveying distance (m)
- conveying height (m)
- suction depth(m);sand layer (m)
- pipe size(inner diameter)
- fine sand,middle sand or rough sand? if is there stone or not,what is the biggest stone diameter?
- take some pictures of your working site
Pictures

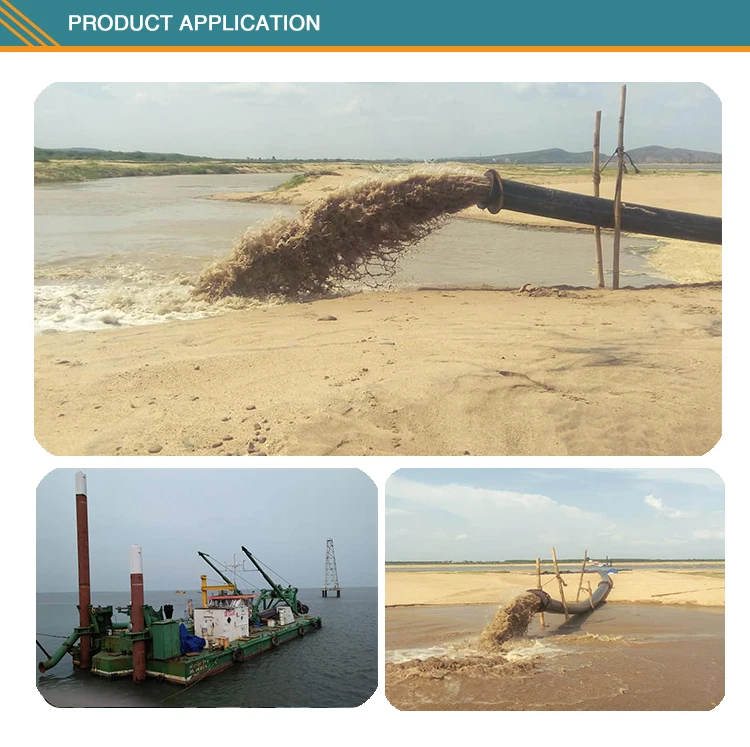

Applications

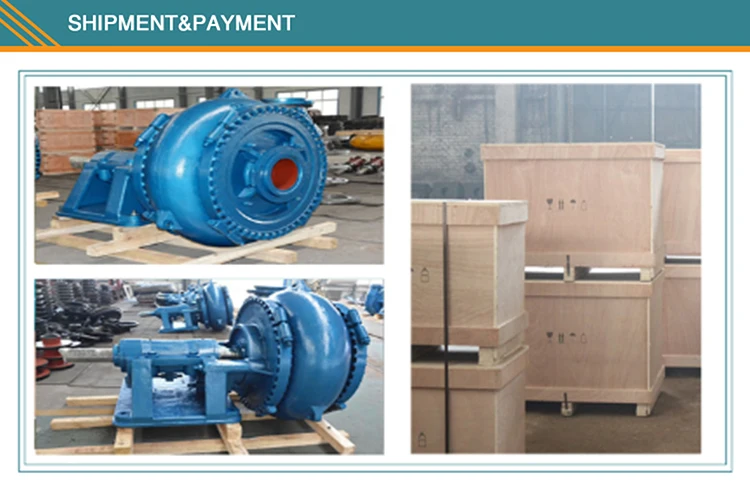

Packaging & Shipping
About Nainater
Reformed from Shijiazhuang Baifo Foundry Factory, which was a national collective enterprise, Shijiazhuang Xintuo Slurry Pump Co., Ltd. is a modern pump industry enterprise engaged in professional manufacture, scientific research, development, sales and service. We are specialized in manufacturing: slurry pump and slurry pump parts, dredging pump and dredging pump parts, desulfurization pump and desulfurization pump parts, clean water pump and sewage pumps which are widely used in mine, metallurgy, coal, electric power, dredge and other sectors of the national economy.
