HY WDS6E High Performance Mini Weather Station with pressure Temp humidity precipitation GPS compass RS485 SDI 12 RS232
- Category: >>>
- Supplier: Hongyuv Technology Co. Ltd.
Share on (60688117524):
Product Overview
Description
WDS6E
Overview

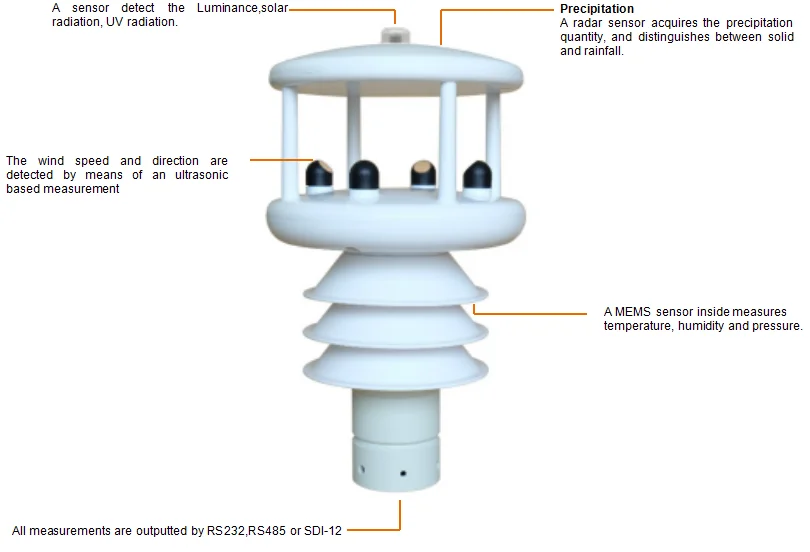

HY-WDS6E is a weather station integrated with multiple high accuracy sensors. Chengdu HongYuv technologies utilising our expertise as the Chinese leading weather station manufacturer, HY-WDS6E’s wind sensor is based on our ultrasonic technology, is of a robust, high strength construction designed to withstand installation and use with no fear of the damage commonly experienced with more fragile cups/vane weather station. Ideal for applications that demand economic weather sensing. Without the need for expensive on-site calibration or maintenance and with a corrosion free exterior, HY-WDS6E is maintenance free, quick and easy to install. HY-WDS6E Compact weather station is a self-developed professional meteorological sensor for simultaneous measurement of multi-parameters: atmospheric | temperature, atmospheric humidity, wind speed, wind direction, air pressure and precipitation. Air temperature, humidity, and pressure measurements are measured by standard industrial MEMS sensor positioned in radiation protection shield. It is characterized by high accuracy and fast response time. Measurement of wind speed and direction is working based on principle of ultrasonic travel time difference. Precipitation is detected by 24G radar, which can rapidly detect precipitation and its intensity. GPS global positioning module and electronic compass are optional to be installed in reserved room, with these two module, you can obtain longitude and velocity accurately, thereby, true and apparent wind speed & direction can be calculated out. |
Features
Robust design, easy to install, 24 hours continuous monitoring
Without moving parts, whole system is free of maintenance
MODBUS communication protocol, standard RS485/RS232 output
Electronic compass, GPS or BeiDou global positioning module can be added
With internal heating device ensures normal operation in cold weather
Radar precipitation can accurately measure amount of precipitation and reflect beginning and ending of raining.

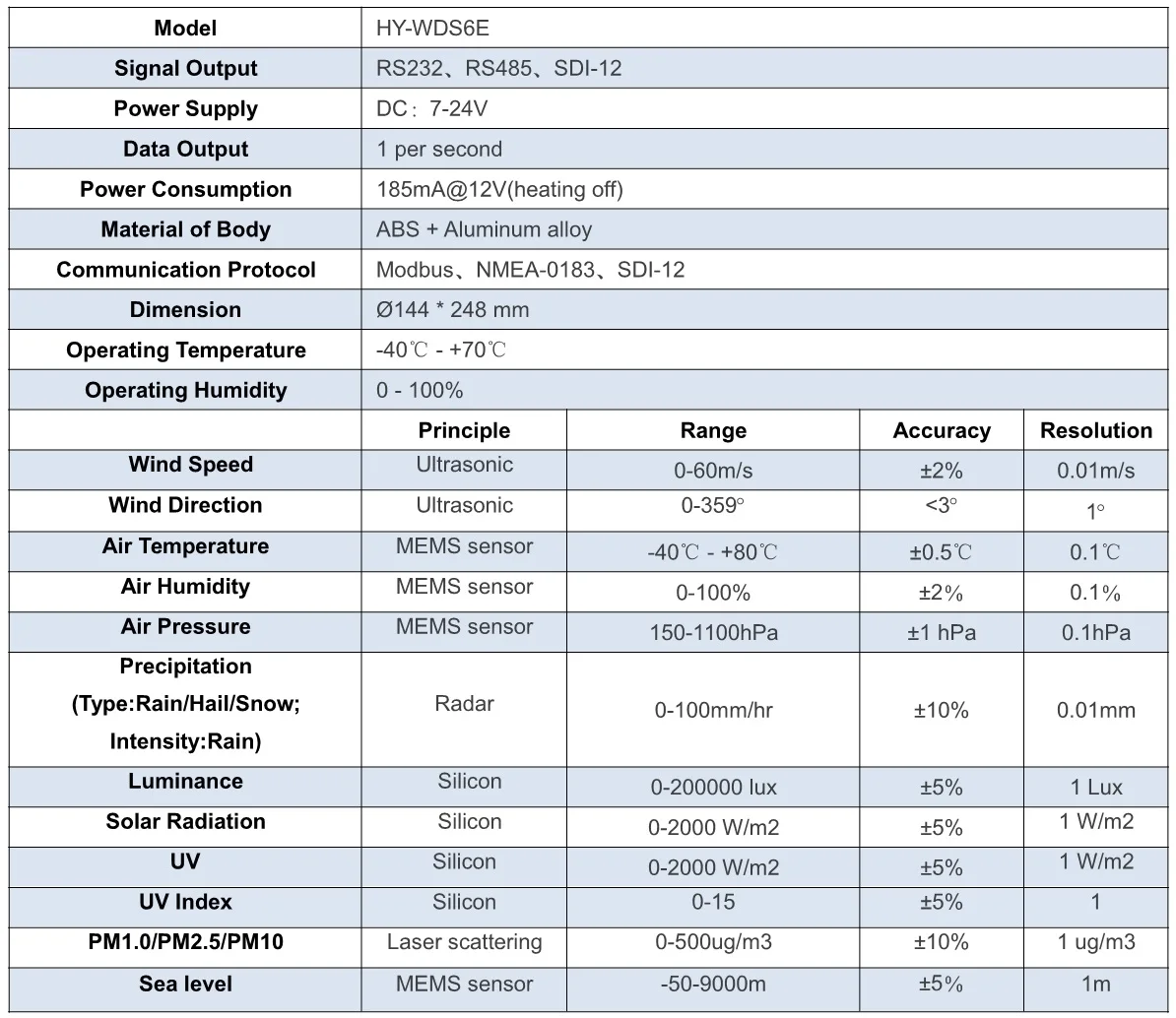

Specification

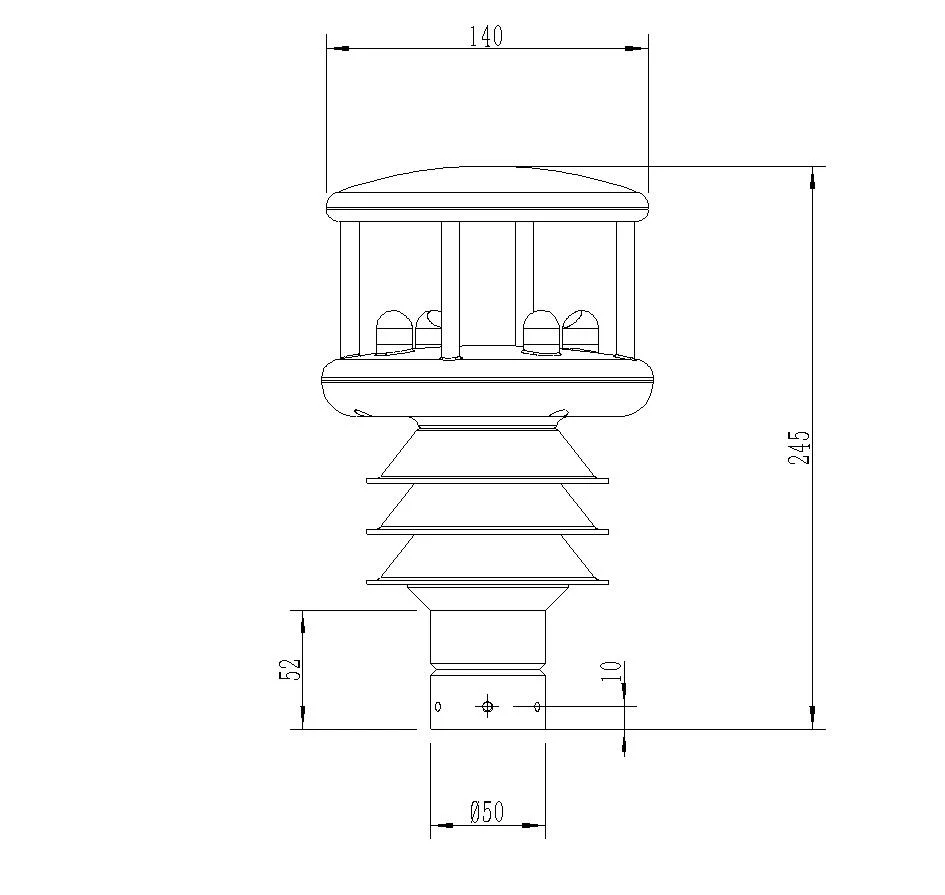

Dimension
Site Photos
Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.
Roadside weather station
Tunnel environment monitoring
Free IoT platform
If you buy data transfer unit (DTU) from us, we can pre-configure it and upload data to our platform for your remote browsing.
Such free IoT platform is available for test or study purpose.
DTU is a device with RJ45(ethernet interface) or WiFi interface that can upload data to our server.
You can access data from APP on phone or your web browser.
RJ45 ethernet interface DTU: $50/UNIT
RJ45 WiFi interface DTU: $70/UNIT
Screenshots as follows for your reference:
About us
Hongyuv Technologies Co.,Ltd is located in Chengdu Hi-tech West Zone. As a high-tech company, We takes the development of new products as its main business direction. All of our products are self-developed and fully owned independent intellectual property rights of our sensors. Our current products are mainly divided into three categories: meteorological sensors, traffic environment detection sensors and photoelectric detection sensor for industrial application.
Hongyuv has a professional R&D team with over 10 years development experience involve in photoelectric detection, ultrasonic technology, video image analysis, etc. Therefore, we took the lead in the development of the transmissometer, visibility meter, ultrasonic wind speed and wind direction detector , Egg embryo classification infrared detector.
Our Services
Price, Package, Service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 5-8 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. One year free repair for quality warranty
