LED Light Engine 40W 50W 60W Replacement LED Module For Street Light Flood High Bay Tunnel

LED Light Engine 40W 50W 60W Replacement LED Module For Street Light Flood High Bay Tunnel

Category: >>>
Supplier: Hangzhou Moonlight Box Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

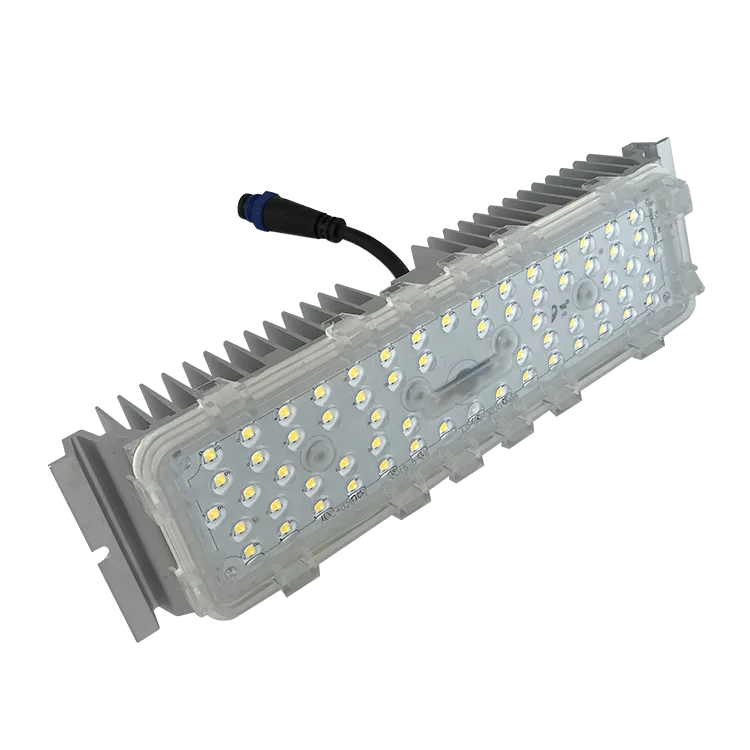

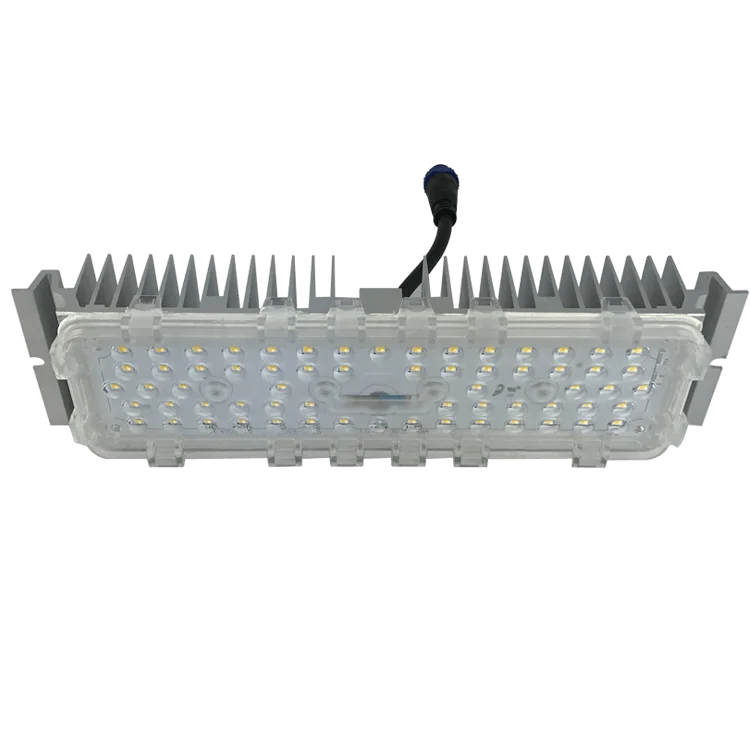

LED Light Engine 40W 50W 60W Replacement LED Module For Street Light Flood High Bay Tunnel

m8-d01-2__LED light engine

Features:

1) High brightness Lumileds Luxeon 3030 LEDs;
2) Double-coupling IP68 rating, ultra waterproof;
3) Super long lifetime (lumen maintenance);
4) Full range of power selections;
5) Multiple lighting distributions available;

6) Can be installed and lighting in both Horizontal & Vertical directions.

LED Light Source	Lumileds Luxeon 3030 LEDs, 63pcs
Output Power	40W, 50W, 60W
Luminous Flux	4600±200lm, 5500±250lm, 6300±300lm
Input Current	700mA, 860mA, 1050mA
Input Voltage Range	48-61Vdc
Lighting Distributions	Type II, Type III Tunnel Light, 25°, 40°, 60°, 90°, 100°, 110°, 120°
CCT	3000K, 4000K, 5000K, 5700K
IP Class	IP68
Product Fixture Size	2757048mm, 0.85kg
Packing Details	650600150mm (20pcs), 19.8kgs

Contact Chela for more details and professional solutions!

Why Choose It?

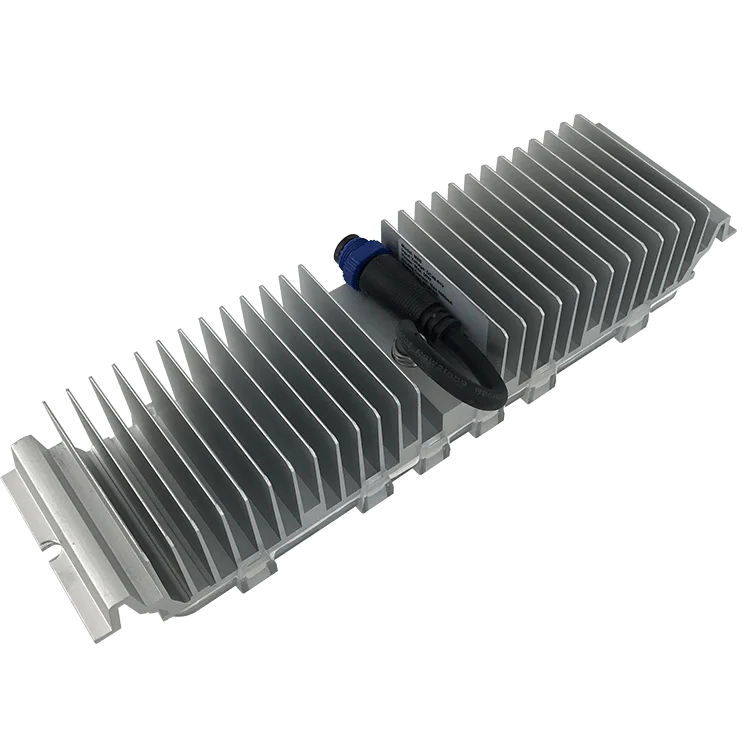

Heat dissipation of the whole structure It is availtable to make clever use of the module bracet only plays a supporting role, and to transform it to a "heat-conductive bracket" that is capable of conducting the module's heat to the lamp shell as a structural part, thus to promote the cooling effect of radiator of cooling module. The design aims to fully utilize the surface area of structural parts to transfer heat to air.
	Tool-free maintenance It adopts a special structural design to achieve the manual disassembly and installation of lighting components (mainly module and power supply), considering that the high-power lights are generally installed in high operating space, it's very necesssfy for the operator to take along as few tools as possible for their convenience and safety,
