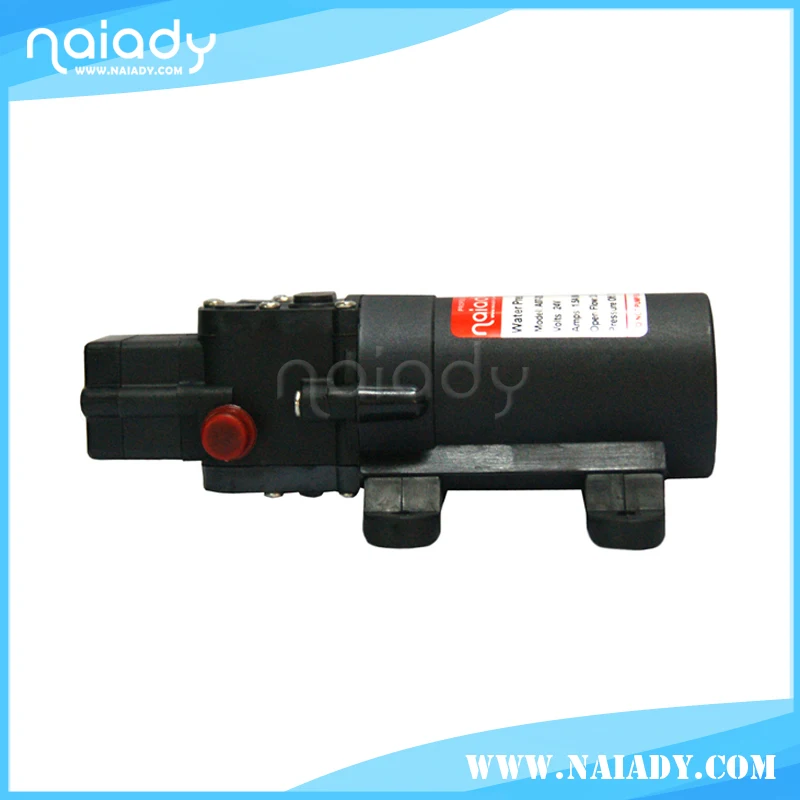

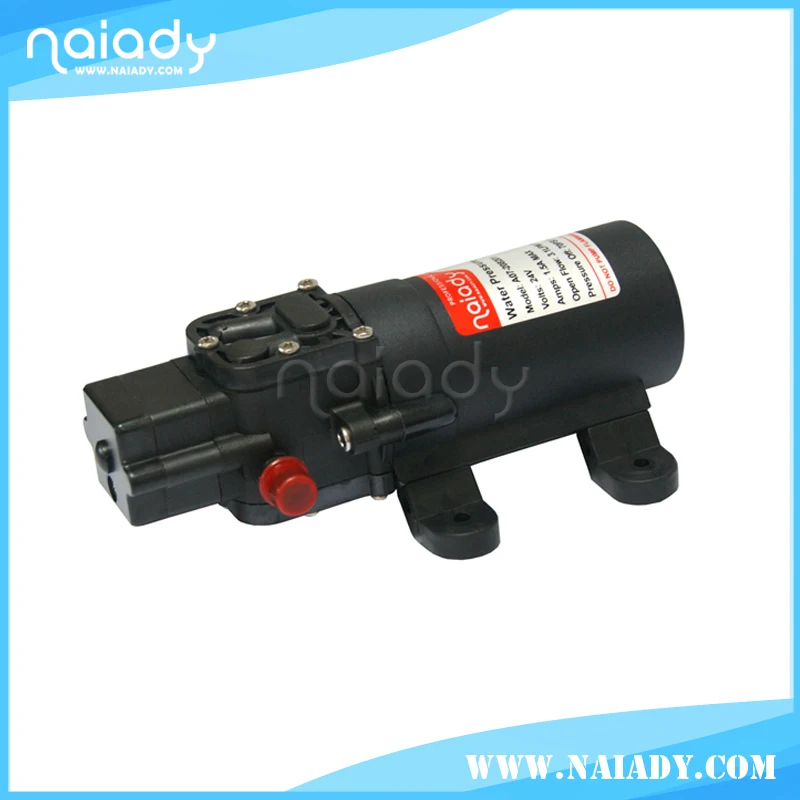

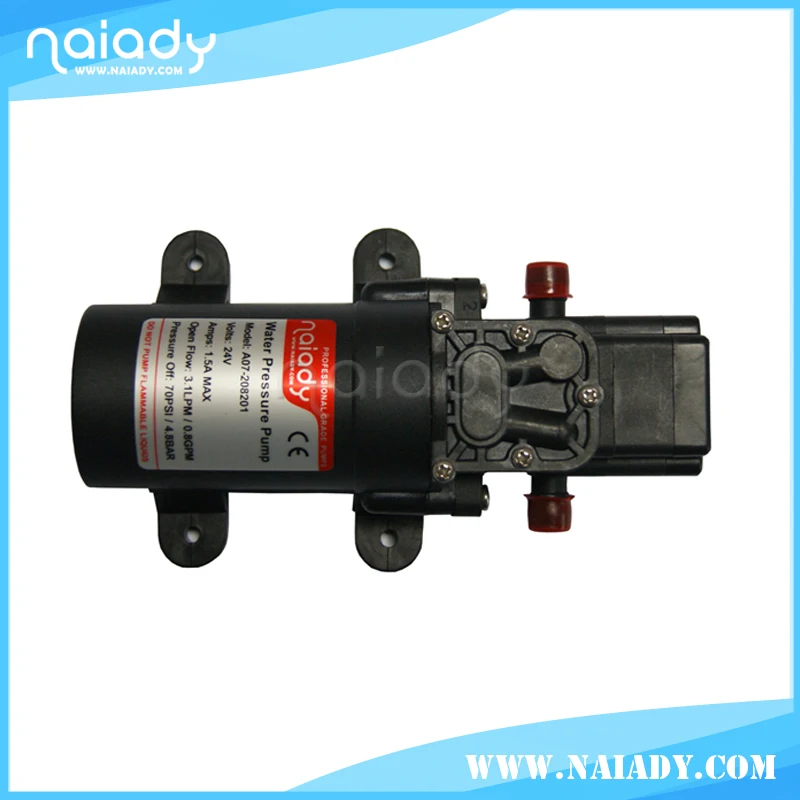

Мембранный мини насос NAIADY, 12 В, 24 В

Product Overview

Description





· PA66 composite pump head and PPS pump plate.



· Self-priming



· Agricultural Spraying



· "Santoprene" diaphragm



· Pressure and flow can be customized according to customer requirements.





· Marine · RV · Industrial · Scientific Research · Agricultural





Model	Open Flow	Volts	Max Draw	Switch	Pressure Off (psi/bar)	Ports	N.W/G.W
A07-105201	2.0LPM/0.5GPM	12V	1.6A	Demand	55 / 3.8	3/8” Barb	0.6/0.7 kg
A07-205201	2.0LPM/0.5GPM	24V	0.8A	Demand	55 / 3.8	3/8” Barb	0.6/0.7 kg
A07-111201	4.3LPM/1.1GPM	12V	2.5A	Demand	35 / 2.4	3/8” Barb	0.6/0.7 kg
A07-211201	4.3LPM/1.1GPM	24V	1.3A	Demand	35 / 2.4	3/8” Barb	0.6/0.7 kg
A07-107201	2.6LPM/0.7GPM	12V	2.1A	Demand	70 / 4.8	3/8” Barb	0.6/0.7 kg
A07-207201	2.6LPM/0.7GPM	24V	1.1A	Demand	70 / 4.8	3/8” Barb	0.6/0.7 kg
A07-108201	3.1LPM/0.8GPM	12V	2.6A	Demand	70 / 4.8	3/8” Barb	0.6/0.7 kg
A07-208201	3.1LPM/0.7GPM	24V	1.5A	Demand	70 / 4.8	3/8” Barb	0.6/0.7 kg







      A07-108201
