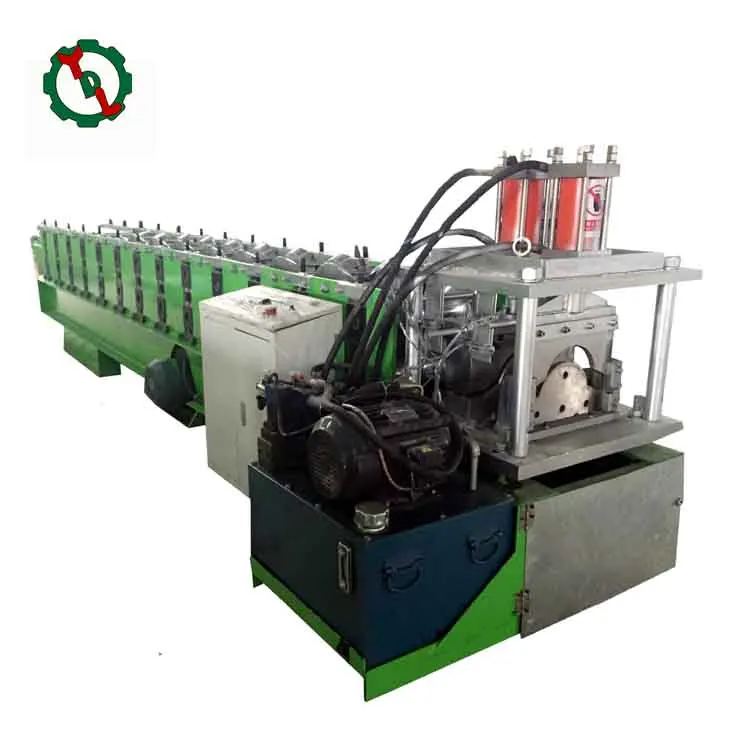

Classic Metal Roof Tile Ridge Cap Sheet Roll Forming Machine With Hydraulic Punching Stamp

Share on (60688227458):


Price:

Quantity:


Product Overview

Description


Classic Metal Roof Tile Ridge Cap Sheet Roll Forming Machine With Hydraulic Punching Stamp--_16.jpg

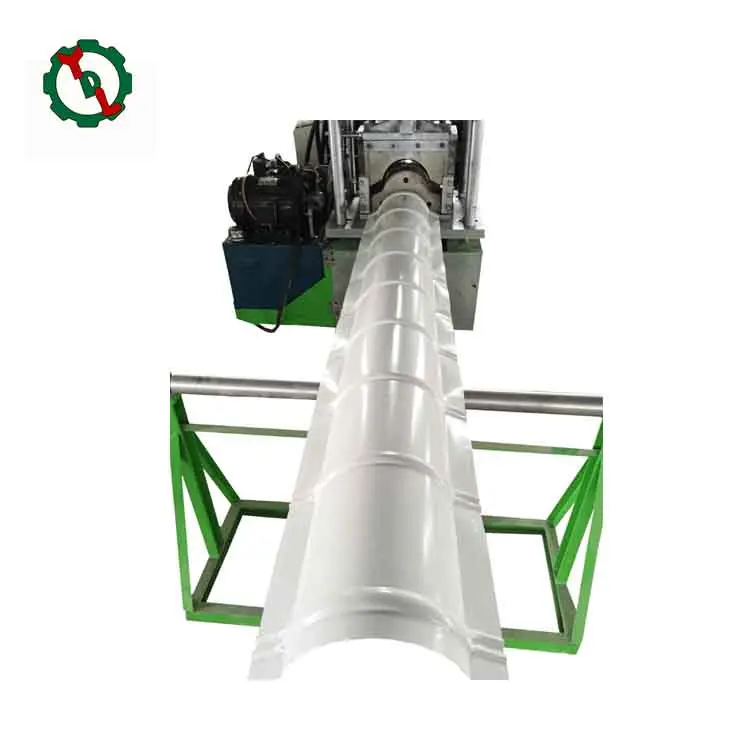

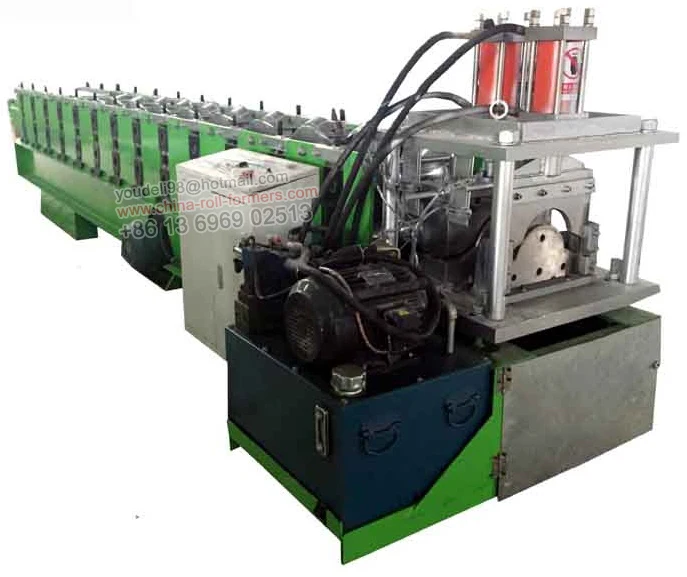

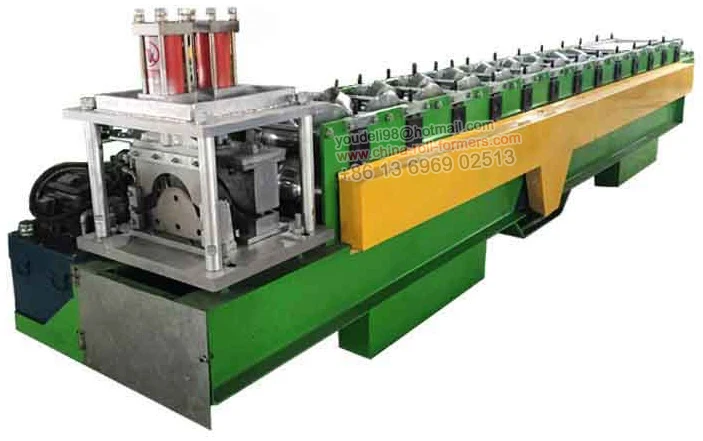

Ridge Cap Machine



Technical Parameters






































































 Size



 6000*1000*1300mm



 Weight



 4000KGS



 Voltage



 380V/50HZ/3PH



 Motor Power



 5.5KW



 Hydraulic Motor Power



 7.5KW



 Forming Steps



 13



 Working Speed



 0-5m/min



 Total Height of Ridge Cap



 102mm



 Ridge Cap Height to Punch



 30mm



 Ridge Cap Step Distance



 300mm , 350mm



 Effective Cover Width



 296mm



 Feeding Material Width



 400mm



 Thickness for Steel



 0.3-0.6mm



 Tolerance



 ±2mm



 Roller material



 High grade 45# forged steel, Plated hard chrome


 and polished all the rollers



After-sales Service Provided



Engineers available to service machinery overseas






Main Accessories






































































No



Items



Quantity



Remarks



1



Manual/Hydraulic Uncoiler



1set



Up to customer



2






























Main forming machine












Pre-cutting device



1set



Up to customer



Feeding device



1set







Hydraulic system



1set

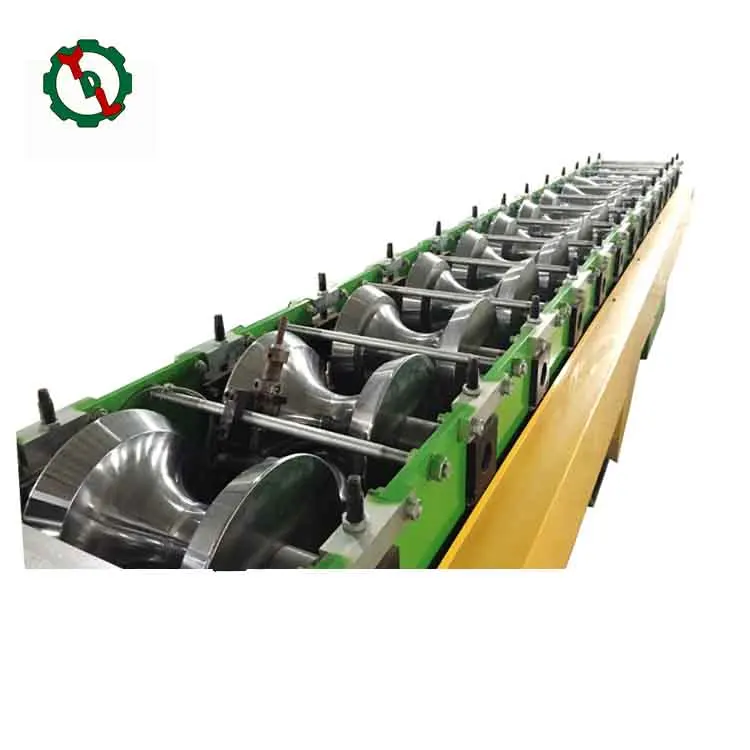

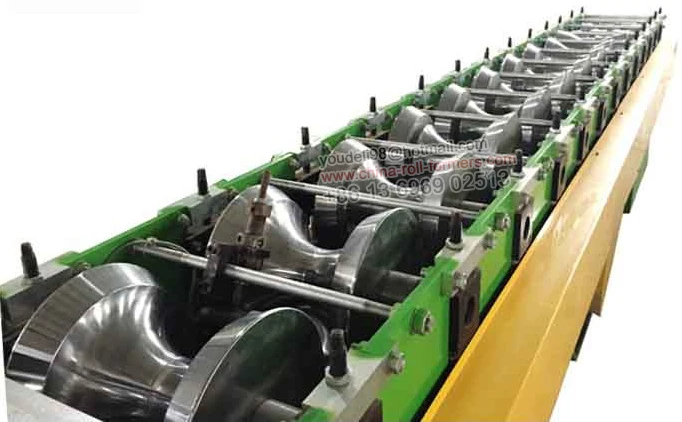

Roll forming system



1set







Hydraulic punching stamp device



1set







Post cutting device



1set







Protective cover



1set



Up to customer



3



PLC control system with touch screen



1set







4



Run out table



4pcs



Up to customer

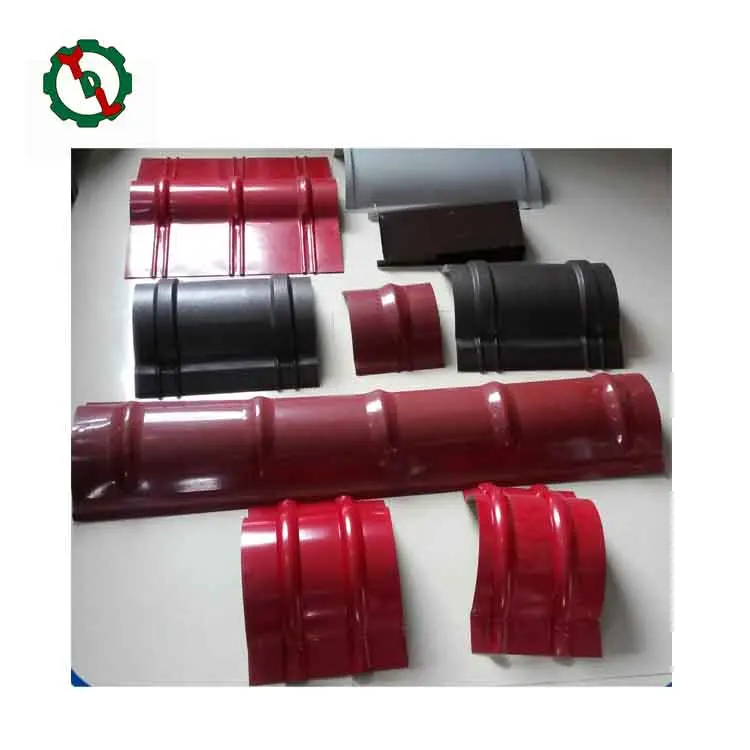

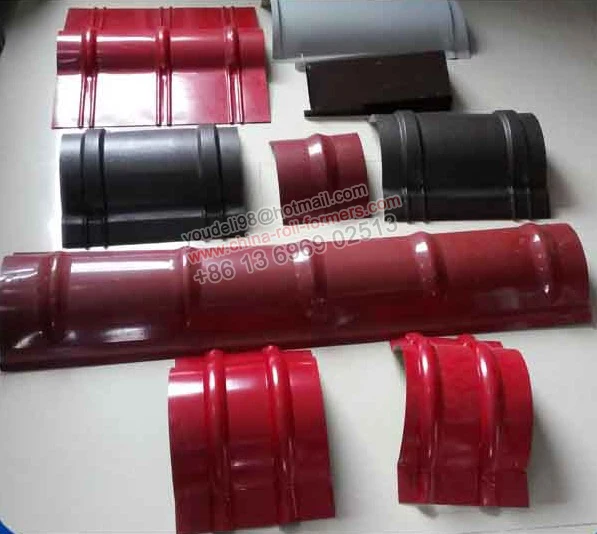

Product Show
























FAQ





1. Are you the trade company or factory?


We are professional manufacturer for making cold metal roll forming machines.





2. How to visit your factory?


We can pick up you at the Xiamen International Airport or Xiamen North Railway Station


to our factory.





3. Do you provide customized machines?


Sure, we can design and make the machines as per your requests. We are the professional


designer and manufacturer for cold metal roll forming machines.





4. Does one machine can only produce one size?


Not exactly, it depends on the machine.





5. Is there quality control when manufacturing the machines?


Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.





6. Why your price is higher than others?


Because we insist on that every company must attach importance to the quality at first


place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.





7. What can you do if the machine broken?


The warranty period of our machines is one year.


If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines.  Anyway we can promise to provide our technology supports for the whole life of our machines.





8. Do you have after technology support?


Yes, we are glad to give suggestions and also have skilled technicians available to service


machinery oversea if you needed.





9. Do you have oversea engineers?


Yes, we can supply not only good skilled technicians to oversea, and also provide


technology training.





10. Can you response for the transport of machines?


Yes, please check us your destination port or address, we have good services of


cooperated shipping line with us.
