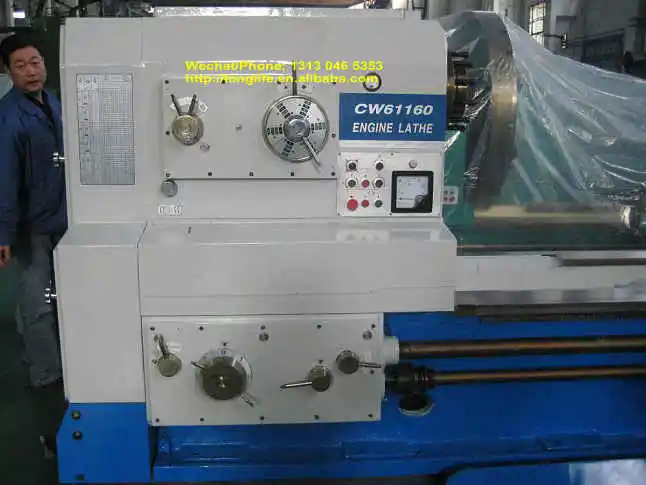

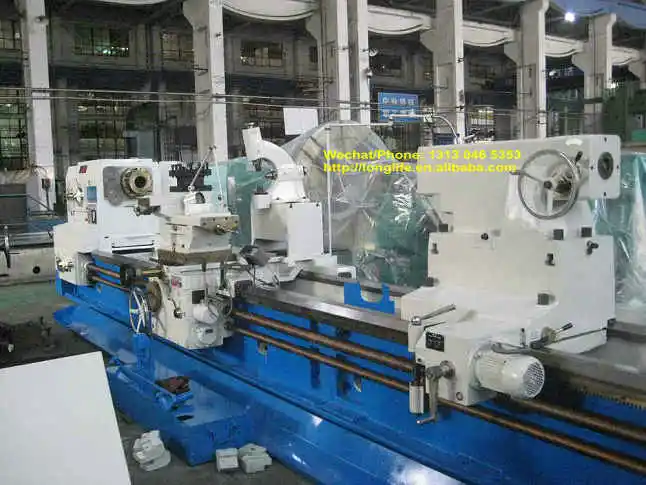

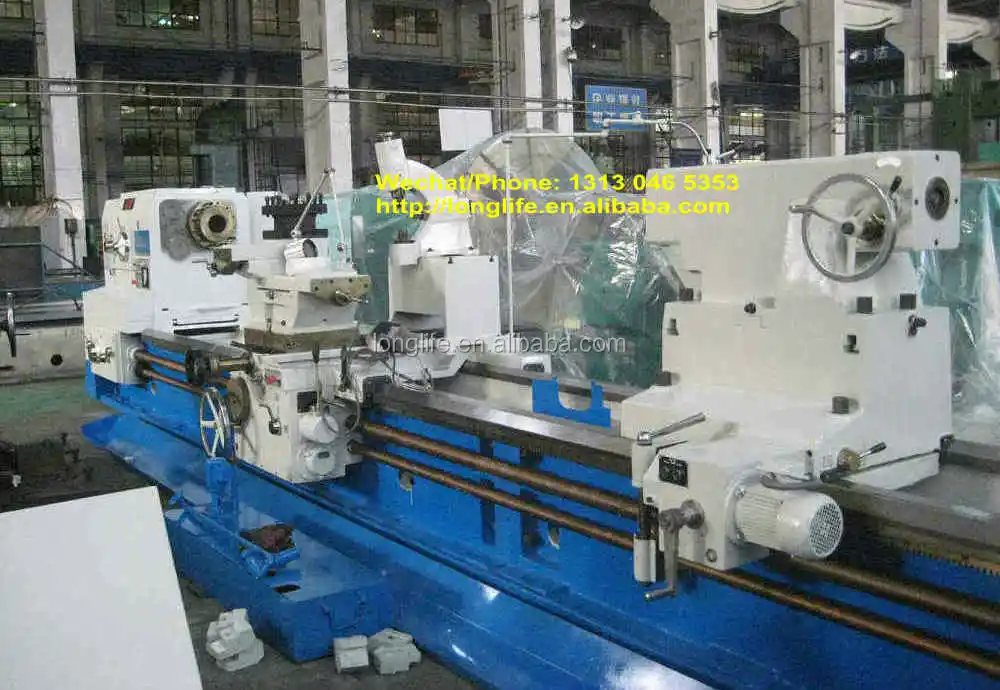

CW61140x2000 Heavy Duty Engine Lathe
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (60688234594):
Product Overview
Description
CW61140L8x2000 heavy duty lathe machine
(8000kgs load, DRO is optional)
Recommended Turning
Main Features
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Usage
1. I.D. & O.D. cylindrical turning,
2. end face turning,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading
Main Technical Data
Specifications | Unit | Parameter |
Swing over Bed | mm | 1400 |
Max. swing over carriage | mm | 1100 |
Max. length of work piece | mm | 2000 |
Width of guide way | mm | 970 |
Diameter of spindle front bearing | mm | 200 |
travel of cross slide | mm | 880 |
Max. supporting capacity of centers | kg | 8000 |
Spindle nose |
| ISO A2-15 |
Taper hole of spindle |
| Metric No.140 |
Spindle bore | mm | 130 |
Spindle Speed | rpm | 3.15~315 |
Swivel angle of tool post |
| ±90° |
Travel of longitudinal tool post | mm | 200 |
Metric Thread | mm | 1~120(45) |
Whitworth Thread | TPI | 30~1/4(42) |
Module Thread | mm | 0.5~60(46) |
Diametrical Thread | DP | 1/2~60(48) |
Longitudinal number and range of feeds | m/rev | 0.064~12(97) |
Transverse number and range of feeds | m/rev | 0.032-6(97) |
Dia. Of tailstock | mm | 160 |
Max. movement of tailstock sleeve | mm | 300 |
Taper of tailstock |
| No. 80 |
Section of tool shank | mm | 45x45 |
Power of main motor | kW | 22 |
Power of rapid motor | kW | 1.5 |
Power of pump motor | kW | 0.55 |
Power of cooling motor | kW | 0.15 |
Net dimension of the machine | mm | 5360x2100x2300 |
Packing dimension of the machine | mm | 5660x2200x2230 |
GW/NW | kg | 10800/13900 |
Free Std Accessories
Name | Size |
|
4 Jaw chuck | Dia. of 1250 mm | 1 set |
Steady rest | Range 220~ 630 mm | 1 set |
Follow rest | Range 50 ~220 mm | 1 set |
Dead center |
| 2 Pcs |
Reducing sleeve |
| 1 Pcs |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| Yes |
Optional Accessories
Name | Size | Price |
3 jaw chuck | 500mm | |
Steady rest | Range 220 ~ 630 mm | |
Follow rest. | Range 50 ~220 mm | |
Support with two rollers | Range 620 ~1100 mm | |
Taper turning device | Length 800 mm | |
Motorized tailstock |
| |
DRO Display for both directions | Length 1500 mm |
Pls send inquiry to me for optioanl accessories and other further information about such heavy duty lathe machines.

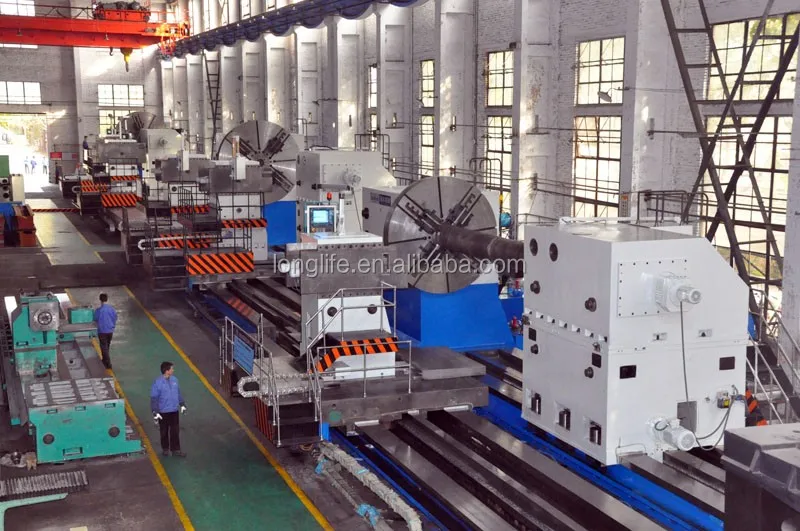

Factory Overview
