Chinese manufacture fluid bed dryer machine price for salt

Product Overview

Description

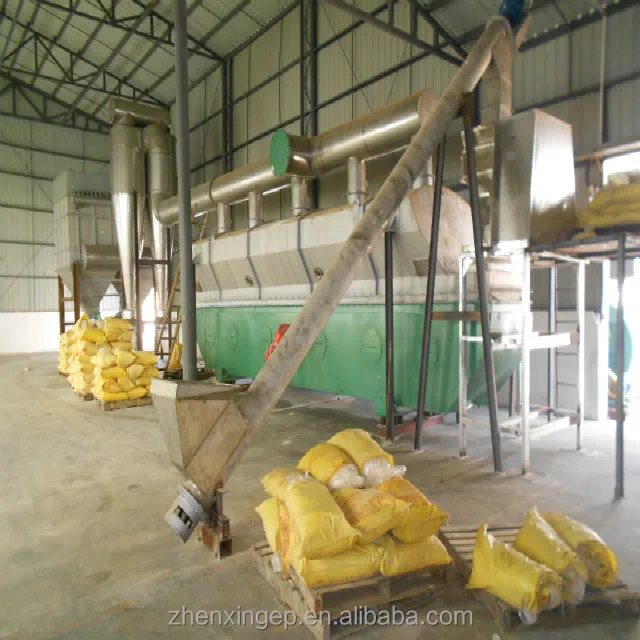

The Dryer Machines are installed at the plant.





DO YOU HAVE ANY QUESTIONS IN DRYING PROCESS ?

IN CHEMICAL FIELD, IN FOOD FIELD, IN SLUDGE FIELD…..



ARE YOU ALSO HAVING ANY INTEREST IN DRYING PRODUCTION LINE?



ARE YOU LOOKING FOR A PROFESSIONAL DRYER MACHINE?



HOW ABOUT A PERSON TO SOLVE ALL QUESTIONS YOU CONCERNED?





Find me on WHATS APP:   +86-13651500952

Hi, I am Joanna, and now working for Changzhou ZHENXING Environment Technology Engineering Co., Ltd

I know you are looking for good quality dryer equipment, like this:







Contact me to get full technical support.

So our company can be a good choice, WHY?





TOP 500 WHO CHOOSE US,WE SPECIALIZE IN DRYING FIELD SINCE 1993,



Certificates such as SGS,CE,ISO can also be a proof of our quality



"our machinery have improve production capacity more than 50% in regular process , not only in capacity,but also in fine powder quality."

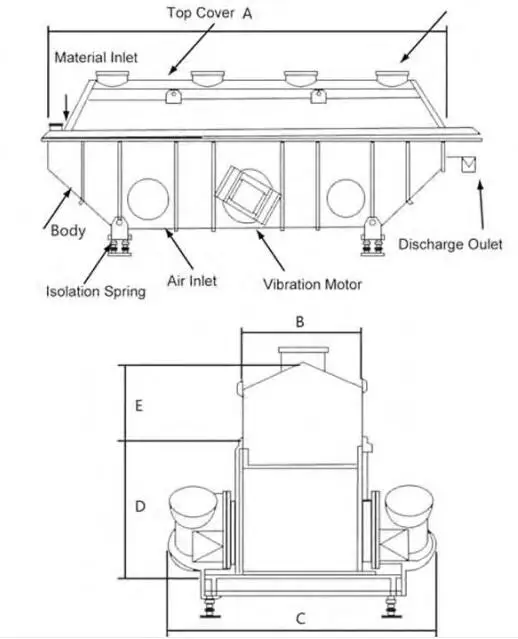

WORKING PRINCIPLE

The raw material is fed into the dryer from the feeding inlet and the material will continue moving along with the fluidized bed level under the action of vibration. The hot air passes through fluidized bed and carries out heat exchange with damp raw materials. The wet air is exhausted out by the cyclone separator and the dried material will be discharged from the discharge outlet.



APPLICATION

This dryer is widely used for drying, cooling, wetting of the products in the light industry, chemical industry, pharmaceutical industry, foodstuff, and etc.



Applicable Materials:

Boric Acid, Borax, Dihydroxybenzene, Malic Acid, Maleic Acid, Monosodium Glutamate, Oxalate, Potassium, Permanganate, Sesame, Pentaerythritol, HPAM, Hypha Protein, Sodium Sulfate, Sodium Borate, Plastic Archon, Catalyst, Baking Soda, Detergent, Quartz Sand, Bean Pulp, Edible Sugar, Refine Salt, Bean, Seeds, Mining Slag, Activated Clay, Compound Fertilizer, and etc.



FEATURES

1)    The vibration is created by vibrating motor which is stable in operation, easy for maintenance, low noise, and long service life.

2)    The material is being heated evenly and the heat exchange is fully used which ensured high drying capacity. The energy consumption is 30% lower compared to the common dryers.

3)    The adjustability of the dryer is good and it is widely used in different industries. The material thickness, moving speed inside the dryer, and amplitude can be adjusted.

4)    The damage to the material surface is small so the dryer can be used for fragile materials. The irregular particles will not affect the performance of the dryer.

5)    A fully enclosed structure will effectively prevent cross-contamination between the material and the air environment.

6)     Multiple series connections are optional if the material contents high moisture and required high capacity; such as Polyacrylamide.

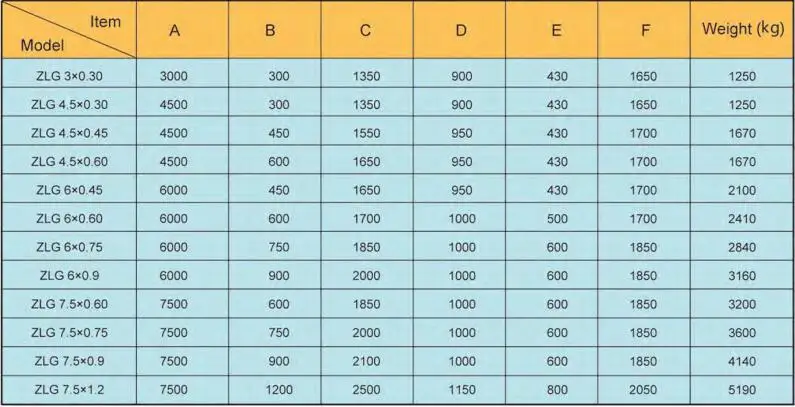

 Technical Parameter









 Packing and Delivery:





Company Information

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd., this is Drying Equipment manufacture. We are specialized in the development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.

We follow a strict quality control procedure and we provide high-quality products with prompt after sales services and technical support.

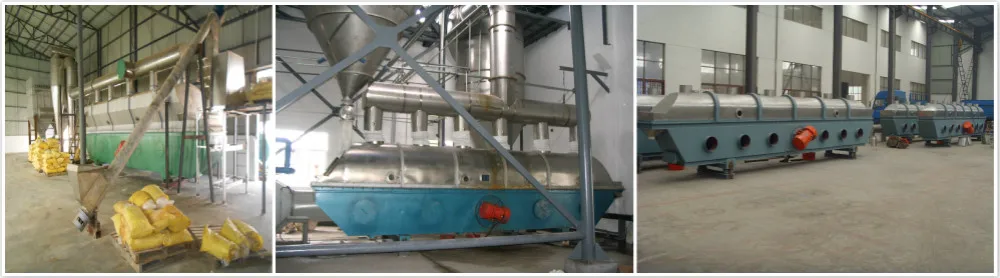

Project Case



During the installation, we can send our engineer to help you instruct if you need.

If you have any other questions, please feel free to contact me if you need.
