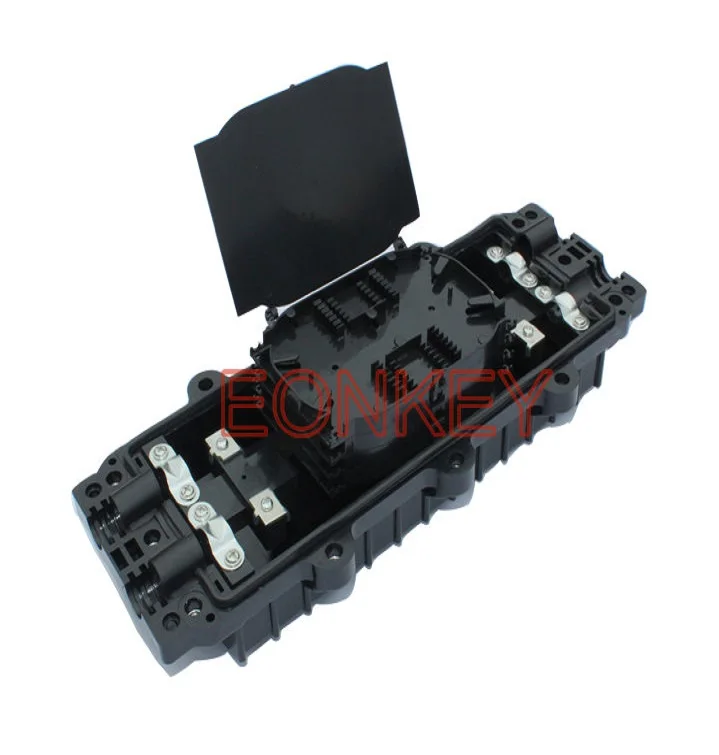

FOSC Series 3m fiber optic splice closure with good waterproof

Product Overview

Description

Product name : 3M Fiber Optic Splice Closure

Product Number : EK08-F01



Application

 The scope of  application is: Aerial,underground,wall-mounting,duct-mounting,handhole-mounting.The ambient temperature ranges for-40℃ to +65℃.

Feature

1:   2 cores in 2cores out

2:  Open structure

3:  Protective connection

4:  Good material

Working Environment:

1.Working temperature: -5°C to +40°C

2.Relative humidity:≤85%(at +30°C)

3.Atmospheric pressure: 70Kpa-106Kpa

Installation procedure:

1. Open 3m fiber optic splice closure.

2. Fix the cable and check its length in the 3m fiber optic splice closure.

3. Strip off the cable and cable jacket

4. Seek out the cable cores and get preparation for cable fixation

5. Fix the strengthen cores and reorganize the extra cores

6. Fix the cable and splice the cable

7. Arrange the splice protective tube and fiber

8. Complete inspection

 9. Install the 3m fiber optic splice closure.













Technical Data



Product NO.	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Core capacity Tray	Weight (kg)
EK08F-01	400×160 ×100	12-144	2(pieces) on each side	φ20	12-24	2.0



Packing information

•  Each 3m fiber optic splice closure  with a inner box
• 5pcs inner box in one outside carton ,the size of the carton :50*37*36





(1) Are you a factory or Trade company?

      We are manufacturer, welcome to visit my factory, Thank you.

(2)Where is your factory located? How can I visit there?

      Our factory is located in Ningbo city ,near Shanghai in China.

      When you are in China,feel free to call us in any time.Hotline+0086 13566643839

(3)What kind of material of the fiber optic dome joint closure we use?

     High quality PC, PP, ABS etc.

(4)What is the after-sale service?

     Two years warranty and professional technology person to solve your problems..

(5)Do you provide any sample?

     Yes, we can provide the free samples for your testing and checking . Your soon feedback will be very appreciated.

(6)Could I place a small order quantity for the first order?

Ok,sure,we accept any order .

(7) How many years does the 3m fiber optic splice closure's life?

      The 3m fiber optic splice closure's life is about 15 years.
