WAG PA Corrugated Tube / PA Corrugated Tubing / NYLON Corrugated Hoses
- Category: >>>
- Supplier: Dongguan Ke Yu New Material Technology Co. Ltd.
Share on (60688307324):
Product Overview
Description
The price of each specification is different, the accurate price please consult the salesman. Thanks!
WAG-Corrugated Hose / Corrugated Conduit /
Corrugated Flexible Tube /PA Corrugated Pipe / Bellows
Product Description
Product Discription:

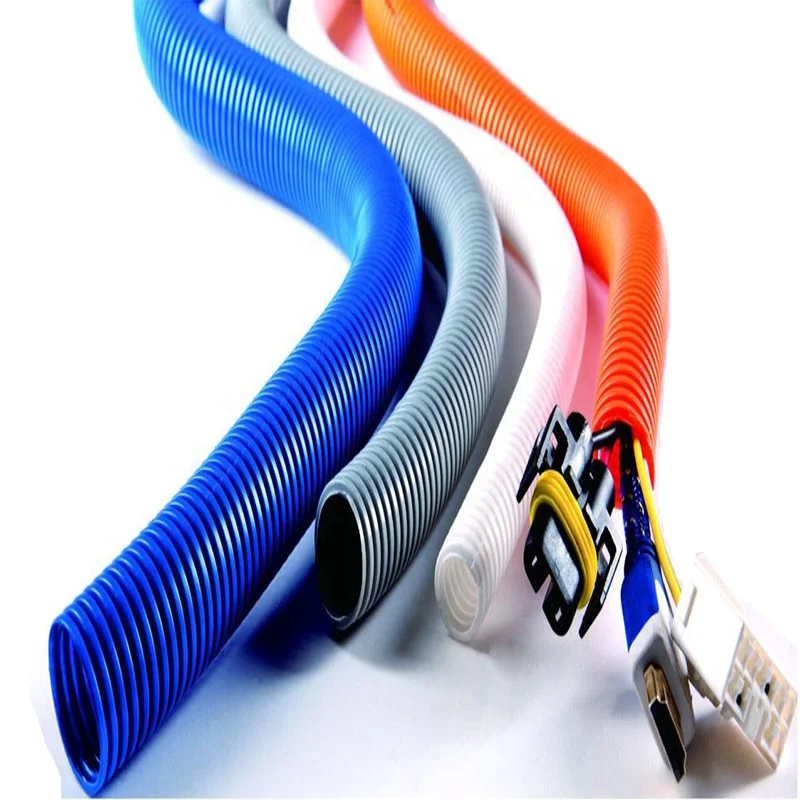

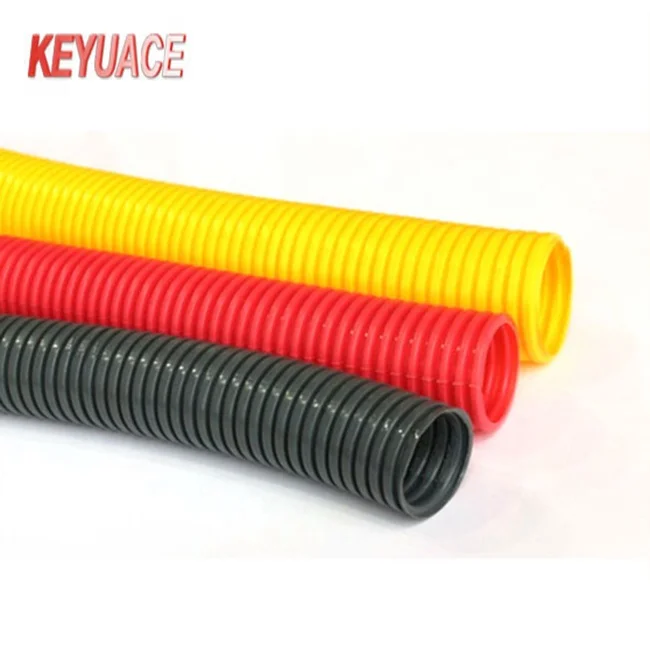

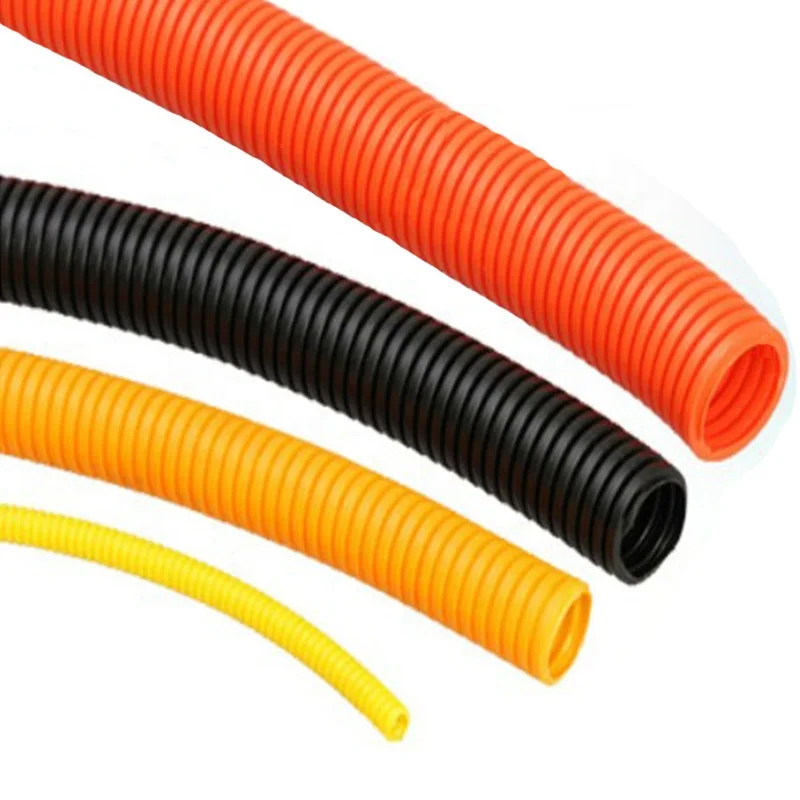

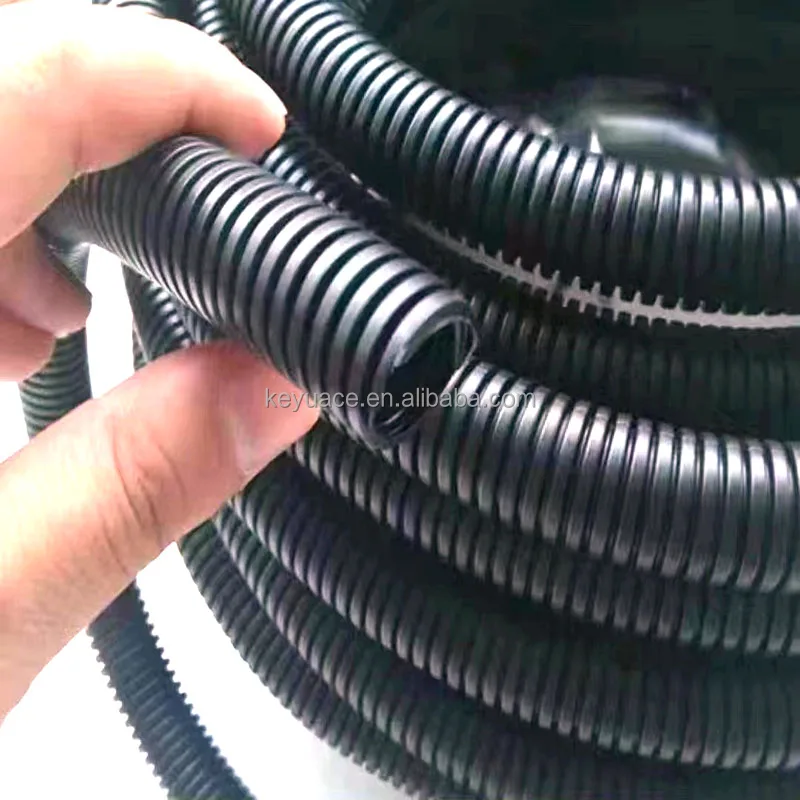

WAG-Corrugated Tube have 3 kinds of material by PE, PA, PP extrusion molding, Three kinds of material used to protect cable, wire cut, split, mechanical damage, good product flexibility, bending resistance and friction, acid resistance and other properties, good protective for wire, cable, wire.
Corrugated Conduit / Corrugated Flexible Tube Can be customized flame retardant, Split Tube (one side open style ).
Application
Product application:

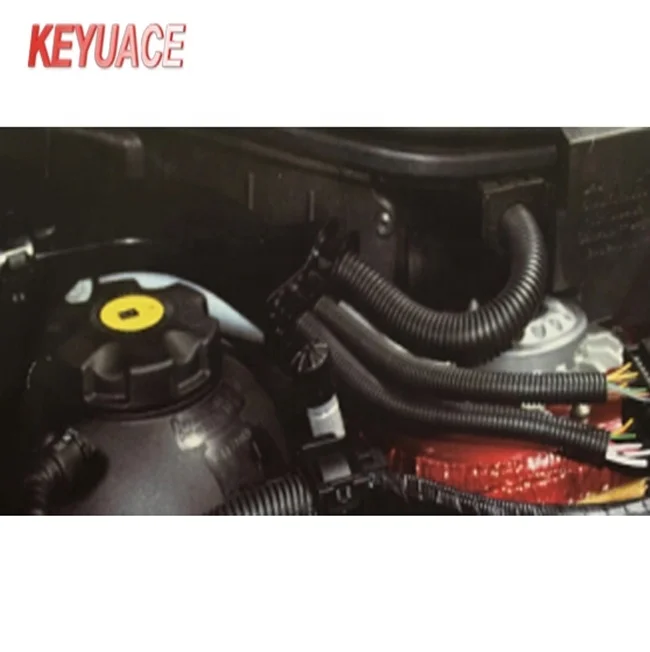

Corrugated Flexible Hose suitable for the machinery and equipment, automation equipment, automation control, bus, train, electrical switchgear, etc.
Product size chart:
Technical parameters:
Material quality: PE, PA, PP
Working temperature:
PE: - 40 ℃, + 90 ℃
PA: - 40 ℃, + 150 ℃
PP: - 30 ℃ - + 120 ℃
Standard color: Black, other color can be customized
Certification: ROHS 2.0
Cutting tools, scissors
Other features: high wear resistance, acid resistance, resistance to solvents and gasoline
Product Dimension
Product specifications:
PE Bellows | PA Corrugated Tube | PP Corrugated Hose | ID*OD | FLODING RADIUS | PACKING(L) |
| WAG-PE-7 | WAG-PA-7 | WAG-PP-7 | 4.5*7.0 | 5 | 200M/ROLL |
| WAG-PE-8.5 | WAG-PA-8.5 | WAG-PP-8.5 | 5.5*8.5 | 8 | 100M/ROLL |
| WAG-PE-10 | WAG-PA-10 | WAG-PP-10 | 7.0*10.0 | 10 | 100M/ROLL |
| WAG-PE-12 | WAG-PA-12 | WAG-PP-12 | 8.5*11.5 | 15 | 100M/ROLL |
| WAG-PE-13 | WAG-PA-13 | WAG-PP-13 | 10.0*13.0 | 20 | 100M/ROLL |
| WAG-PE-15.8 | WAG-PA-15.8 | WAG-PP-15.8 | 12.0*15.8 | 30 | 100M/ROLL |
| WAG-PE-18.5 | WAG-PA-18.5 | WAG-PP-18.5 | 14.3*18.5 | 40 | 100M/ROLL |
| WAG-PE-21.2 | WAG-PA-21.2 | WAG-PP-21.2 | 17.0*21.2 | 45 | 100M/ROLL |
| WAG-PE-25 | WAG-PA-25 | WAG-PP-25 | 21.0*25.0 | 50 | 100M/ROLL |
| WAG-PE-28.5 | WAG-PA-28.5 | WAG-PP-28.5 | 23.0*28.5 | 55 | 50M/ROLL |
| WAG-PE-34.5 | WAG-PA-34.5 | WAG-PP-34.5 | 29.0*34.5 | 60 | 50M/ROLL |
| WAG-PE-42.5 | WAG-PA-42.5 | WAG-PP-42.5 | 36.0*42.5 | 70 | 25M/ROLL |
| WAG-PE-54.5 | WAG-PA-54.5 | WAG-PP-54.5 | 48.0*54.5 | 80 | 25M/ROLL |
Detailed Images
