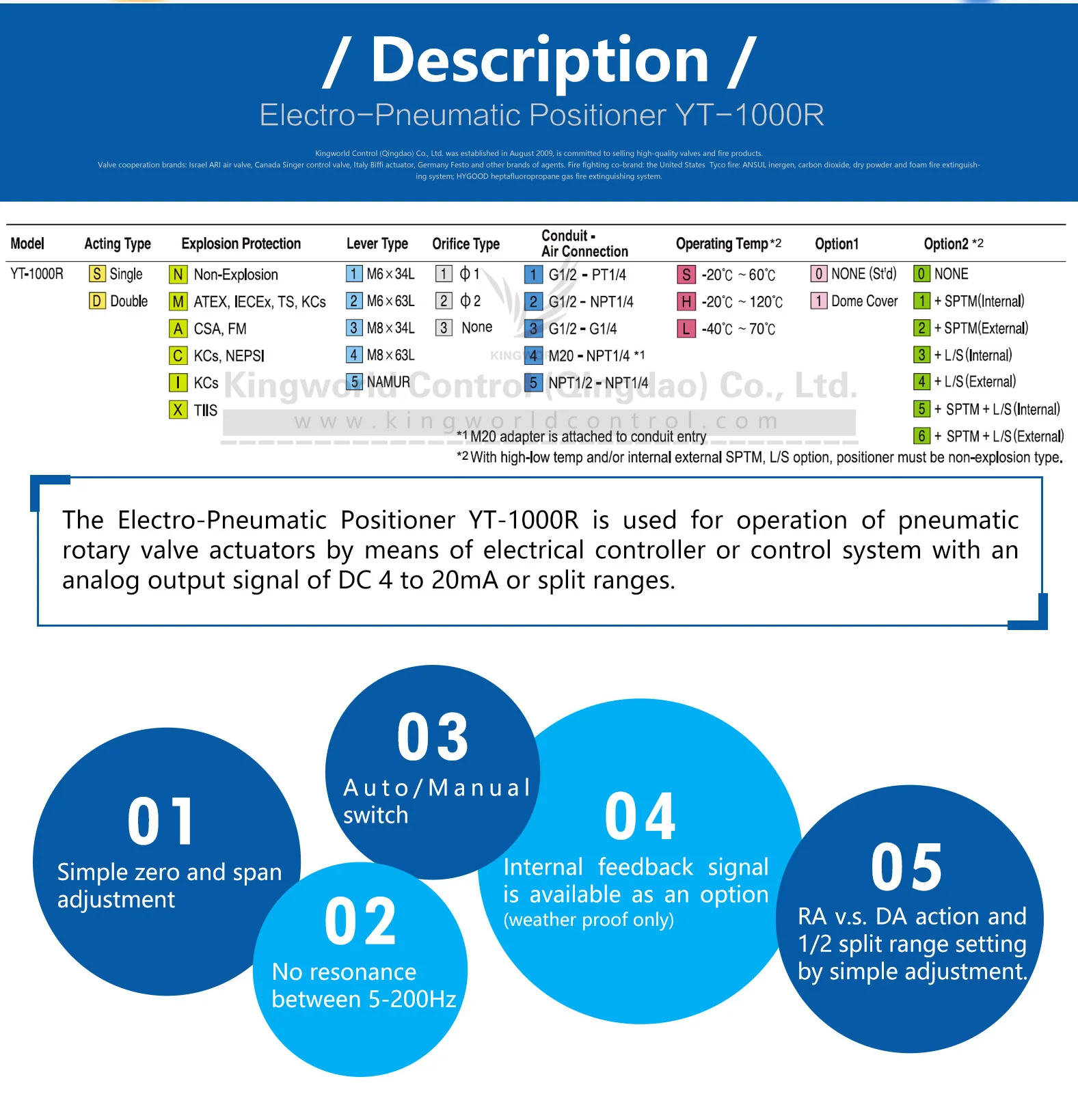

Description
Product Description

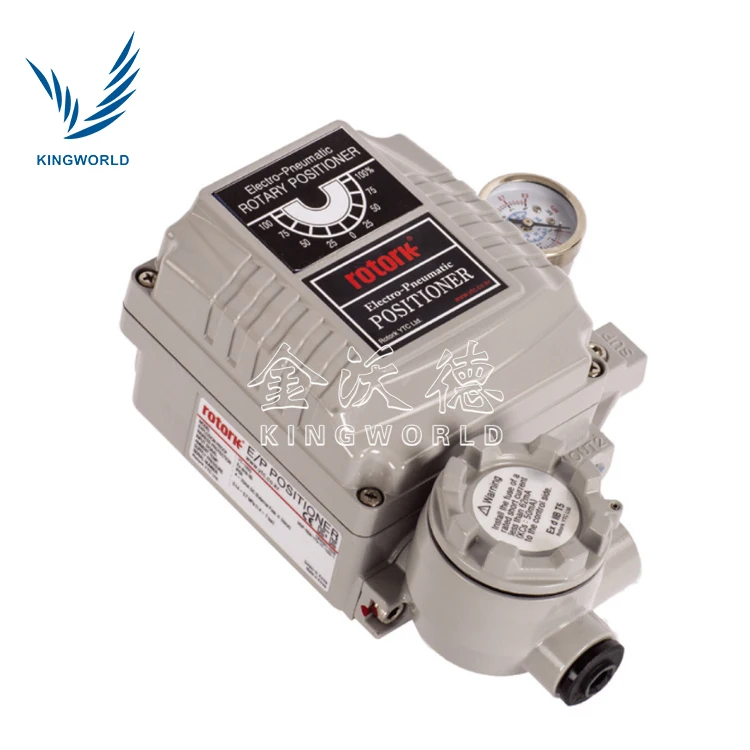

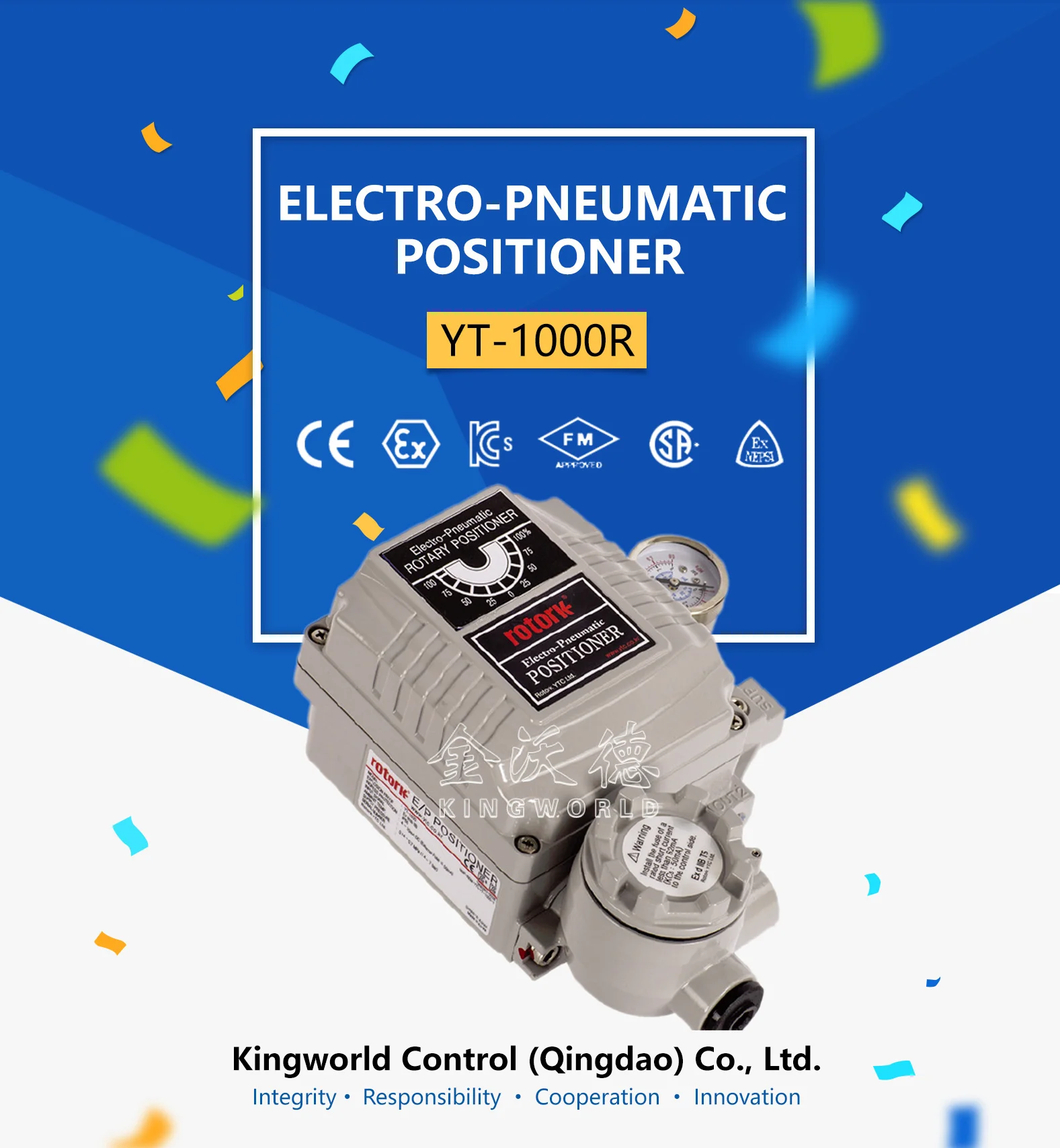

Korea Rotork YTC YT-1000R Electro Pneumatic Valve Positioner
YT-1000R series is designed to precisely adjust the valve opening with 4~20mA input signal
- It is designed for high durability and performance in high vibration environment.
- Durability has proven after testing of 1 million times minimum.
- Response time is very short and accurate.
- Simple part change can set 1/2 Split Range.
- It is economical due to less air-consumption.
- Direct/Reverse action can be set easily.
- Zero & Span adjustment process is simply.
- Feedback Connection is easy.

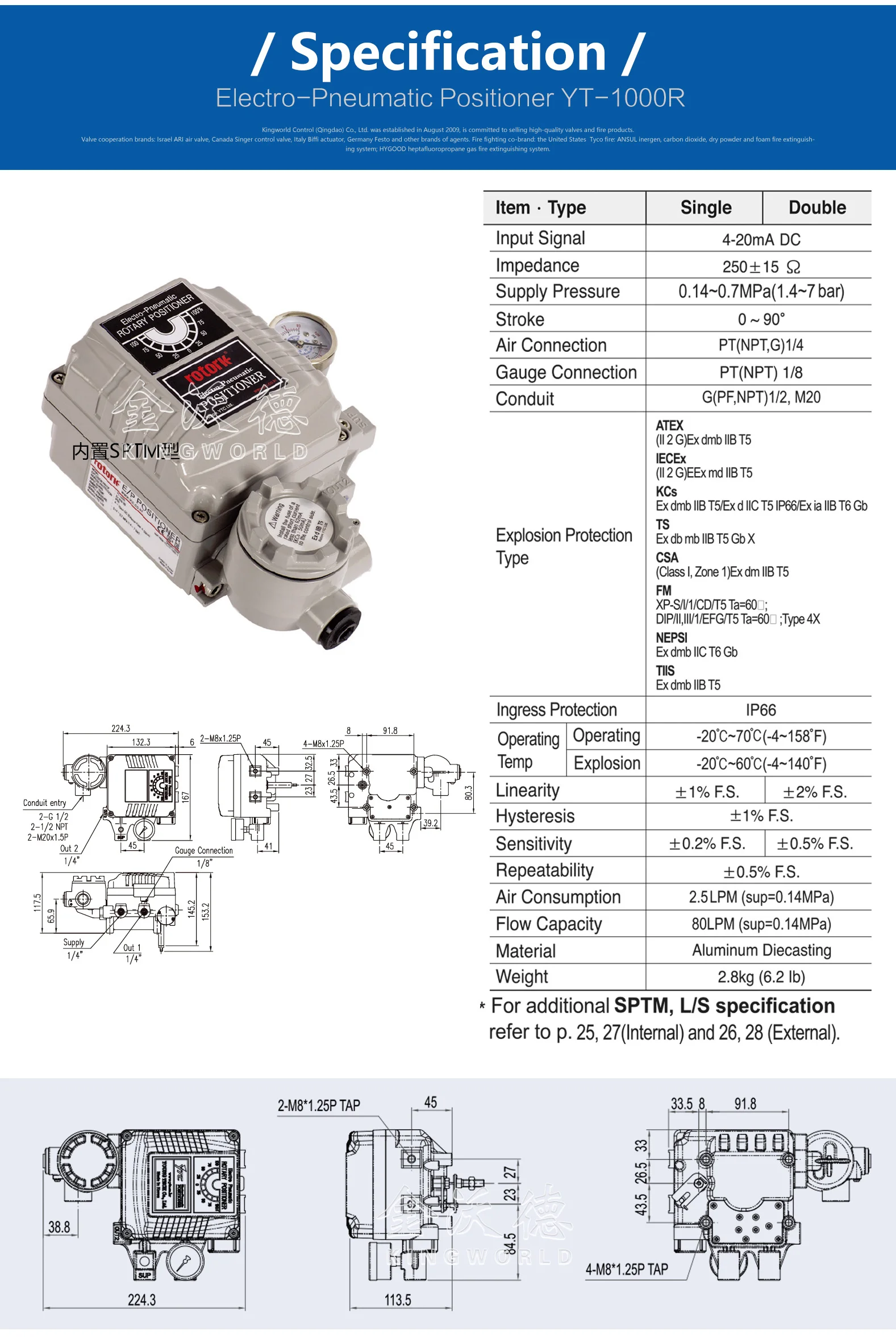

| Item | YT-1000L | YT-1000R |
| Single Acting/Double Acting | Single Acting/Double Acting | |
| Input signal | 4~20mA DC | |
| Impedance | 250±15Ω | |
| Input pressure | 1.4~7.0kgf/cm² (20~100psi) | |
| Travel Range | 10~150mm | 0~90° |
| Air connection | PT (NPT)1/4 | |
| Pressure guage connection | PT (NPT)1/8 | |
| Power connection | PF 1/2 (G 1/2) | |
| Explosion proof levels |
Ex dm llB T5 Ex dm llC T5 Ex dm llB T6 |
|
| Protection class | IP66 | |
| Ambient temperature |
-20~70℃ (working temperature) -20~60℃ (Explosion proof temperature) |
|
| Linearity | ±1% F.S | |
| Hysteresis | 1% F.S | |
| Sensitivity | ±0.2% F.S ±0.5% F.S |
±0.2% F.S ±0.5% F.S |
| Repeatability | ±0.5% F.S | |
| Air Consumption | 3LPM(Sup=1.4kgf/cm² , 20psi) | |
|
Flow |
80LPM(Sup=1.4kgf/cm² , 20psi) | |
| Material | Die-cast Aluminium | |
| Weight | 2.7kg(6.1lb) | 2.8kg(6.2lb) |
