Jumper medical factory supply popular homeuse fetal doppler Angelsounds fetal doppler
- Category: >>>
- Supplier: Shenzhen Jumper Medical Equipment Co. Ltd.
Share on (60688340171):
Product Overview
Description
Product Description
The product is a lightweight, portable, detector. It is designed to meet your detecting and hearing needs by providing advanced detecting functions and a full range of sound of the fetal heartbeat.
The product is mainly used to detect the fetal heartbeat rate (FHR) and the sound of the fetal heartbeat (SFH).
The growth and development of a fetus can be found out through examination of these indices. It is applicable for department of gynecology and obstetrics and clinic daily.
In accordance with classification criteria in Annex IX on “Medical Device Directive 93/42/EEC”, the product is class II based on rule 10, “Devices for Direct Diagnosis or Detection on physiological process”.
| |
LCD Size | 34mm X 16mm |
| |
Ultrasonic emitting frequency: | 2.5MHz±3% |
Overall sensitivity at the distances 200mm from the face of the probe (Doppler frequency:300±50Hz, Target velocity: 10cm/s~40cm/s) | ≥90dB |
Spatial-peak temporal-peak acoustic pressure | <8.6kPa |
Output power | <20mW |
Effective area of the ultrasonic transducer active element | 1.57cm2 |
The acoustic coupling medium for normal use: | ph: 5.5~8, Acoustic impedance: ≤1.7×105g/cm2.s |
| |
FHR Test Range: | 50 bpm ~210 bpm (Beat / Minute) |
Resolution: | 1 bpm |
Accuracy: | ±2 bpm |
AUDIO OUTPUT |
|
Audio Output Power: | <0.5 W |
Audio Out Socket: | Φ3.5mm |
| |

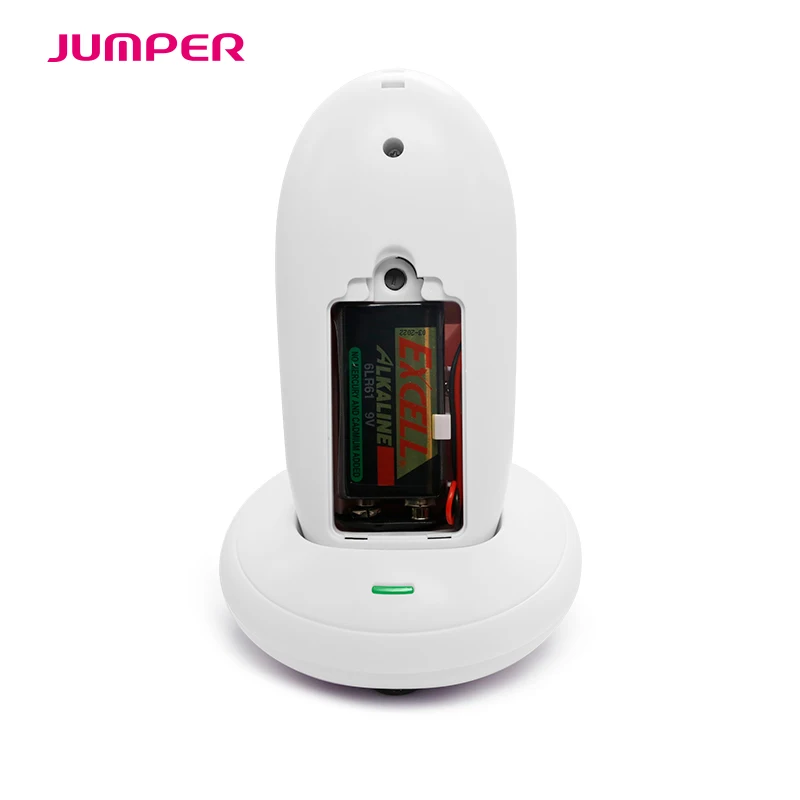

Battery Voltage: | 9V |
Type: | 9V Alkaline |
Company Information
Shenzhen Jumper Medical equilpment co.,Ltd was established in 1998, integreted by USA jumper coperation and Shenzhen jumper trading company,Jumper is a joint venture enterprise.
Self-R&D team from aboard experts leading China highest university Peking university,Qinhua, Shanghai Jiao Tong University mater and doctors. with ISO 9001:2000 and ISO13485:2003 quality management systems approved,we very strictly control our products quality,provide our clients the highest quality and high stability as well.
We are the one of largest fetel doppler manufacturers in the world.mainly do:
fetal doppler,fetal monitor,fetal&maternal monitor, patient monitor,pulse oximeter,blood pressure monitor, thermometer,etc
