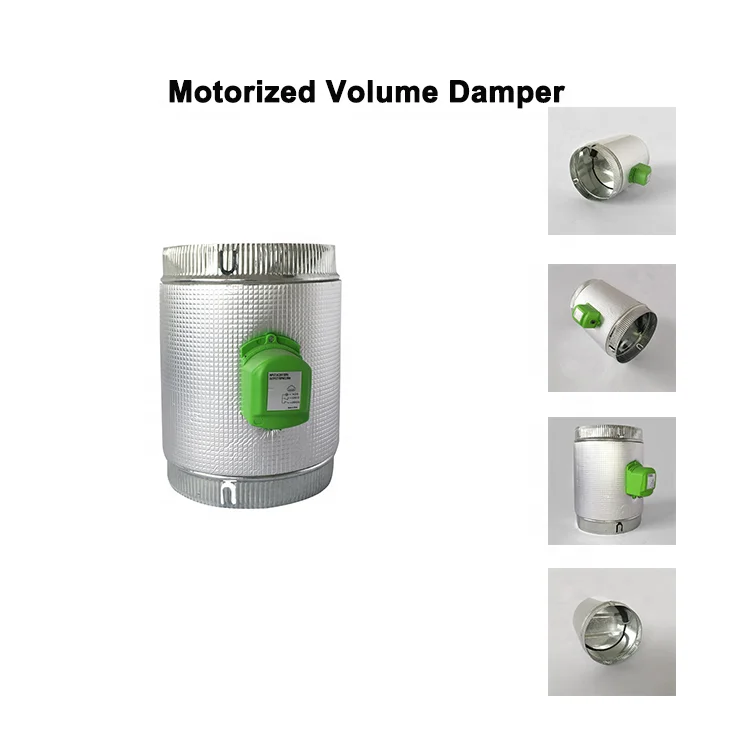

HVAC System Galvanised Steel Air Flexible Duct Motorised Air Damper with Slivery Insulation Cotton

Product Overview

Description

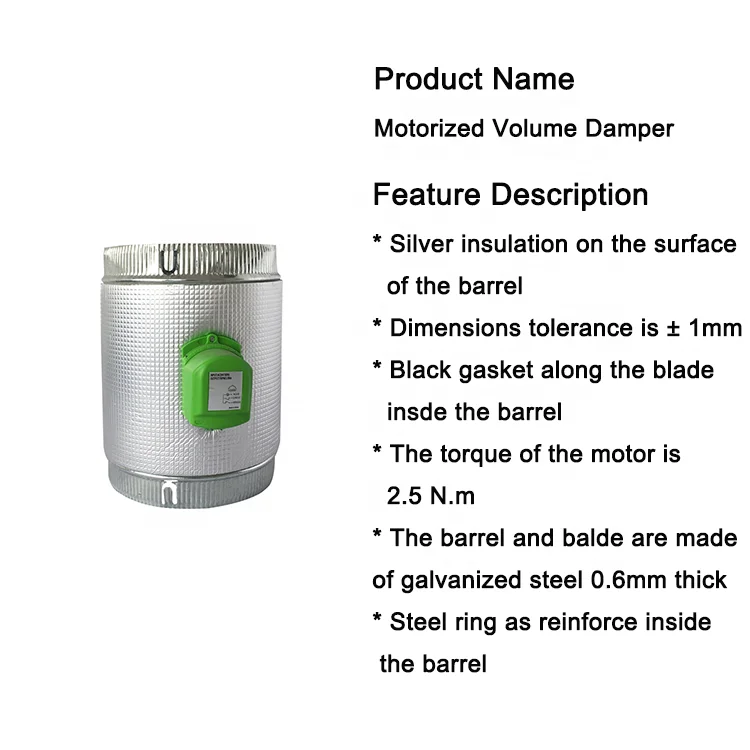

Feature Description
* Silver insulation on the surface of the barrel
* Dimensions tolerance is ± 1mm
* Black gasket along the blade insde the barrel
* The torque of the motor is 2.5 N.m
* The barrel and balde are made of galvanized steel 0.6mm thick
* Steel ring as reinforce inside the barrel



Accessories(Optional)
*Cable for 24V motor

* 240V to 24V transformer

* RJ 12 plug cable
* Touchpad controller, 6, 4 and 2 zone are available

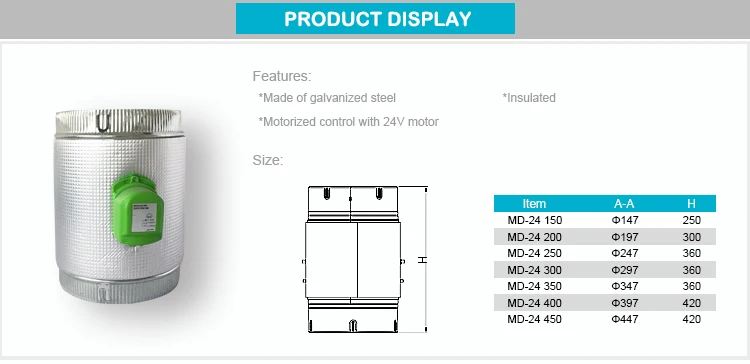

the 24V motorised air volume damper is a round shape, available in sizes ranging from 150mm to 450mm in diameter. This allows for flexibility in installation, accommodating different sizes of ventilation ducts and HVAC systems. The damper's galvanized steel construction and 5mm insulation provide durability and protection against wear and tear, ensuring a long service life. The 24V actuator allows for precise control of the damper's blades, enabling optimal regulation of airflow to maintain comfort levels while minimizing energy consumption. This version of the damper is an ideal choice for those seeking a versatile and reliable solution for their HVAC needs.







Our advantages:

·A wido range of products we can supply.

·Aprofessional technical team to dovelopnew products.

·Every order has been inspected before shipment.

·Make order easy and simple:a professional service team to dealwith orders,tracking progress,arranging shipment and data preparation.
