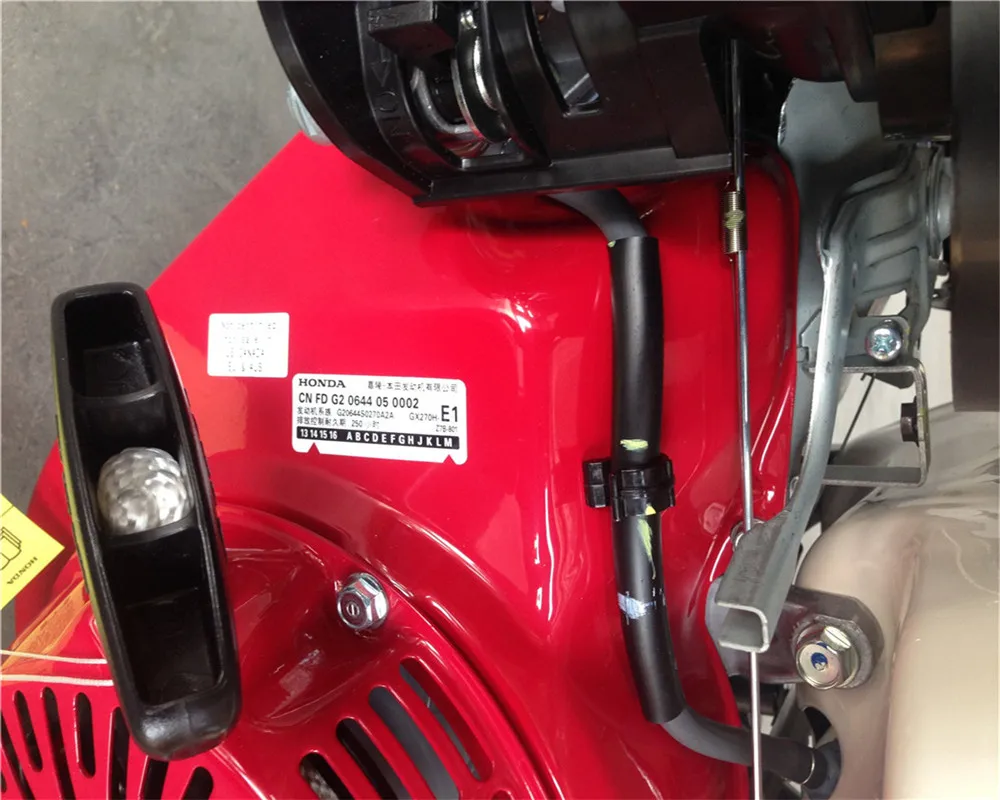

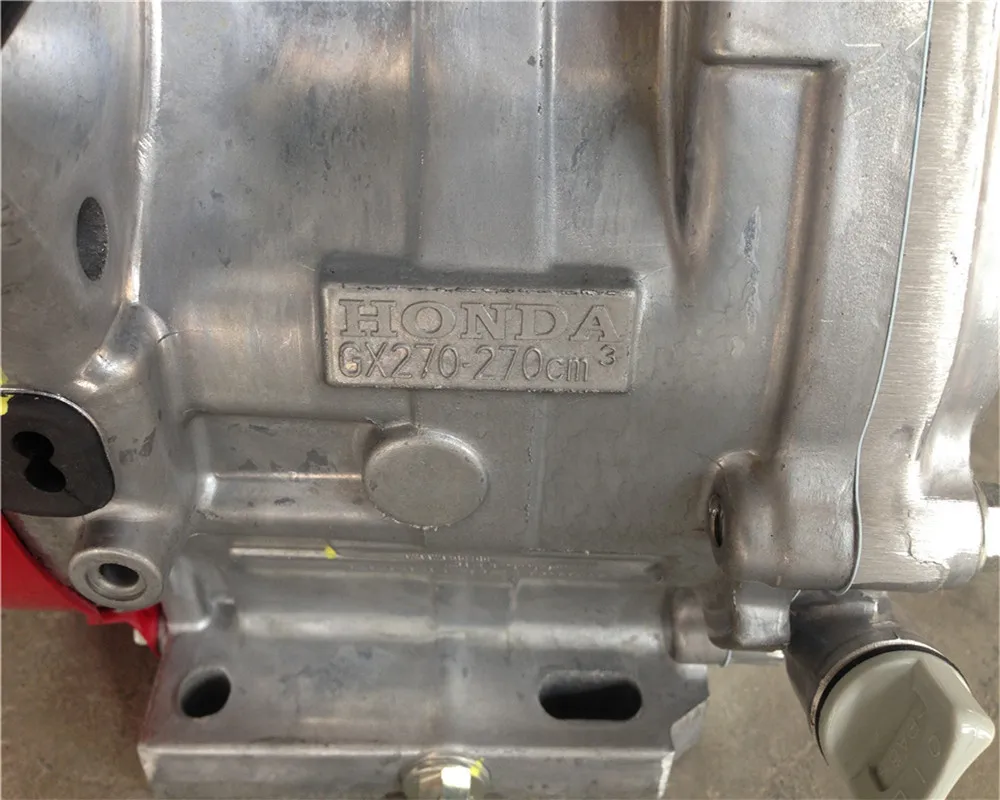

9HP HONDA gasoline engine GX270

Product Overview

Description

Model	GX160(FSH-168F)	GX200(FSH200)	GX270(FSH177F/P)		GX390(FSH188F/P)
Engine Type	(Air-cooled; 4-stroke; OHV; single cylinder)
Bore x Stroke	68x45(mm)	68x54(mm)	77*58mm		88*64mm
Displacement	163cc	196cc	270cc		389cc
compression Ratio	8.5: 1	8.5: 1	8.2:1		8.0:1
Maximum Power Output	(5.5HP)4.1kw	(6.5HP)4.8kw
Rated Power Output	(5.5HP)3.1kw	(6.5HP)3.8kw	9HP/5.4KW		13HP/8.2KW
Maximum Torque	10.8N. m	13.2N. m
ignition System	TCI
Starting System	Recoil start
ENGINE Oil System Capacity	0.6 Liters		1.1Liters
Fuel Capacity	3.6 Liters		6.0L		6.5L
Fuel Rate  Consumption	≤395g /kw/h		≤374/kw.h		≤374/kw.h
Dimensions(LxWxH)	385*330*350mm		455*420*475mm		510*420*475mm
Net weight	17kg		27kg		34kg

Product Strength:
Very low noise
Compact and lightweight
Low fuel consumption
Use for Pumps,Generators,Construction Machinery
Original recoil starter marks the engine start easier, performs stably

Application:

A simple, compact, and lightweight engine for a wide array of applications.Great for agricultural, rental, construction site, and home use.
