24V DC Step Down to 12V 10A 120W DC Converter 24 Volt Convert to 12 Volt 10 Amp Car Truck Bus Buck Voltage Regulator Module
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60688450461):
Product Overview
Description

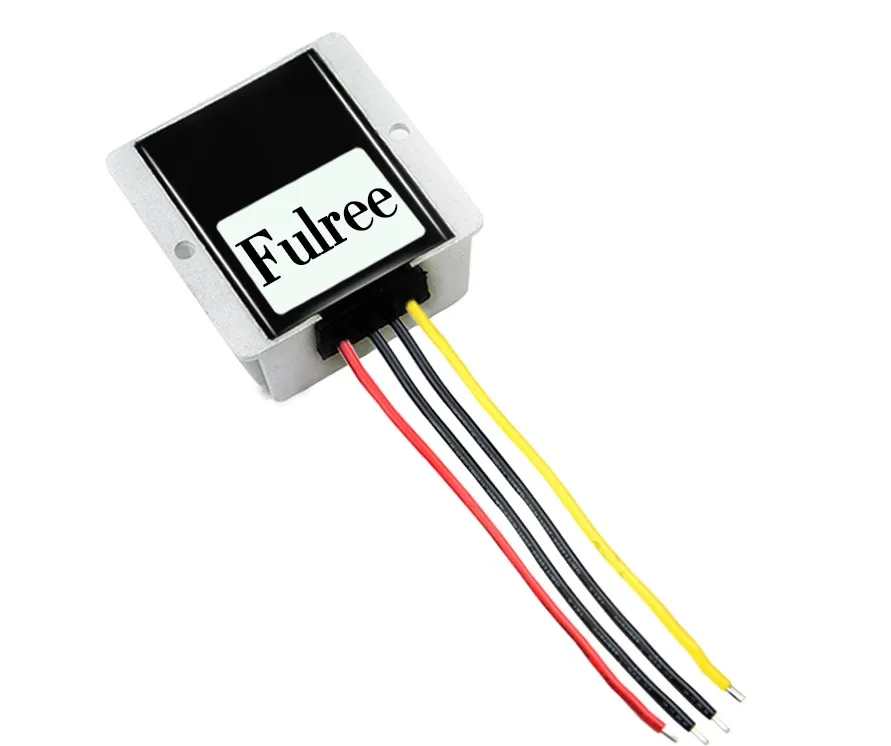

24V DC Step Down to 12V 10A 120W DC Converter 24 Volt Convert to 12 Volt 10 Amp Car Truck Bus Buck Voltage Regulator Module
| Product Name | 24V DC to 12V DC Converter |
| Model | F40J12V10A5L (Old:1012B) |
| Input rated voltage | DC 24V |
| Input voltage range | DC 15-40V |
| Efficiency | 93% |
| Output voltage | DC 12V (minimum pressure difference:3V) |
| Output current | 10A Max |
| Output rated power | 120W Max |
| Output peak power | 144W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Short-circuit protection, Instant absorption of high voltage protection, waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection | NONE( (Please Series diode at the input port.) |
| NW | 280g |

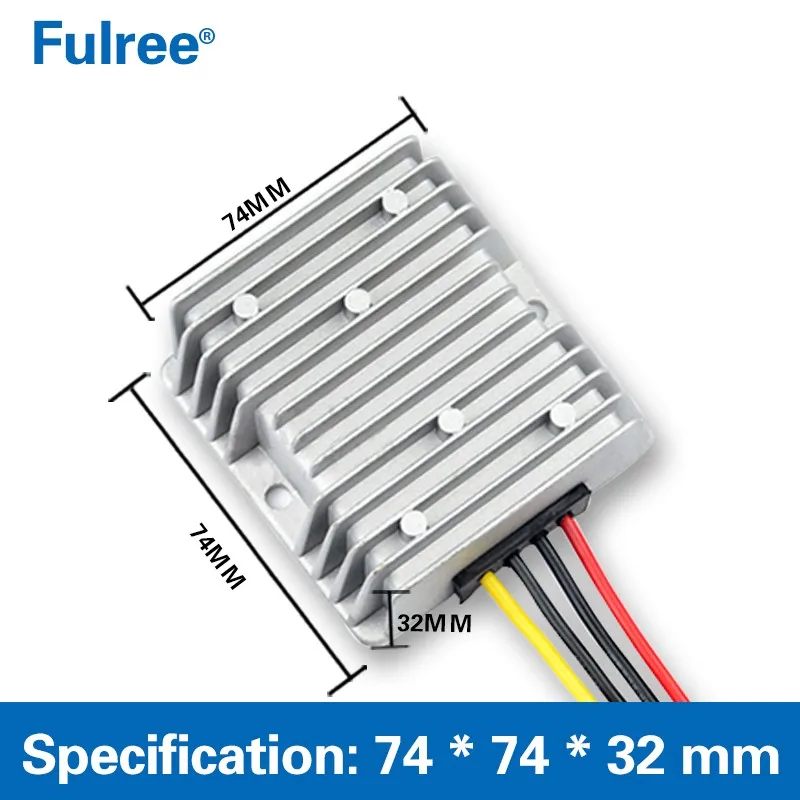

| Product size | 74*74*32mm |
Other outut current for 24V to 12V available | 8A,12A,15A,20A,30A (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
