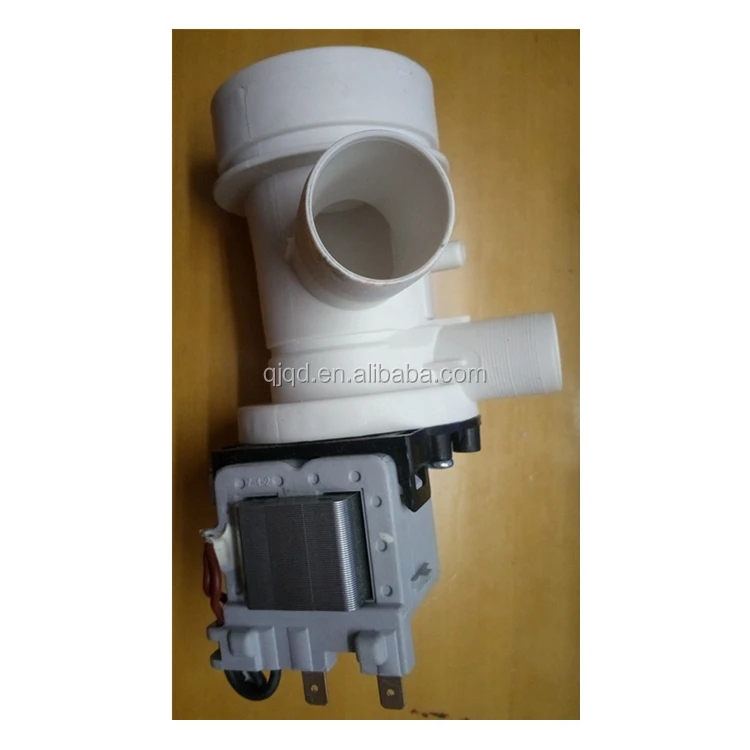

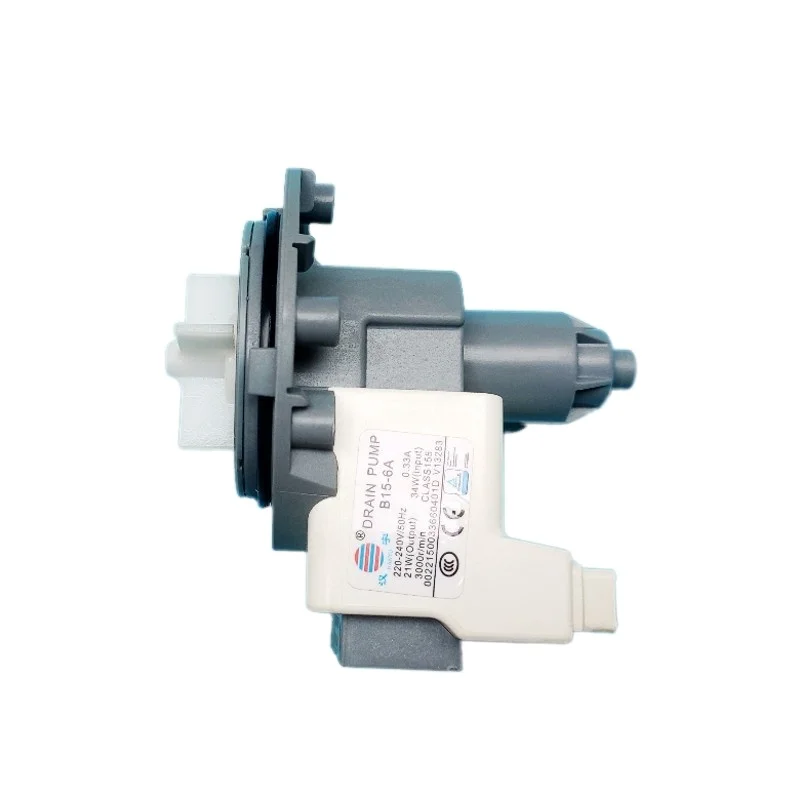

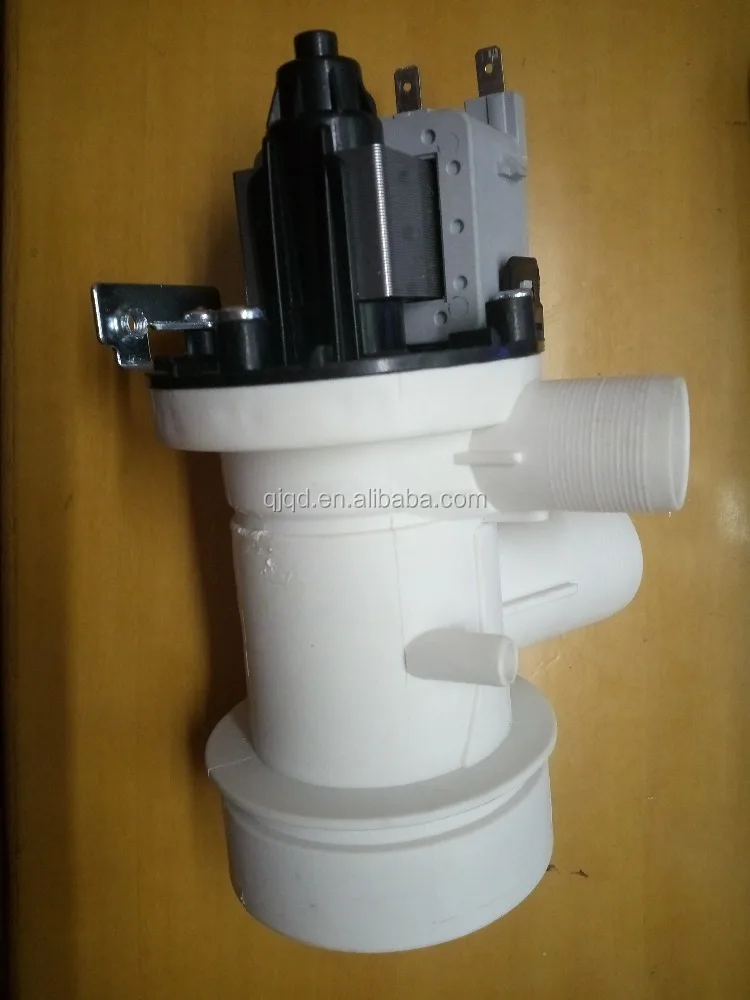

Universal DRAIN PUMP FOR WASHING MACHINE APPLICATION B15 6A

DRAIN PUMP , WITH LID

USED IN WASHING MACHINE AND DISHWASHER

FEATURES:

1).WINDING WITH PLASTIC ENCAPSULATED AND THERMO PROTECTOR

2)MAIN METERIAL : PVC BODY , ABS / PA 6  NUTS

3).OPERATION :LIQUID WATER (60℃AND LESS)

4).INSULATION CLASS:F

5).FLOWRATE:>20L/MIN (AT 1M HEAD)

6).TEMPERATURE RISE:LESS THAN 115K

7).OPERATING ENVIRONMENT:INDOOR

8).WATER- PROOF:PUMP SHALL BE NO WATER LEAKAGE AT 0.03MPa STATIC PRESSURE

9). WORKING LIFE:AFTER INSTALLED DRAIN PUMP INTO TEST FIXTURE

AND SUPPLIED RATED VOLTAGE THE PUMP WORKED FOR 1 MIN AND STOPPED FOR 1 MIN TILL 15000 CYCLES.

10).DIELECTRIC STRENGTH:THE PUMP SHALL BE NO SURFACE ELECTRICAL DISCHARGE  OR PERFORATIONS BY APPLY 1500V FOR 1 MIN BETWEEN THE TERMINAL AND STACK

11).NOISE TEST: 60DBA MAX FULL TUB IN DISHWASHER

NOTE : SPECIFICATIONS ARE ADJUSTABLE ACCORDING TO YOUR REQUIREMENTS:

1).RATED VOLTAGE : AC 220V-240V   50HZ , 30W ,0.2A

2).RATED VOLTAGE :110V-127V  60HZ , 35W , 0.5A

3).RATED VOLTAGE : AC 220V  60HZ  , 35W  , 0.5A

 Packaging Details:30Pcs/Ctn
 Delivery Details:DRAIN PUMP shipped 30 days after payment.
