Electric Water Softener Multi port Valve

Product Overview

Description

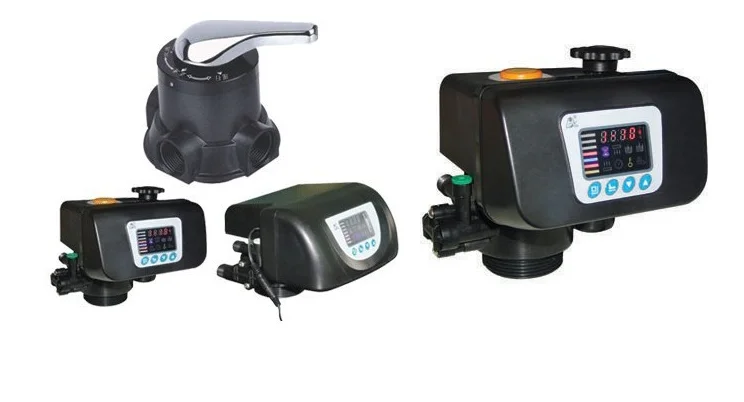

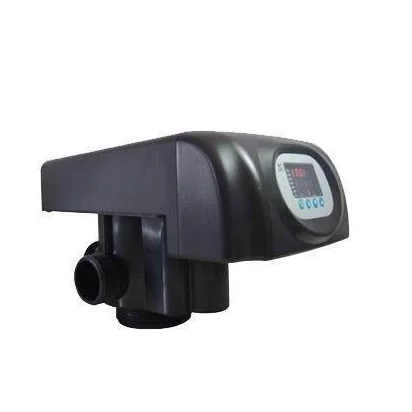

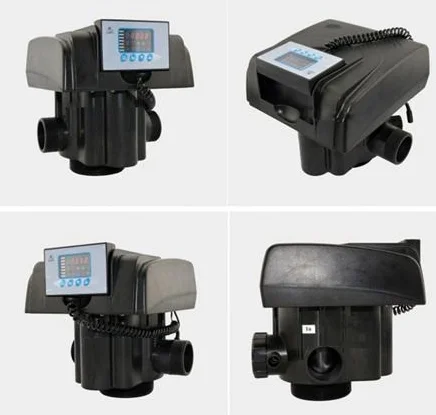

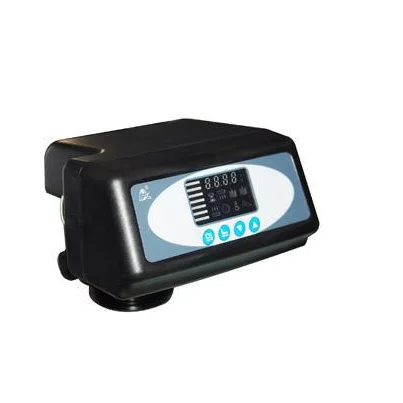

Electric Water Softener Multi-port Valve



Product Characteristics

1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
2. No water pass the valve of single tank type in regeneration
3. LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in regeneration cycle.
4. Having long outage indicator
5. It can choose time clock type or meter type by program selection
6. Buttons are locked when no operation within 1 minute
7. Having interlock function
8. With signal output connector
9. With remote handling input connector
10. With pressure relief connector
11. All parameters can be modified according to the need

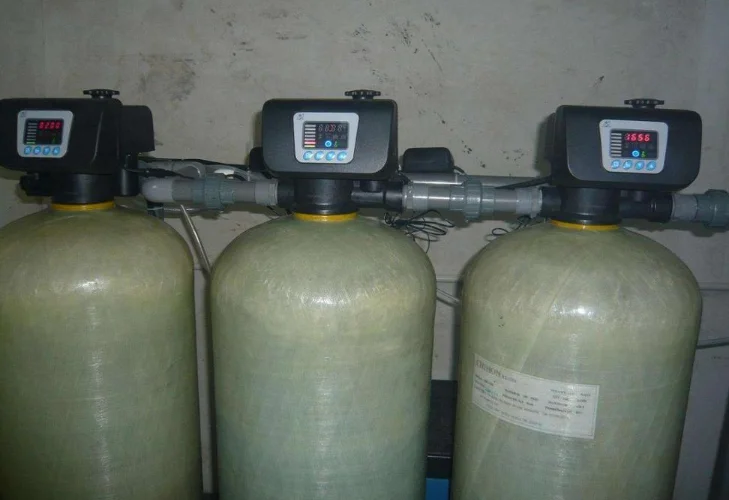

Range of Application

1. Residential filtration system Ion exchange equipment
2. Boiler softening water system
3. RO pretreatment softening system, etc



Product Technical Parameter
TYPE	MODEL	INLET/OUTLET	DRAIN	BASE	RISER PIPE	BRINE LINE CONNECTOR	W.T.C(M3/H)	TANK DIAMETER RANGE
Manual	F52	1/2''F	1/2''F	M82 x 3	Ø 16.5mm	/	1	6''-10''
filter	F56B	1/2'' or 3/4''F	1/2'' or 3/4''F	Tr95x6 or hackle whort	1.05''OD	/	1	10'' filter shell
valve	F56C	1/2'' or 3/4''F	1/2'' or 3/5''F	Tr118x6 or Tr110x6	1.05''OD	/	1	20'' filter shell
	F56E	1/2'' or 3/4''F	1/2'' or 3/6''F	2.5''-8 NPSM	1.05''OD	/	2	6''-10''
	F56A	1''F	1''F	2.5''-8 NPSM	1.05''OD	/	4	6''-12''
	F56F	1''F	1''F	2.5''-8 NPSM	1''D-GB	/	6	6''-14''
	F56D	2''F	1.5''F	4‘’-8UN	1.5D''-GB	/	10	10''-24''
	F77BS	2''M	2''M	4‘’-8UN	1.5D''-GB	/	15	10''-30''
Auto	F71B1	3/4''M	3/4''M	2.5''-8 NPSM	1.05''OD	/	2	6''-10''
filter	F71C1	3/4''M	3/4''M	2.5''-8 NPSM	1.05''OD	/	2	6''-10''

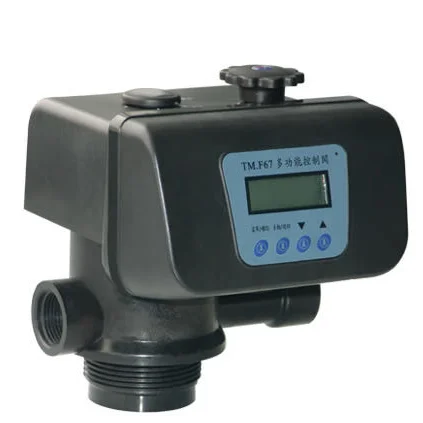

valve	F67C1	1''F	1''F	2.5''-8 NPSM	1.05''OD	/	4	6''-14''
	F67D1	1''F	1''F	2.5''-8 NPSM	1.05''OD	/	4	6''-14''
	F67B-A	1''F	1''F	2.5''-8 NPSM	1''D-GB	/	6	6''-14''
	F75A1	2''M	2''M	4‘’-8UN	1.5D''-GB	/	10	16''-24''
	F77B1	2''M	2''M	4‘’-8UN	1.5D''-GB	/	18	24''-30''
Manual	F64B	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
softener	F64C	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
valve	F64A	1''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	4.5	6''-18''
	F64F	1.5''M	3/4''M	4‘’-8UN	1.25''D-GB	1/2''M	6	10''-28''
	F64D	2''M	1''M	4‘’-8UN	1.5D''-GB	1/2''M	10	10''-30''
	F77AS	2''M	1.5''M	4‘’-8UN	1.5D''-GB	3/4''M	15	14''-42''
Auto	F65C	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
softener	F65B1	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
filter	F65D1	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
	F69A1	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
	F69D1	3/4''F	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	2	6''-12''
	F63B1	1''M	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	4	6''-18''
	F63D1	1''M	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	4	6''-18''
	F68A1	1''M	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	4	6''-18''
	F68D1	1''M	1/2''M	2.5''-8 NPSM	1.05''OD	3/8''M	4	6''-18''
	F74A1	2''M	1''M	4‘’-8UN	1.5D''-GB	1/2''M	10	16''-30''
	F77A1	2''M	1.5''M	4‘’-8UN	1.5D''-GB	3/4''M	18	24''-42''
	F95A1	2''M	1.5''M	4‘’-8UN	1.5D''-GB	3/4''M	20	28''-40''
