Non rechargeable Battery a3.6v Er18505 A Size High Capacity Lithium Battery Pack

Product Overview

Description

Non-rechargeable Battery a3.6v Er18505 A Size High Capacity Lithium Battery Pack

Specification:



Model	ER18505
Alternative models	LS14250/LST14250/LS14250C/TL4902/TL5902/SB-AA02/XL050F/ER3V
Size	A
Cell Type	Bobbin Type
Brand	ACT or OEM
Nominal capacity	4000mAh @ 0.5mA to 2.0V @ 23°C
Chemistry	Lithium thionyl chloride
Nominal Voltage	3.6V
Open circuit voltage	3.66V
Dimension	18.5(D)*50.5(H)mm
Weight	Approx.27g
Shelf life	10 years
Max. continuous discharge current	100mA
Max. pulse discharge current	200mA
Yearly self- discharge	≤1%
Certification	CE/RoHS/UL/UN38.3/MSDS
Operating Temperature Range	-55C~+85C
Storage ( Recommended )	20C ~ +25C
Terminals/Connector	Radial tabs / radial pins / axial leads / flying leads
Exterior/Housing	Stainless steel container
Welding technology	Laser
Factory area	33,325 square meters

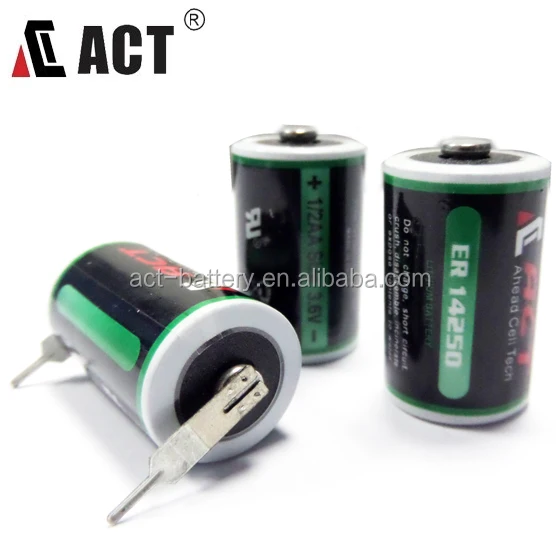

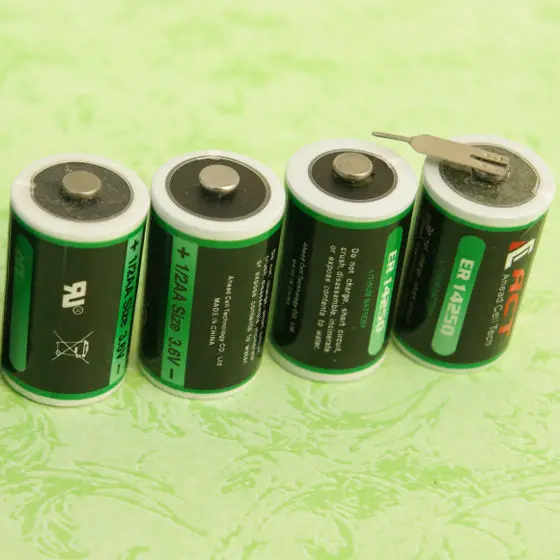

Battery pictures:

Main application:

--Radiocommunication and other military applications

--TPMS

--RFID

--Alarms and security systems

--Beacons and emergency location transmitters

--GPS equipment

--Led lighting applications

--Data holding system and reserving power sources

--Others



Company Information

     Established in 27th May,2010, Ahead Cell Technology Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of lithium thionyl chloride battery and lithium manganese dioxide batteries. We are located in Hubei Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.

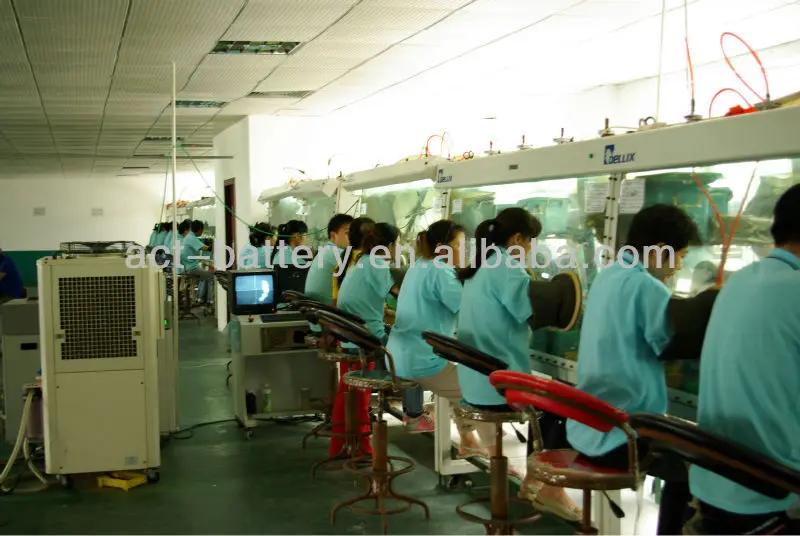

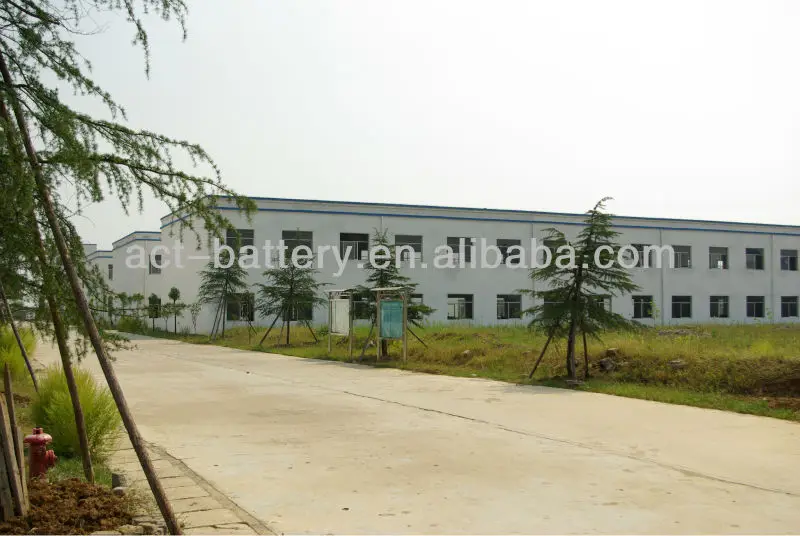

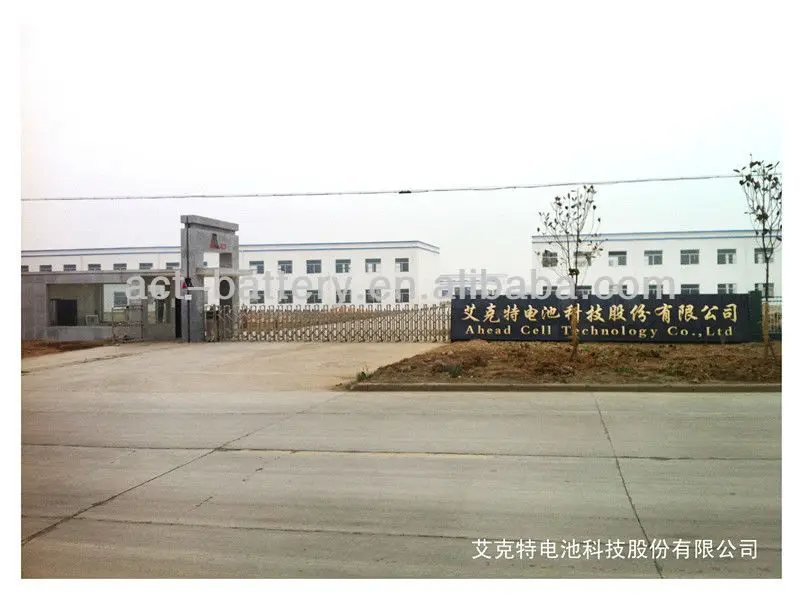

Factory pictures:

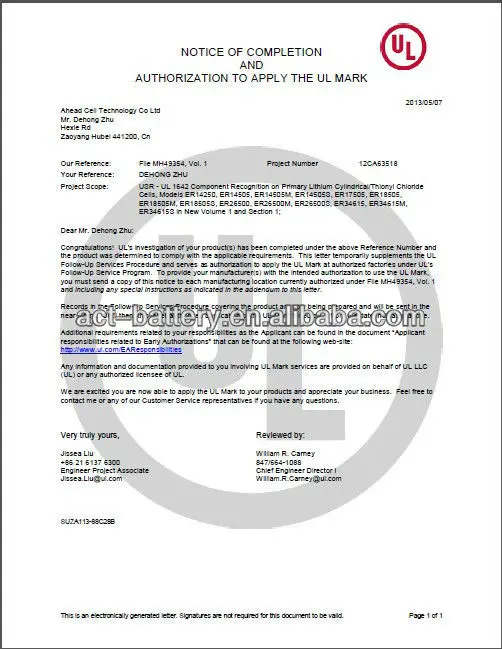

Certifications





Why choose us

1, Higher energy density and lower weight.

2, Superior drain capacity.

3, Low self-dischage rate (less than 1% after 1 year of storage at 20 °C.

4, Stainless steel container.

5, Hermetic glass-to-metal sealing.

6, Non-flammable electrolyte.

7, Laser weilding.

8, Injection at bottom,avoiding the leakage of galss-to-metal.

9, Long service life-10 years

10, Short delivery,reasonable price and perfect service.

11, Cetificate:ISO9001,UN,UL,meet the RoHs requiretment.

12, a ISO:9001 and IS0:2004 standard factory, production line is very strong.

13, powerful equipments,making sure high quality.
