High Speed Revolving Live Center MT3 MT4 MT5 for CNC machining Center

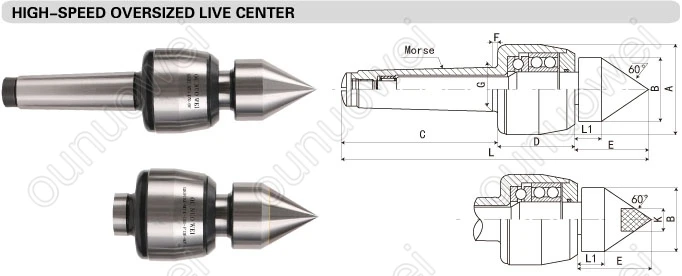

Morse
Type
L
L1
A
B
C
D
E
F
G
K
MT3
GSDT-MT3-D49-60°
199
26
48
49
86
45
68
5
23.825
/
MT3
GSDTHJ-MT3-D49-F130-60°
199
26
48
49
86
45
68
5
23.825
30
MT4
GSDT-MT4-D49-60°
227
26
68
49
109
50
68
6
31.267
/
MT4
GSDTHJ-MT4-D49-F130-60°
227
26
68
49
109
50
68
6
31.267
30
MT5
GSDT-MT5-D59-60°
281
29
78
59
136
65
80
6
44.399
/
MT5
GSDTHJ-MT5-D59-F136-60°
281
29
78
59
136
65
80
6
44.399
36

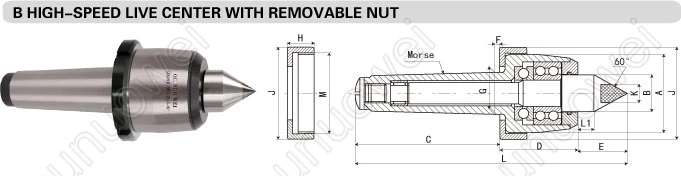

Morse
Model
L
L1
A
B
C
D
E
F
G
H
M
J
MT3
LMGS-MT3-60°
170
18
48
26
86
45
39
5
23.825
15
M60*1.5P
58
MT4
LMGS-MT4-60°
204
18
68
31
109
50
45
6.5
31.267
20
M60*2.0P
78
MT5
LMGS-MT5-60°
251
20
78
35
136
65
50
6.5
44.399
20
M68*2.0P
88

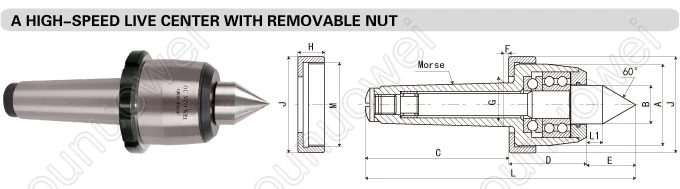

Morse
Model
L
L1
A
B
C
D
E
F
G
K
H
M
J
MT3
LMGSHJ-MT3-F112-60°
170
18
48
26
86
45
39
5
23.825
12
15
M60*1.5P
58
MT4
LMGSHJ-MT4-F115-60°
204
18
68
31
109
50
45
6.5
31.267
15
20
M60*2.0P
78
MT5
LMGSHJ-MT5-F118-60°
251
20
78
35
136
65
50
6.5
44.399
18
20
M68*2.0P
88
Morse
Model
L
L1
A
B
d
C
D
E
F
G
MT3
GS-KHS-MT3
159
15
48
30
13
86
45
28
5
24
MT4
GS-KHS-MT4
187
15
68
32
12.5/15.5
109
50
28
6.5
31
MT5
GS-KHS-MT5
233
16
78
40
16
136
65
32
6.5
44
