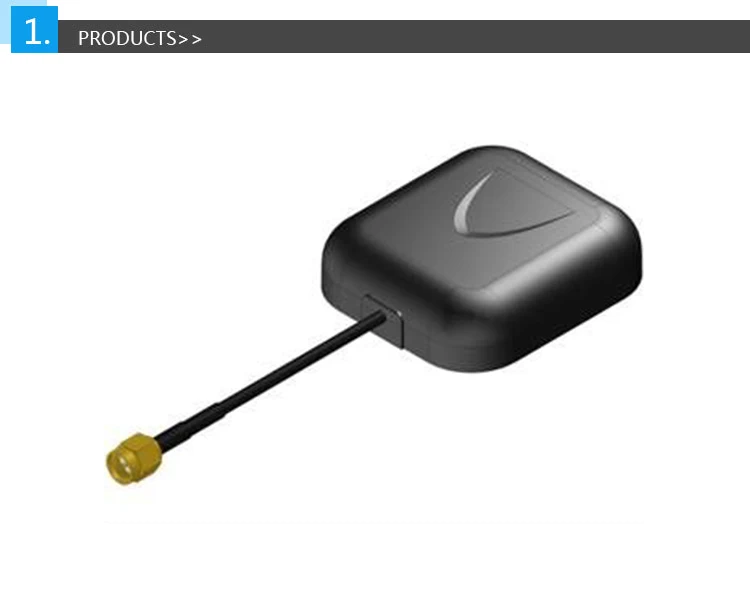

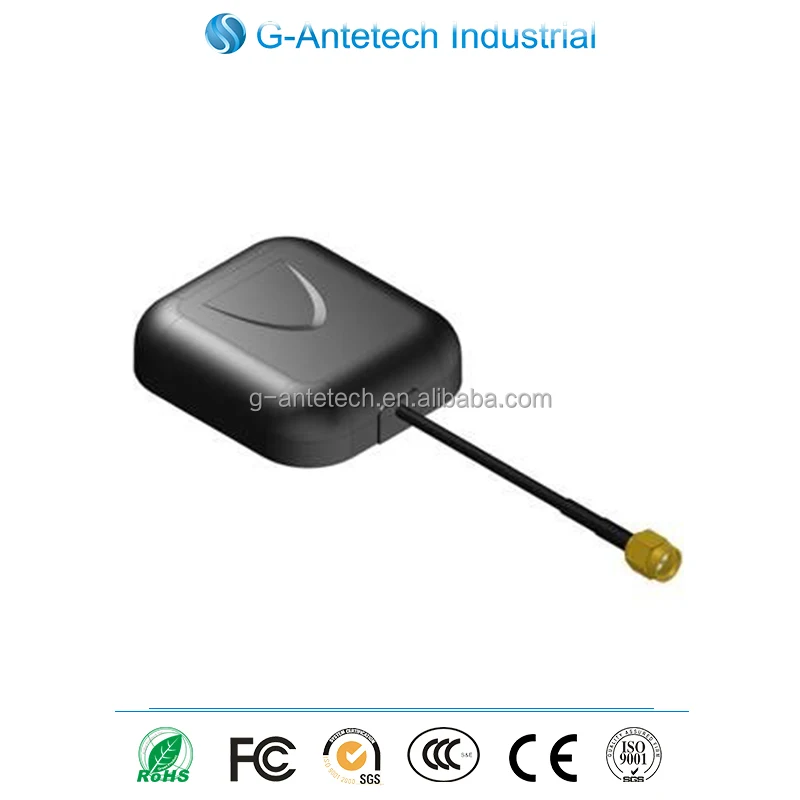

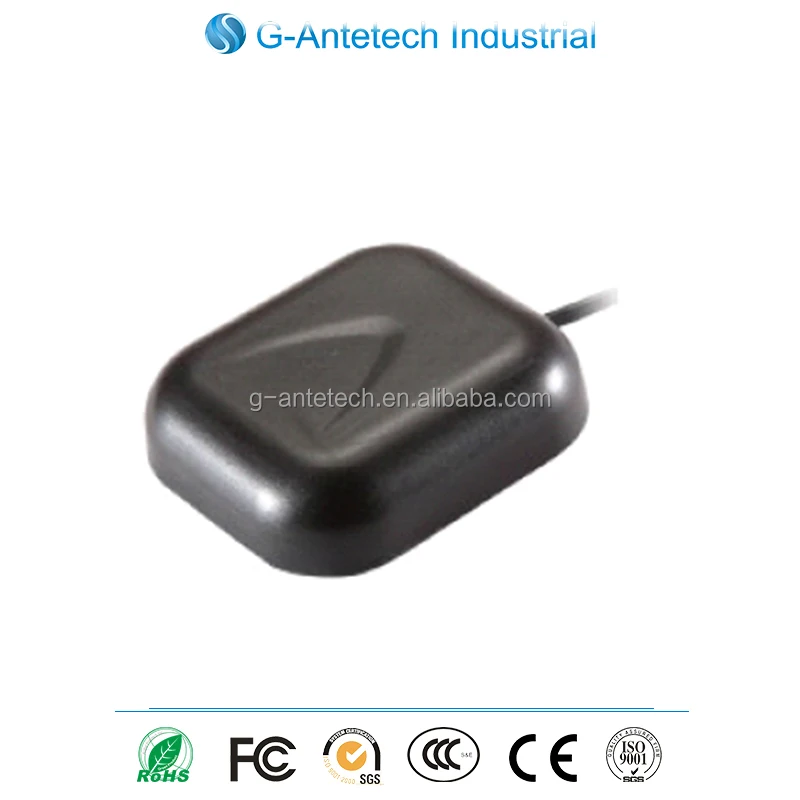

Well designed 1575.42MHz high gain 48dbi external car auto gps active tracker antenna

Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

±5MHz

Polarization

RHCP

Gain

2dBi

V.S.W.R

 <1.5

Impedance

50Ω

Axial Ratio

3dB(max)

Dimension

59*52*15mm

LNA

Gain

48±2dB

Noise Figure

<1.0

Filter Insertion Loss

<2dB

Ex-band Attenuation

45dB@CF+50MHz/30dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

20~40mA

V.S.W.R

<2.0

Mechanical

Cable

RG174 or others

Connector

N or others

Radome Material

ABS

Mounting Method

Magnet/Adhesive

Housing

Black

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
