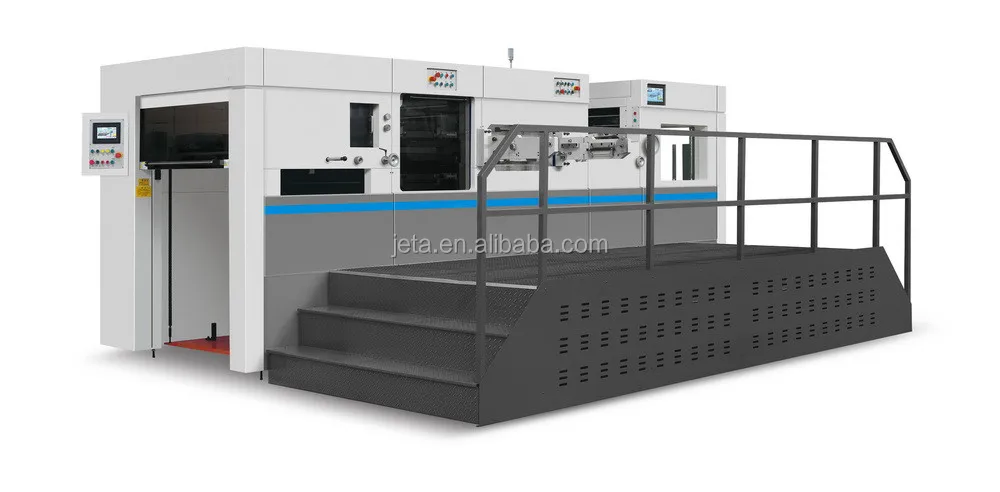

[JT MHK 1050CE] Full stripping auto die cutting machine

1) Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.

2) Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch,to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.

3) The whole machine all uses SKF\\NSK imported original bearing.

4) The whole machine uses original parts imported from France Schneider,Japanese OMRON, and Japanese Mitsubishi etc.

5) Key parts of teeth row are imported from Japan.

6) Auto die cutting machine accuracy reach to ±0.1mm, and the highest speed of machine reaches 7500 sheets/hours.

7) The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.

8) Use the centerline positioning system to realize fast plate changing of worksheet.

9) Equiped with Dayuan first-developed pressure servo control device, ensure fast and smooth when they adjusting of die cutting pressure.  Hot sell carton box full stripping auto die cutting machine

10) Equip with touch-screen operation interface in both Chinese and English.
