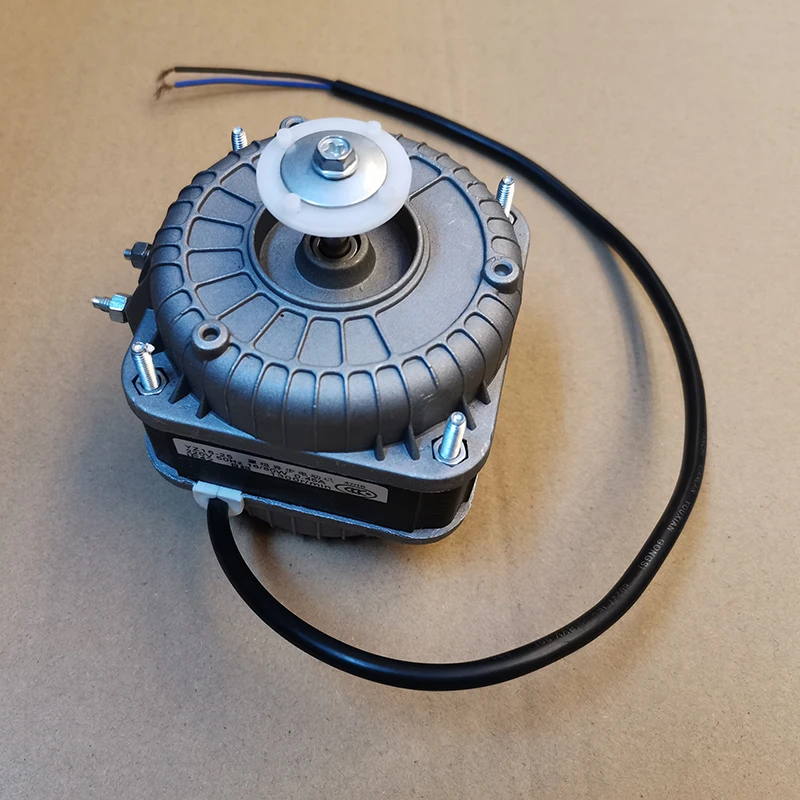

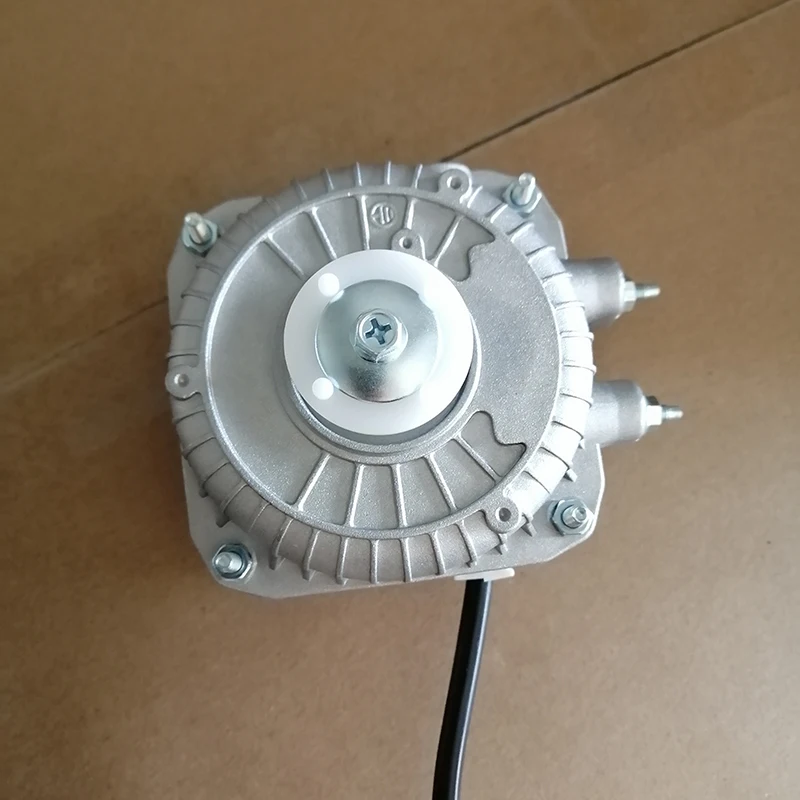

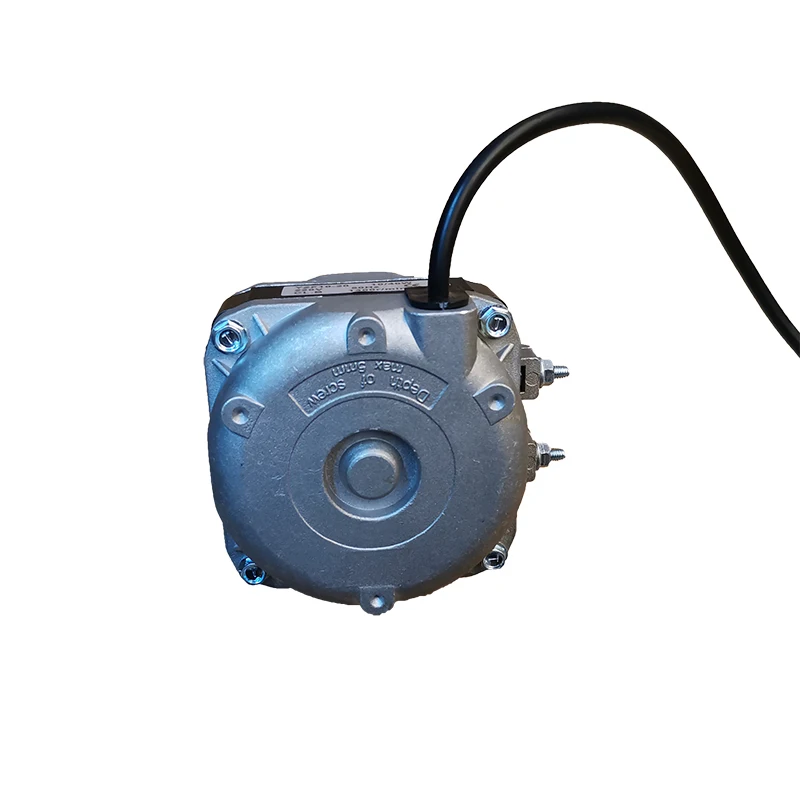

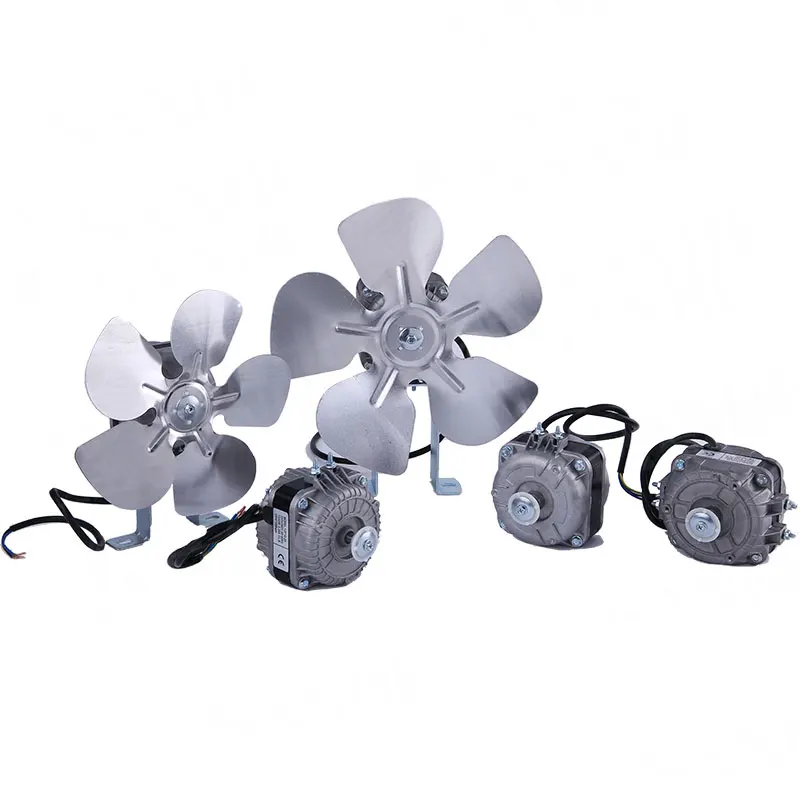

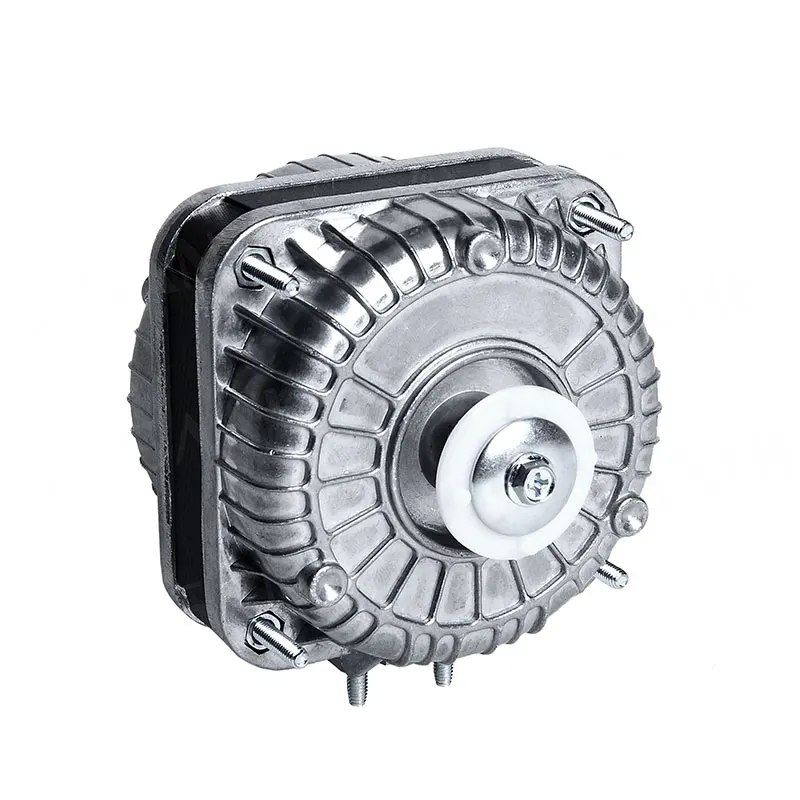

YJF 5 refrigerator fan motor, shaded pole motor
- Category: >>>
- Supplier: Ningbo Sanhe Refrigeration Co. Ltd.
Share on (60688846839):
Product Overview
Description
Model | YJF-5 | YJF-7 | YJF-10 | YJF-16 | ||||||
Voltage(V) | 220-240 | 110-120 | 220-240 | 220-240 | 110-120 | 220-240 | 110-120 | |||
Frequency(Hz) | 50/60 | 60 | 50/60 | 50/60 | 60 | 50/60 | 60 | |||
Rated Input(W) | 33 | 33 | 38 | 40 | 55 | 70 | 70 | |||
Output(W) | 5 | 5 | 7 | 10 | 10 | 16 | 16 | |||
Rated Current(A) | 0.19 | 0.37 | 0.23 | 0.23 | 0.4 | 0.34 | 0.58 | |||
Rated Speed(r/min) | 1300 | 1550 | 1300 | 1300 | 1550 | 1300 | 1550 | |||
Fan Blade(mm) | Φ200 | Φ230 | Φ230 | Φ250 | ||||||

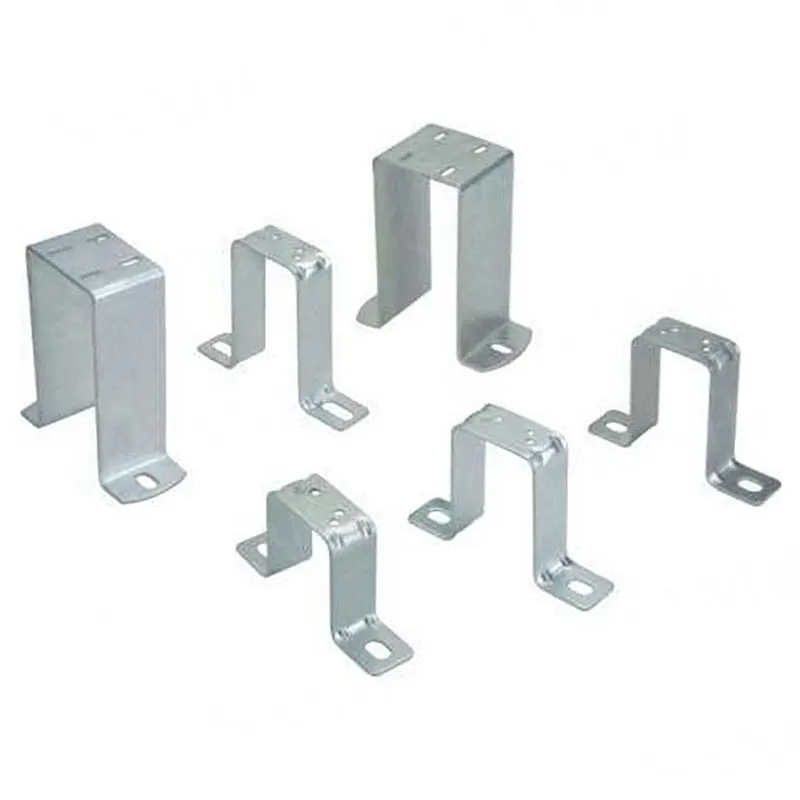

Bracket(mm) | H72 | H84 | H84 | H84 | ||||||
Model | YJF-18 | YJF-25 | YJF-34 | ||||||
Voltage(V) | 220-240 | 110-120 | 220-240 | 110-120 | 220-240 | 110-120 | |||
Frequency(Hz) | 50/60 | 60 | 50/60 | 60 | 50/60 | 60 | |||
Rated Input(W) | 73 | 75 | 95 | 100 | 120 | 110 | |||
Output(W) | 18 | 18 | 25 | 25 | 34 | 34 | |||
Rated Current(A) | 0.45 | 0.58 | 0.6 | 0.65 | 0.75 | 0.9 | |||
Rated Speed(r/min) | 1550 | 1450 | 1300 | 1450 | 1300 | 1450 | |||
Fan Blade(mm) | Φ250 | Φ300 | Φ300 | ||||||
Bracket(mm) | H109-1 | H109-1 | H109-1 | ||||||
