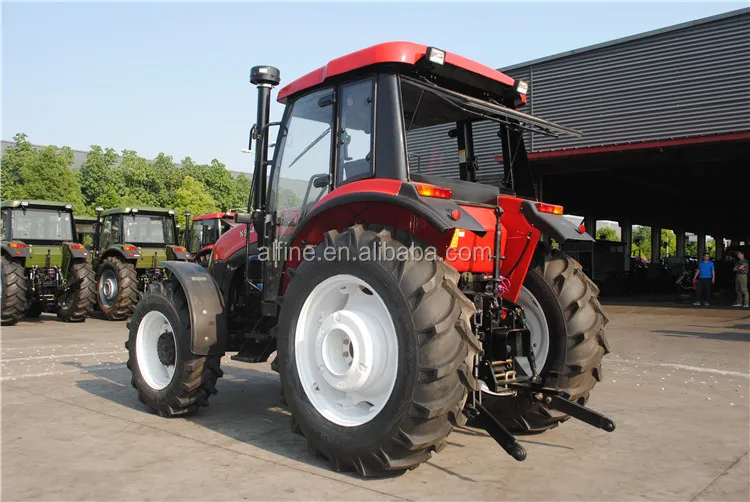

Original type China famous brand 4 wheel drive yto x904

Share on (60688898845):


Price:

Quantity:


Product Overview

Description


Product Description

 yto x904 featurs

1.YTO 4-Cylinder Diesel Engine of UK RacadoTechnology Applied,Typical of Large  Torque Reserve, Vigorous

Power, Low Carbon and Environment-Friendly, and Low Fuel Specific Consumption

2.European Technology Applied to Transmission System, 12F+4R  (Optional 12F+12R or 24F+BR), Optional

Synchronizer Gear Shifting, Able for Smooth Gear Shift so long as not Parked,  Characterized by more Handy

and Prompt Operation

3.YTO Front Axle of European Technology Used, Reliable and Durable

4.LUK Dual Clutch of Independent Control, Featuring High Reliability, able for Normal Drive of Farm lmplement

at Gear Shifting of Transmission, of Higher Operating Efficiency

5.Hydraulic Steering System, with Adjustable Steering Wheel, Featured by Handy and Comfortable Control

6.Static Hydraulic Wet, and Disc Brake, Safe and Reliable

7.Synchronized and Independent PTO Double-Speed Power Output, to Meet the  Requirements for Matching

Multiple Farm lmplements

8.Adjustable Single/Double-Acting Multi-Way Valve, 2 or 3 Groups of Hydraulic  Outputs,  Typical of Strong Adaptability

9.Fully-Enclosed Cab, with Wide Visibility, Characterized by Nice Appearance, Comfort,  and Luxury, and Optional lnstallation of heater and Air Conditioner.

yto x904 (1).jpg

yto x904 specification



Model

YTO X904

Drive Type

4x4 ,4WD

Dimension(L*W*H)

4350mm*2300mm*27465mm

Wheelbase

2314mm

Min. Ground Clearance

440mm

Min. Operating Mass

3920kg

Tyre Size (F/R)

13.6-24/14.9-34

Wheel Track (F/R)

1562-2000/1520-2120mm

Gear Shift (F/R)

12/4

Speed Range (F/R)

1.65-27.17 & 4.28-12.85 km/h

Lifting Force (610mm)

>21.9KN

Lifting Force (Link Joint)

>25.6KN

Engine model

YTO LR4M5-23

Engine Type

4-cyliner,vertical,water cooler,4 stroke direct injection diesel engine

Engine Displacement

5.13L

Rated Power/Rotating Speed

66.2kW/2300rpm

yto x904 (5).jpg

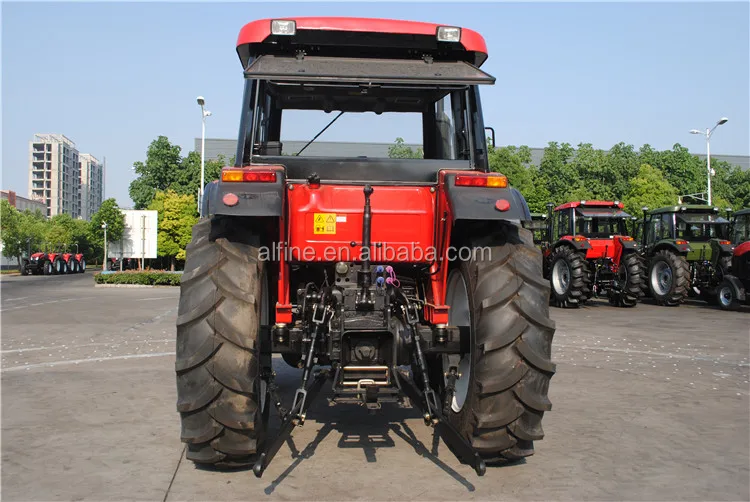

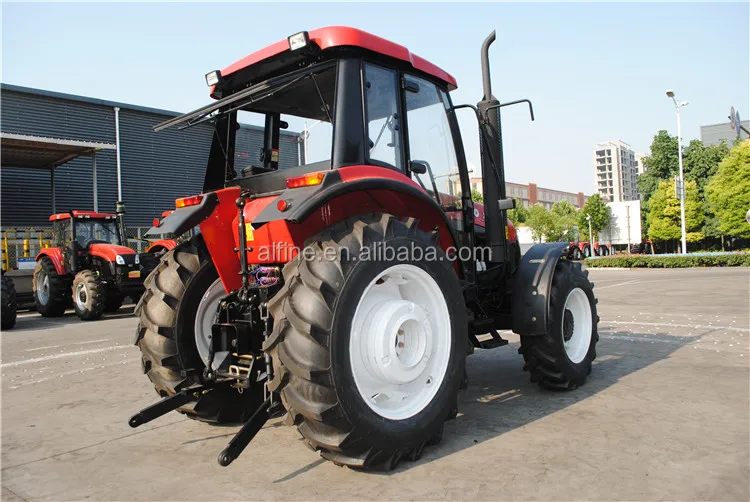

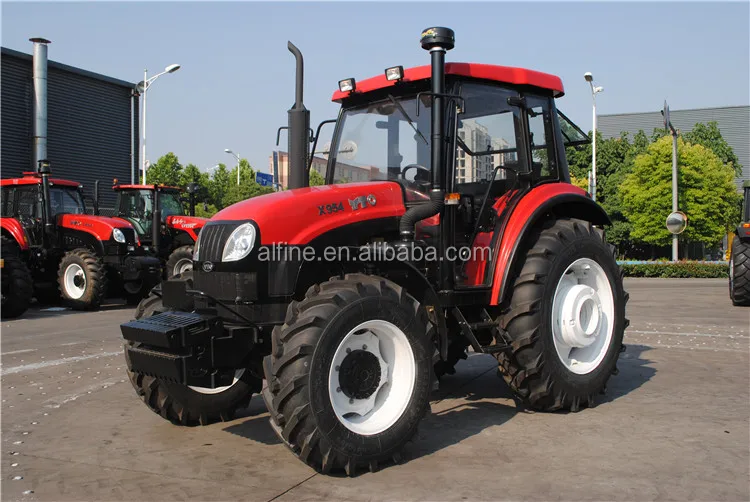

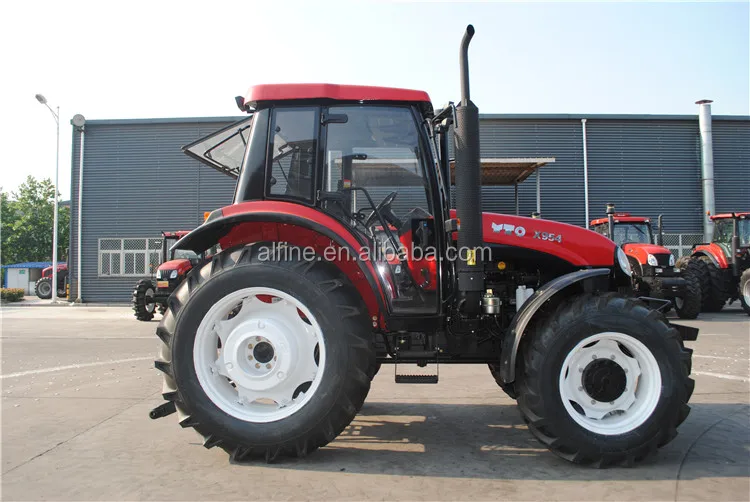

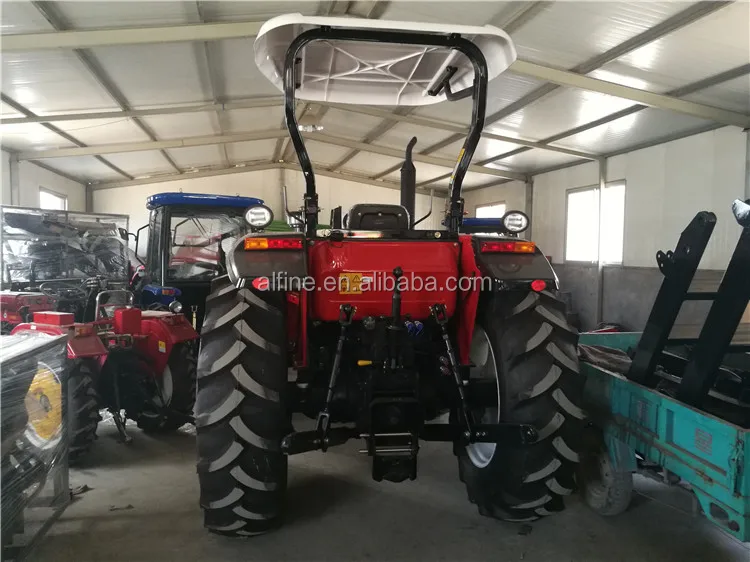

yto x904 product show

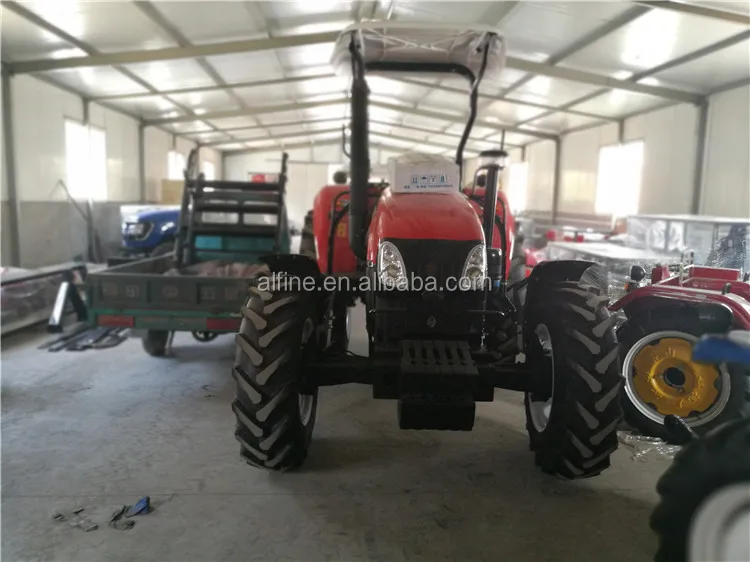

yto x904 (14).jpgyto x904 (5).jpgyto x904 (6).jpgyto x904 (3).jpgyto x904 (2).jpg

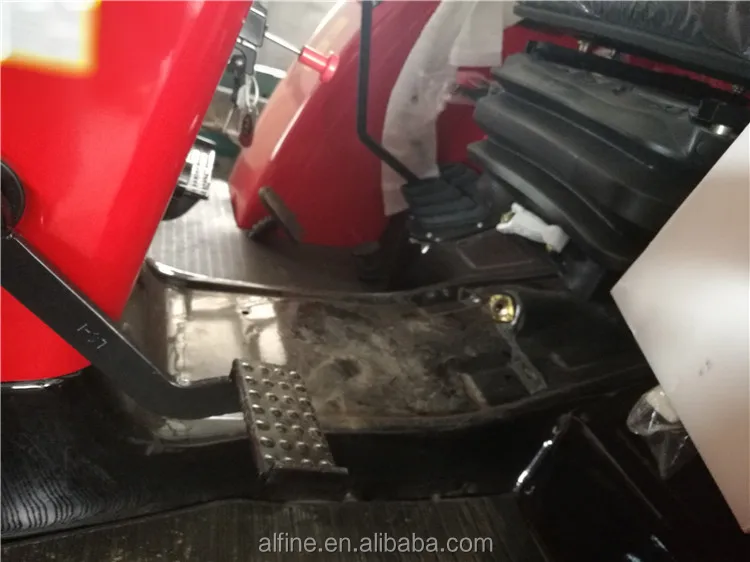

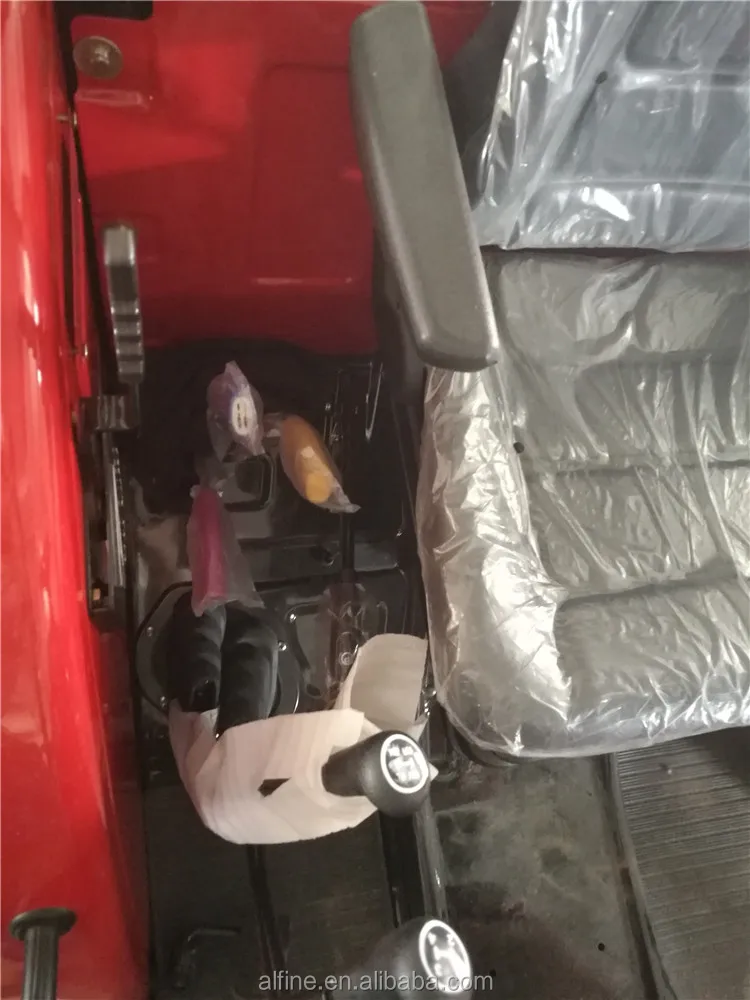

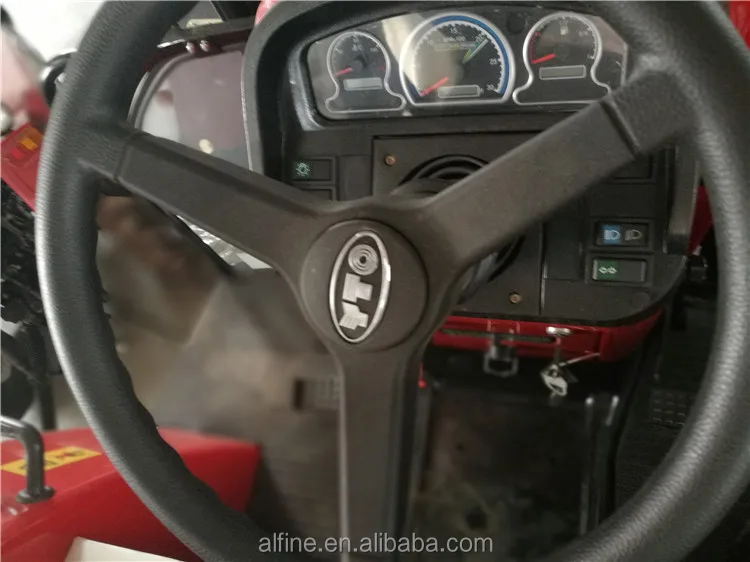

yto x904 details picture

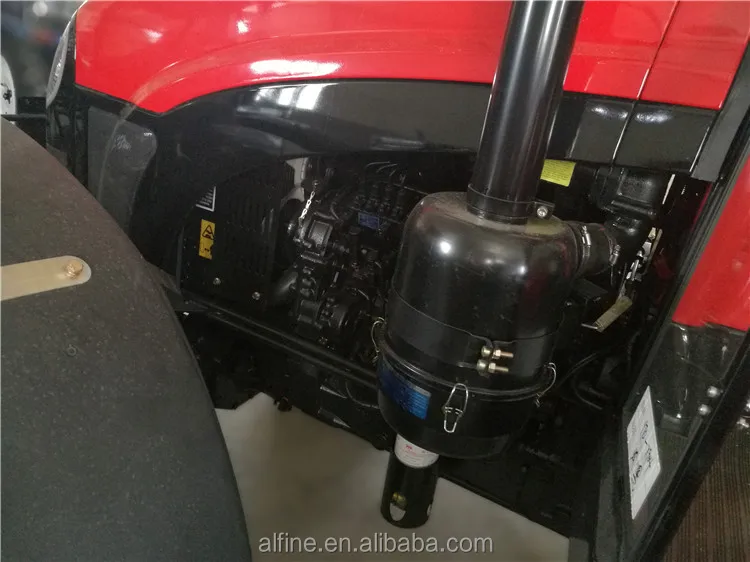

yto x904 (8).jpgyto x904 (12).jpgyto x904 (17).jpgyto x904 (20).jpgyto x904 (21).jpg
