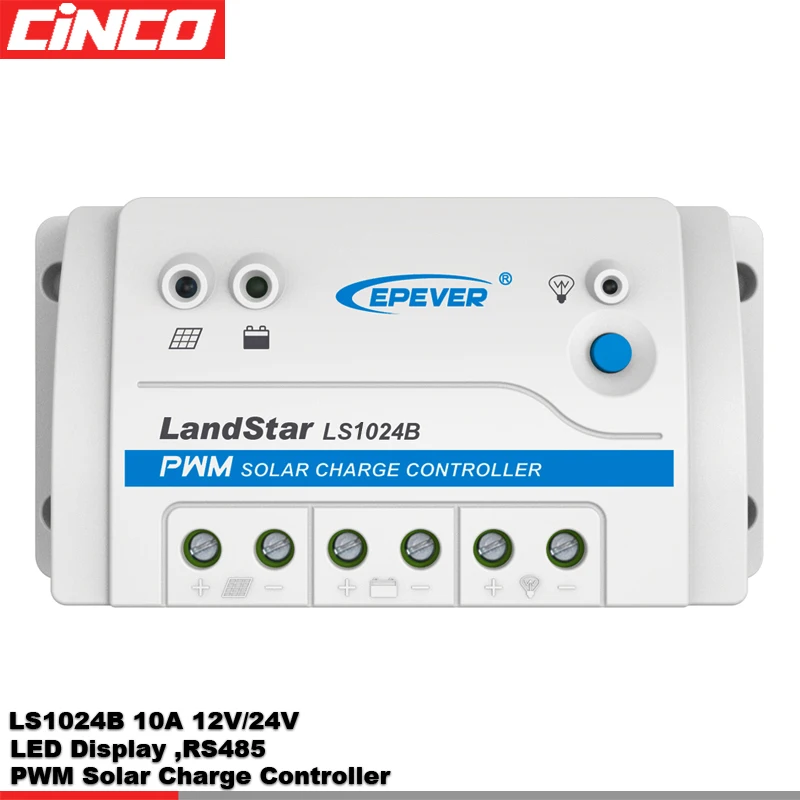

EPEVER LS1024B 12V/24V 10A PWM регулятором солнечного заряда контроллер для домашнего использования солнечный регулятор
- Category: Solar Charger Controllers >>>
- Supplier: Ningbo Cinco Solar Co. Ltd.
Share on (60688924637):
Product Overview
Description
Products Description
1. Series PWM charging Mode
2. Multiple load control modes
3. Full load operation within the working temperature range
4. Adopt high-quality international components brand
5. Extensive electronic protection
6. Variety optional accessories
7. Standard Modbus communication protocol with RS485 interface
2. Multiple load control modes
3. Full load operation within the working temperature range
4. Adopt high-quality international components brand
5. Extensive electronic protection
6. Variety optional accessories
7. Standard Modbus communication protocol with RS485 interface

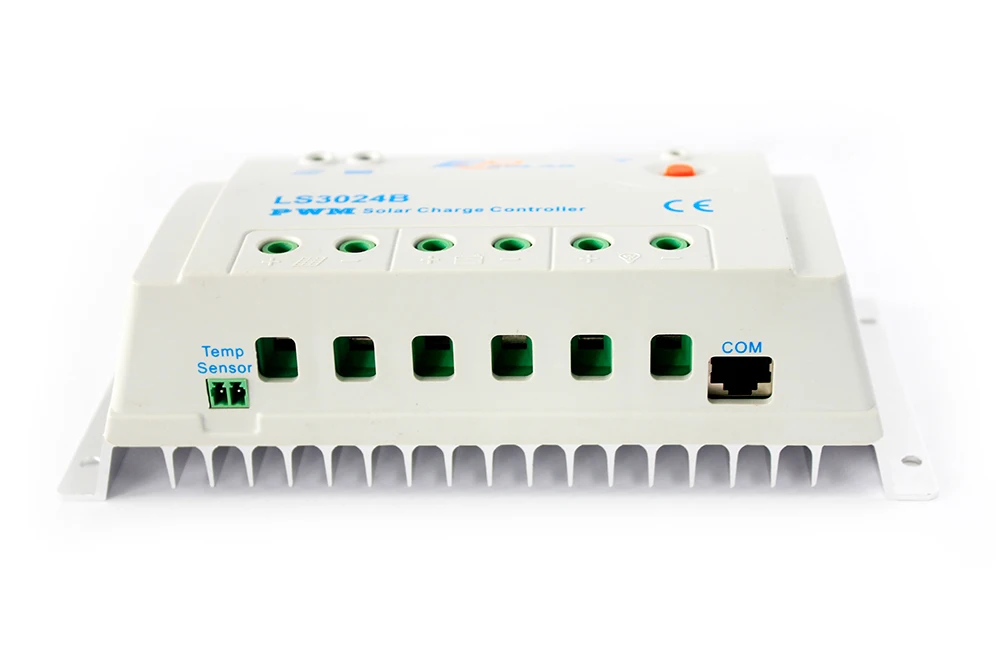

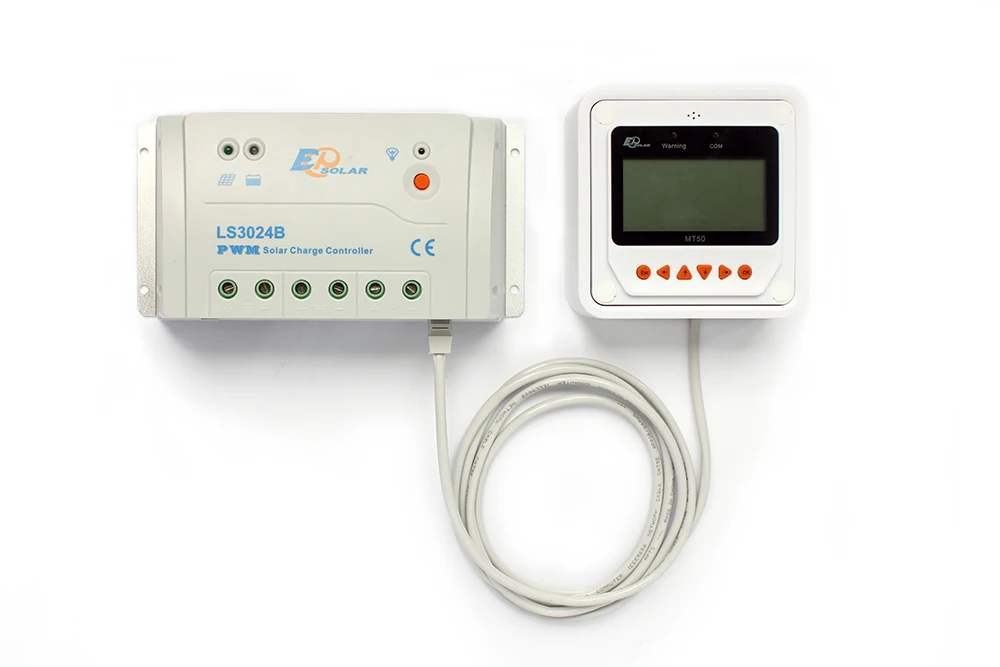

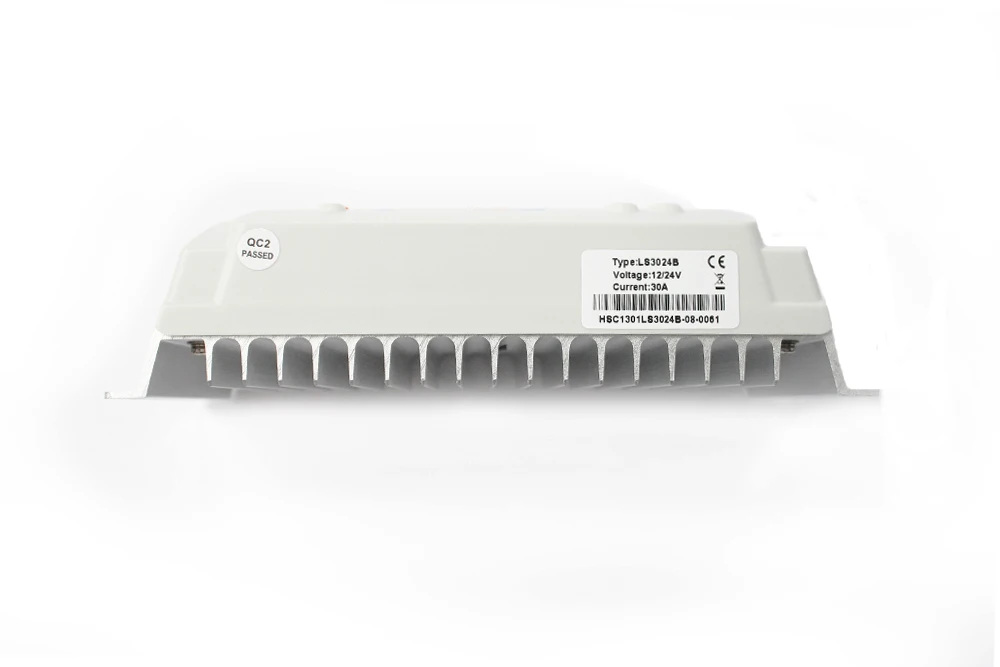

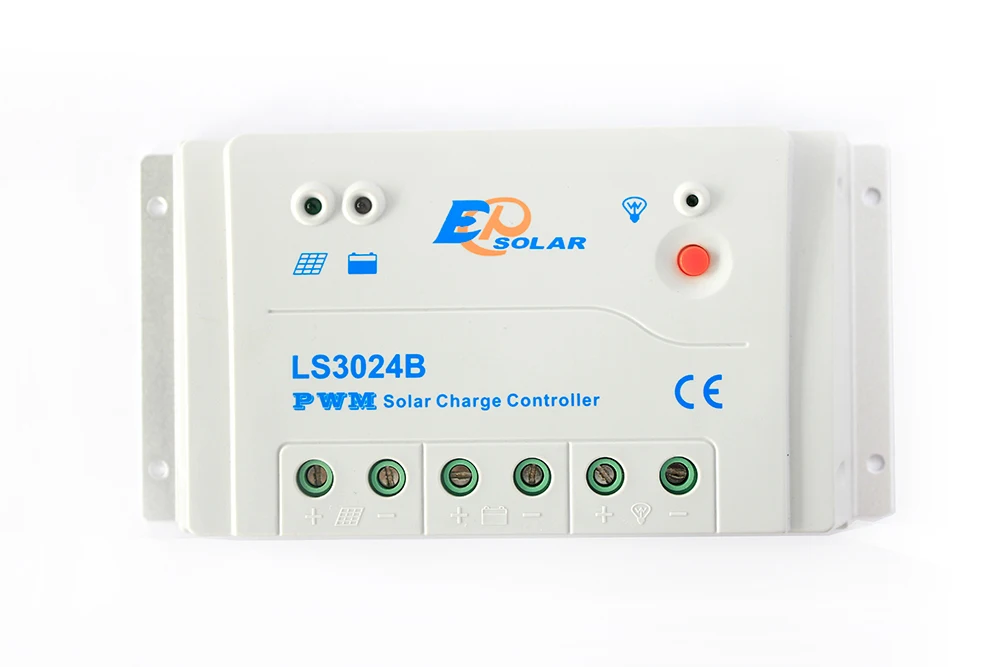

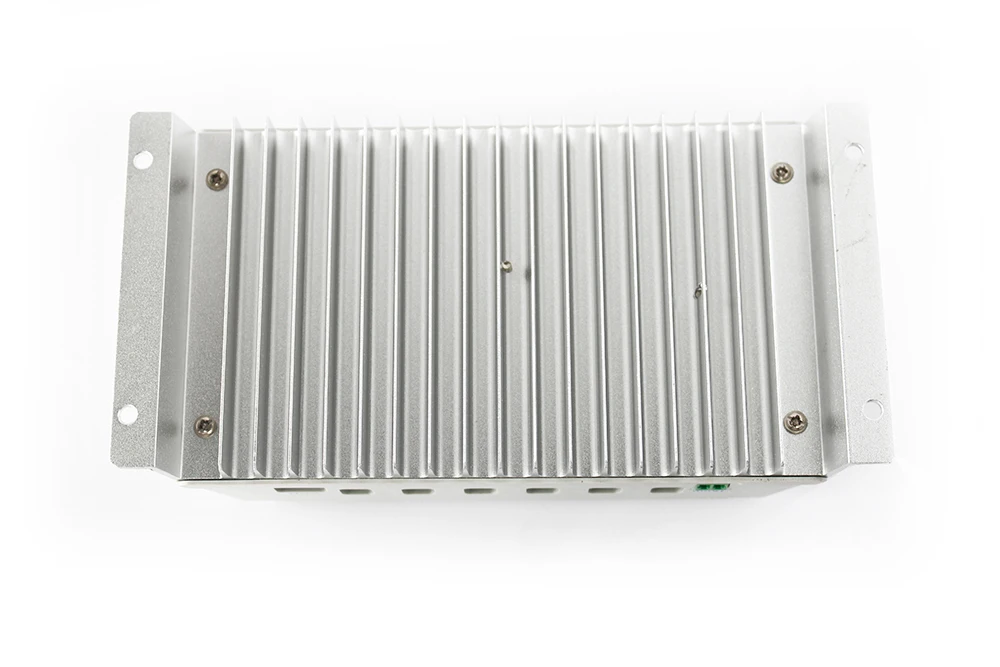

Details Images

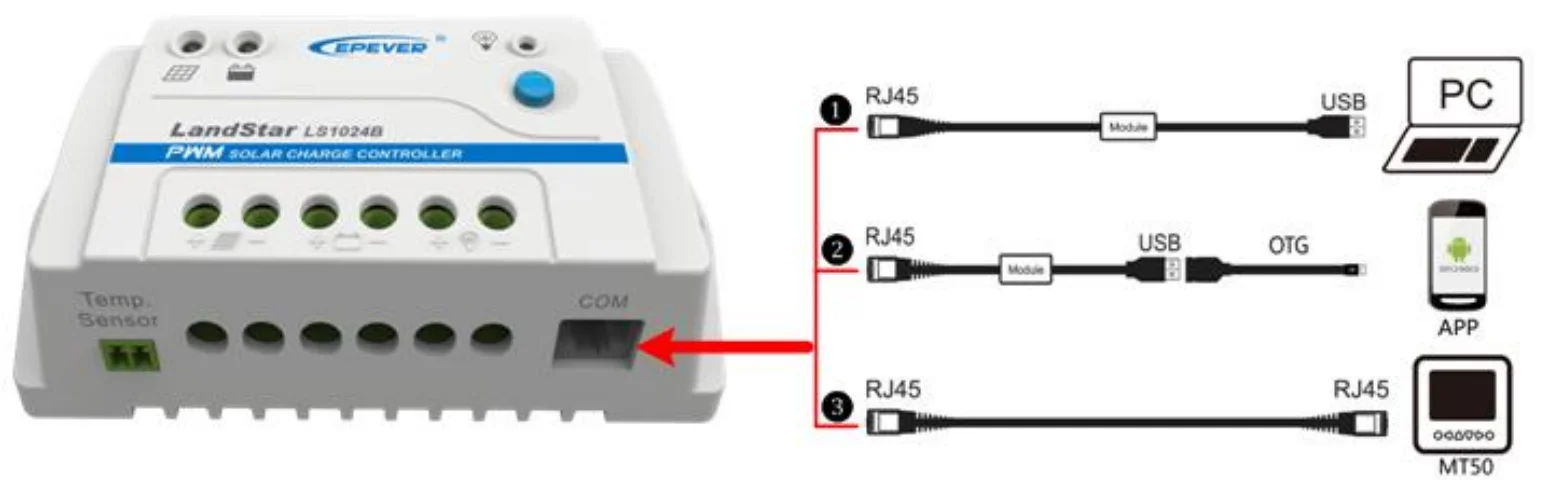

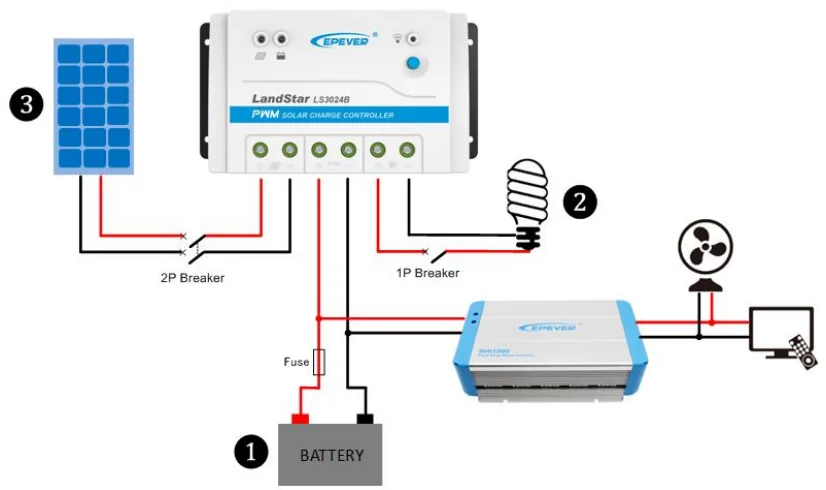

Wiring order & Accessories

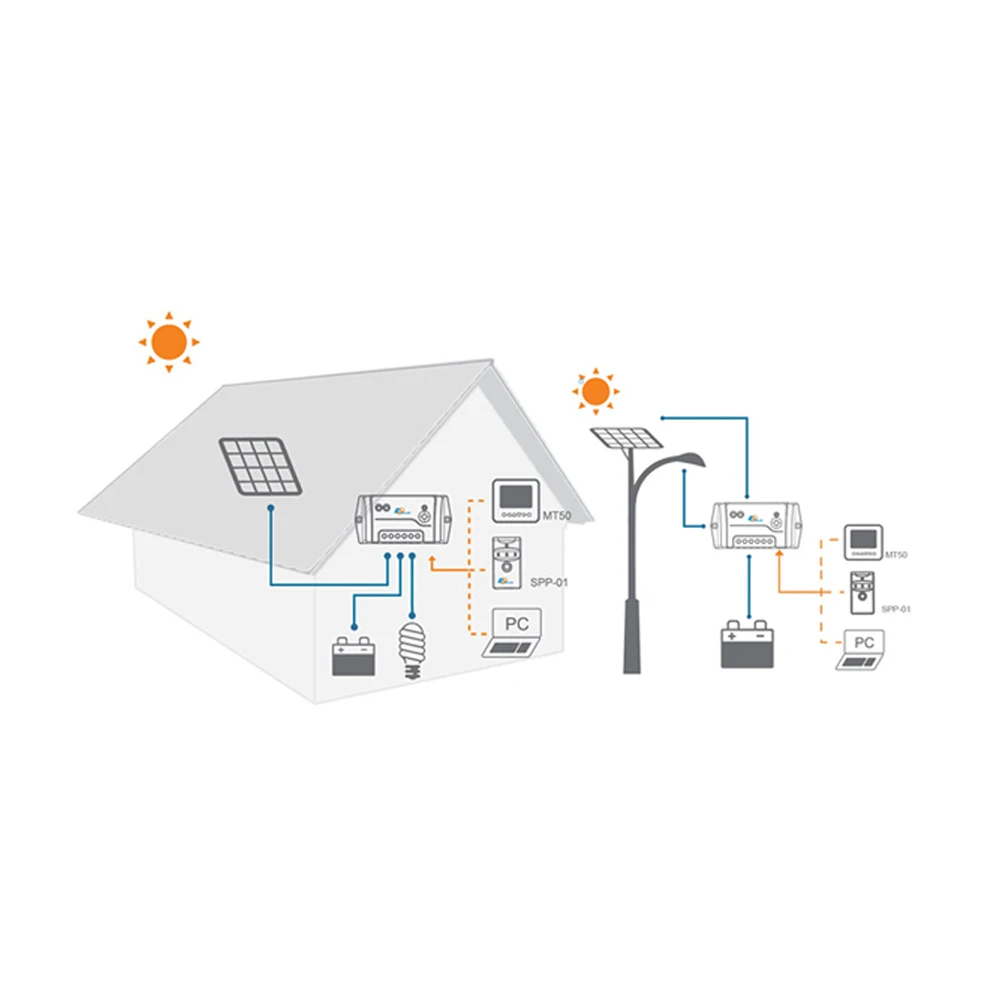

Connect the system in the order of ❶battery ❷ load ❸PV array in accordance with Connection diagram and disconnect the system in the reverse order❸❷❶.
Product Paramenters
Model | LS1024B | LS2024B | LS3024B | ||||
System nominal voltage | 12/24VDC Auto | ||||||
Battery Types | Sealed/Gel/Flooded/User | ||||||
Rated charge current | 10A | 20A | 30A | ||||
Rated discharge current | 10A | 20A | 30A | ||||
Battery Input Voltage Range | 8V～32V | ||||||
Max. PV open circuit voltage | 50V | ||||||
Self-consumption | ≤8.4mA/12V;≤7.8mA/24V | ||||||
Temperature compensation coefficient | -3mV/℃/2V（25℃） | ||||||
Charge circuit voltage drop | ≤0.28V | ||||||
Discharge circuit voltage drop | ≤0.20V | ||||||
Working environment temperature | -35℃～+55℃ | ||||||
Relative humidity | ≤95%, N.C. | ||||||
Enclosure | IP30 | ||||||
Grounding | Common Positive | ||||||
Overall dimension(mm) | 138.6*69.3*37 | 159.6*81.4*47.8 | 200.6*101.3*57 | ||||
Mounting dimension(mm) | 126 | 147*50 | 190*70 | ||||
Mounting hole size | Φ4.3mm | Φ4.3mm | Φ4.5mm | ||||
Terminals | 4mm2 | 10mm2 | 10mm2 | ||||
Weight | 0.13kg | 0.3kg | 0.5kg | ||||

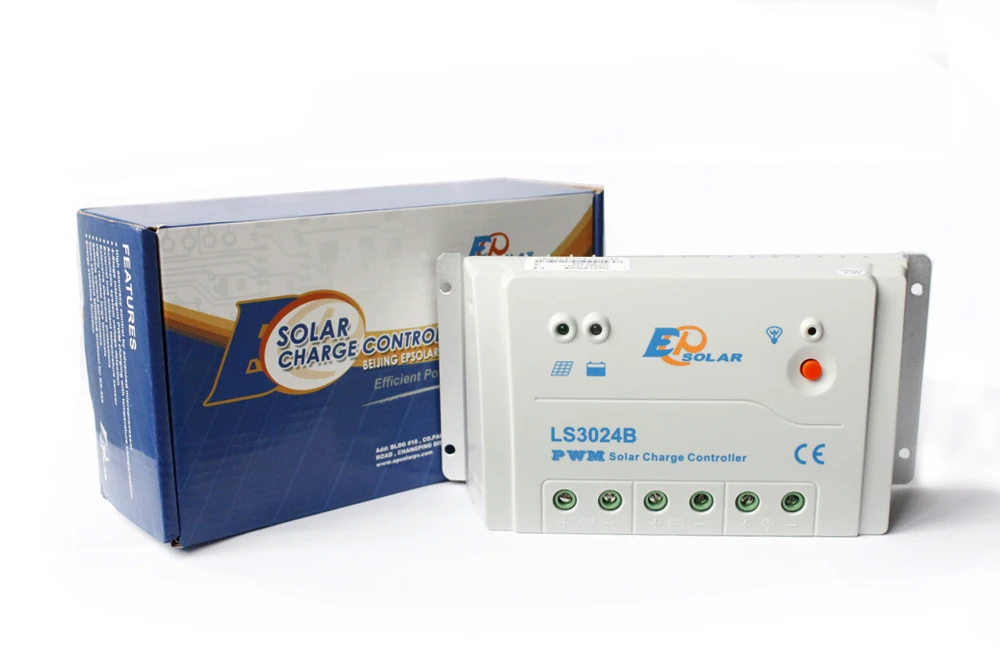

Product packaging
