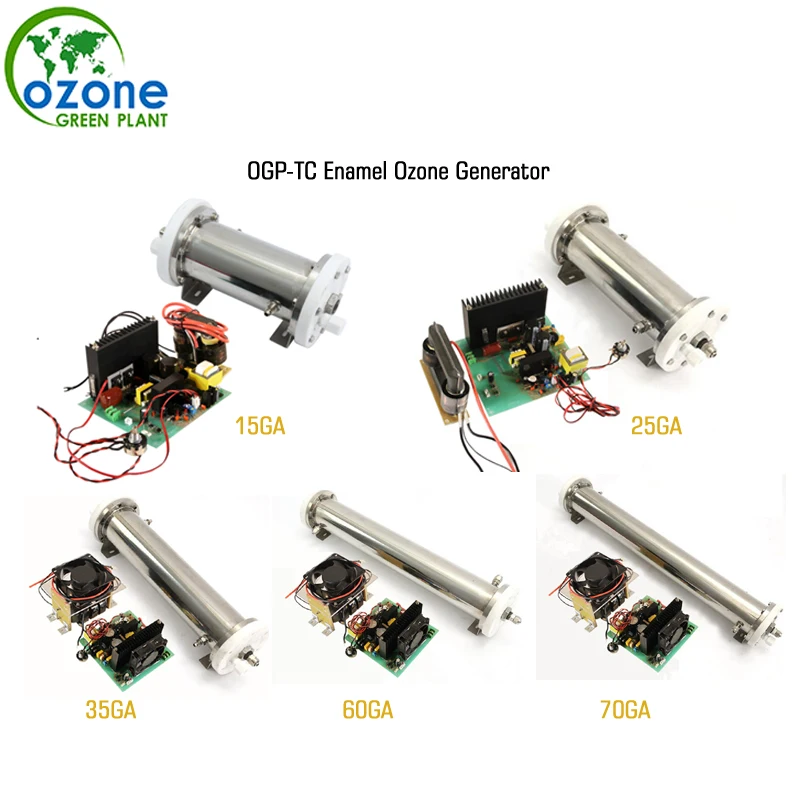

Озоновый генератор с водяным охлаждением и эмалью OGP 15 г 25 г 35 г 60 г 70 г, запасные части для очистки воды
- Category: >>>
- Supplier: Shenzhen Ozonegreenplant Technology Co. Ltd.
Share on (60689003214):
Product Overview
Description
Products Description
PLC control type OGP-TC15~70G Enamel ozone tube with power supply
Ozone discharge chamber:
1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output.
2. Cooling way : Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube
is discharging, for ensuring high ozone concentration output.
3. Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
5-High Quality Power Supply ensure the service life of ozone system.

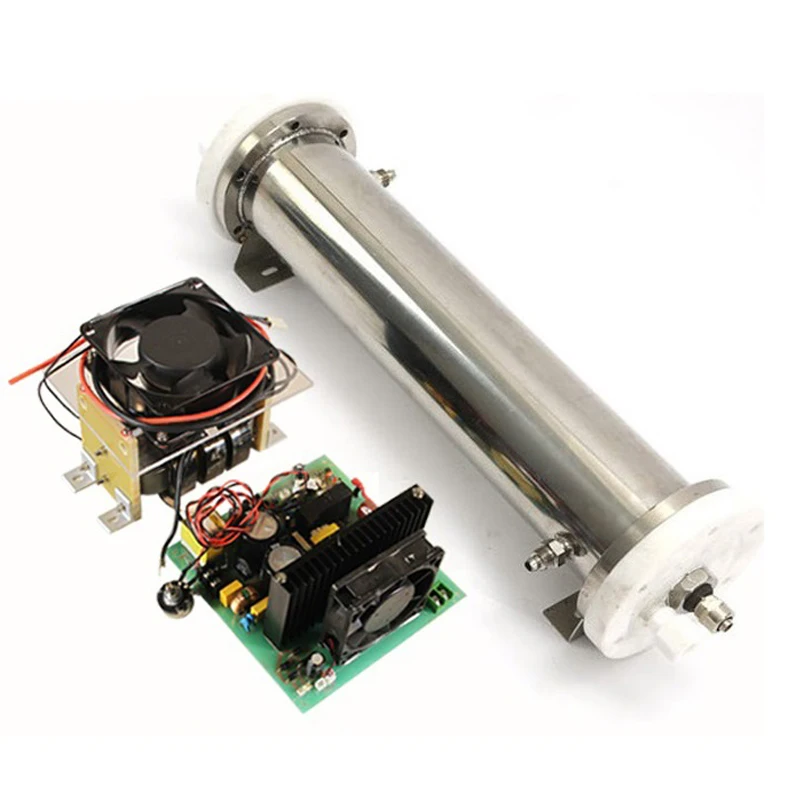

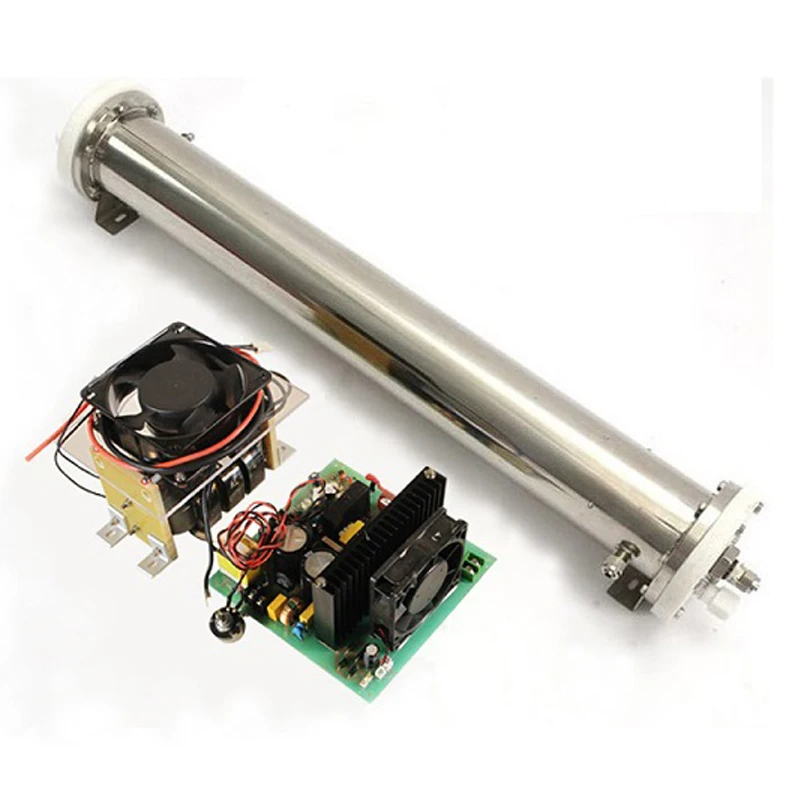

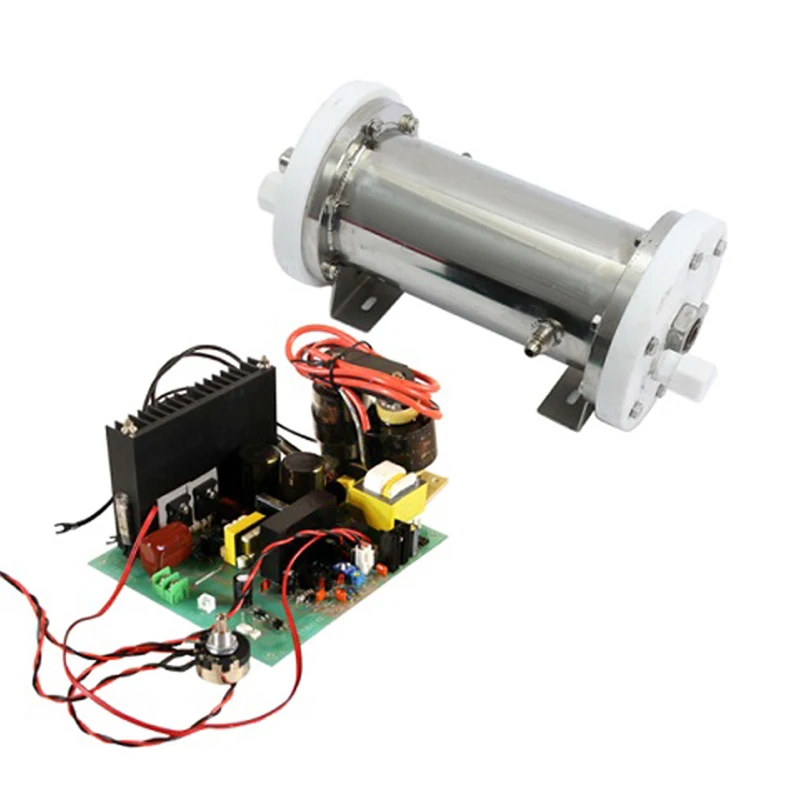

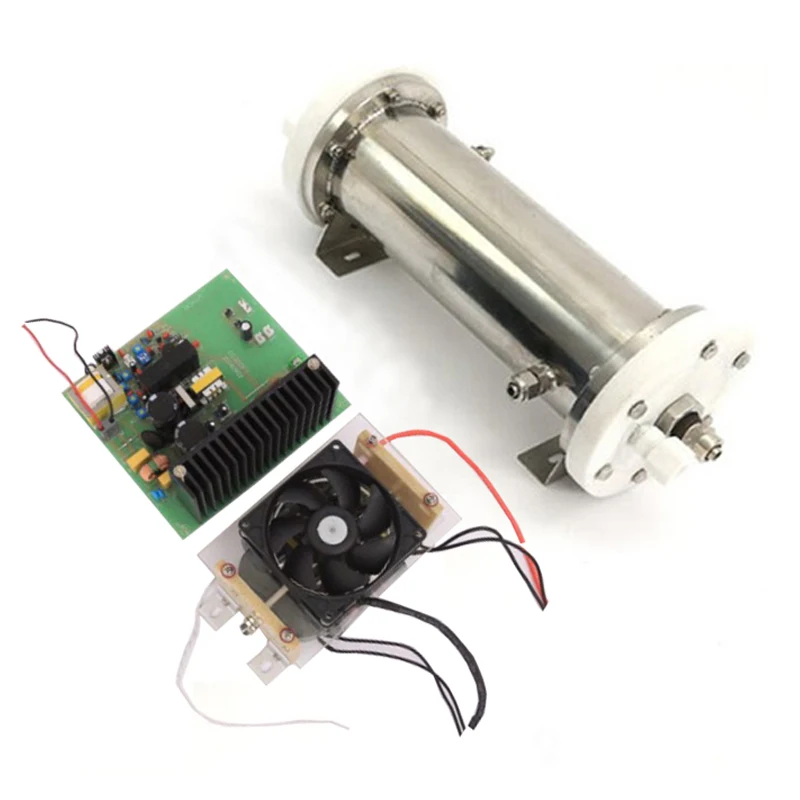

The ozone generator kit consists of three parts: ozone discharge chamber and high voltage package + drive power supply.
6. The power supply can be control by PLC display, with signal output 0~10V or 4~20mA.
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output.
2. Cooling way : Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube
is discharging, for ensuring high ozone concentration output.
3. Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
5-High Quality Power Supply ensure the service life of ozone system.
The ozone generator kit consists of three parts: ozone discharge chamber and high voltage package + drive power supply.
6. The power supply can be control by PLC display, with signal output 0~10V or 4~20mA.
Composition and characteristics of high-voltage power supply:
military-grade variable-frequency and variable-voltage PCB circuit and vacuum epoxy high-voltage package; main characteristics are: IGBT drive, automatic/manual bandwidth, slow start, (limiting surge current), power supply over-voltage protection power
Converter overheating protection, output short circuit, open circuit protection, sound and light warning. Circuit
anti-interference, moisture-proof, anti-corrosion design, and can be flexibly adapted to PLC control or different setting
functions of power supply voltage according to customer requirements, normal service life is more than 12K hours
Converter overheating protection, output short circuit, open circuit protection, sound and light warning. Circuit
anti-interference, moisture-proof, anti-corrosion design, and can be flexibly adapted to PLC control or different setting
functions of power supply voltage according to customer requirements, normal service life is more than 12K hours
Application industry:
Sewage treatment in municipal units,
Large waterworks
Waste odor treatment
Wastewater treatment in garment factories
Wastewater treatment in a pulp mill
Metallurgical industry water
Hospital sewage
Industrial ozone
Large ozone generator
Large waterworks
Waste odor treatment
Wastewater treatment in garment factories
Wastewater treatment in a pulp mill
Metallurgical industry water
Hospital sewage
Industrial ozone
Large ozone generator
OGP-TC15G PLC
OGP-TC25G PLC
OGP-TC35G PLC
OGP-TC60G PLC
OGP-TC70G PLC
OGP-QL600G PLC control type
PRODUCT SPECIFICATIONS
Technical parameter OGP-TC 15G ~70G/Hr
Item | Unit | Model | ||||||||
OGP-TC15G | OGP-TC25G | OGP-TC35G | OGP-TC50G | OGP-TC70 | ||||||
Ozone output | G/Hr | 15 | 25 | 35 | 50 | 70 | ||||
Oxygen flow rate | LPM | 1~4 | 2~7 | 3~10 | 4~15 | 8~20 | ||||
O3concentration (feed oxygen) | Mg/L | 60~120 | ||||||||
Power | KW | 0.15 | 0.3 | 0.5 | 0.68 | 0.77 | ||||
Cooling method | / | Water cooling | ||||||||
Cooling water flow | L/Min | 2 | 3 | 5 | 6 | 6 | ||||
Water inlet&outlet | mm | 10mm | ||||||||
Working voltage | V/Hz | 110V 60HZ /220V 50HZ | ||||||||
Gas inlet & outlet | mm | 8 | ||||||||
Ozone chamber size | cm | 27*10.5*11 | 30.5*10.5*11 | 42.5*10.5*11 | 59.5*10.5* 11 | 66.5*10.5*1 1 | ||||
Power supply size | cm | 16*14*8.9 | 17.7*16.1*10. 2 | 24*18 *14.2 | ||||||
PLC connecting board size | mm | 281×262×180 | ||||||||
PLC board Signal output | v/mA | 0~10V or 4~20mA | ||||||||
Ozone Chamber weight | kg | 3.1 | 3.7 | 4.5 | 5.6 | 6.5 | ||||
Power supply weight | kg | 1.18 | 1.74 | 3.29 | 3.29 | 3.29 | ||||

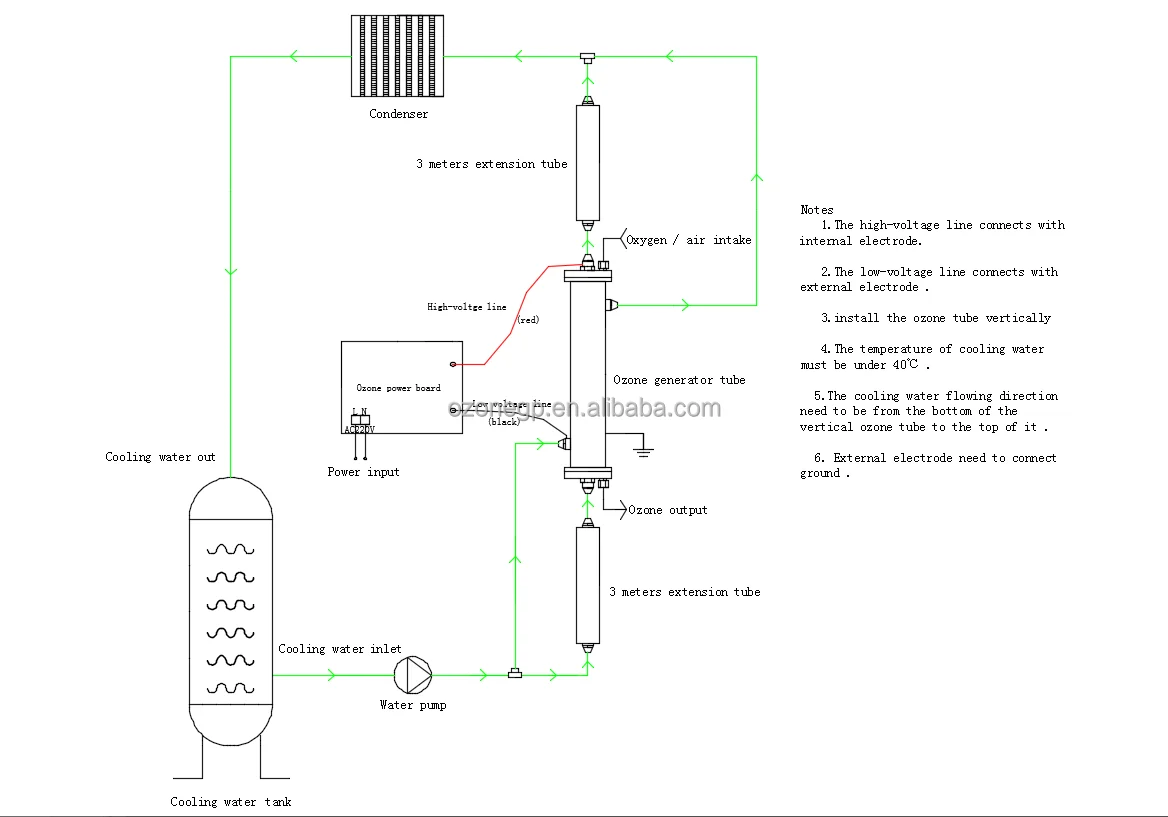

Installation Instructions

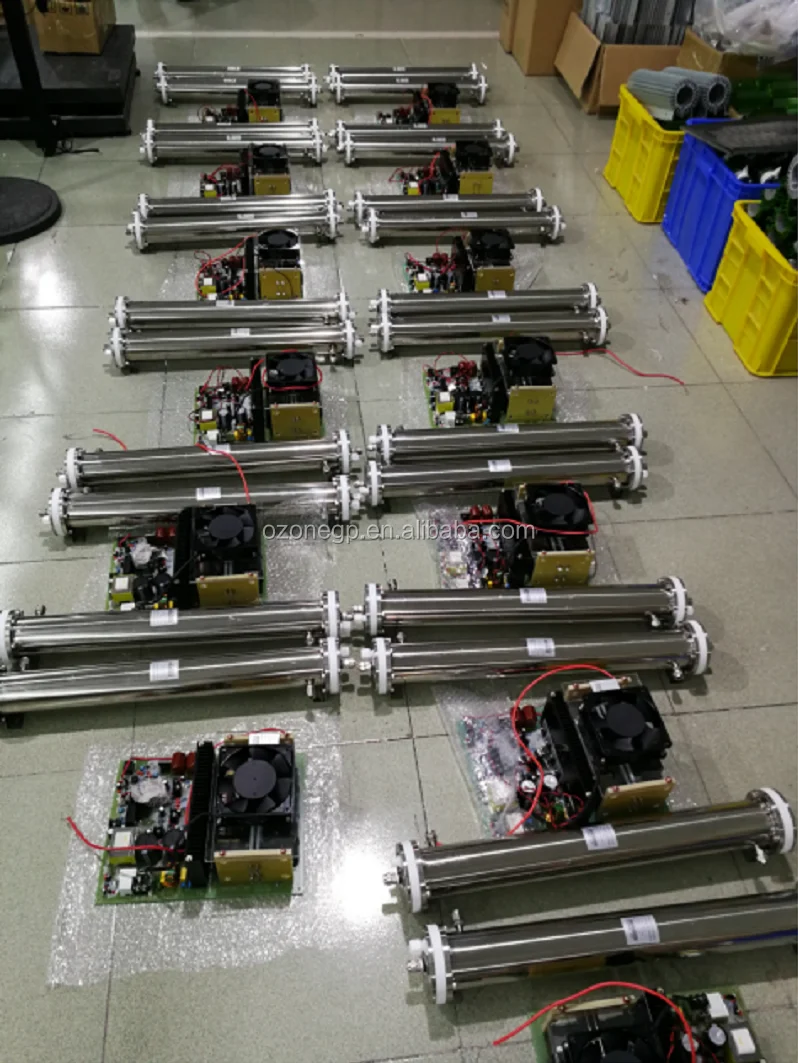

Product packaging
Company Profile

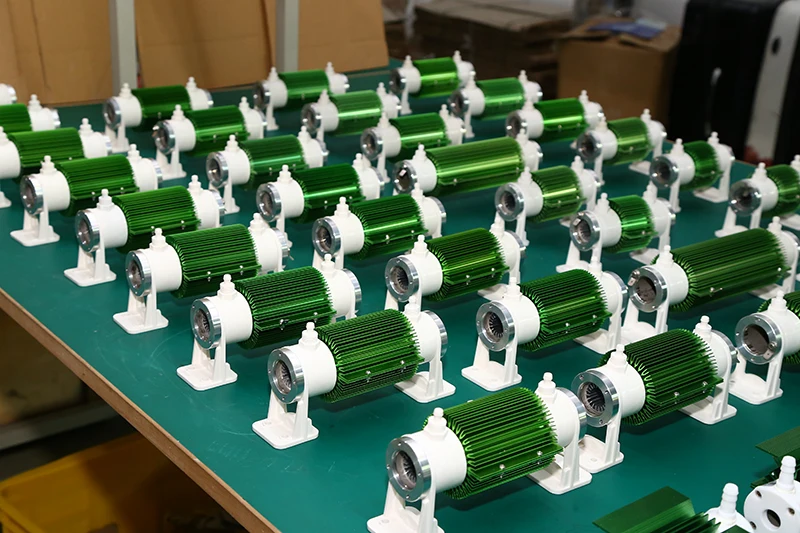

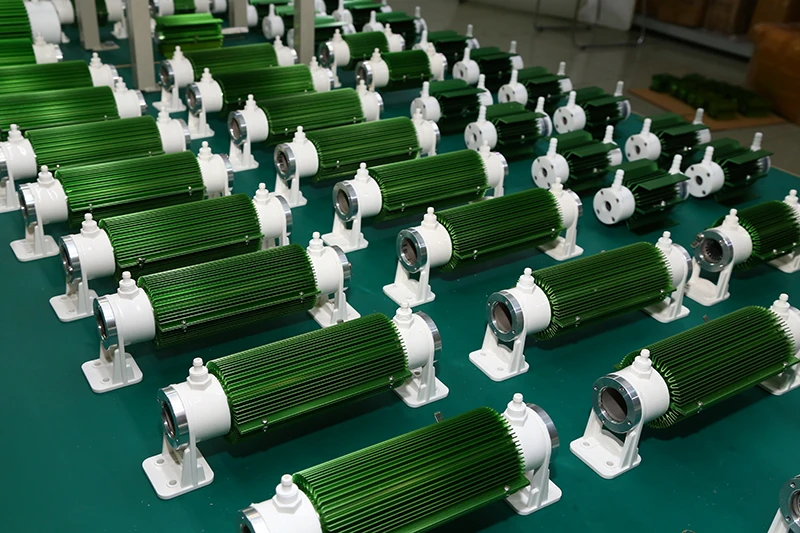

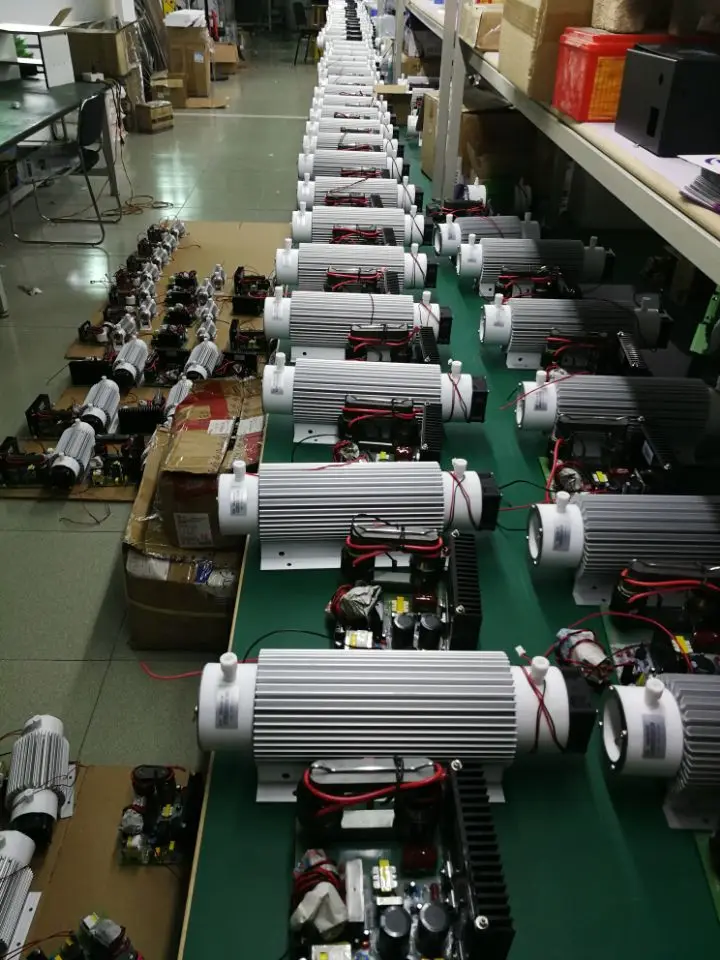

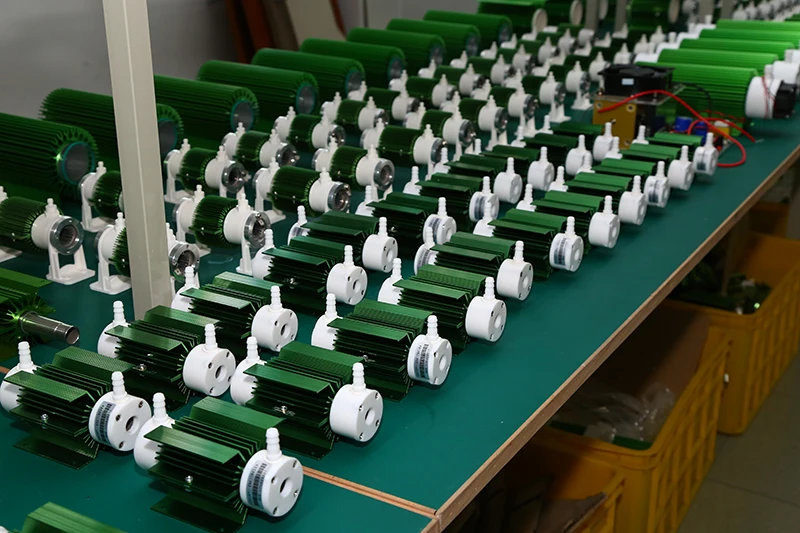

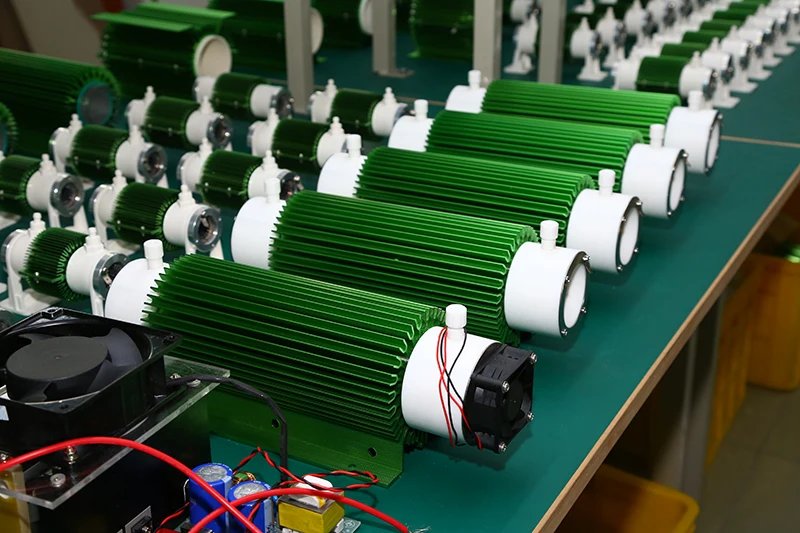

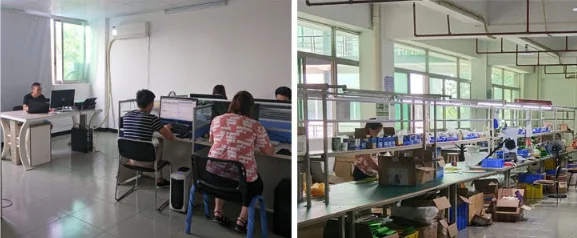

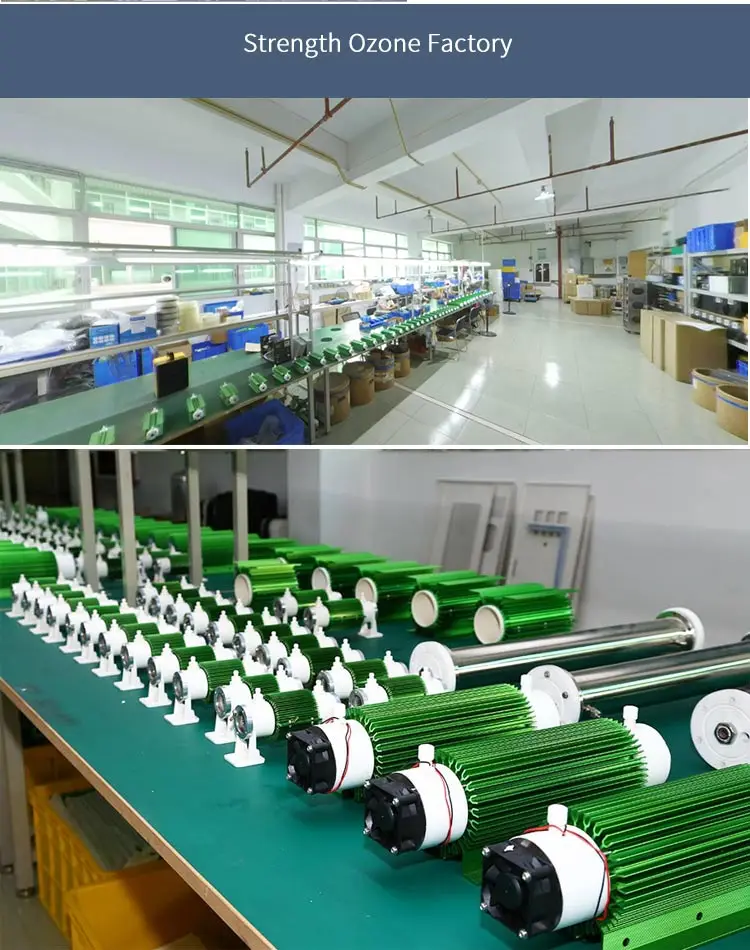

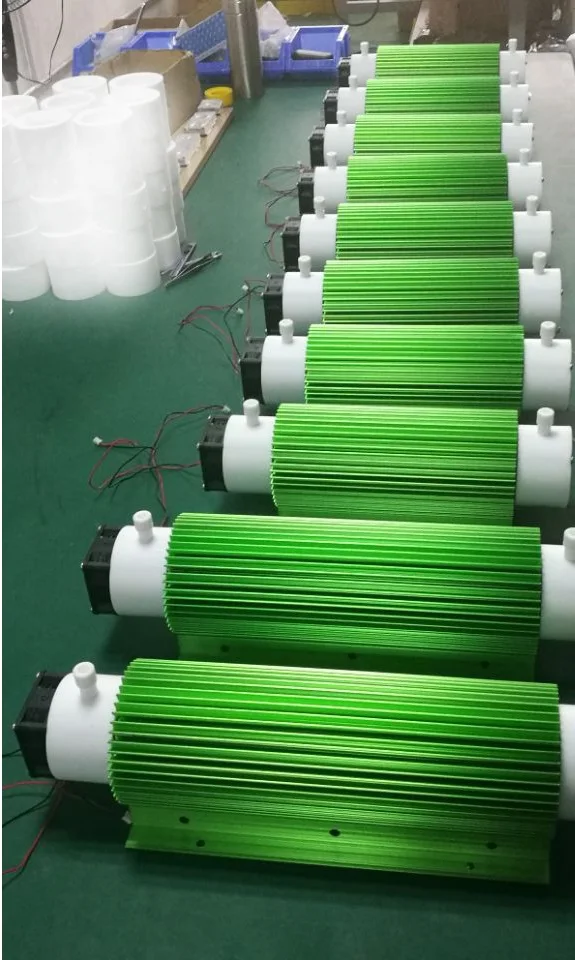

Our Factory
Ozone Green Plant is specialized in the research of ozone production mechanism, design and manufacture of ozone equipment, design of ozone application engineering scheme, and the installation, debugging, running and maintenance of ozone system equipment. As the representative enterprise of domestic ozone industry, the company is gradually becoming a global ozone system supplier. We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry. We ensure the product with good quality, sufficient quantity and diversification.all the customer appeals can be deal with quickly and effectively provide the most perfect service to all customers. We are confident that our products can get your one hundred percent of trust and help you to achieve your success with our great efforts.
OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.
OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.

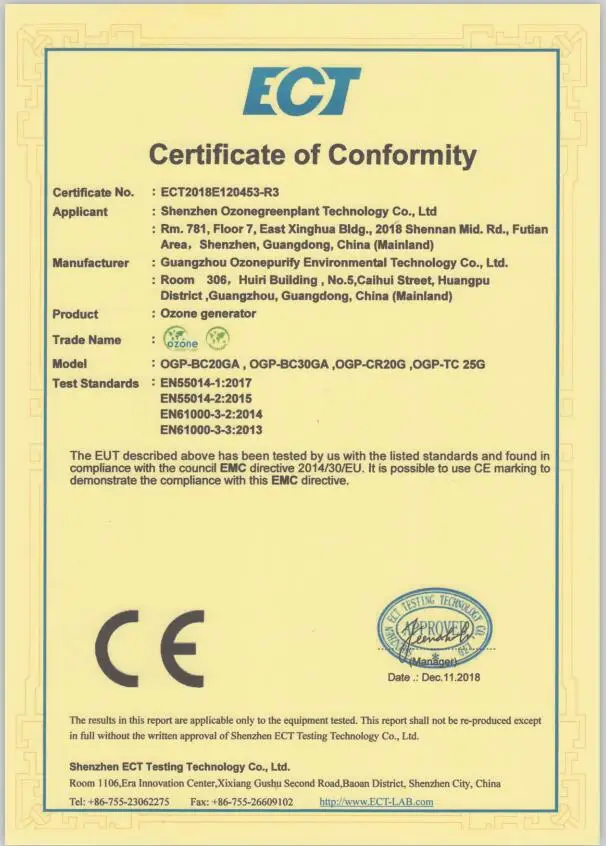

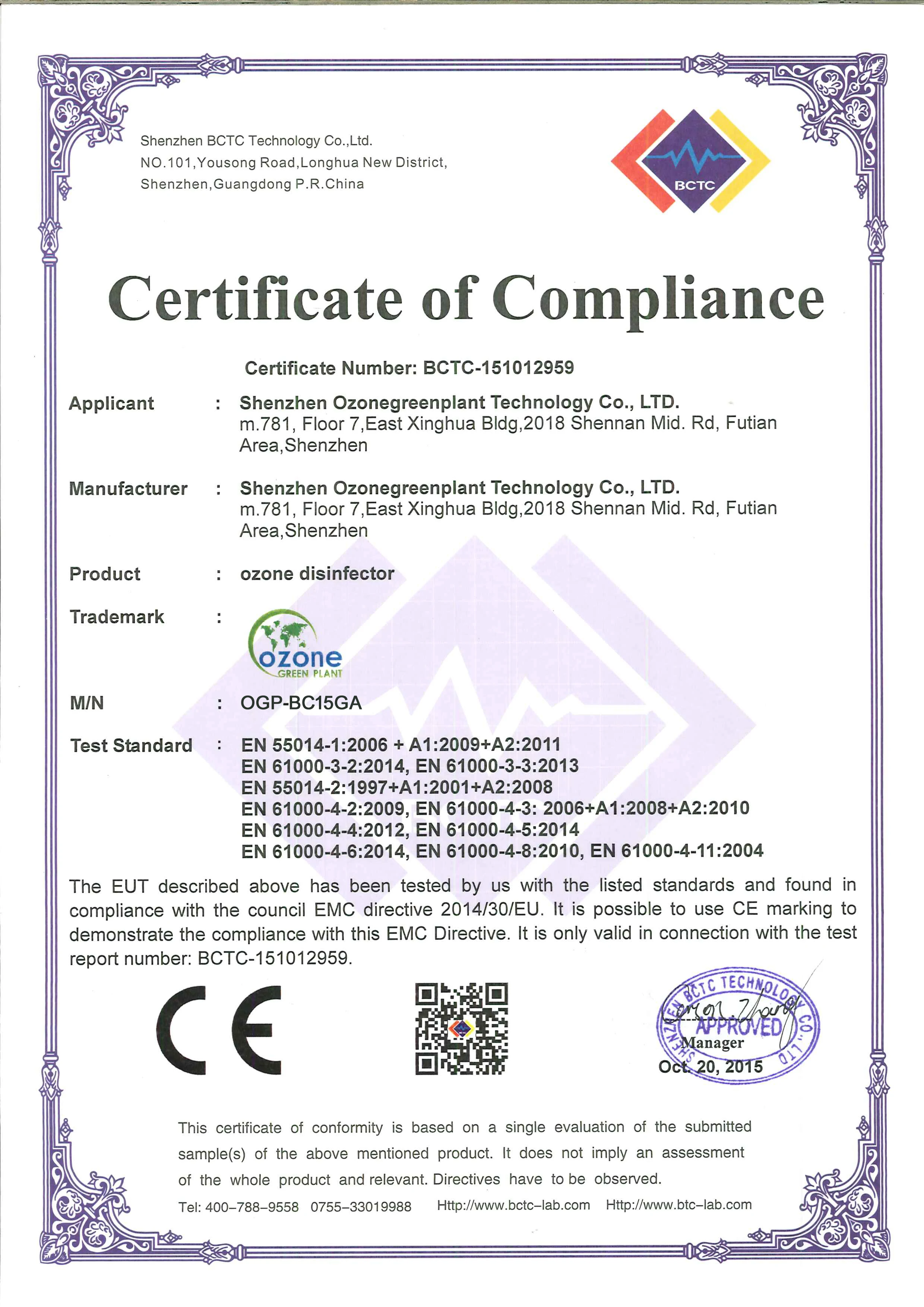

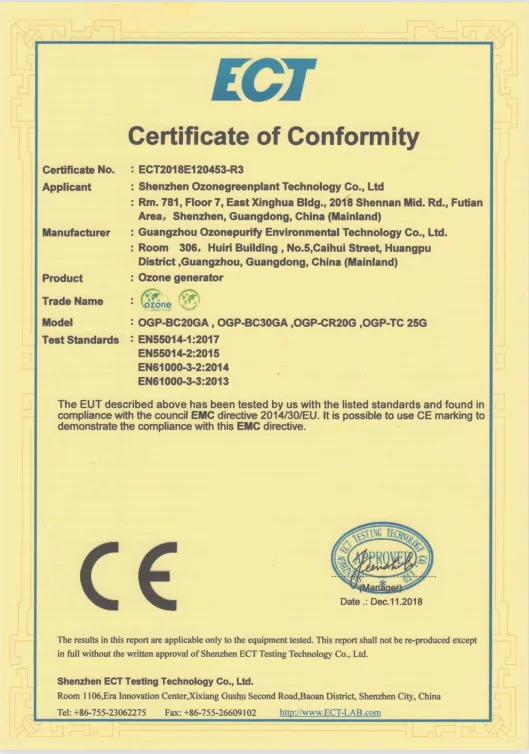

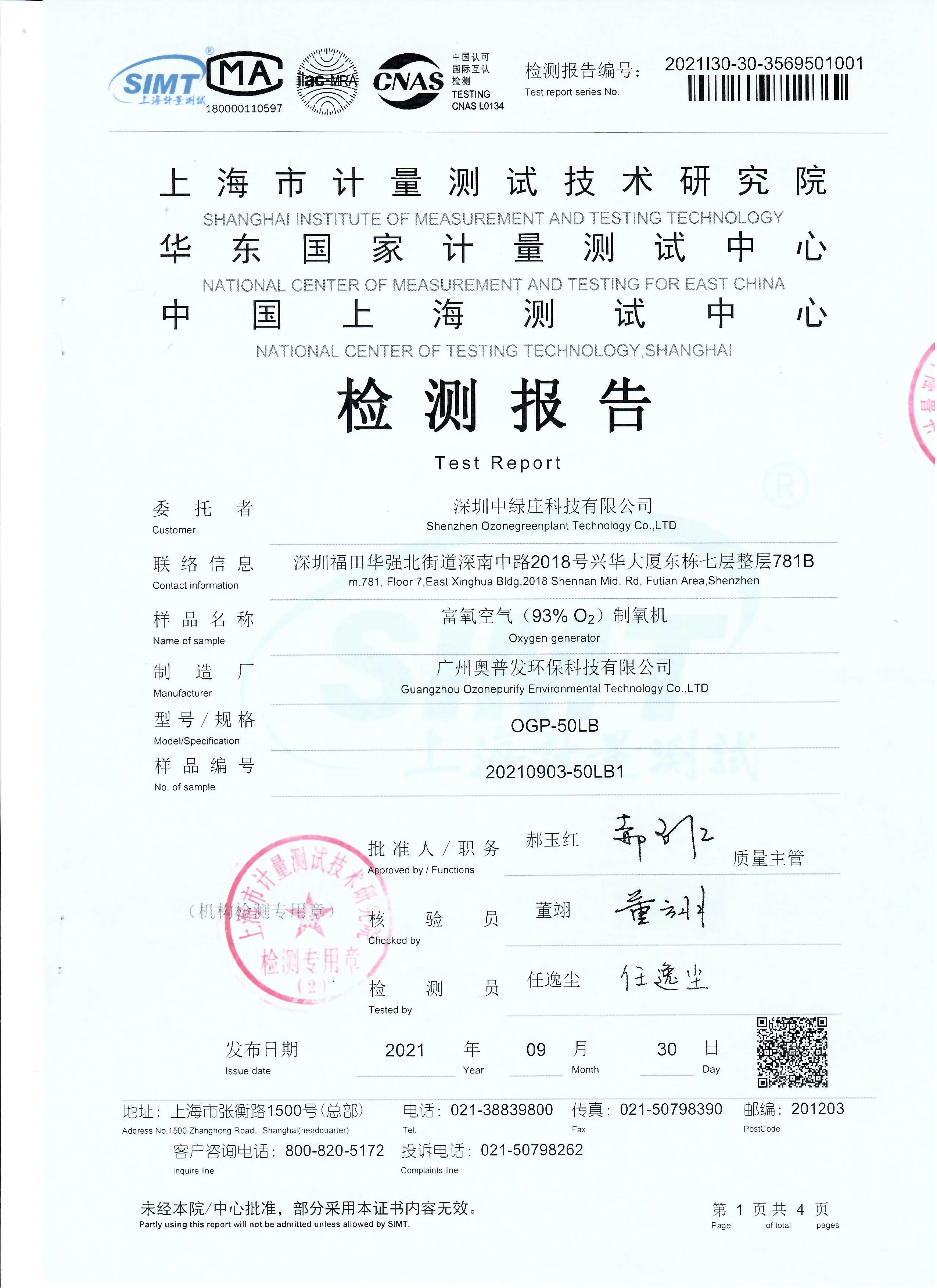

Certifications
SALES AND SERVICE NETWORK
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Western Europe(30.00%),North America(14.00%),Domestic
Market(10.00%),Southeast Asia(10.00%),Southern Europe(10.00%),Mid East(6.00%),South America(4.00%),Eastern Europe(4.00%),South
Asia(3.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Oceania(2.00%),Central America(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ozone Generator,Ozone Parts,Oxygen genenerator , oxygen parts etc.
4. why should you buy from us not from other suppliers?
1.We have Technical staff with 10 years of ozone experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2015,sell to Western Europe(30.00%),North America(14.00%),Domestic
Market(10.00%),Southeast Asia(10.00%),Southern Europe(10.00%),Mid East(6.00%),South America(4.00%),Eastern Europe(4.00%),South
Asia(3.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Oceania(2.00%),Central America(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ozone Generator,Ozone Parts,Oxygen genenerator , oxygen parts etc.
4. why should you buy from us not from other suppliers?
1.We have Technical staff with 10 years of ozone experience.
2.We ensure the product with good quality,suffcient quantity.
3.provide the most perfect sevice to all customers.
4.Products passed CE certification. 5.Protect your sales area
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
