Product Overview
Description
Product Description

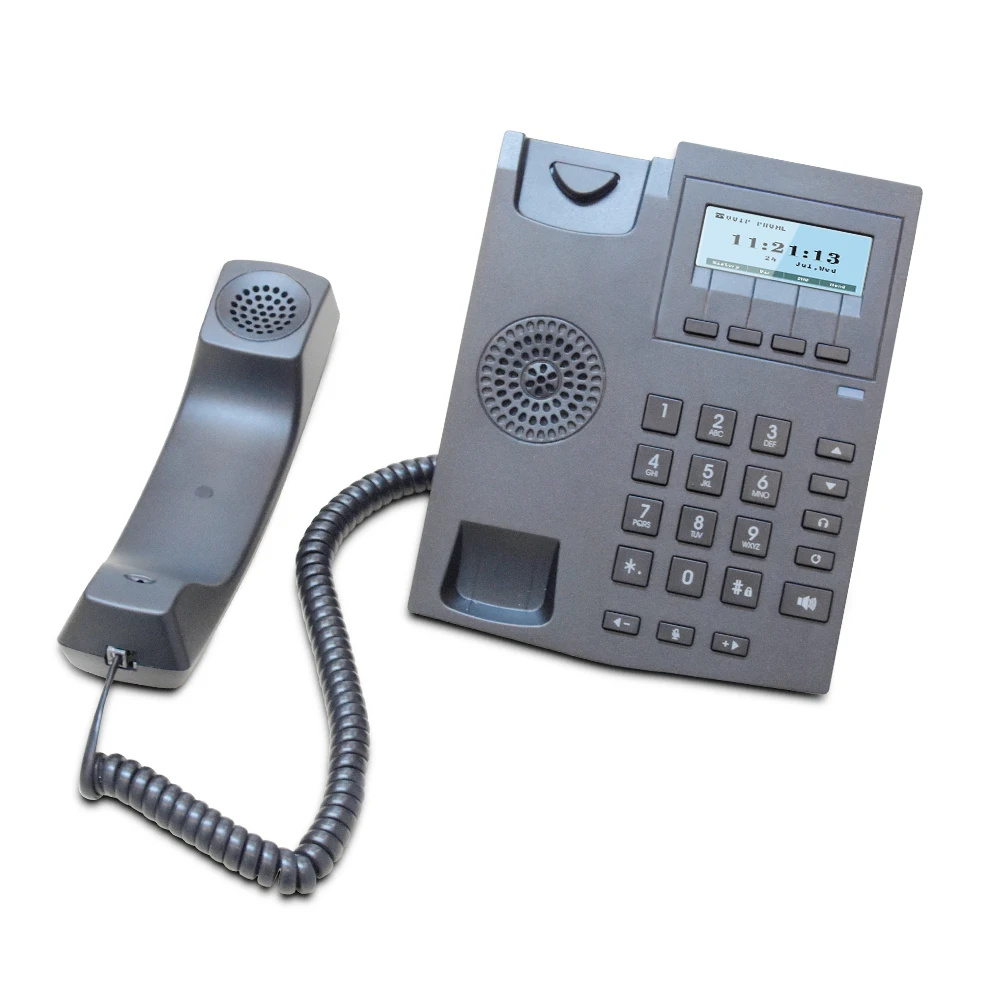

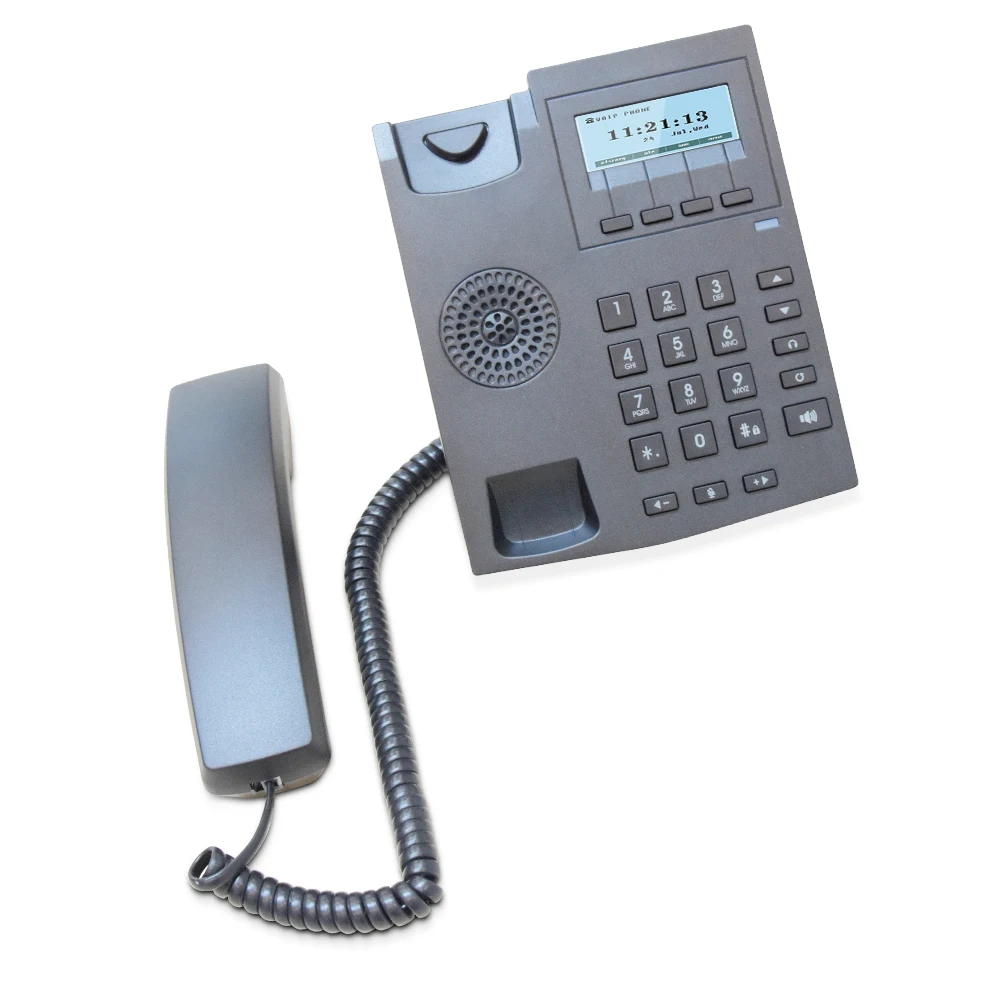

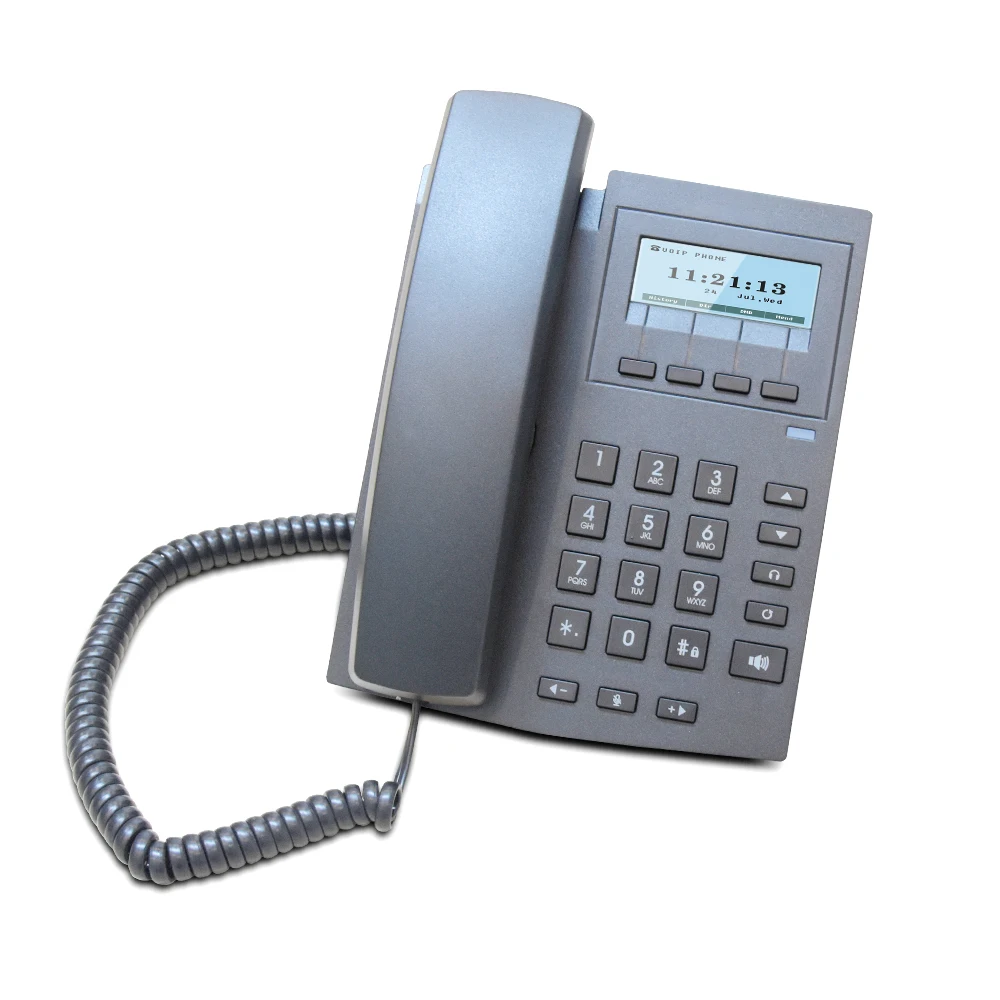

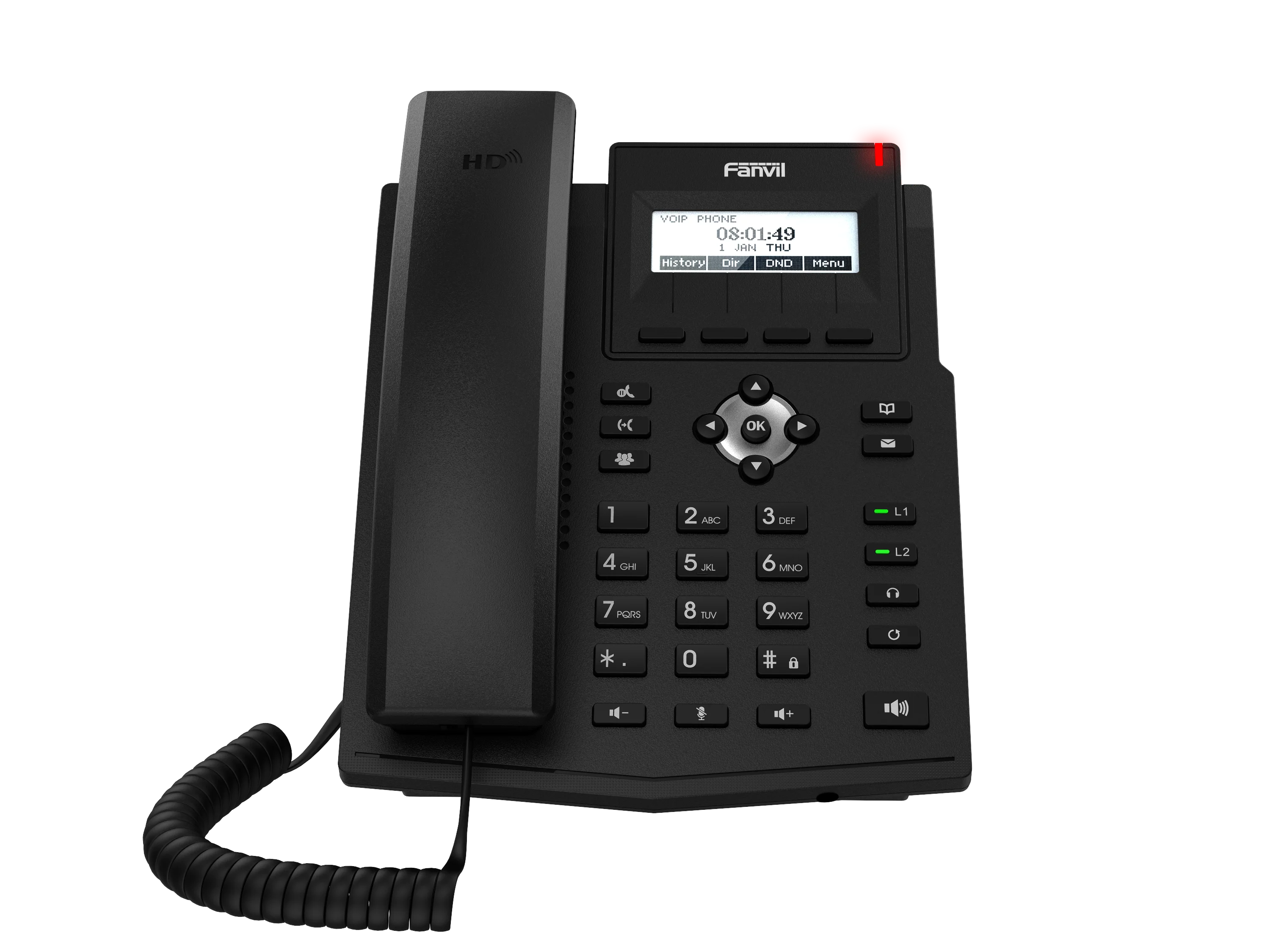

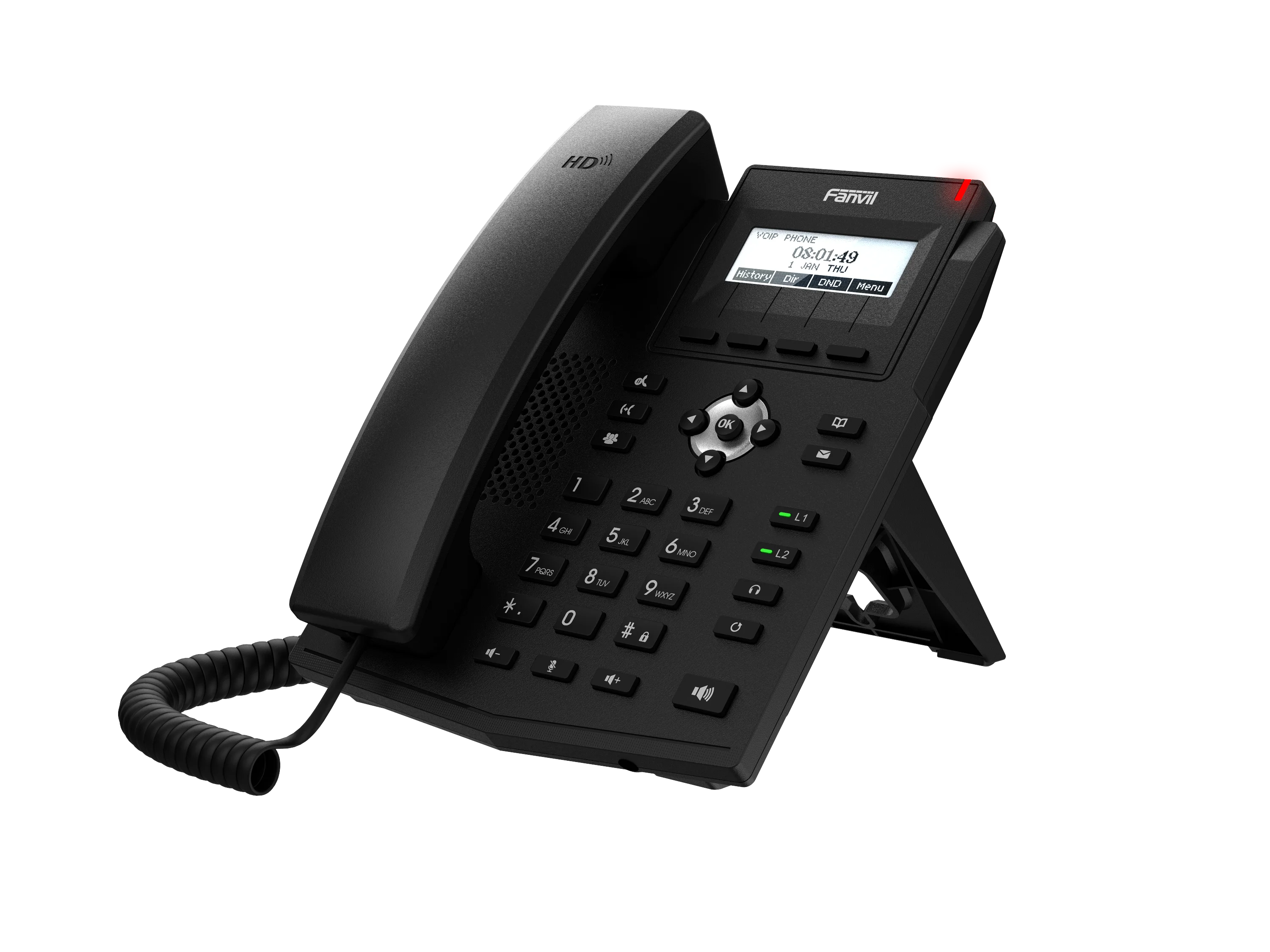

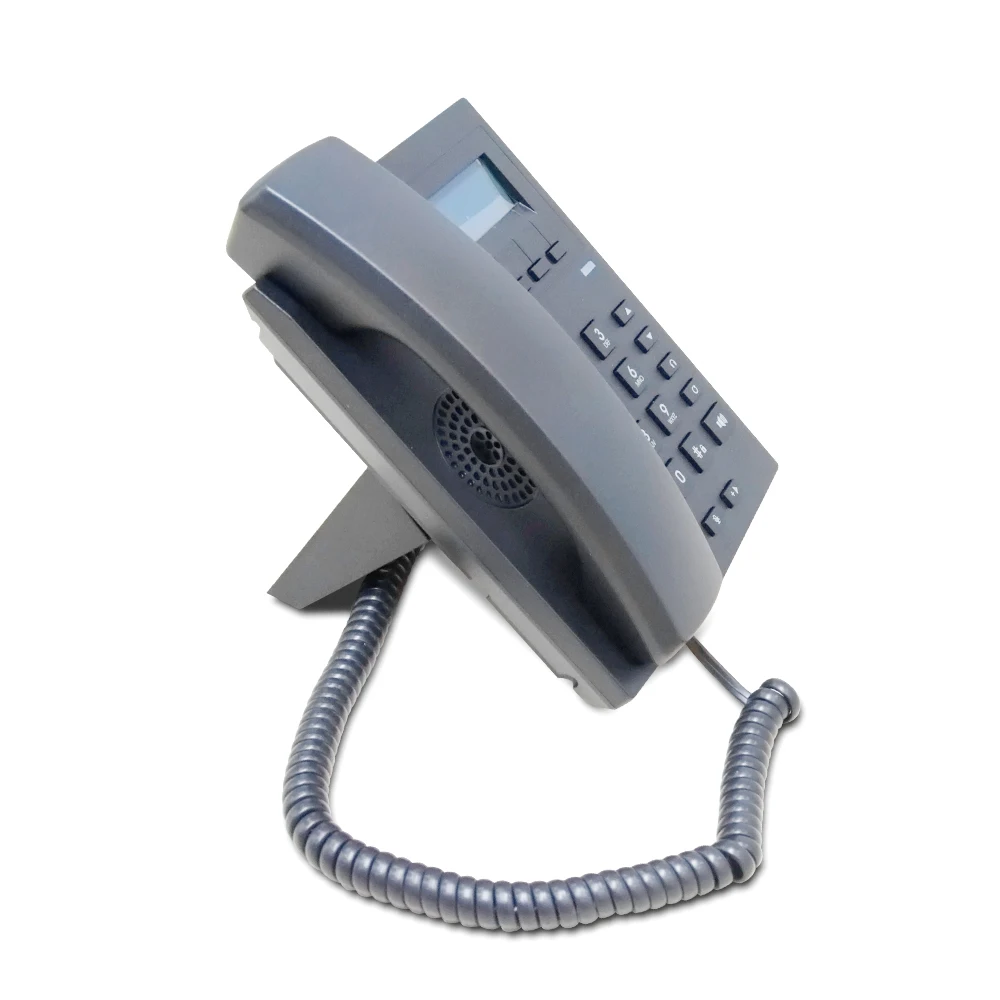

Fanvil X1SP Entry level IP Phone With High Quality
Fanvil X1SP is an entry-level, cost-effective professional desktop IPTelephone.
Coupled with all the necessaryVolP features at an affordable price, it deftly meets the affordabilityand reliability requirements of any budget.
We have good stock!
Call Features
Call out / Answer / Reject
Mute / Unmute (microphone)
Call Hold/ Resume
CallWaiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide CallerID)
Call Forwarding (Always/Busy/No Answer) CallTransfer(Attended/Unattended)
Call Parking/ Pick-up (dependingon server) Redial/Auto-Redial
Do-Not-Disturb (per line / per phone) Auto-Answering (per line) Voice Message (on server) Local 3-way Conference
Hot Line
Hot-Desking
Generic
2SIPLines POE Enabled Handset(HS) / Hands-free(HF) / Headset(HS) mode Desktop Stand
Optional External Power Supply (X1P Optional) Economical and Environmental friendly package Industrial Standard Certifications
Phone Features
Phonebook(500 entries) Remote Phonebook (XML/LDAP) Call log (100 entries, in/out/missed) Black/White List Call Filtering
Voice MessageWaitinglndication (VMWI) ProgrammableSoft keys
Network Time Synchronization Action URL/ Active URI
Audio
Wideband ADC/DAC 16KHz Sampling
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB Full-duplexAcoustic Echo Canceller (AEC) - Hands-free Mode,
96ms tail-length
•VoiceActivity Detection (VAD)/Comfort Noise Generation (CNG)/
Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
DynamicAdaptiveJitter Bufferupto 300ms
DTMF: In-band, Out-of-Band - DTMF-Relay(RFC2833)/ SIP INFO
Networking
10/100Mbps Ethernet, dual bridged port for PC bypass
IPConHguration: Static/ DHCP/ PPPoE
NetworkAccess Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS
Protocols
SIP2.0overUDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1X
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069
RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/ 2833/2976/3261/3262/3263/3264/3265/3268/3311/3489/ 3711/4346/4566/5630/5865
Deployment & Maintenance
Auto-Provisioningvia FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP
PNP/TR069
Web Management Portal
Web-based Packet-dump
Configuration Export/Import
Phonebooklmport/Export
Firmware Upgrade
Syslog
Physicalspecifications
LCD: 128x48 dot-matrix include backlight
Keypad: 24keys, including
4 Soft-keys
4 Function keys (Up, Down, Headset, Redial)
12 Standard Phone Digits keys
2VolumeControl keys, l_ower/lncrease(Left/Right)
1 Mute key
1 Hands-free key

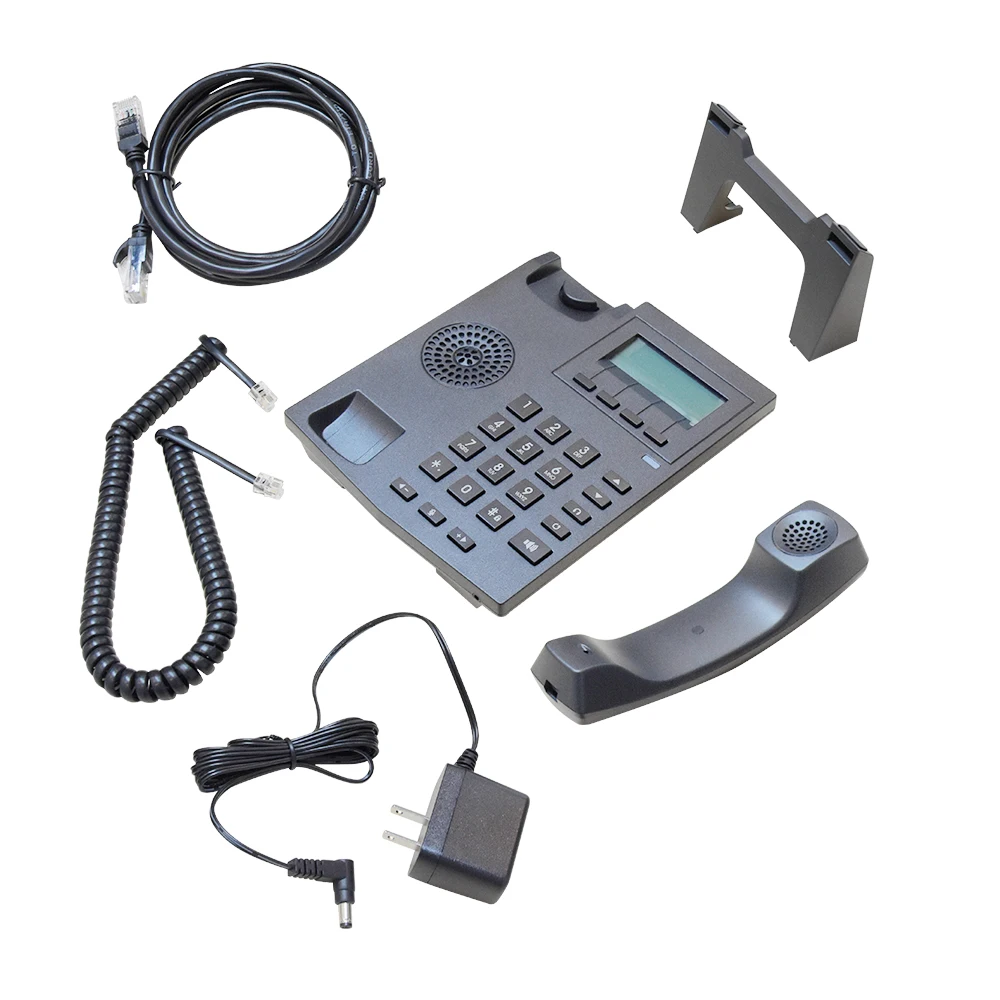

-Standard RJ9 Handset Wire xl
1.5M CATS Ethernet Cable xl
RJ9 Phone port x2: Handset xl, Headphone xl
RJ45 Ethernet Port x2: Network xl (802.3AF POE Class 1 forXlP, PC xl (Bridged to Network)
Main Chipset: Broadcom
DC Power input: 5V/0.6A
Power Consumption: Idle-0.89W-1.2W Peak - 1.81W-2.5W
WorkingTemperature:.40°C
WorkingHumidity: 10-65%
Desktop Stand
Color: Black
Device Dimensions: 164x 154x 166mm (Desktop Stand)
Gift Box Dimensions: 250x205 x66 mm (LxWxH)
Outer CTN Dimensions:420x340x265mm (10 PCS)
Packaging & Shipping
one unit size is (L)220*(W)187*(H)97mm units a carton
carton size is 33.5*38.5*27CM ,Gross weight is 10KG
carton size is 33.5*38.5*27CM ,Gross weight is 10KG
Our Services
>We provide strong technical support about IP Phone service (6 days*12 hours)
>We can help you rent a VoIP softswitch server in USA
>We can provide you with softswitch test
>We can offer factory price for you
>We can help to connect with other call system
Company Information
China Skyline Telecom Co., Ltd.
China Skyline Telecom Co., Ltd. was founded in 2007. Focus on the communications industry for more than 10 years. We have over 120 employees, 15 departments and more than 10 production lines. More than 200 companies from over 60 different countries have established business with us.
Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, Industrial Routers… with well-equipped testing devices and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries.
FAQ
which type of do you have?
S2/S4 model
How many sip account they can support
2 sip and 4 sip accounts
How is your leading-time
in 24 hours
Do you have discount?
Discount depends on your quantity
Can the IP Phone work with VoIP system
Yes. We can help to configure the system
