Horizontal 2000 kg Gas fired Hot Water Boilers for Swimming Pool Schools and Hospitals
- Category: >>>
- Supplier: Henan Swet Boiler Co. Ltd.
Share on (60689192790):
Product Overview
Description
Product Description

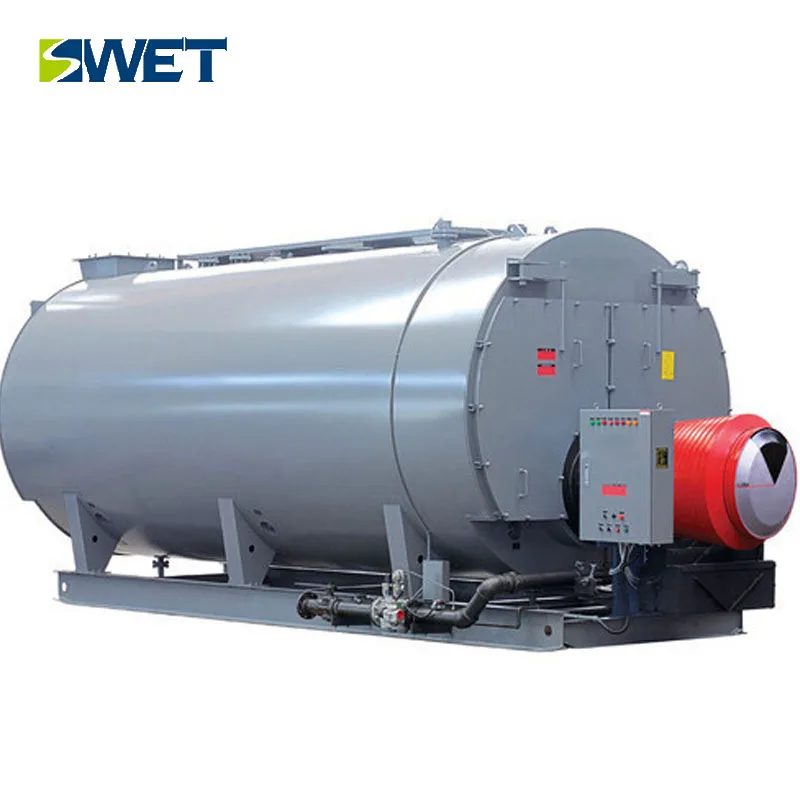

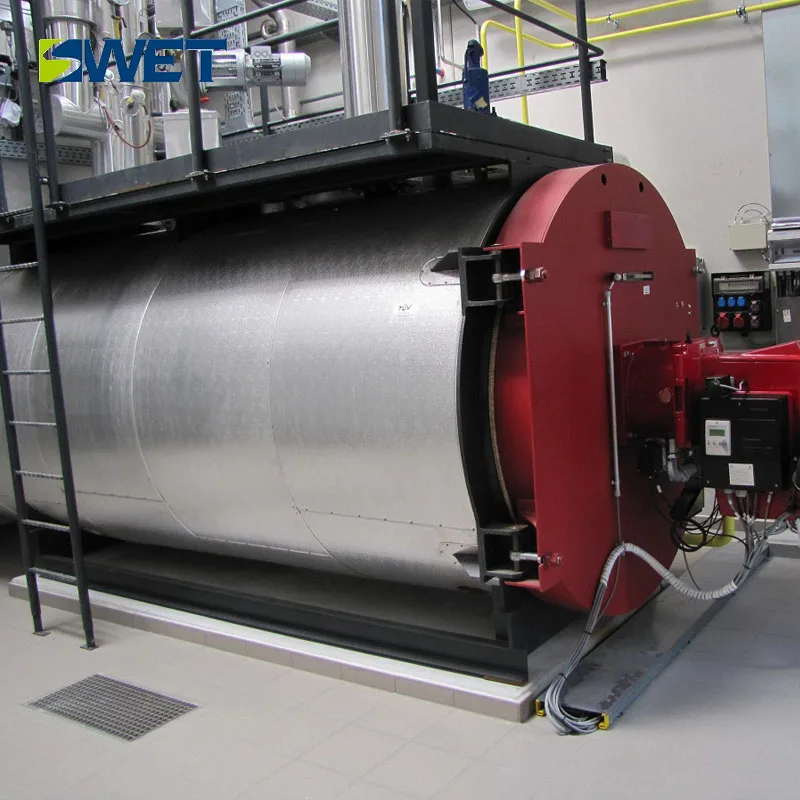

Horizontal 2000 kg Gas fired Hot Water Boilers for Swimming Pool Schools and Hospitals
1.Boiler is equipped with imported brand burner, according to different fuels selected different burners, wide adaptability.
2.Gas-type selection Baltur GI 1000 LXME MB burner, their main pipe fittings such as quick-break valve, filter, pressure regulator, leak detection device is also a full set of imports, stable and reliable performance.
3.Light oil selection GI 1000 DSPG MB. The gas is filtered and pressurized, and then burned into the corrugated furnace by the burner for combustion. The fuel is atomized by the burner and fed into the corrugated bile for combustion. The formation of high temperature flue gas in the furnace and the back to the combustion chamber for radiation heat transfer, and then washed the second and third turn after the convection tube into the smoke box, and then through the energy-saving device, and finally by the chimney into the atmosphere.
Boiler production process:
WNS other models boiler parameters:
Horizontal 2000 kg Gas fired Hot Water Boilers for Swimming Pool Schools and Hospitals | |||||||
| Model | Rated capacity | Working pressure | Water temperature | Return water temperature | Thermal efficiency | Gas consumption | Outline dimension |
| Unit | MW | Mpa | ℃ | ℃ | % | Nm³/h | mm(L*W*H) |
| WNS14 boiler | 14.0 | 1.0/1.25/1.6 | 115/130/150 | 70/90 | 98.73 | 1478 | 8680*3400*3500 |
| WNS11.2 boiler | 11.2 | 0.7/1.0/1.25 | 95/115/130 | 70 | 97.5 | 1203 | 6825*3256*3500 |
| WNS10.5 boiler | 10.5 | 1.0/1.25/1.6 | 115/130/150 | 70/90 | 97.23 | 1162 | 6750*3182*3320 |
| WNS9.8 boiler | 9.8 | 0.7/1.0/1.25 | 95/115/130 | 70 | 97 | 1160 | 6800*2710*3075 |
| WNS8.4 boiler | 8.4 | 0.7/1.0/1.25 | 95/115/130 | 70 | 96.92 | 905 | 6605*2710*1728 |
WNS7 boiler | 7 | 0.7/1.0/1.25 | 95/115/130 | 70 | 96.87 | 754 | 6270*2710*3275 |
| WNS5.6 boiler | 5.6 | 0.7/1.0/1.25 | 95/115/130 | 70 | 96.57 | 619.2 | 5950*2556*3120 |
| WNS4.2 boiler | 4.2 | 0.7/1.0/1.25 | 95/115/130 | 70 | 96.44 | 456.7 | 5200*2605*2910 |
| WNS3.5 boiler | 3.5 | 0.7/1.0/1.25 | 95/115/130 | 70 | 96.01 | 385.9 | 5200*2605*2910 |
| WNS2.8 boiler | 2.8 | 0.7/1.0/1.25 | 95/115/130 | 70 | 95.85 | 325 | 4660*2340*2430 |
| WNS2.1 boiler | 2.1 | 0.7/1.0 | 95/115 | 70 | 95.6 | 229 | 4580*2045*2260 |
| WNS1.4 boiler | 1.4 | 0.7/1.0 | 95/115 | 70 | 95.52 | 158.1 | 3270*1850*1930 |
| WNS0.7 boiler | 0.7 | 0.7/1.0 | 95/115 | 70 | 95.41 | 79.88 | 3300*1635*1720 |
Company Information
1.Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have contin-
ued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
2.It's the national designated A-class boiler and D1,D2 class pressure vessel manufacturing key enterpri-
ses and has passed ISO9001 international quality management certification system certification.It holds
level 1 boiler installation permit. National special equipment manufacturing license ,National special
equipment installation remould maintenance permits and so on.
3. In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland,
In 1987 China's first circulating fluidized bed boiler was born in our factory.In 2016 In order to meet
current emissions and reduce energy consumption requirements, our company launched efficient low-
emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of
special equipment .
4.Our main products including circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil
boiler,power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler,electric hot
water boiler, high-pressure boiler,fully automatic control boiler,wood chip biomass steam boiler,chain
grate boiler,condensing boiler ,natural gas steam boiler ,water tube boiler,fire tube boiler,full artificial
intelligence boiler, biomass steam generator,refractory materials,boiler accessories and so on.
5.Company currently own three registered national patents, 29 certificate of national new products and all
kinds of honors. Also we are qualified as high and new technology enterprise of henan province, and te-
chnical support unit of "National Science and Technology Achievements", External CFB boiler.
6.Company acquired 3 National Patents; 9 provincial awards;14 city-level scientific achievement award.
Our Services
Service purposes:
1. Focus on customers, the pursuit of excellence, and customers to progress together;
2. Customer demand is our eternal pursuit;
3. Sell a boiler, build a demonstration project, pay a friend, open up a market is my company's business
philosophy.
Packaging & Shipping
FAQ
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for install-
ation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel
(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage.
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the
broken parts for free, if the problem caused from the client’s side, the Seller will help supply the
spare part at lowest cost.
Customer visit
1.Our firm business idea is "Set examples, make friends and explore the market by selling our boiler".
2.We will provide full range services to our customers, by virtue of advanced technology , superior product
and competitive price.We guarantee the product quality by strict management, and win customer satisf-
action by excellent services .The comprehensive service advisory systems throughout the sales process
help us achieve perfect combination of products and services.
3.Leading Hi-tec for the industry is our eternal pursuit.
Contact us
Any Question, Please contact us ,we serve you 24 hours !
Tel :+86 17839218269 / 86037168064938
Skype: sky000000000022
wechat : f17839218269
QQ: 3100619026
