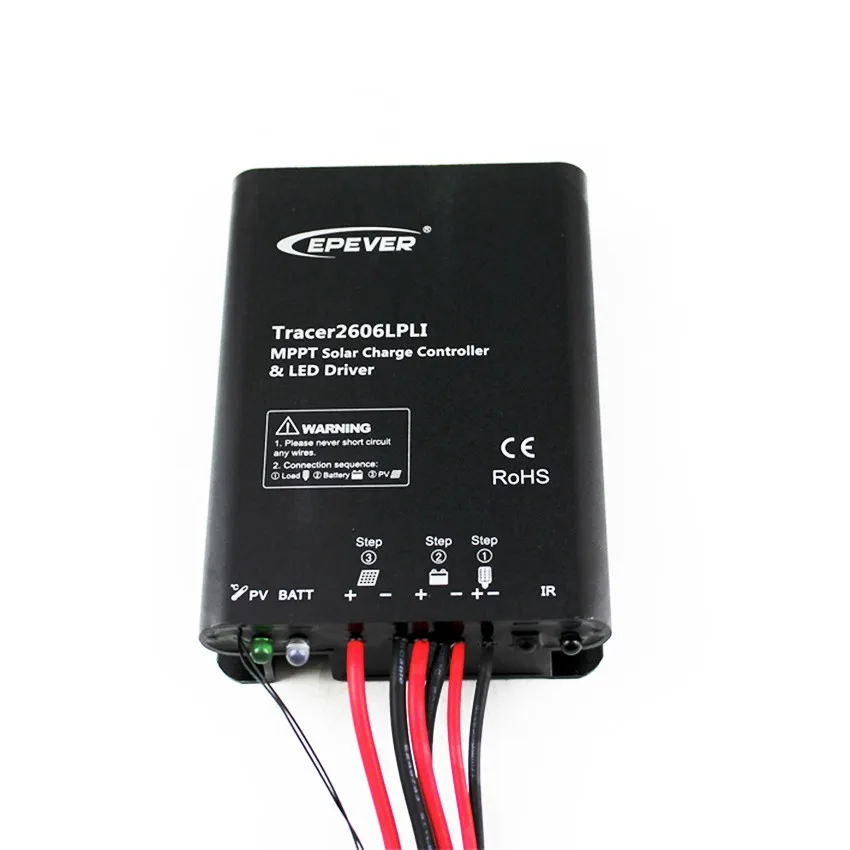

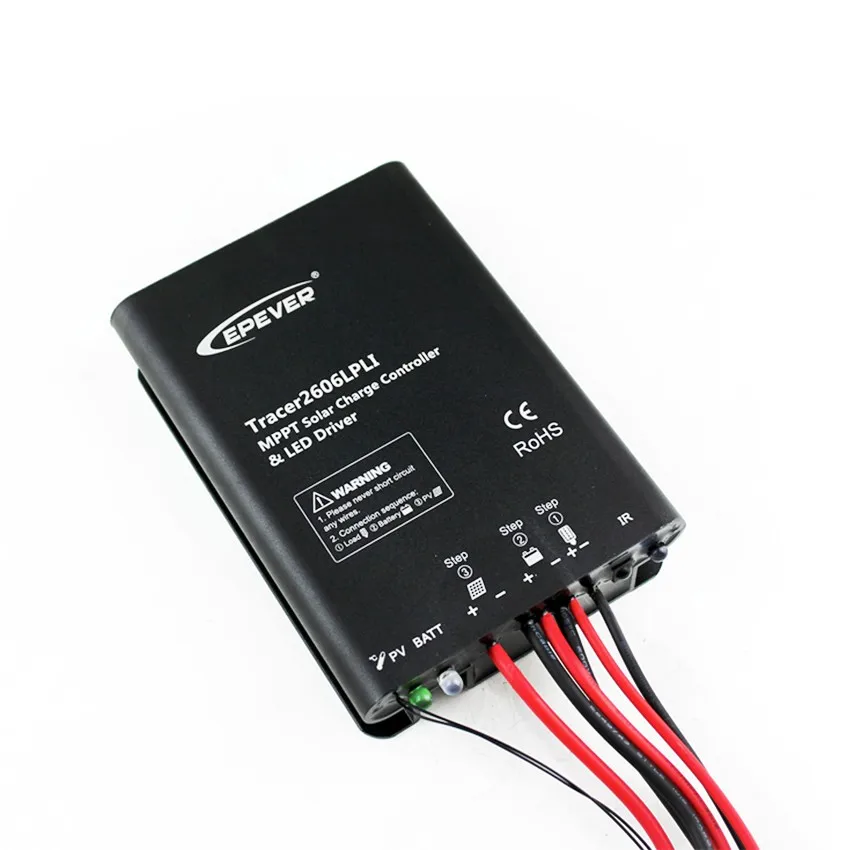

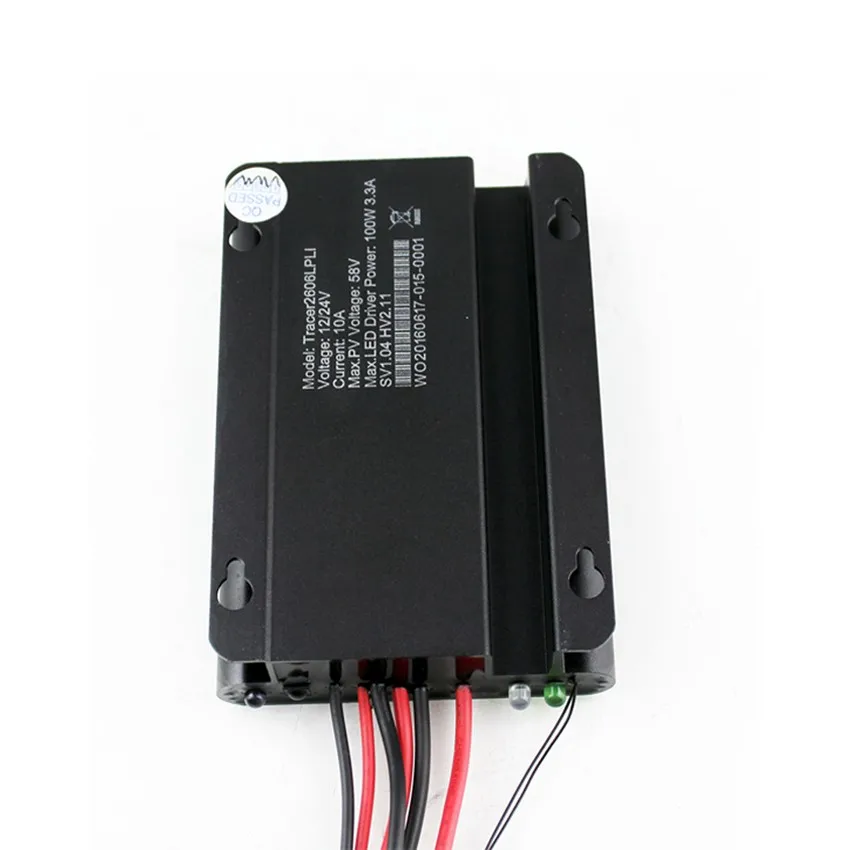

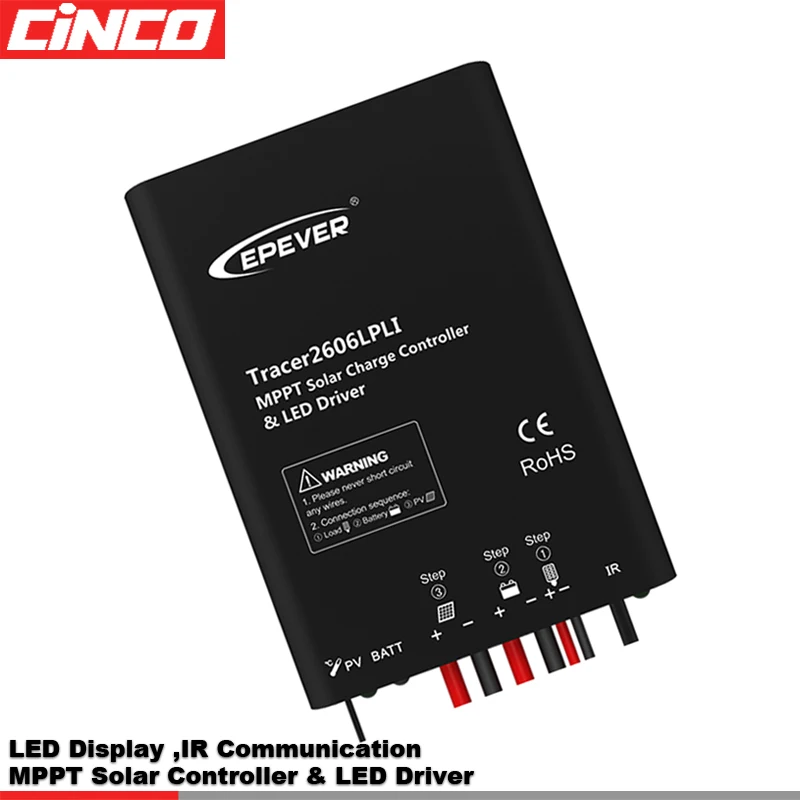

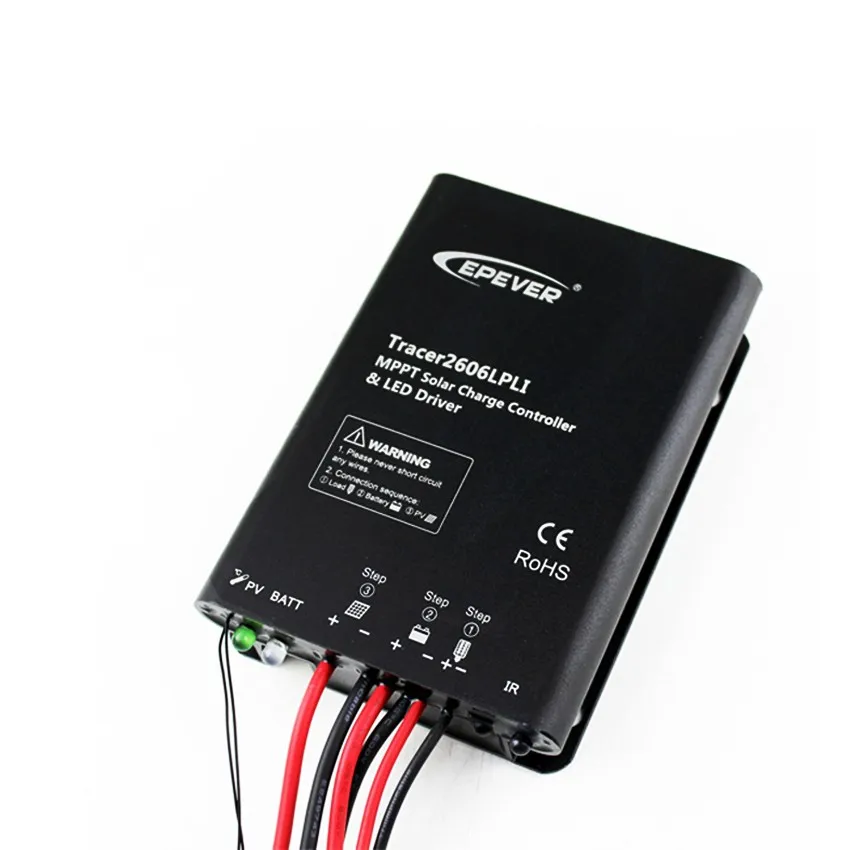

EPSOLAR Tracer2606LPLI 10A 12V24V lithium battery type Solar Street Light MPPT Charge Controller
- Category: >>>
- Supplier: Ningbo Cinco Solar Co. Ltd.
Share on (60689222768):
Product Overview
Description
Products Description

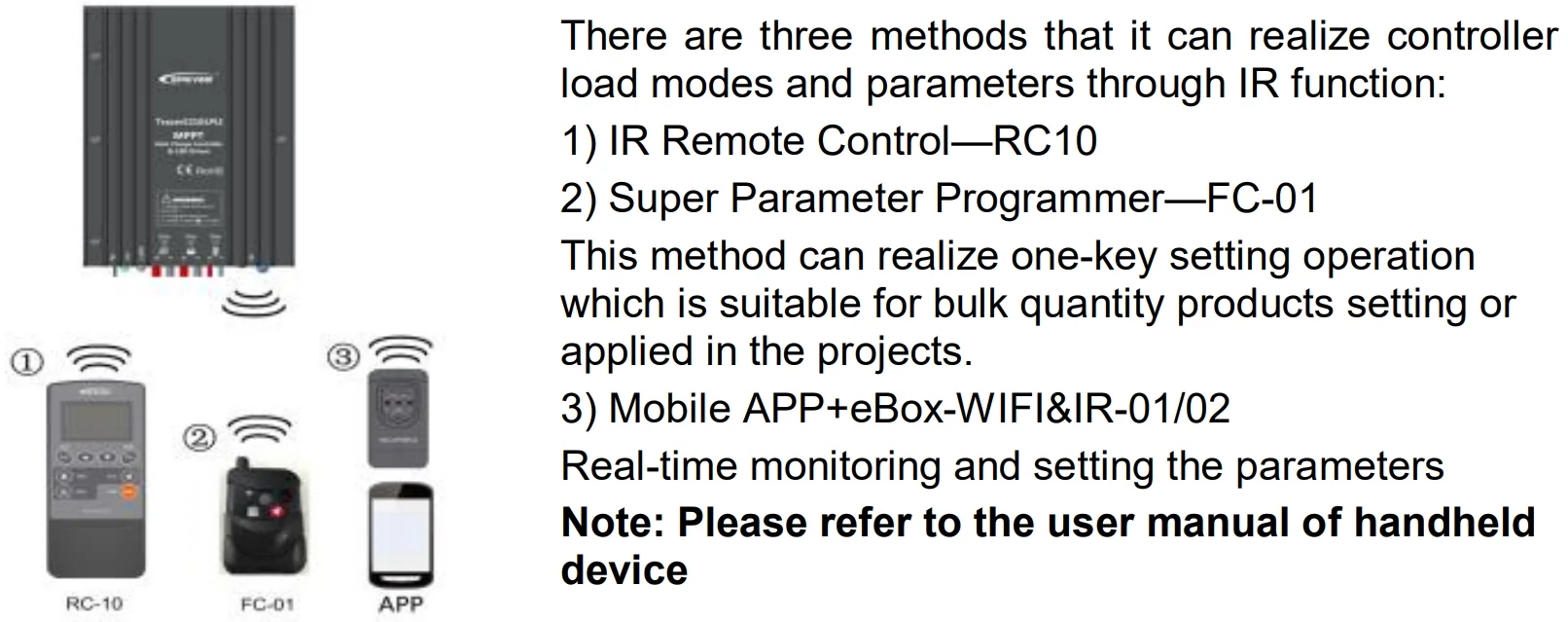

1. Infrared wireless communication design
2. MPPT charging mode
3. Support lead-acid and lithium-ion batteries
4. Lithium battery self-activating function
5. Advanced intelligent power derating function
6. Multiple load control modes
7. Automatic load test feature during installation
8. Extensive electronic protection
9. IP68 protection class (1.5 meters, 72h)
2. MPPT charging mode
3. Support lead-acid and lithium-ion batteries
4. Lithium battery self-activating function
5. Advanced intelligent power derating function
6. Multiple load control modes
7. Automatic load test feature during installation
8. Extensive electronic protection
9. IP68 protection class (1.5 meters, 72h)
Details Images

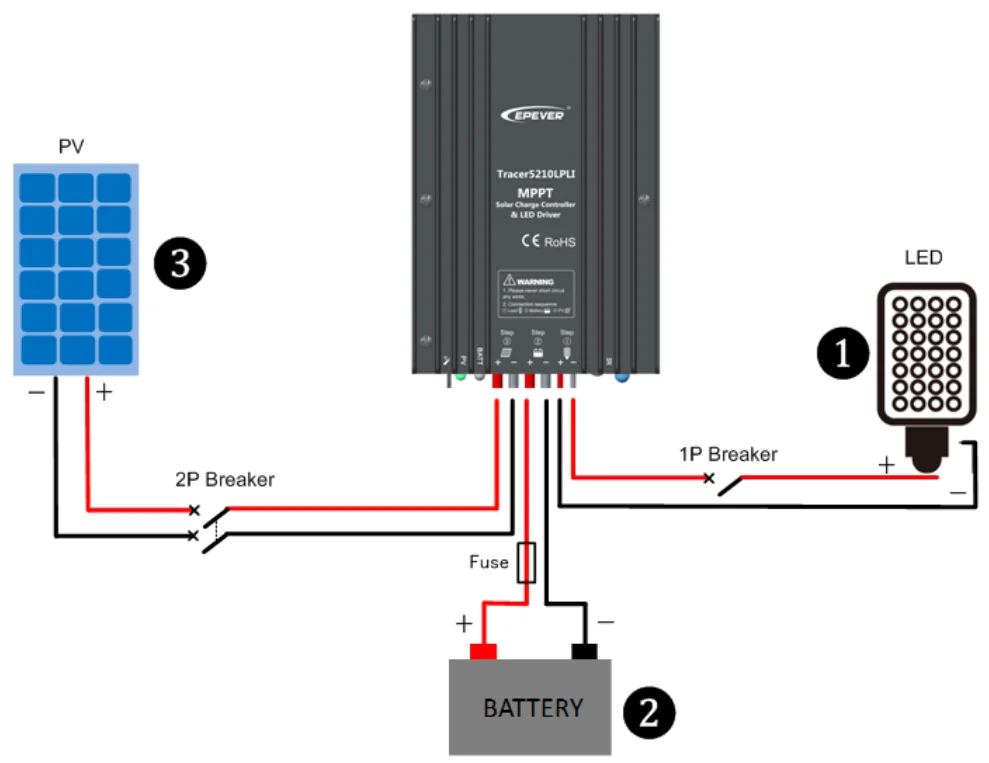

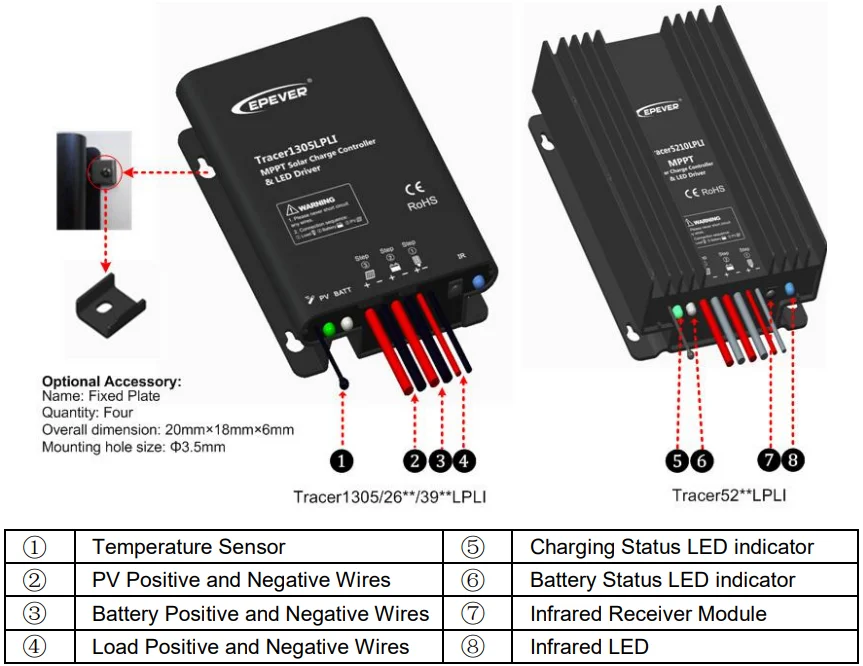

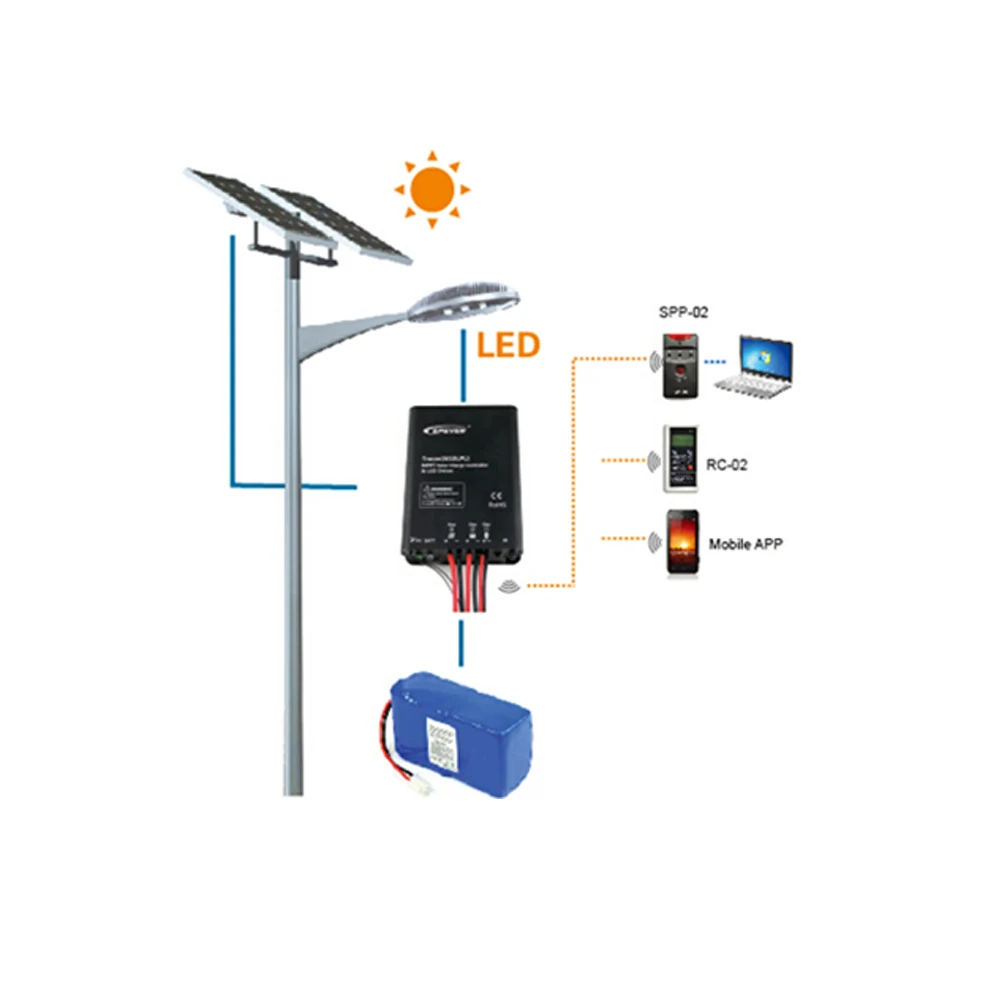

Wiring order & Accessories
Product Paramenters
Model | Tracer1305LPLI | Tracer2606BPL Tracer2610BPL | Tracer 3906BPL Tracer3910BPL | Tracer5206BPL Tracer5210BPL | ||||||
System nominal voltage | 12V | 12/24VDC Auto# | ||||||||
Rated charge current | 10A | 10A | 15A | 20A | ||||||
Rated charge power | 130W | 130W/12V 260W/24V | 195W/12V 390W/24V | 260W/12V 520W/24V | ||||||
Max. PV open circuit voltage | 50V(Min.Temp.) 45V(25℃) | Tracer**06LPLI:60V at Min.operating environment temp,46V at 25℃ environment temp Tracer**10LPLI:100V at Min.operating environment temp,92V at 25℃ environment temp | ||||||||
MPP voltage range | Tracer**06LPLI:(Battery voltage +2V)～ 36V Tracer**10LPLI:(Battery voltage +2V)～ 72V | |||||||||
Max.output current | 3.3A | 3.3A | 4.5A | 6.6A | ||||||
Max.output power | 100W | 100W | 130W | 200W | ||||||
Output voltage range | Max.battery voltage+2V)~46V | Tracer**06LPLI:(Max battery voltage +2V)～ 58V Tracer**10LPLI:(Max battery voltage +2V)～ 80V | ||||||||
Load open ciruit voltage | 46V | Tracer**06BPL:58V, Tracer**10BPL:80V | ||||||||
Lead acid Battery | ||||||||||
Equalize Charging Voltage | Sealed:14.6V; Flooded:14.8V;User:9-17V (24Vsystem×2) | |||||||||
Boost charging voltage | Sealed:14.4V;Gel:14.2V;Flooded:14.6V;User:9-17V(24Vsystem×2) | |||||||||
Float charging voltage | Sealed/Gel/Flooded:13.8V;User:9-17V(24Vsystem×2) | |||||||||
Low voltage reconnect voltage | Sealed/Gel/Flooded:12.6V;User:9-17V(24Vsystem×2) | |||||||||
Low voltage disconnect voltage | Sealed/Gel/Flooded:11.1V;User:9-17V(24Vsystem×2) | |||||||||
Lithium battery | ||||||||||
Boost Charging Voltage | LiFePO4(4s):14.5V/Li-NiCoMn(3s):12.5V/User:9-17V(24Vsystem×2) | |||||||||
Low Voltage Reconnect Voltage | LiFePO4(4s):12.8V/Li-NiCoMn(3s):10.5V/User:9-17V(24Vsystem×2) | |||||||||
Low Voltage Disconnect Voltage | LiFePO4(4s):11.1V/Li-NiCoMn(3s):9.3V/User:9-17V(24Vsystem×2) | |||||||||
Self-consumption | ≤15mA/12V; ≤22mA/24V | |||||||||
Max output efficiency | 96% | |||||||||
Output current control accuracy | ≤2% | |||||||||
Working environment temperature | -40℃～+60℃ | |||||||||
Enclosure | IP68 | |||||||||
Dimension(mm) | 124*89*30mm | 124*89*30mm | 150*93.5*32.7mm | 153*105*52.1mm | ||||||
Weight | 0.51kg | 0.52kg | 0.73kg | 1.18kg | ||||||

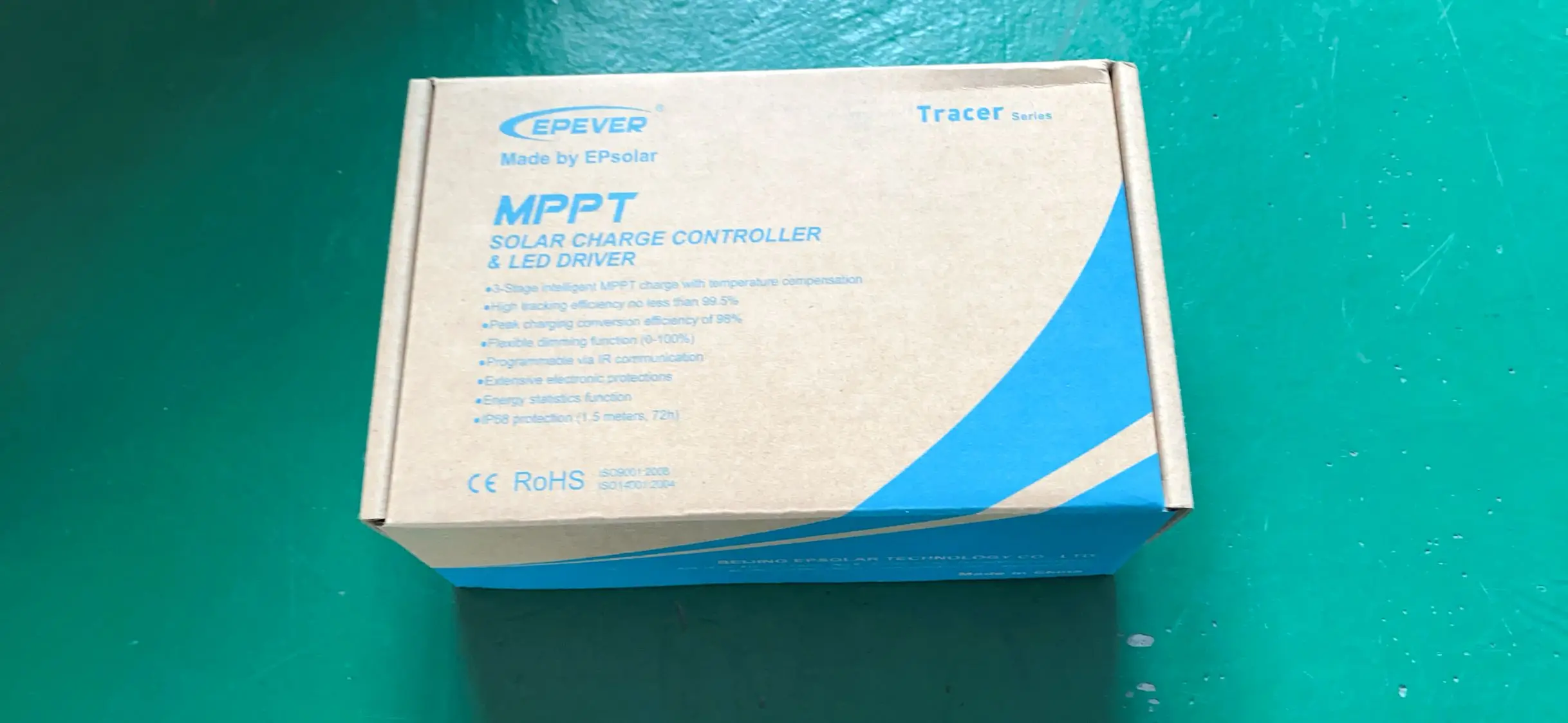

Product packaging
