IMP IPD55G GPRS SMS Pressure Transmitter

Product Overview

Description

IMP-IPD55G GPRS+SMS Pressure Transmitter



IMP-IPD55G pressure transmitter, using the GPRS+SMS wireless communication, solved the wireless distance restriction problem. It can acquire anywhere data in the world into the monitor center. It Supports Dynamic Domain name or Static IP address connection; It Supports SMS, GPRS UDP and TCP protocols; It can realize the 6000 units to be one wireless net communication.

The Pressure sensor uses silicon diaphragm sensor or capacitance sensor, with stainless steel housing, using professional IC circuit over a

wide temperature rangeof zero and full scale performance compensation. So it can detect a large number of monitoring points in the wide region real-time data of the network systems, such as the liquid tank testing, storage tanks and oil and water pressure monitor, other industrial field automation control.

Feature

1) You can choose one of GPRS and SMS or both of the GPRS and SMS

2) Supports Dynamic Domain name or Static IP address connection

3) Supports SMS, GPRS UDP and TCP protocols

4) No distance restriction

5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field



Pressure Part Parameters



Power Supply	24VDC
pressure medium	gas or liquid compatible to wetted stainless steel
pressure ranges	-1...0~0.01bar...1000bar
pressure type	gauge(G),absolute(A),sealed gauge(S)
accuracy	0.25%FS , 0.5%FS
long term stability	<0.1%FS/year
supply voltage	2V DC
Relay output(2 relays)	220V/3A
indicator	4 digits LCD display
compensation temperature range	-20~+85°c
working temperature range	-40~+125°c
temperature coefficient of zero	0.2%FS/10°c
temperature coefficient of span	0.2%FS/10°c
insulation resistance	100MΩ@ 50VDC
electrical connection	M20×1.5 female
material of wetted part	1Cr18Ni9Ti
material of membrane	316L
material of housing	cast aluminium
process connection	G1/2 or others
overload pressure	150%FS



Wireless Part Parameters



Frenquency Range	GSM:850,900,1800,1900MHZ
Receiver Sensitivity	-108dBm
Emission Power	32dBm
Off Current	240uA
Stand_By Current	2.8mA
Receiver Current	100mA
Emission Current	250mA
DATA Rate	0.123~1M



Electrical Connection















Dimension



Accessory:

1, Pressure sensor

2, Battery or Adapter

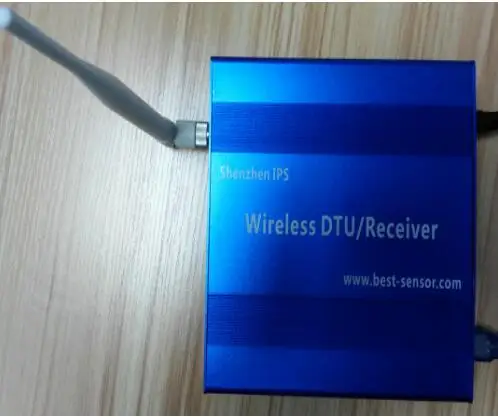

3, Receiver

4, PC software of Mobile phone App
