JD Series Mining Dispatching Winch / Lifting Hoist

Product Overview

Description

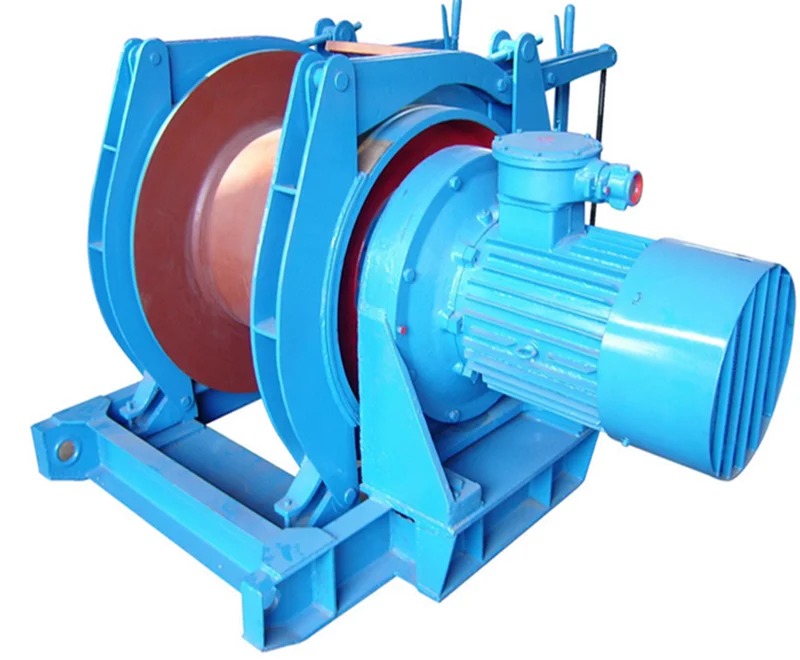

JD Series Mining Dispatching Winch / Lifting Hoist

 Product Introduction



JD dispatching winch is mainly used in coal mine and other mines in tilting Angle is less than 30 degrees haulage roadway of harvesters and other auxiliary handling work, also can be used in the working face and loading on tunneling faces scheduling marshalling harvesters.

JD series of flameproof for underground or ground load scheduling marshalling harvesters and haulage roadway harvesters and other auxiliary handling in the middle. JD series hoist adopts planetary gear transmission, winch has a compact structure, good rigidity, high efficiency, easy installation and moving, smooth starting, flexible operation, reliable braking, low noise characteristics.

Product parameter

Model		JD-1	JD-2.5	JD-4
Maximum net tension of outer steel wire rope		10kN	25kN	40kN
Rope speed	Minimum (inner layer)	0.433m/s	1.16m/s.	0.95m/s
	Maximum (outer layer)	1.033m/s	1.45m/s	1.48m/s
	Average	0.733m/s	1.31m/s	1.22m/s
Rope capacity	The diameter of the rope	12mm	20mm	22mm
	The length of the rope	400mm	500mm	650mm
Drum size(Diameter*width)		224*304mm	620*580mm	580*600mm
Total reduction ratio		41	42.24	32.75
Dimensions		1120*766*727mm	1830*1794*1390mm	2580*1965*1425mm
Weight		542kg	2450kg	3650kg
Flameproof motor	Model	YBJ11.4-4	YBJ40-4	YB2-280M-6
	Power	11.4KW	40KW	55KW
	Voltage	1460r/min	1470r/min	980r/min
	Speed	380/660V 660/1140V	380/660V 660/1140V	380/660V 660/1140V
