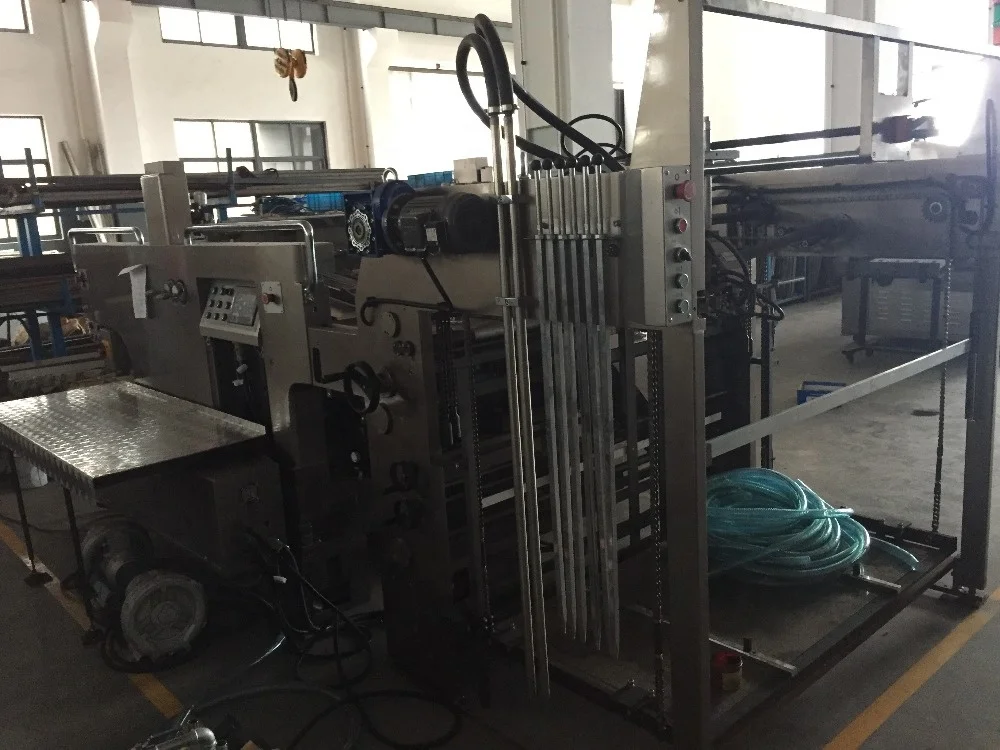

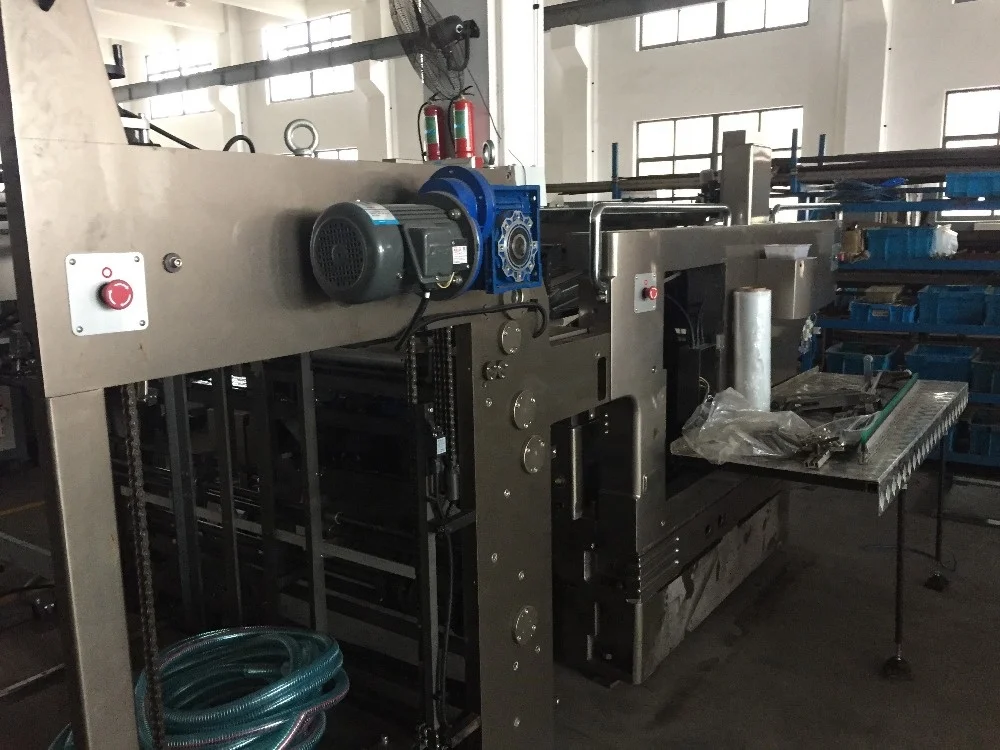

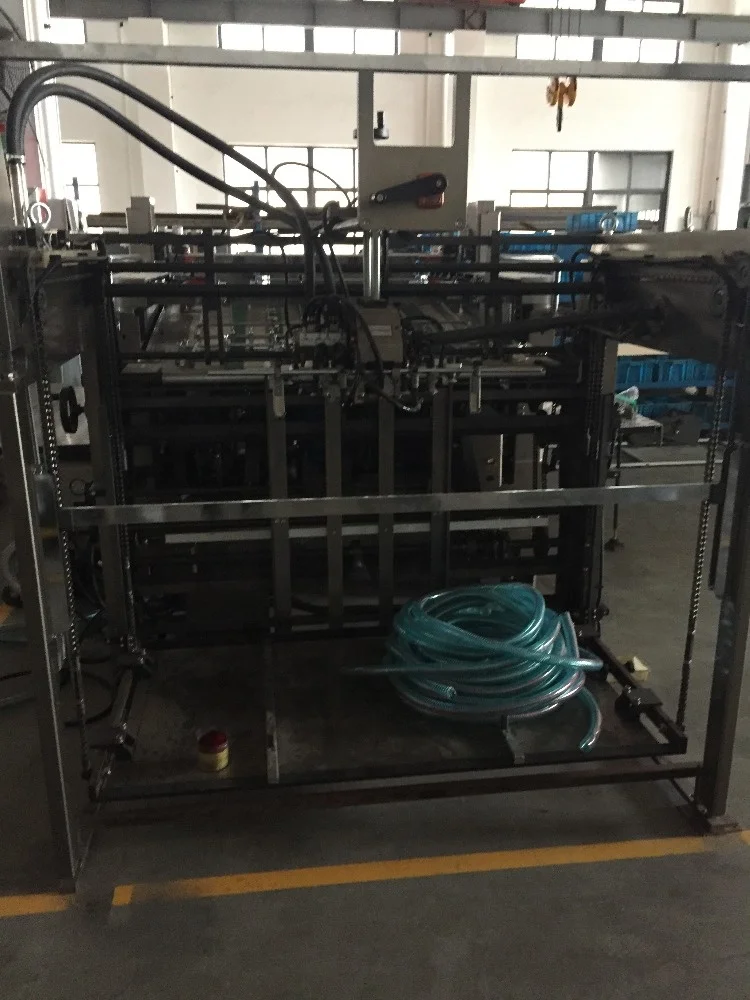

JB-1050AG Full Automatic Stop Cylinder Screen Press
Product Description
JB-1050AG full automatic stop cylinder screen press is a new model which brings in advanced design and production technology, adsorb the mature offset printing technology, innovation and has a patented technology, mainly for printing on paper and packing field. The machine adopts the classic stop cylinder , the maximum operating speed is up to 4000pcs/h; Meanwhile, the machine use non-stop feeder and non-stop collection technology, change the old operation mode which must stop machine to load substrate and collection, which eliminate the waste of time in loading and collecting, improve the printing efficiency more than 30%. It's suitable for the screen printing on ceramic and glass transfer film, advertising, packing printing, brand, textile transfer, electronics and other industries. |
Main Technical Parameters:
| Model | JB-1050AG |
| Max.paper dimension | 1050X760mm2 |
| Min.paper dimension | 560X350mm |
| Max.printing dimension | 1050X750mm2 |
| Frame Size | 1300X1170mm |
| Paper thicknes | 90~420g/m2 |
| Precision of overprint | 0.10 mm |
| Border | ≤10 MM |
| Max.printing speed | 800-4000pcs/h |
| Power | 3P 380V 50Hz 11.3Kw |
| Weight | 6300kg |

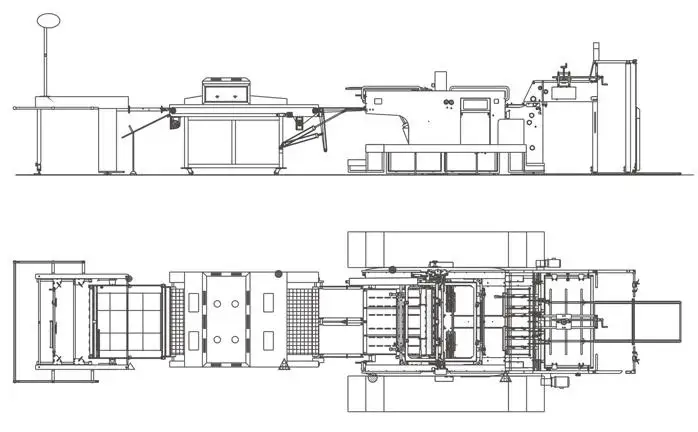

| Overall dimensions | 6700×3060×2050mm |

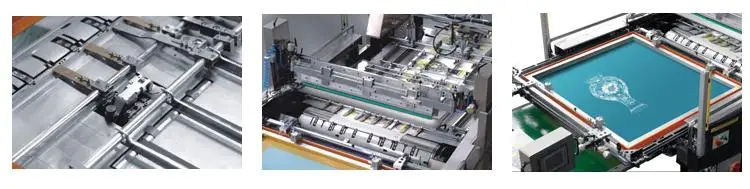

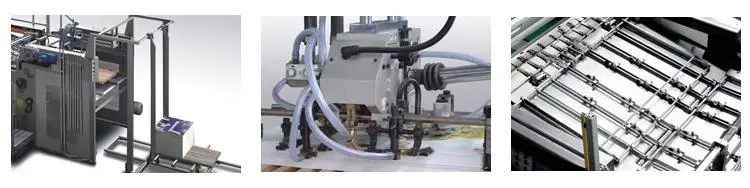

| 1. Feeding part: Full automatic non-stop feeder with pre-stacker, non-stopprimary and secondary feeding prog-ram, saving the working time, easy to operate , increase the efficiency, raised feeder height ensure the feeding height | 2. Feeder: Efficient and stable compact feeder head design, with two suck two delivery four suction, Adsorb and delivery different thickness paper stably. Note: it can be equipped with the anti-static device for substrates with high static content. | 3. Feed board: Feed surface is worked by plating, avoid the rear of printing substrates to be scratched, at the same time feeding is very smooth; with the sensitive sensor it will stop automatically if without paper. |
| 4. Cylinder and register system: Cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder , which is up to extreme high precision; at the same time, gripper of cylinder and pull side-lay both have there magic eyes for supervising if the printing stock is in correct place. | 5. Squeegee system: Two cams separ-ately control the movement of squeegee and ink return blade; squeegee with the pneumatically pressure kept device, the printing graphics is more clearly and the ink layer is more well-proportioned. | 6. The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder. |
 |  |

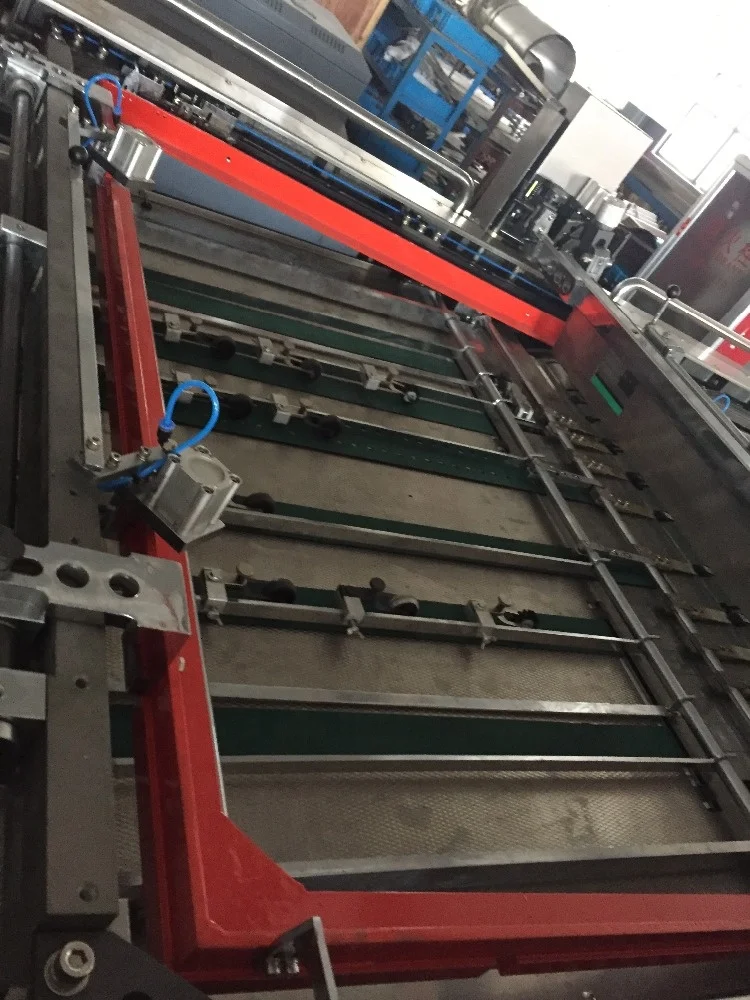

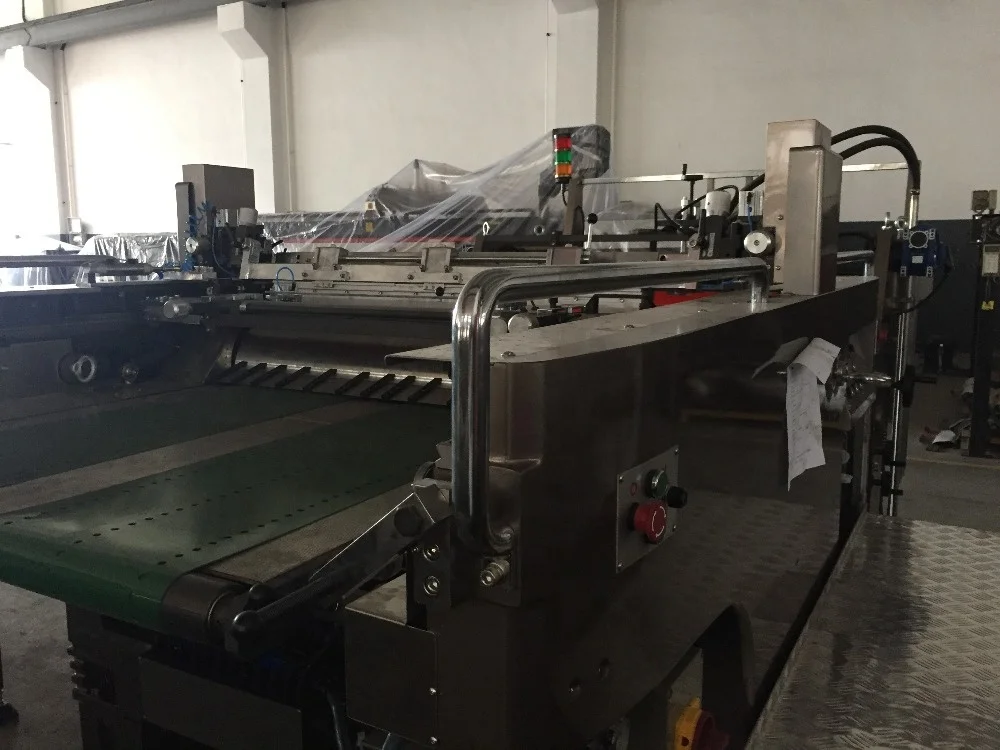

| 7. Delivery board: can be turned down by 90°, easy to adjust the screen frame, fix blade, clean and inspect; with vacuum adsorption ensures delivery smoothly. The two wider convey belt which can avoid the belt break the substrate. | 9. Cover lift system: The inside temperature is inspected multipointly, if the temperature is abnormal the machine will stop automatically, as well as the cover will lift automatically. |
