GPS 7A competitive price high quality wet mix shotcrete machine for sale
- Category: Shotcrete Machine >>>
- Supplier: Zhengzhou Gaode Equipment Co. Ltd.
Share on (60689722504):
Product Overview
Description

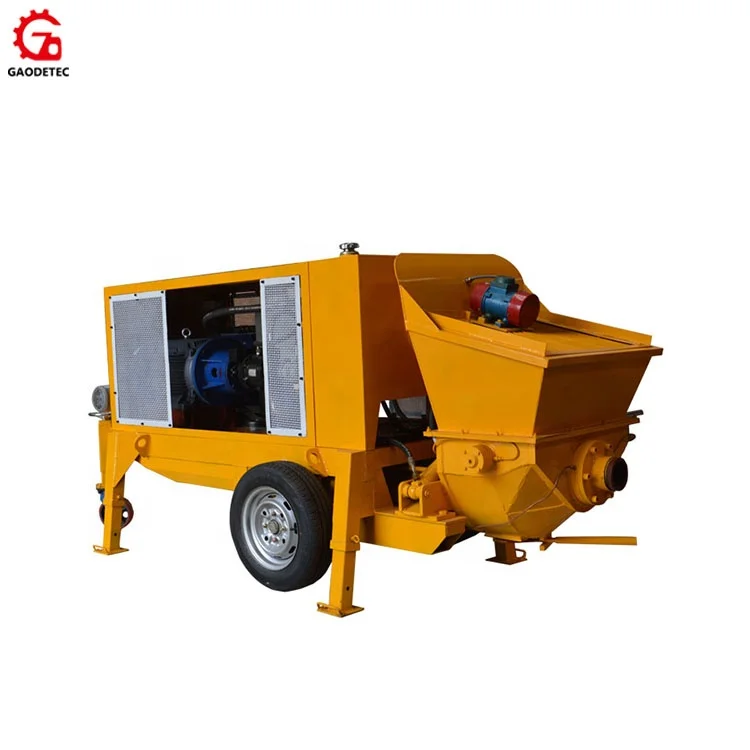

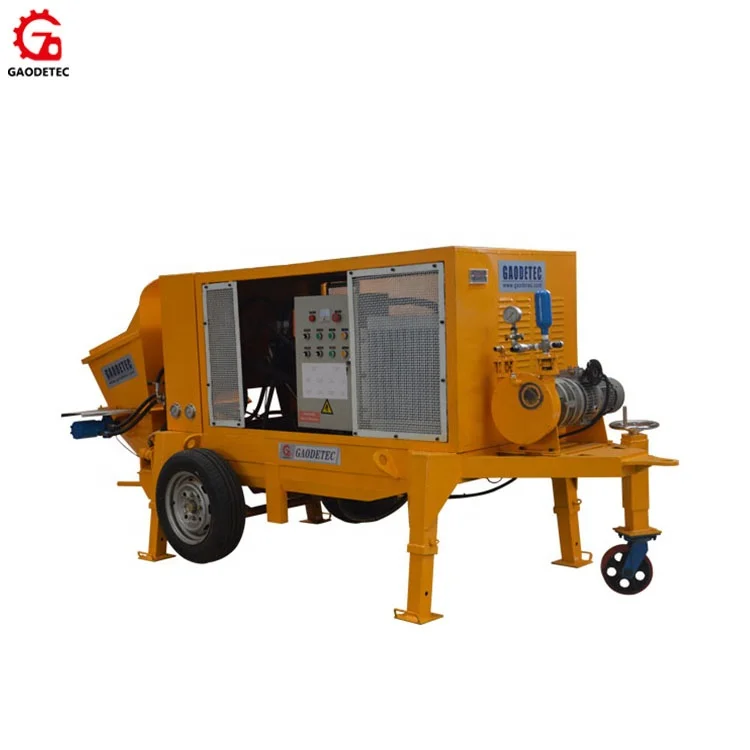

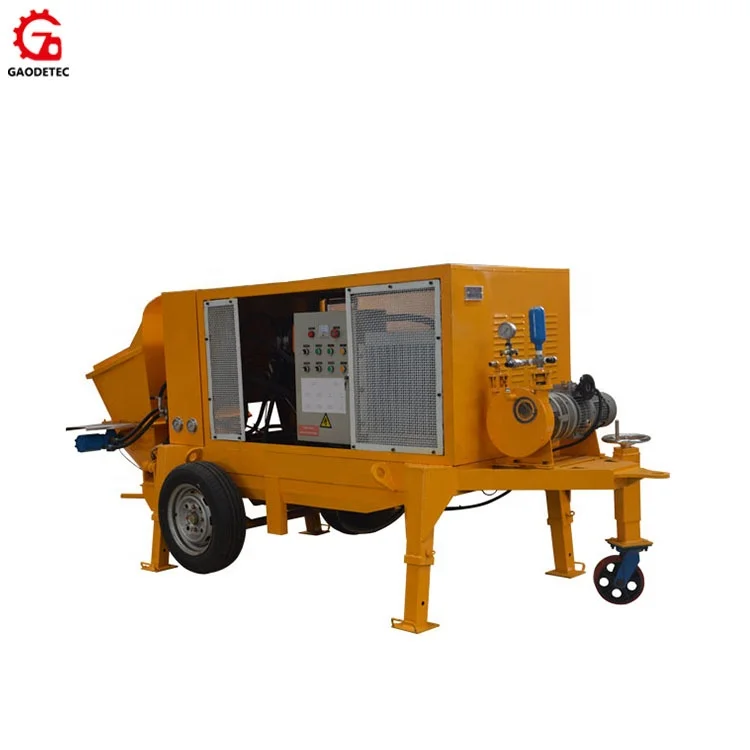

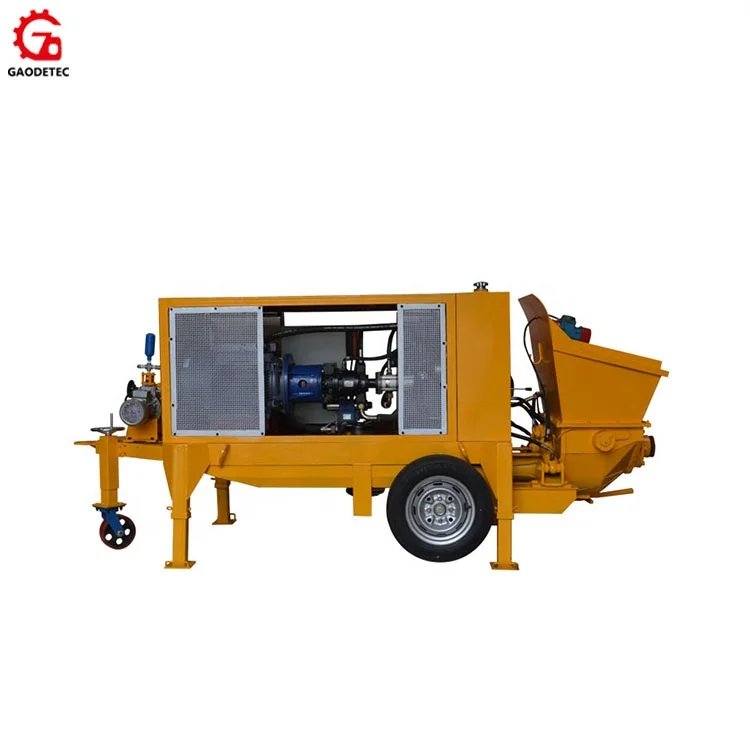

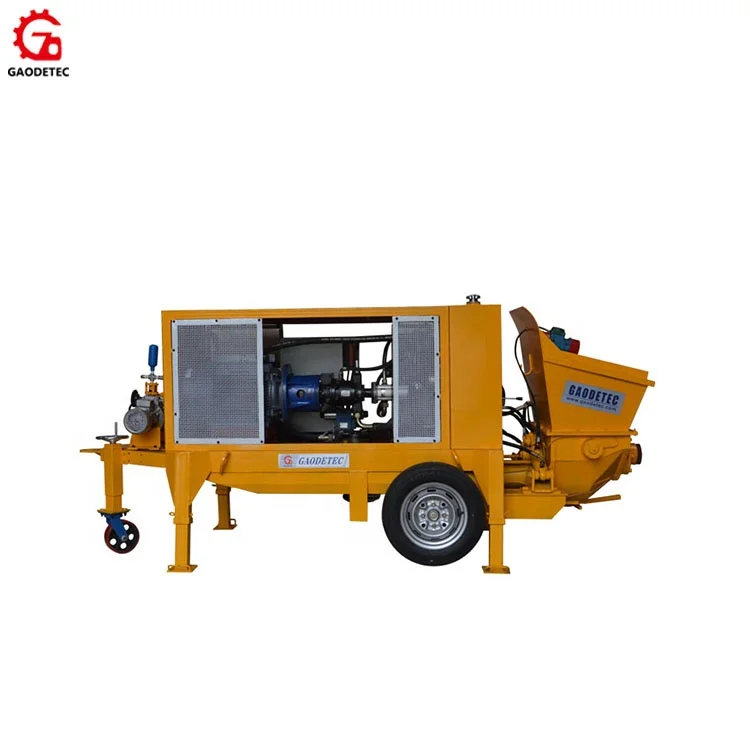

GPS-7A competitive price high quality wet mix shotcrete machine for sale
Product Description
GPS-7A wet shotcrete machine use hydraulic pumping S valve structure, two oil cylinders Reciprocationg alternately to pump concrete from conveying pipe to nozzle. Add compress air to wet shotcrete machine outlet and aad a percentage of the accelerator at nozzle, concrete slurry be sprayed to surface directly.
GPS-7A output can be adjusted continuously, main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely. Accelerating adding quantity could be adjusted continuously: according to spraying volume adjust step-less. Gaode Equipment self-lubrication system for the wet shotcrete machine to automatic lubrication for main sealing parts, thus could lengthen wearing parts working life greatly.
Technical Parameter
Technical Parameter Sheet:
Model | GPS-7A |
Output | 5-8m3/h |
Max. pressure | 8Mpa |
Distribution valve type | S valve |
Stroke x cylinder ID | 550×120mm |
Hopper volume | 210L |
Power | 22kw |
Rotation | 1450r/min |
Main oil pump | 30-50cc/Rev |
Hydraulic oil tank volume | 160L |
Air pressure | 0.7Mpa |
Air consumption | 6m3/min |
Acceptable max. aggregate size | 20mm |
Suitable concrete slump | 8-15cm |
Accelerate flow | 70-320L/min |
Dimension | 3500x1360x1530mm |
Weight | 1515kg |
Product Details

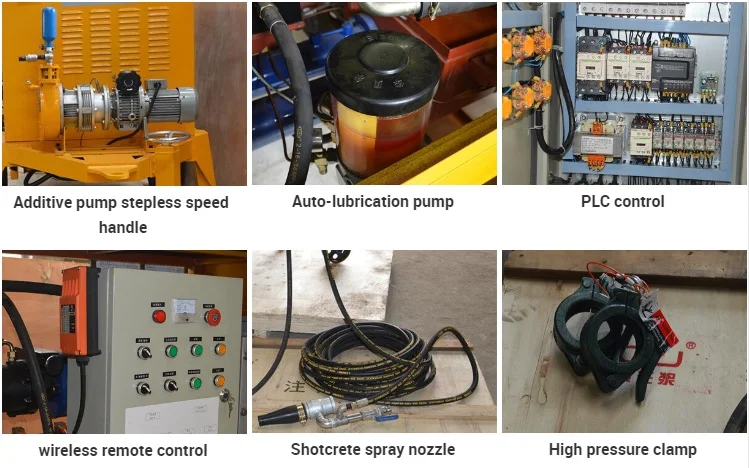

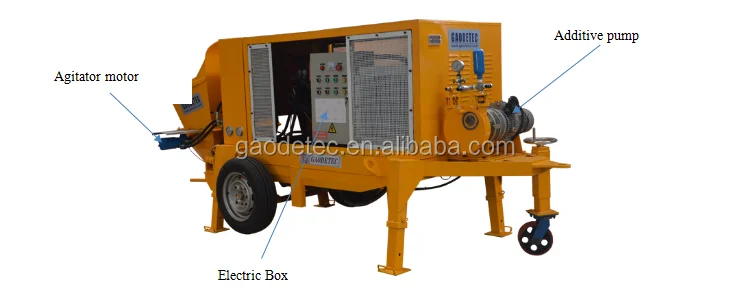

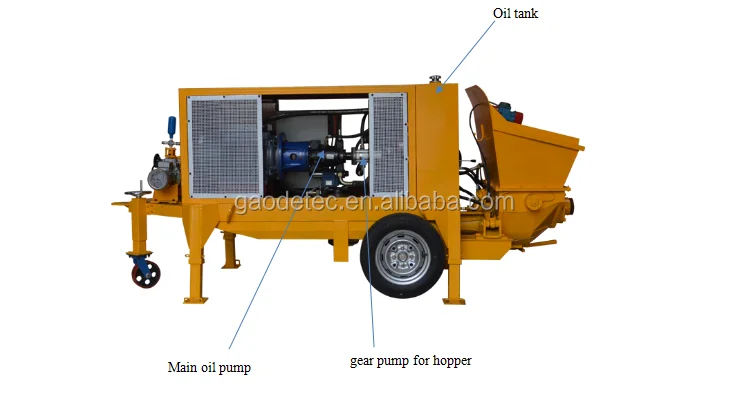

Product feature and product details photos:
Feature:
1. Use S valve reversing, good sealing performance, longer working life;
2. Equipped floating wearing ring on S valve, could self-compensating wearing;
3. High outlet pressure, could meet the demands of concrete pumping for high building;
4. Hydraulic system adopt air-cooler, easy operate, don’t need water;
5. With reverse function, reduce pipe plugged;
6. Main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely;
7. Equipped self-lubrication system to automatic lubrication for main sealing parts, lengthen wearing parts working life;
8. PLC control, With wireless remote control, easy to operate;
9. With guide pulley, easy to move, location;
10. Accelerating adding quantity could be adjusted continuously.
Application
Application:
GPS-7A wet mix shotcrete machine used for wet concrete spraying in mining, tunnel, culvert, metro, hydropower engineering, underground construction, slope protection etc. or for filling, grouting pump concrete mortar etc.
GPS-7A wet mix shotcrete machine used for wet concrete spraying in mining, tunnel, culvert, metro, hydropower engineering, underground construction, slope protection etc. or for filling, grouting pump concrete mortar etc.
Related products
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we introduce you to the relevant hot-sale shotcrete machine products.
GZ-3D Dry Shotcrete Machine(output 3m3/h and diesel driven):

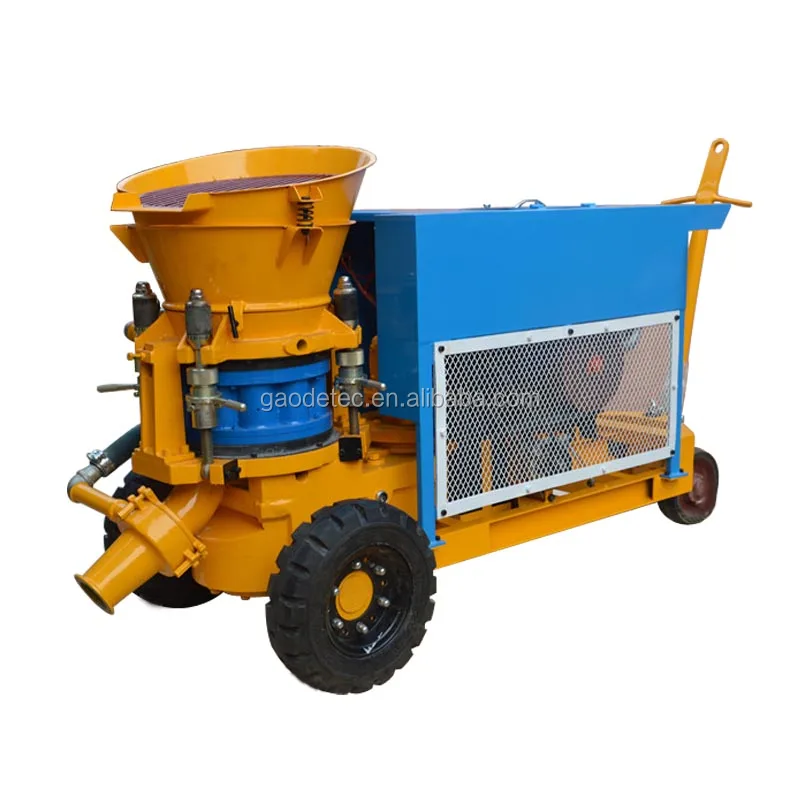

GZ-5A Dry Shotcrete Machine(output 5m3/h and air driven):
Company Information
Contact Us
In order to recommend you more suitable models shotcrete machine, please let us know clearly about your requirements:
What's the project you will use the machine do, for slope protect, or other?
Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, or other?
What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
About the engine, do you need air motor, electric motor or diesel engine, if you like the electric motor, voltage 3 phase, 380 V, 50 HZ is ok for you?
