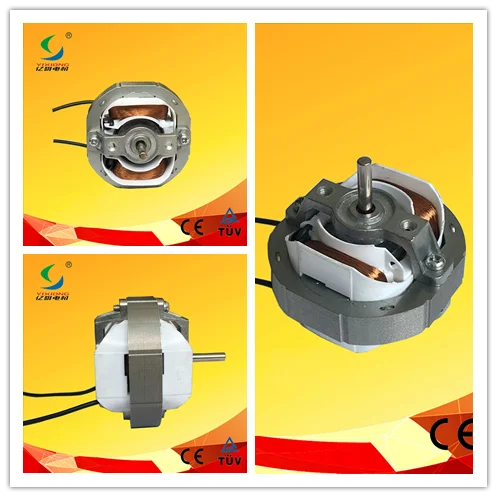

Shaded Pole Motor YJ58 12

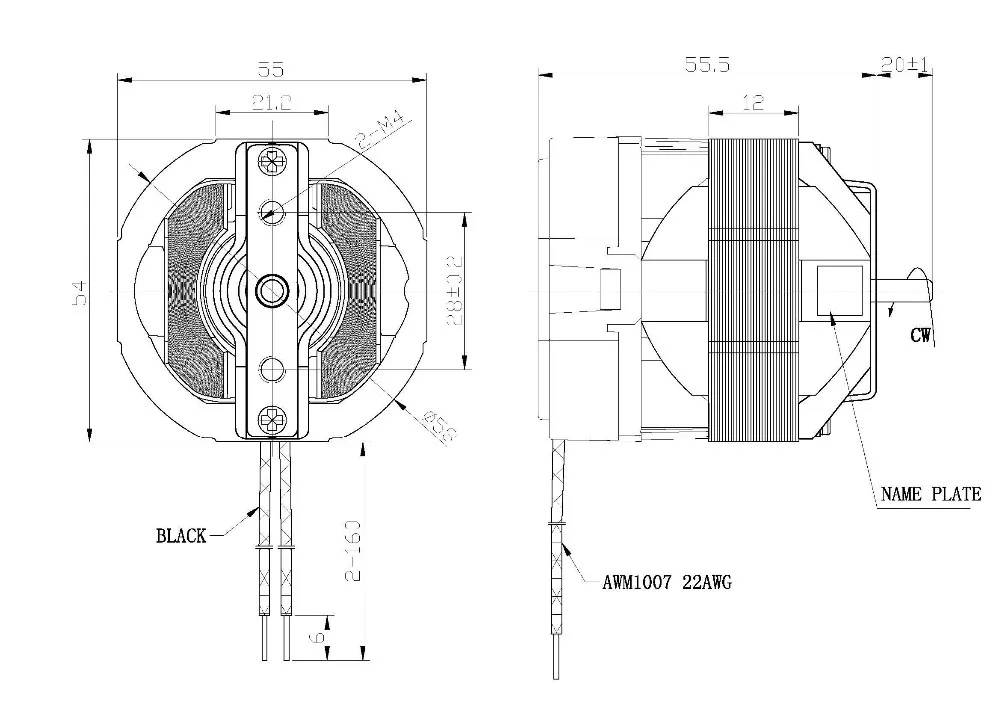

Outline Drawing

Shaded Pole Motor YJ58 12 Date

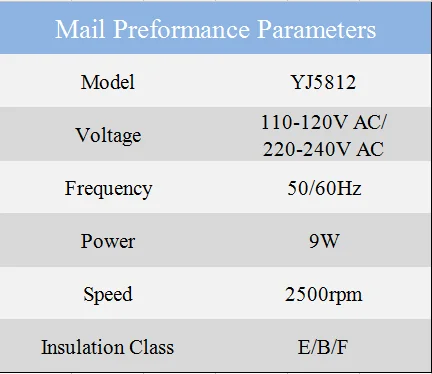

Technical Specification:
1. Stator size:  55*54, max dia 58mm

2.Shaft size: 4mm, Length can be done by your request

3.Thickness of stator:08, 10,12,16,20,25,30,35mm

4.Bearing: Sleeve bearing and Ball bearing are both available

5 Direction of rotation(shaft extension end to see):C.C.W or C.W.

6.Axial clearance: Max 1.0

7.Voltage resistance: 1500V/0.5mA/min

8.Insulation resistance: Cold ≥ 50MΩ, Hot≥ 20MΩ

9.Comply with Rohs Directive

10.Mainly products is approved by CE,TUV,UL

Motor Feature:

1.speed level: two speed level(high and low)

2.Voltage:  Bi-voltage

3.Applications:Heater, Heater fan, Cooler fan, Ventilation fan, Exhaust fan, desk fan,etc.
