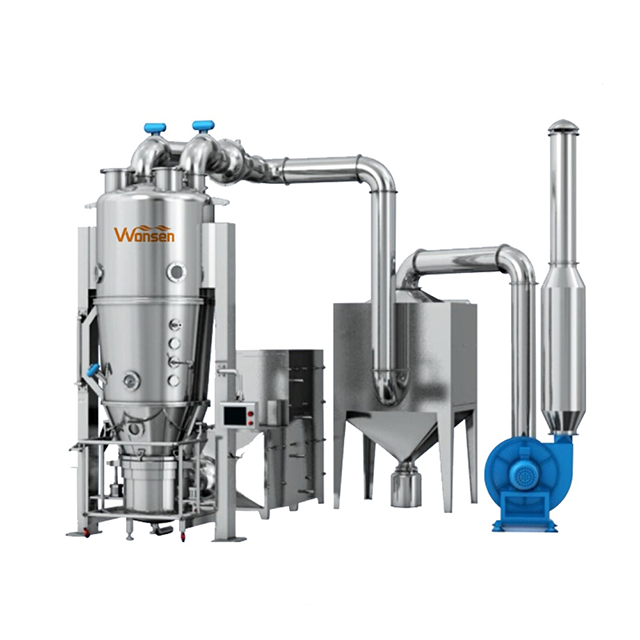

GFG series High Efficiency Fluid Bed Drying/Dryer machine/equipment
Product Description

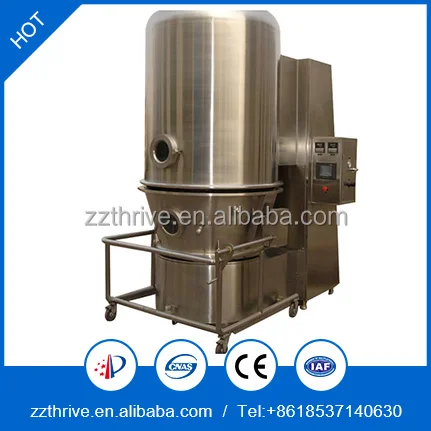

A.Introduction of GFG series High Efficiency Fluid Bed Drying/Dryer machine/equipment

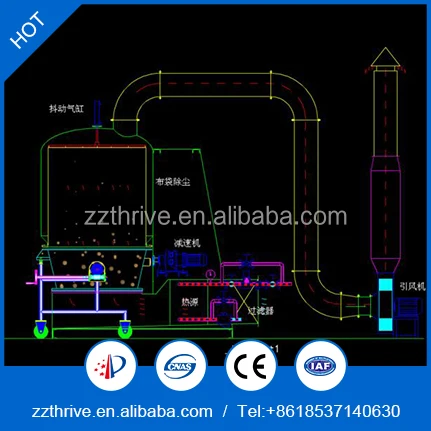

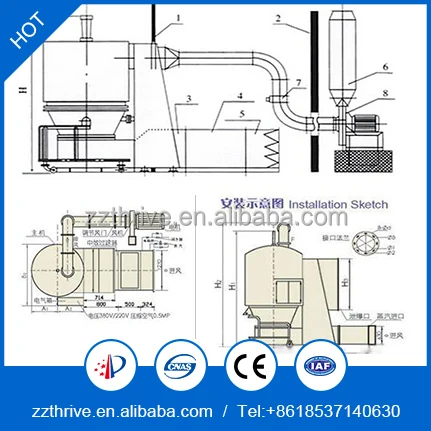

GFG type efficient fluid bed drying machine is made of air filter,heater,host,materia car,cleaning room,connecting duct,fan and other components.Due to different nature of dry materials,when supporting dust removal equipment,can be considered as needed.
B.Features of GFG series High Efficiency Fluid Bed Drying/Dryer machine/equipment
1.Safe operation, easy maintenance.
2.The fluid bed is rounded to avoid dead ends.
3.Adopt the dump discharge, easy ,quickly and clean.

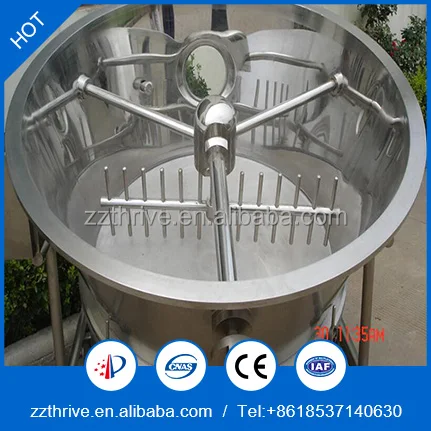

4.Set the mixing in the fluid bed to avoid wet material into a group.
5.Sealed negative pressure operation according to GMP specification design.
C.Specification of GFG series High Efficiency Fluid Bed Drying/Dryer machine/equipment
Model
GFG100
GFG150
GFG200
Induced draft fan Power
15kw
18.5kw
22kw
Reducer power
0.55kw
0.55kw
0.75kw
Electric heating system
54kw
63kw
72kw
Capacity
100kg
150kg
200kg
Material
SS304
SS304
SS304
Mixing speed
11r/min
11r/min
11r/min
Dimension(mm)
1500*2800*2700
1600*3000*2900
1700*3200*3100
Packaging & Shipping
Package :Our machines are putted in strong wooden cases.
Delivery time : within 3-30 working days after receiving the down payment.
