Hot Explosion Proof Industrial Dust Collector for Lithium Battery Welding Mold Cutting
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (60689790445):
Product Overview
Description

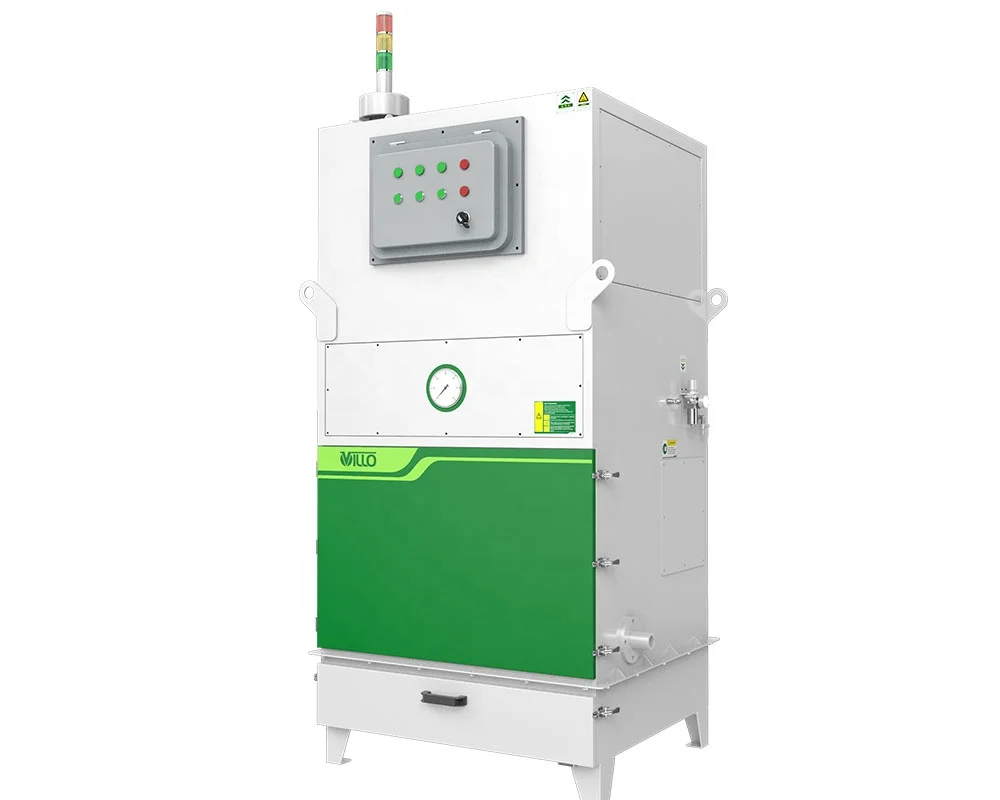

VJFB Series Explosion Proof Industrial Dust Collector
Product description
VJFB series industrial dust collector has the characteristics of explosion-proof, large air volume, pulse jet cleaning, stable and reliable structure.
Applications
Specialized for collecting wide range of inflammable and explosive dust. It is suitable for powder metallurgy, aluminum powder grinding, grain processing, food production, high polymer plastics industry, synthetic dyes and coatings, pesticide and pharmaceutical manufacturing, plant fiber textile technology and so on.
Features
* Conductive material coated on the filter cartridge.
* Safety explosion venting membrane.
* Safety explosion venting membrane.
* Explosion proof motor and electrical control cabinet guarantees the safe running of the machine.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* Vertical filter cartridge installation mechanism.
Technology Parameters
Model | VJFB-1.5 | VJFB-2.2 | VJFB-3.0 | VJFB-4.0 | VJFB-5.5 | VJFB-7.5 | VJFB-11 | VJFB-15 | ||||||||
Voltage (V/Hz) | 380 / 50 | |||||||||||||||
Power (kW) / (HP) | 1.5 / 2.0 | 2.2 / 3.0 | 3.0/4.0 | 4.0 / 5.5 | 5.5 / 7.5 | 7.5 / 10 | 11 / 15 | 15 / 20 | ||||||||
Starting current (A) | 25 | 40 | 50 | 56 | 65 | 95 | 120 | 150 | ||||||||
Rated current (A) | 3.2 | 4.4 | 6 | 7.7 | 10.5 | 14.1 | 20.5 | 28 | ||||||||
Max air flow (m³/h) / (CFM) | 1500/883 | 2200 / 1294 | 3000 / 1765 | 4000 / 2353 | 5300/3118 | 7100 / 4176 | 9000 / 5294 | 11000/6470 | ||||||||
Filter area (m²) / (sq.ft) | 11 / 118.5 | 22 / 237 | 22 / 237 | 44 / 474 | 44 / 474 | 66 / 710 | 99 / 1066 | 99 / 1066 | ||||||||
Filter efficiency | 99% | |||||||||||||||
Dust container capacity (L) / (gal) | 30 / 7.9 | 50 / 13.2 | 60 /15.9(2pcs) | 80 / 21.2 (2pcs) | 100 / 26.4 (2pcs) | 100 / 26.4 (2pcs) | ||||||||||
Noise dB (A) | 73±2 | 75±2 | 76±2 | 76±2 | 78±2 | 79±2 | 80±2 | 81±2 | ||||||||
Anti-explosive level | ExdIIBT4 | |||||||||||||||
Filter cleaning method | Pulse jet | |||||||||||||||
Dia. air inlet (mm) / (in) | Ø150 /6 | Ø200 / 8 | Ø250 / 10 | Ø300 / 12 | Ø350 / 14 | Ø400 / 16 | ||||||||||
Dimension [L*W*H] (mm) / (in) | 795*680*1730 / 31.3*26.8*68.1 | 995*775*1860 / 39.2*30.5*73.3 | 1060*975*1950 / 41.7*38.4*76.8 | 1060*975*2050 / 41.7*38.4*80.7 | 1450*1000*2050 /57.1*39.4*80.7 | 1450*1350*2180 / 57.1*53.1*85.9 | ||||||||||
Weight (kg) / (lb) | 200 / 441 | 280 / 618 | 300 / 662 | 450 / 992 | 470 / 1036 | 620 / 1367 | 830 / 1830 | 850 / 1874 | ||||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||||||||
Product Configuration
Conductive material coated filter cartridge
Explosion Proof Motor
Air Pulse Jet Cleaning Device
Optional Configuration
Siemens Inverter
Flameless quench device
Soft Starter

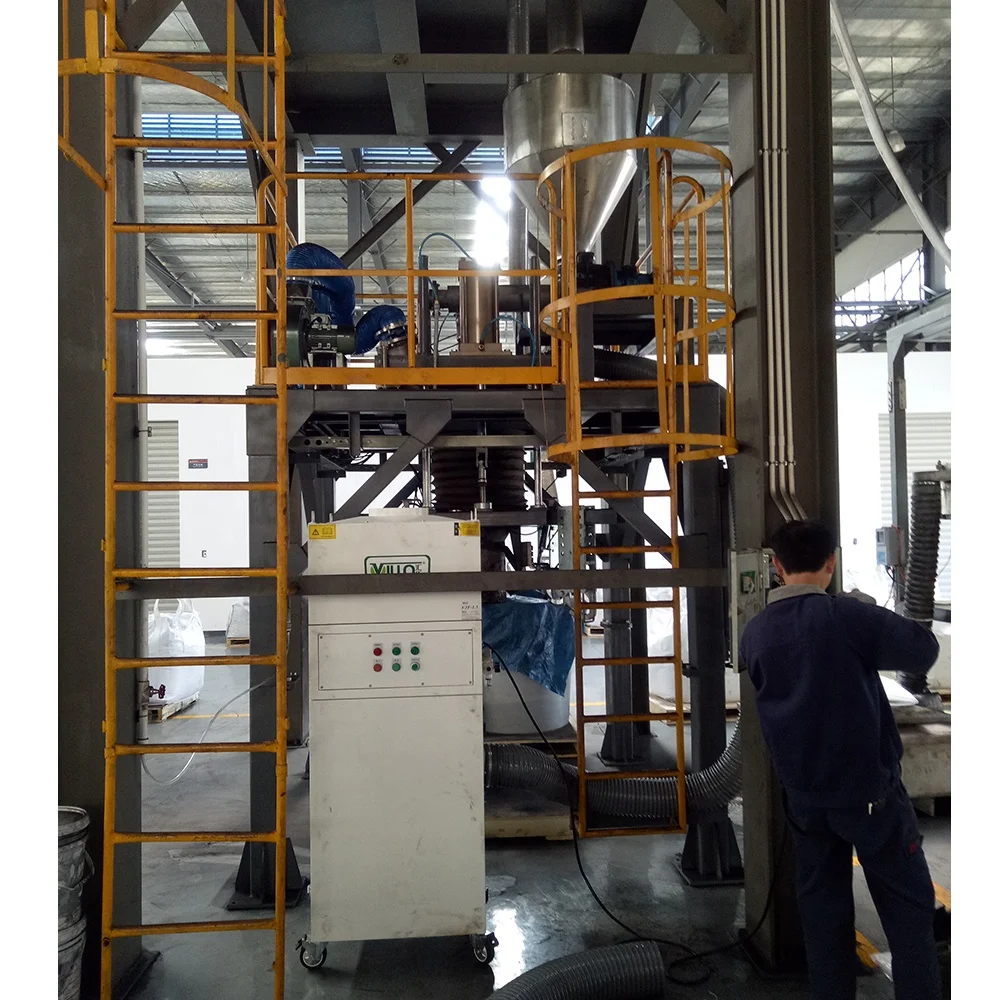

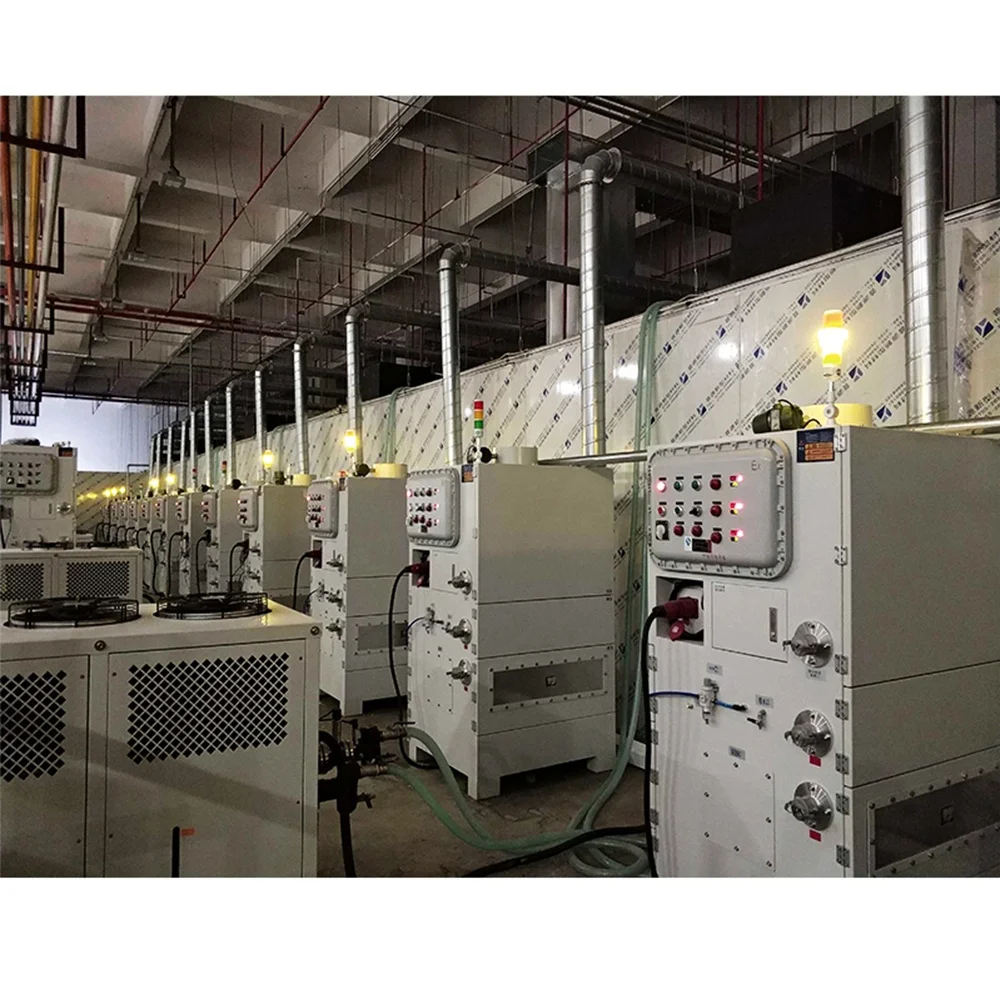

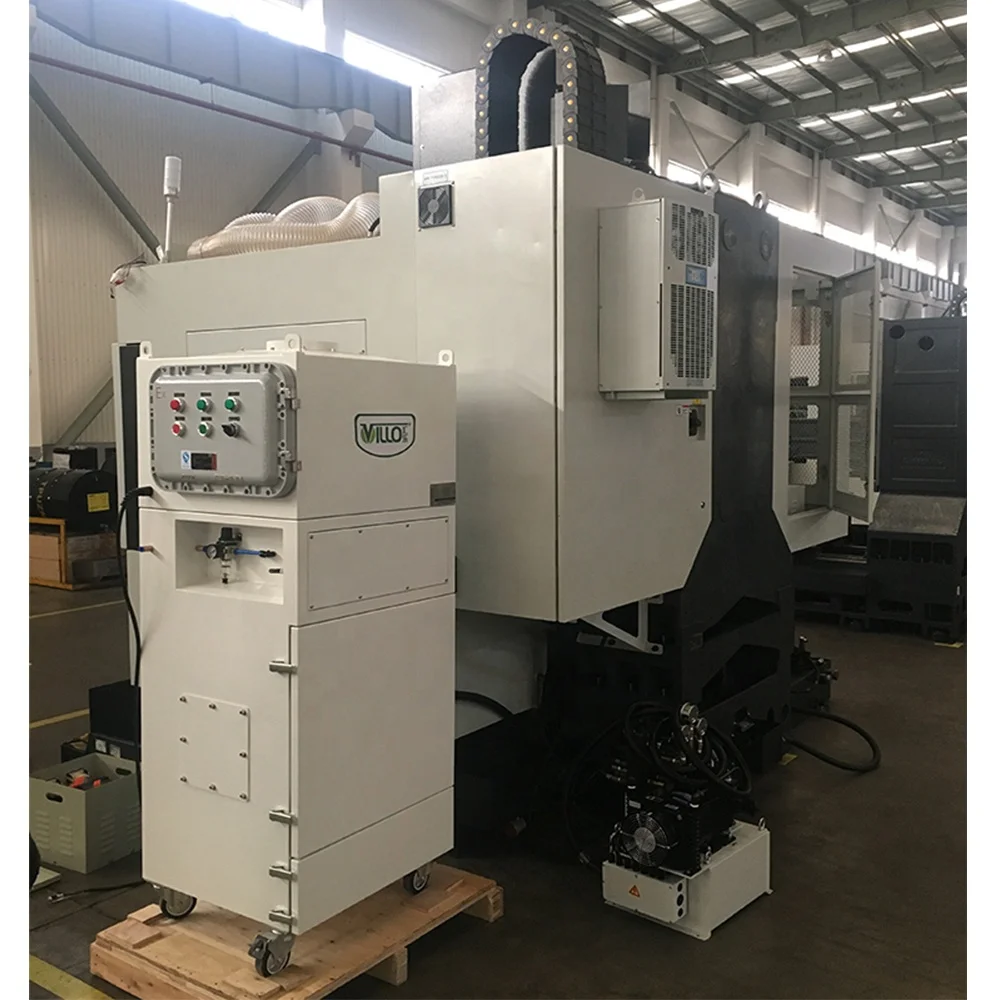

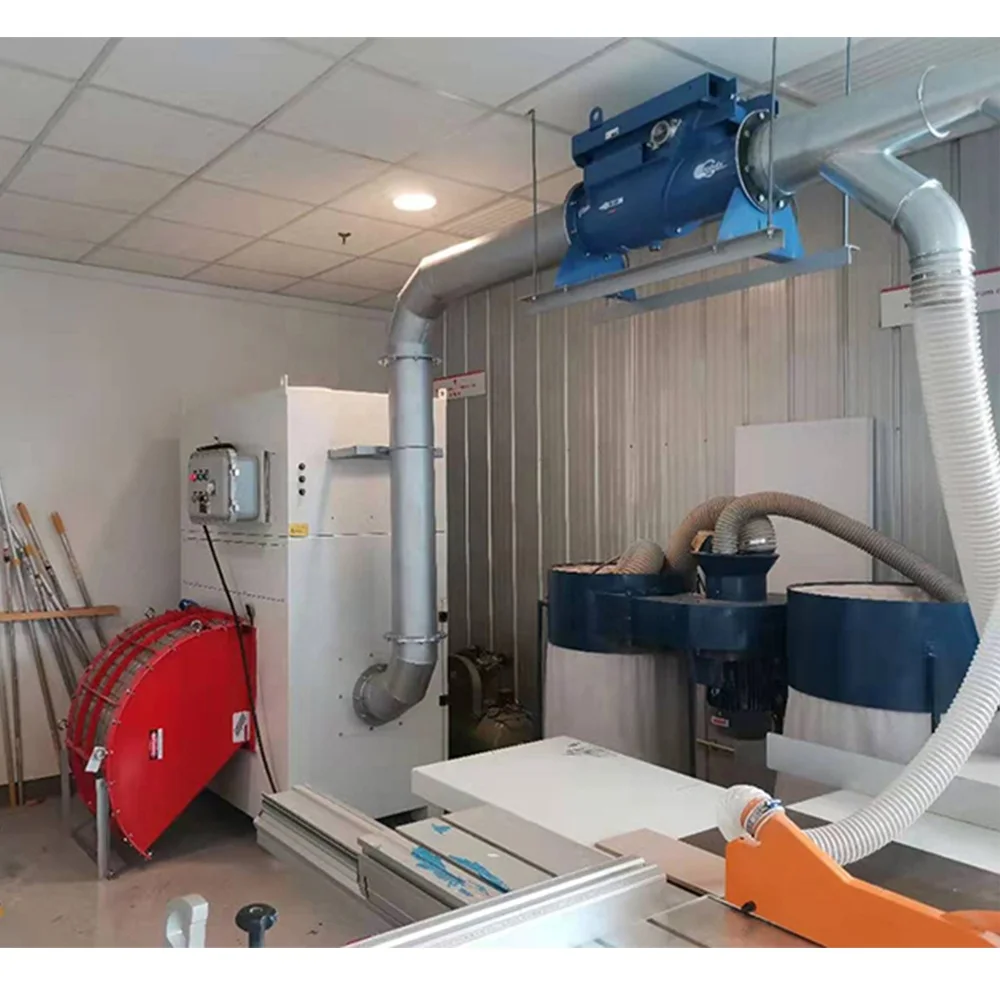

Successful Project
Related Products
VJ-H Series Compact & Economic Dust Collector
VJFG Series High Negative Pressure Dust Collector
VJFX Series Auto Discharge Dust Collector

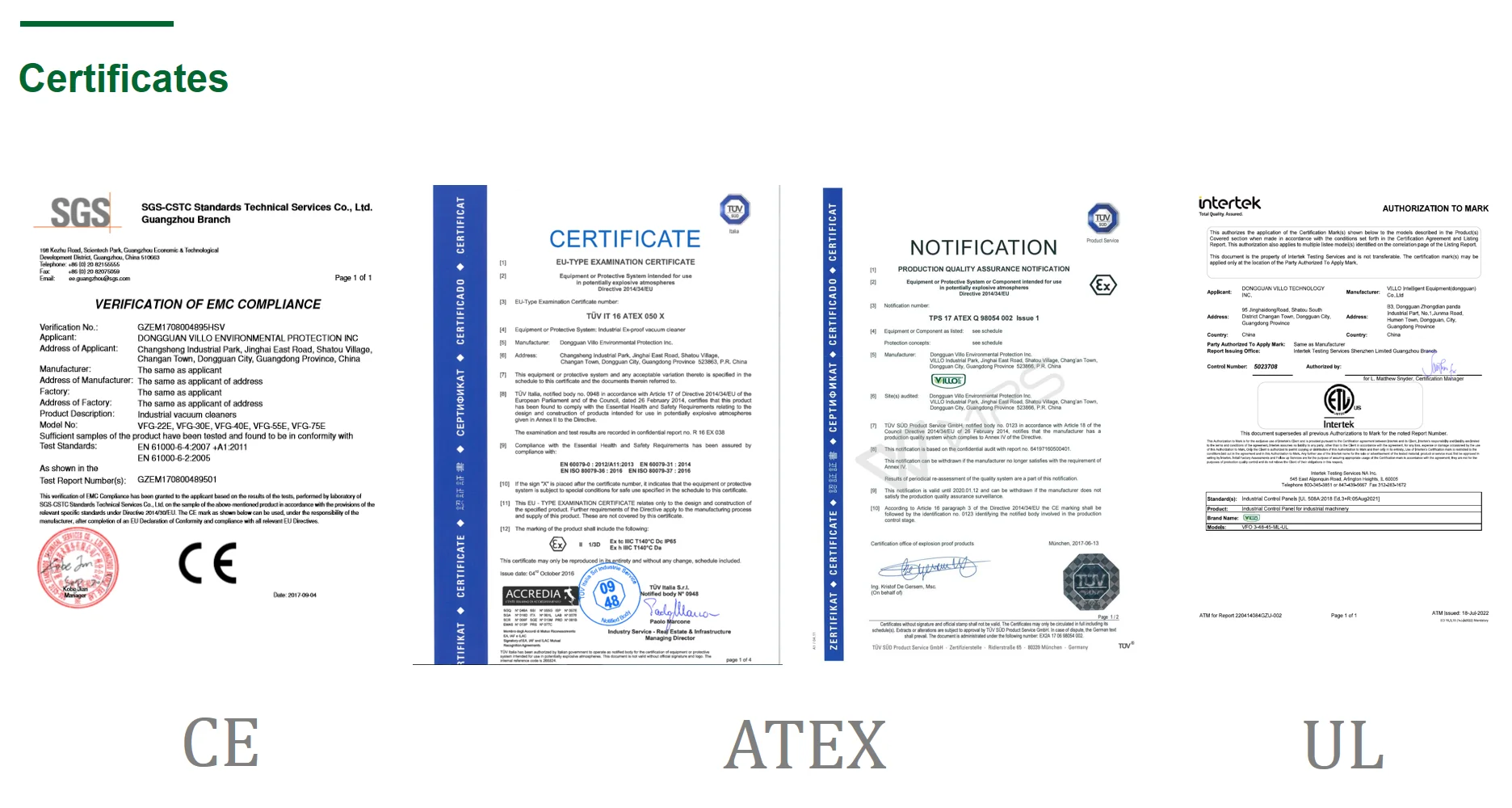

Certificates & Our Company
