Mini hydropower water turbine pelton wheel
- Category: >>>
- Supplier: Forward Hydro Power Equipment Co. Ltd.
Share on (60689814618):
Product Overview
Description
Main Products
Product Introduction
This is a Pelton Turbine, which suitable for high head and water flow rate changes consecutively hydro power station.
Pelton Turbine power station has the advantge of compact structure and low investment. Its efficiecny alters smoothly, can be operated in a wide range of water flow, the efficiency is very stable even operated in load of 15-20%.
the user can install is all by self to solve the problem of household lighting. It is very compacy, esay to install to maintain.
The unit capacity of our pelton turbine ranging from 0.3KW to 5MW, with fly wheel design, its max efficiency could reach 97%. This turbine can be off-grid and on-grid running, its control system is full automatic(reach unmanned level).

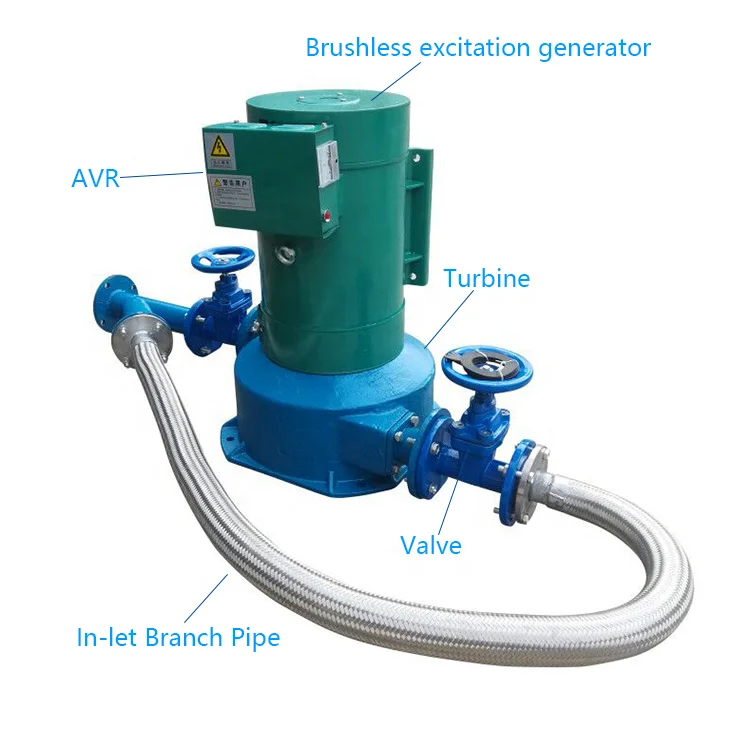

3-20KW pelton Turbine(Brush-less excitation motor)

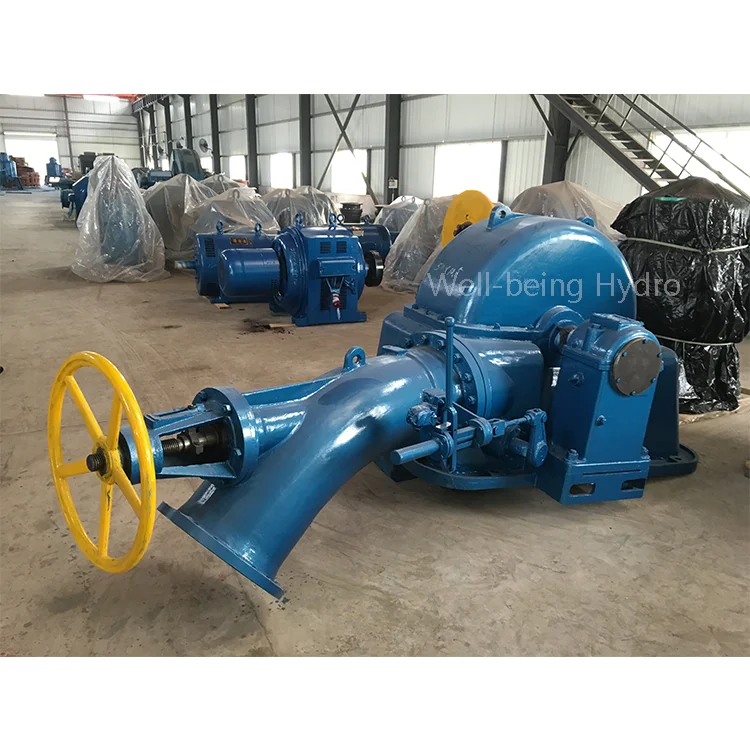

50KW-300KW Horizontal pelton Turbine (Complete set: Generator+Turbine+Draft tube+Auto Valve+Control system)
300KW-5MW Horizontal pelton Turbine (Complete set: Generator+Turbine+Draft tube+Auto Valve+Control system)
Full-Automaitc Control System(On-grid and off-grid running):
Parameters (below parameter only reference, hydro turbine is tailor-made product, please contact us for precise technic parameter)
Model Number |
Power (kW) |
Water head (m) |
Flow Rate (m3/s) |
Speed (r/min) | Pressure Pipe Diameter (mm) |
XJ13-L-18/1x5 | 5KW | 20 | 0.015-0.05 | 1500 | 150 |
XJ13-L-18/1x5 | 5KW | 30 | 0.015-0.025 | 1500 | 150 |
XJ13-L-20/1*5 | 10KW | 30-40 | 0.0482-0.05 | 1000 | 200mm |
XJ13-L-20/1*5 | 15KW | 40 | 0.05 | 1000 | 200mm |
XJ13-W-25/1*6 | 20KW | 40-50 | 0.089 | 1000 | 250mm |
XJ13-W-25/1*7 | 30KW | 45 | 0.101 | 1000 | 250mm |
XJ13-W-25/1*7 | 40KW | 55 | 0.12 | 1000 | 250-300mm |
XJ13-W-32/1*7 | 50KW | 60 | 0.127 | 1000 | 250-300mm |
XJ13-W-25/2* | 50KW | 40-50 | 0.18 | 1000 | 350mm |
XJ13-W-32/1*7 | 75KW | 65 | 0.132 | 1000 | 300mm |
XJ13-W-25/2* | 75KW | 50 | 0.2 | 1000 | 300mm |
XJ02-W-32/1*8 | 100kw | 70-80 | 0.19 | 1000 | 300mm |
XJ02-W-25/2*7 | 100kw | 50-60 | 0.32 | 750 | 400mm |
Product Advantage
Company Information
Certifications
Customer Story
FAQ
1. You are a trading company or a manufacture?
We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Ganzhou City and Pingnan City, pay a visit to our you will know more about us
2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity
Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).
3. What information shoul I provide for getting the quotation?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
4. When my turbine shut down, who can help me solve the problem?
You are free to call me day or night at my cellphone number. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
5. How can I trust you?
Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.
Packaging&shipping
Accepted Delivery Terms | FOB/CIF/EXW/CPT/CFR ect. |
Accepted Payment Currency | USD,RMB, Or other currency |
Accepted Payment Terms | T/T,L/C/Paypal/Money Gram etc. |
Nearest Port | Guangzhou Port |
Lead Time | Accroding to project scale, usually from 7-60 days |
Packing Details | Fumigation wooden boxes/ cartons with foam inside |
