Cheap price lpg liquid large power pump for low NPSH

Product Overview

Description

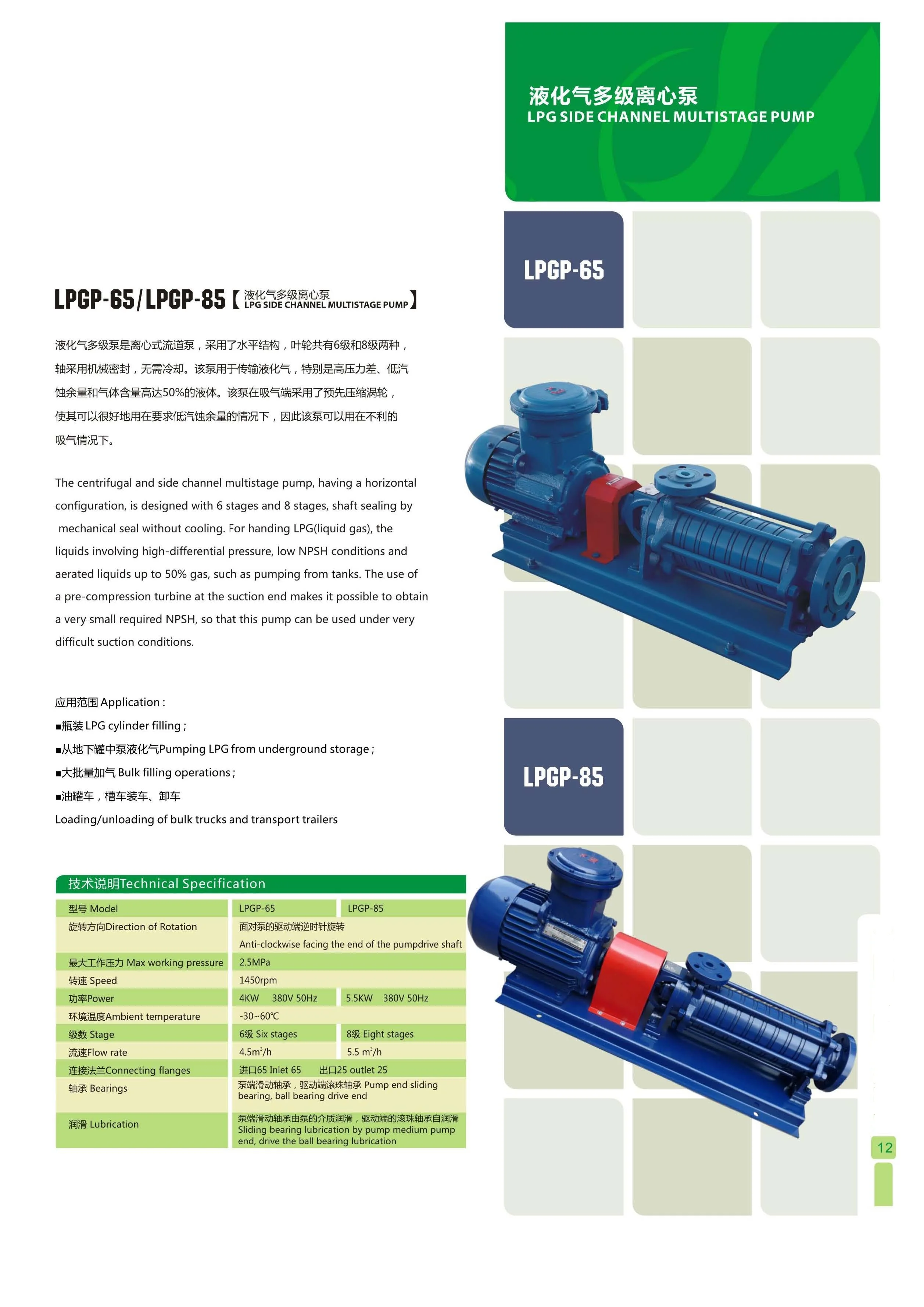

1. Products description

The centrifugal and side channel multistage pump, having a horizontal configuration, designed with 6 stages and 8 stages,shaft  sealing by mechanical seal without cooling.For handing LPG (liquid gas).the liquids involving high differential pressure,low NPSH conditions and aerated liquids up to 50% gas,such as pumping from tanks.The use of a pre-compression turbine at the suction end   makes it possible to obtion a very small required NPSH,so that this pressure can be used under very difficult suction conditions.

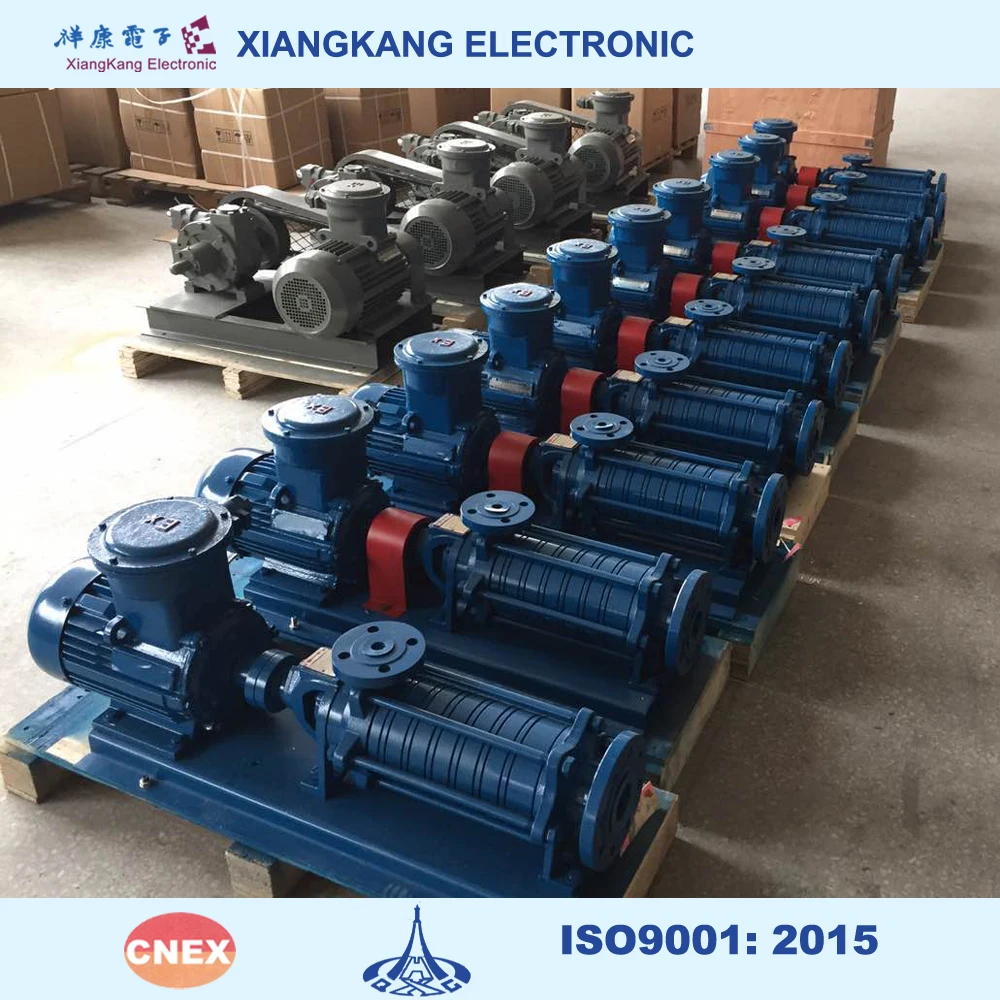

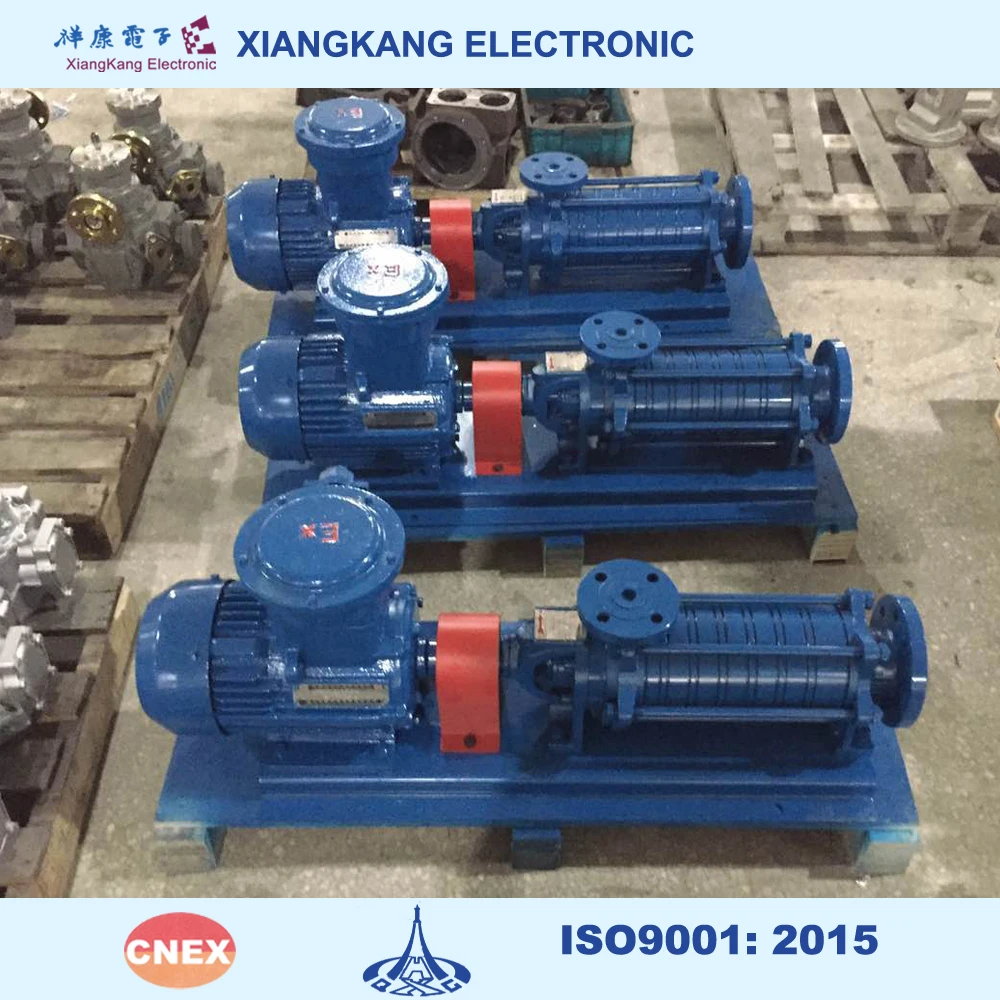

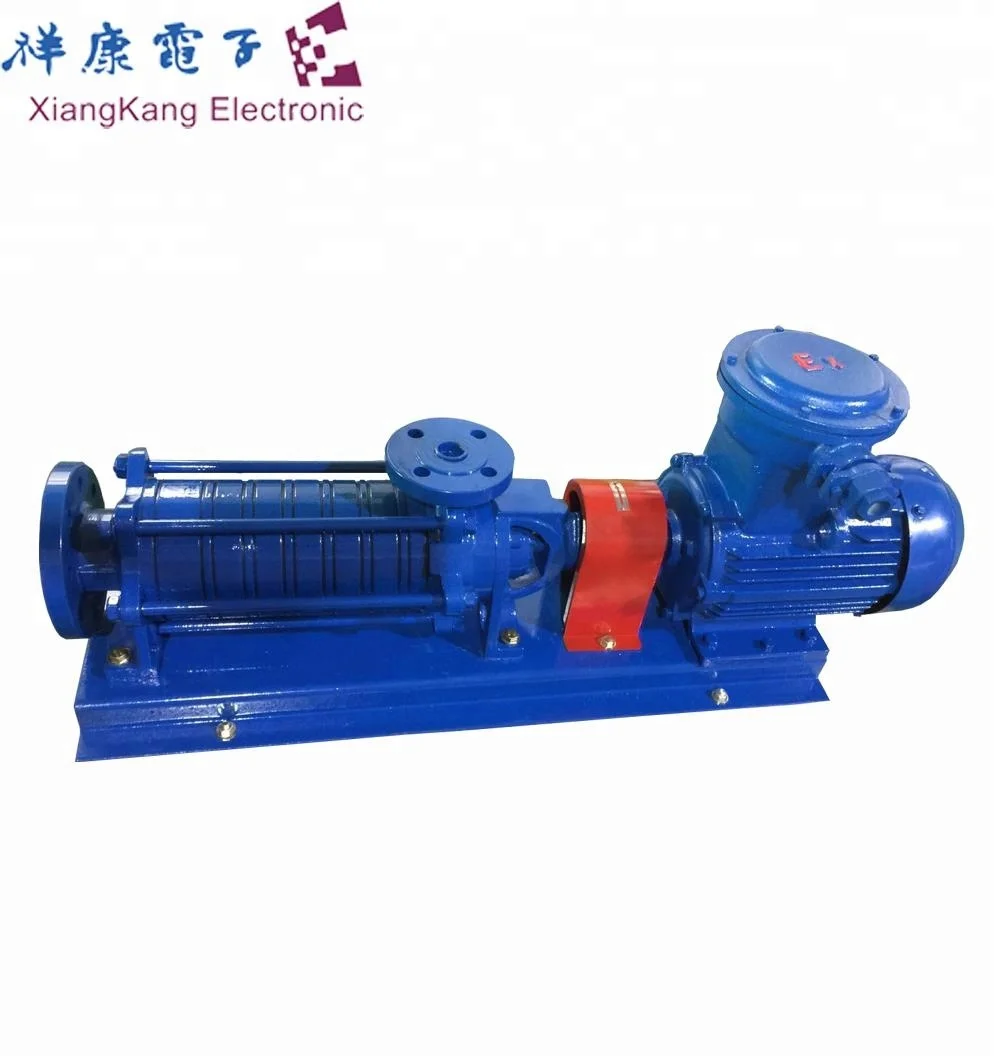

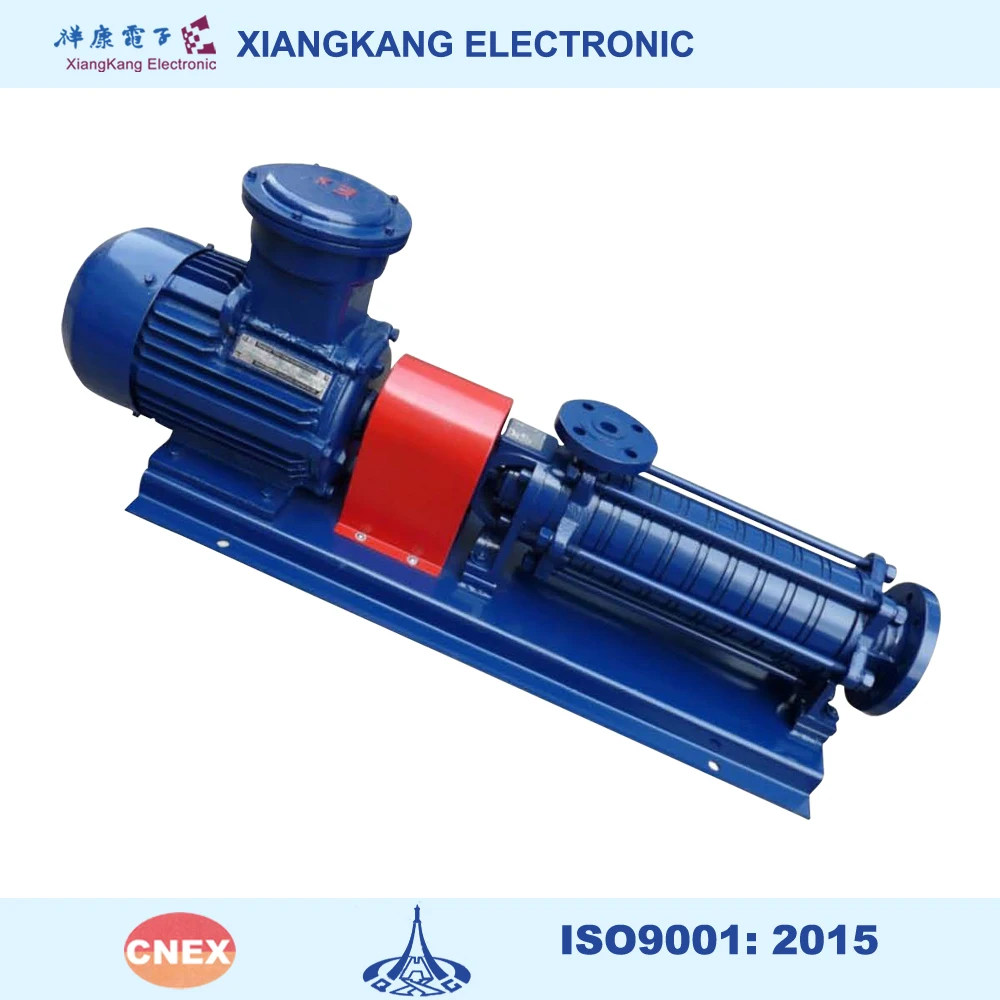

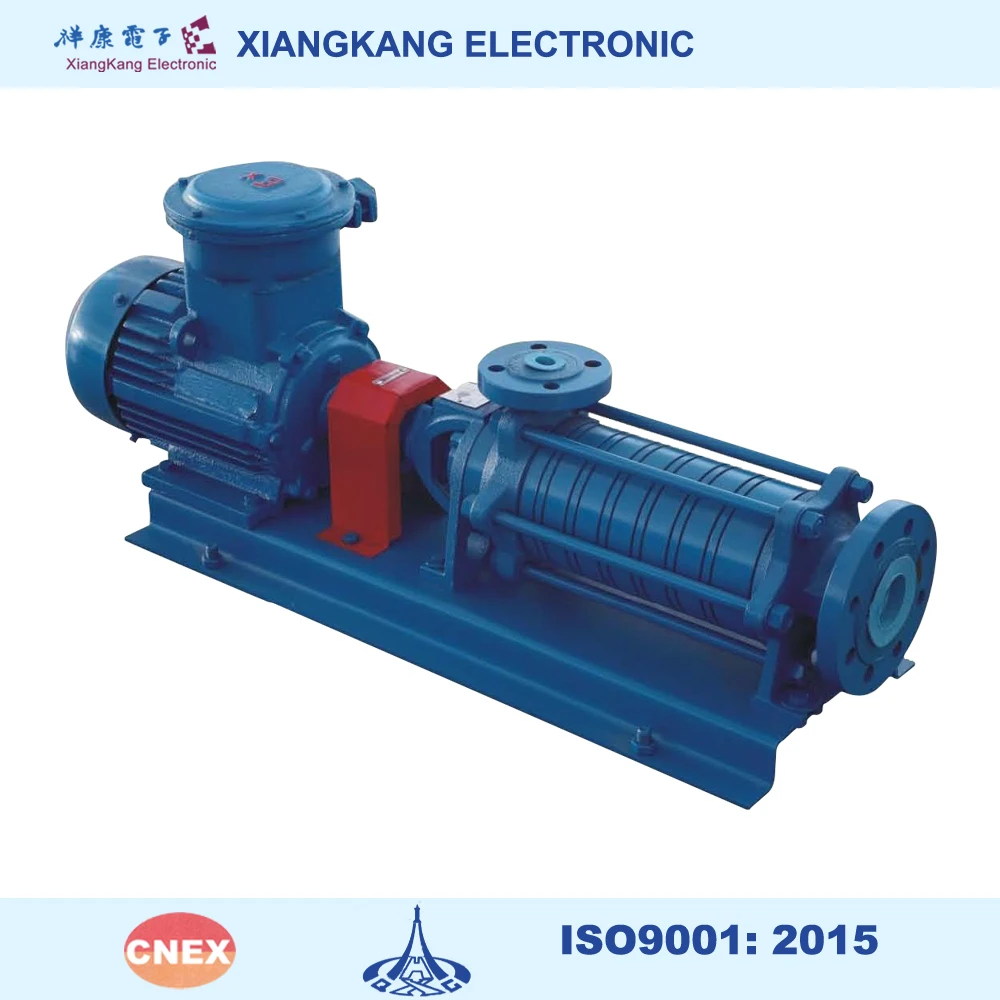

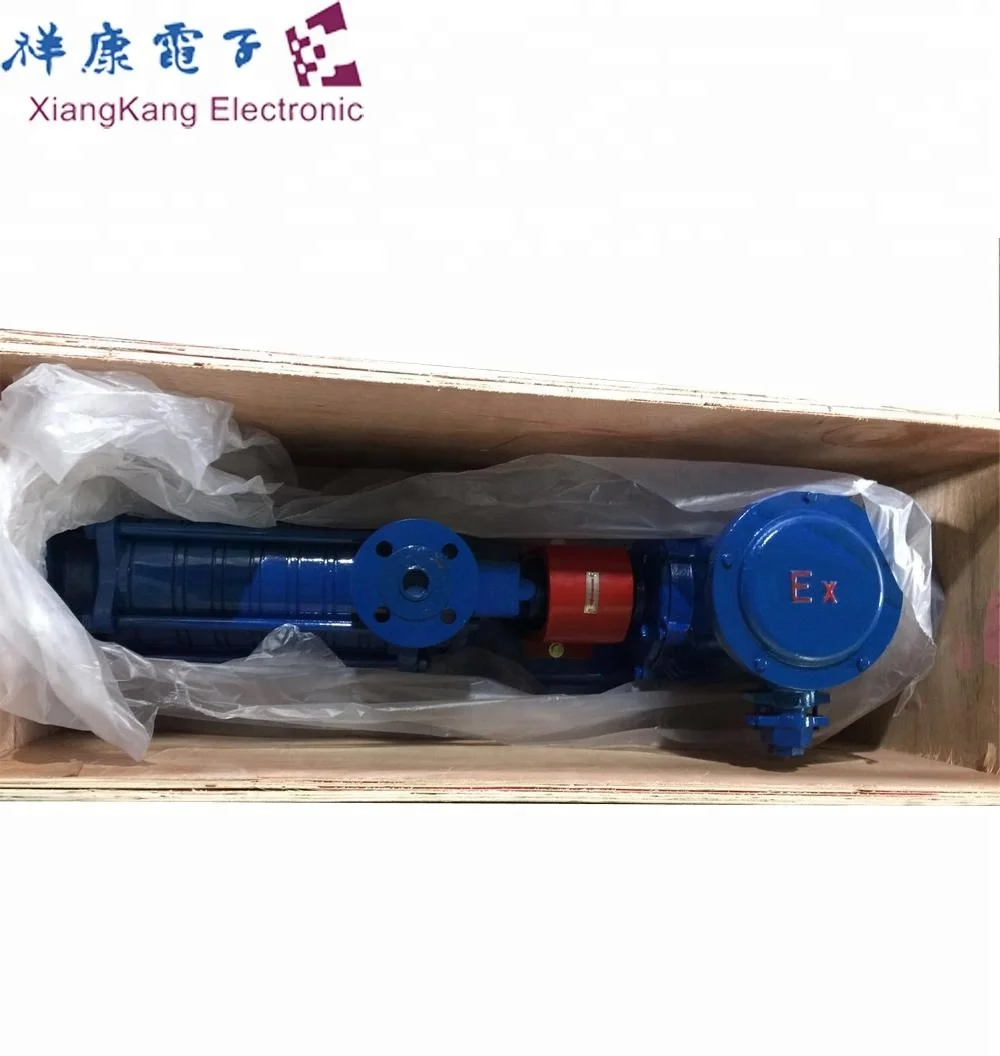

2. Products Pictures



3. Products Applications

1) LPG cylinder filling

2) Pumping LPG from underground storage.

3) Bulk filling operations

4) Loading/unloading of bulk trucks and transport trailers

4. Products Specifications

Model	XKDZ-10
Direction of Rotation	Anti-clockwise facing the end of the pumpdrive shaft
Max working pressure	2.5Mpa
Speed	1450rpm
Power	4kw, 380 50hz
Ambient temperature	-30℃  to 60 ℃
Stage	6 stages  ( 8 stages for TXR-LPGP85)
Flow Rate	4.5³/h     (5.5³/h for TXR-LPGP85)
Connection flanges	Inlet 65 , outlet 25
Bearings	Pump and sliding bearing,ball bearing drive end
Lubrication	Silding bearing lubrication by pump medium pump end, drive the ball bearing lubrication.

5. Company Introduction

Xiangkang is the  first leader solution supplier for Chinese Bureau of Quality and Technical         Supervision about LPG cylinder tracking and management, interlocking automatic filling scale

and government supervision network platform!

Expect for the lpg filling machine , filling system and barcode tracking management system, we can also provide you the lpg pump and lpg compressor.
