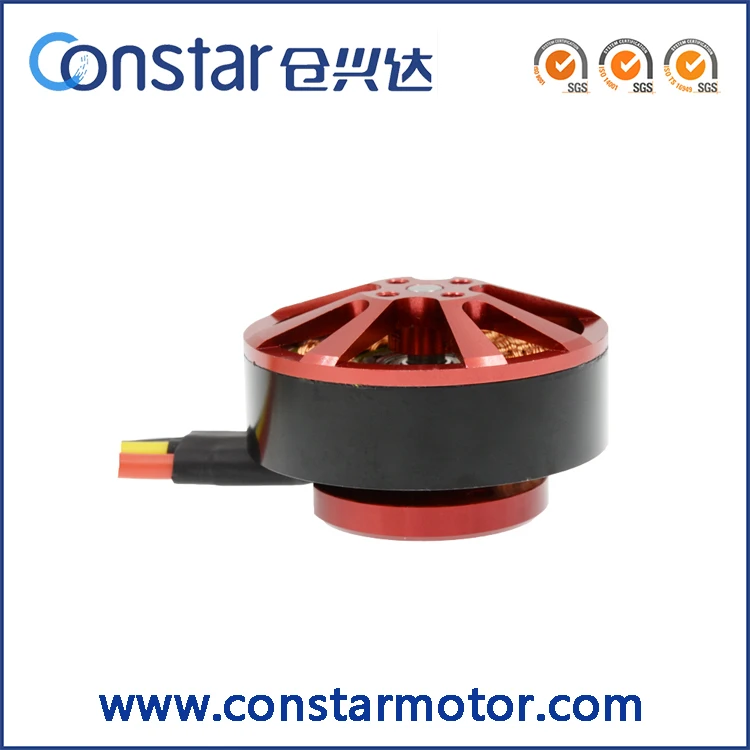

48*30MM 10000rpm 24v DC Brushless Motor Electric Thrust Motor
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (60689843849):
Product Overview
Description
48*30MM 10000rpm 24v DC Brushless Motor Electric Thrust Motor
| CONSTAR MICROMOTOR | ||
 |  |  |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
 |  |  |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:UAV,industrial automation,etc
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| 1 | Voltage | V | 22.2 | 18.5 | 24.0 |
| 2 | Terminal resistance | Ω | 0.075 | 0.15 | 0.09 |
| 3 | No-load speed | rpm | 10600 | 6800 | 10000 |
| 4 | No-load current | A | 1 | 0.8 | 1 |
| 5 | Stall torque | mNm | -- | -- | -- |
| 6 | Stall current | A | -- | -- | -- |
| 7 | Nominal torque | mNm | 138 | 237 | 364 |
| 8 | Nominal speed | rpm | 9800 | 6000 | 9200 |
| 9 | Nominal current | A | 8 | 10 | 17 |
| 10 | Max. output power | W | 560 | 560 | 1580 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

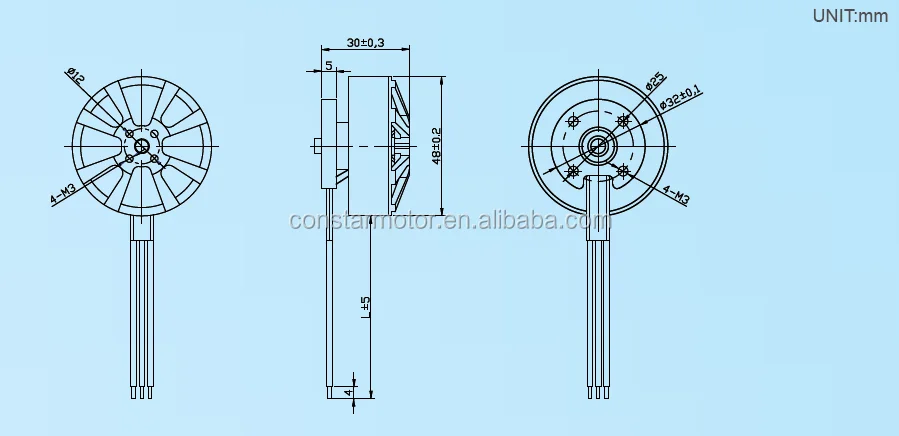

5,Outline Drawing:

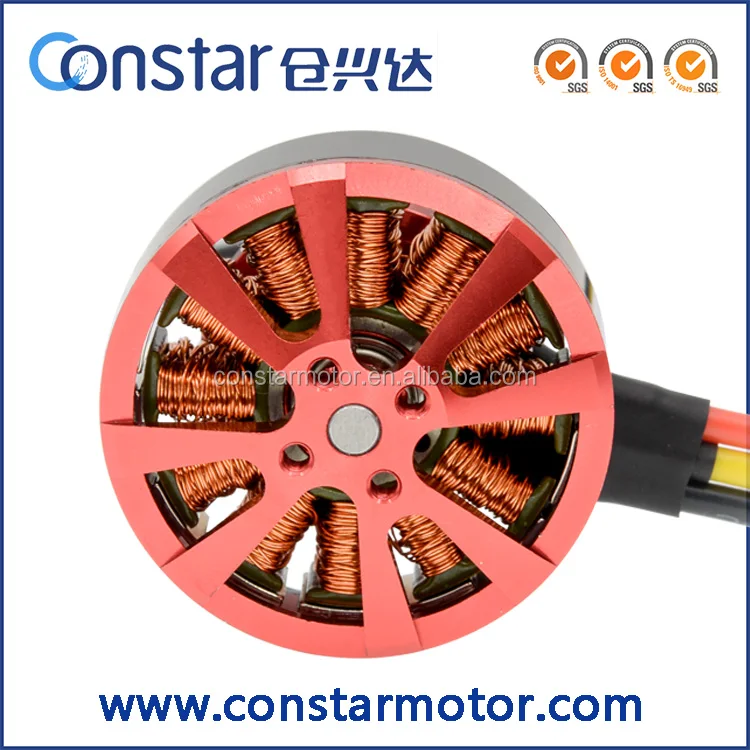

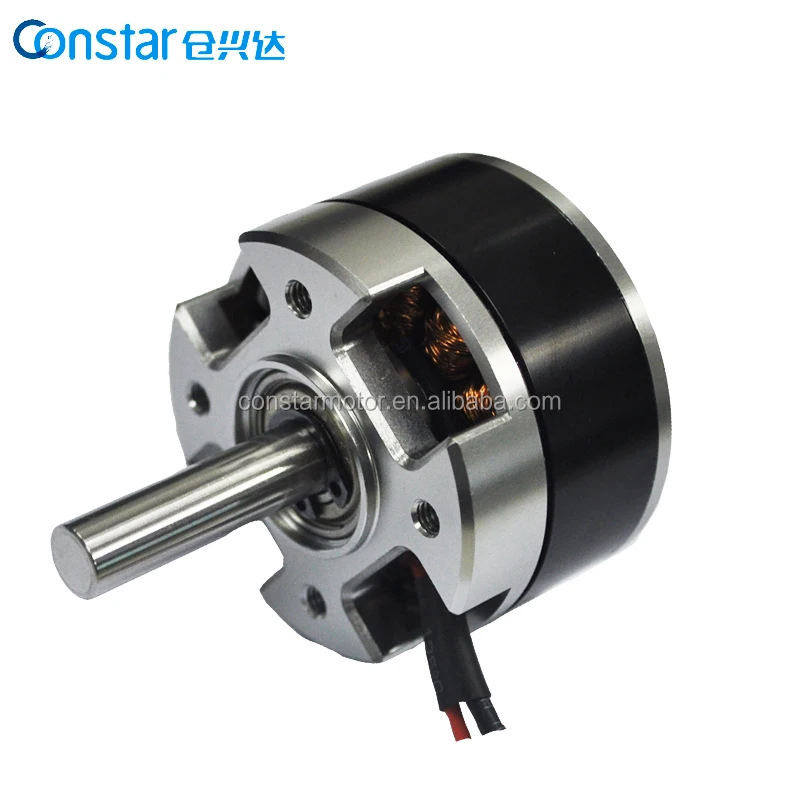

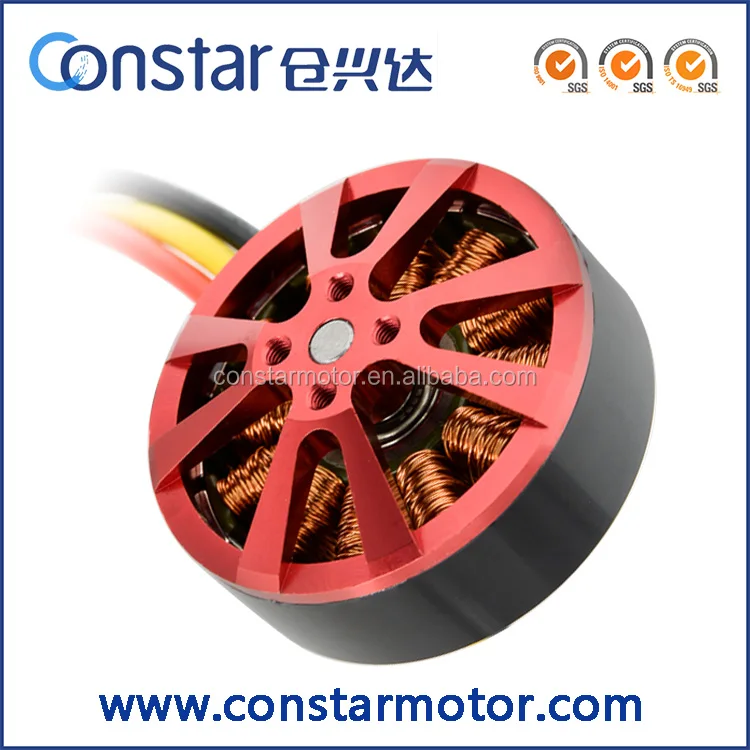

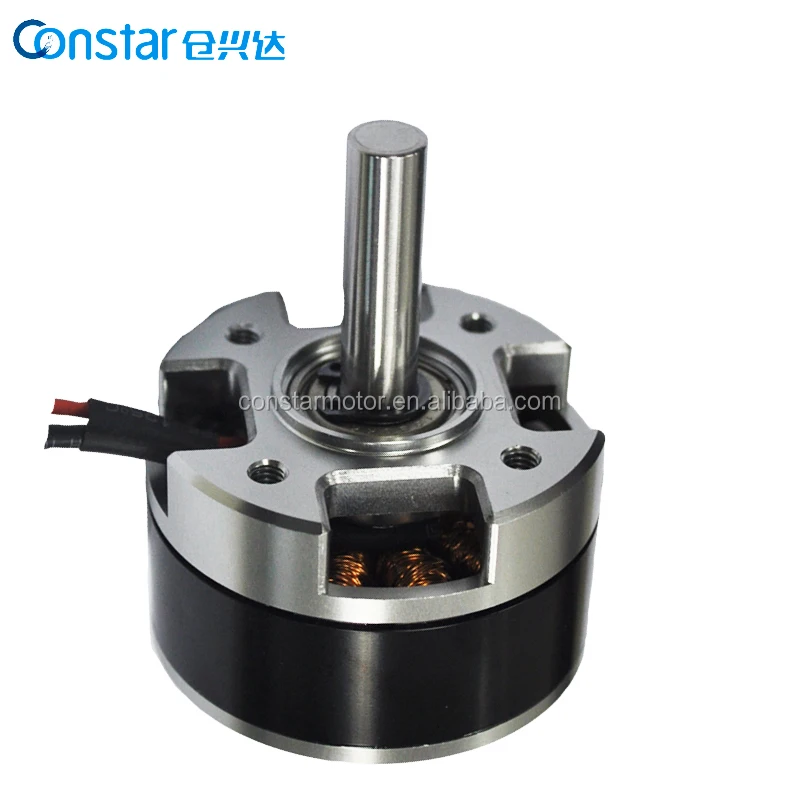

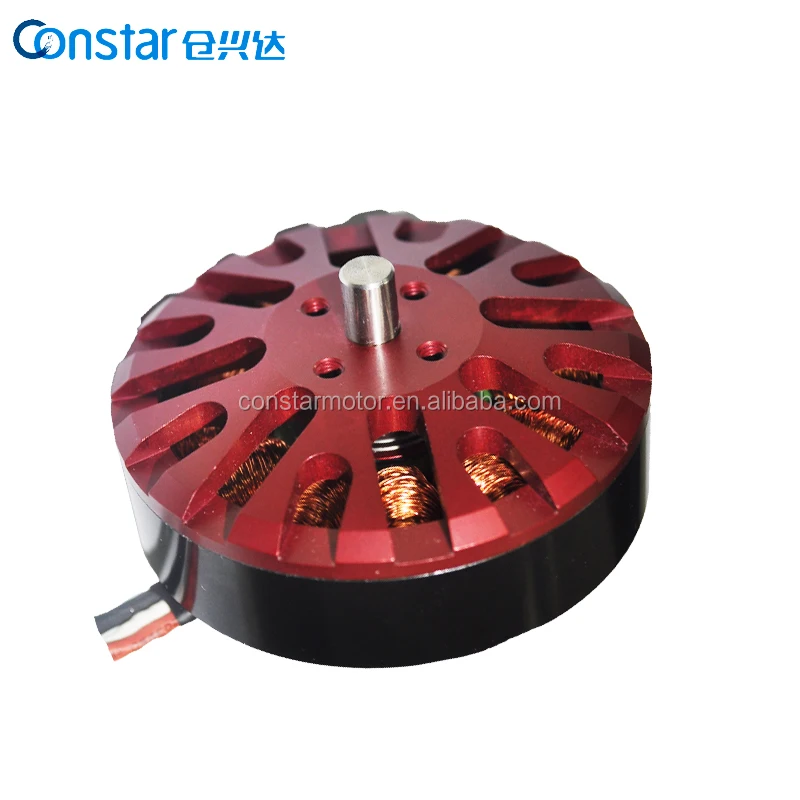

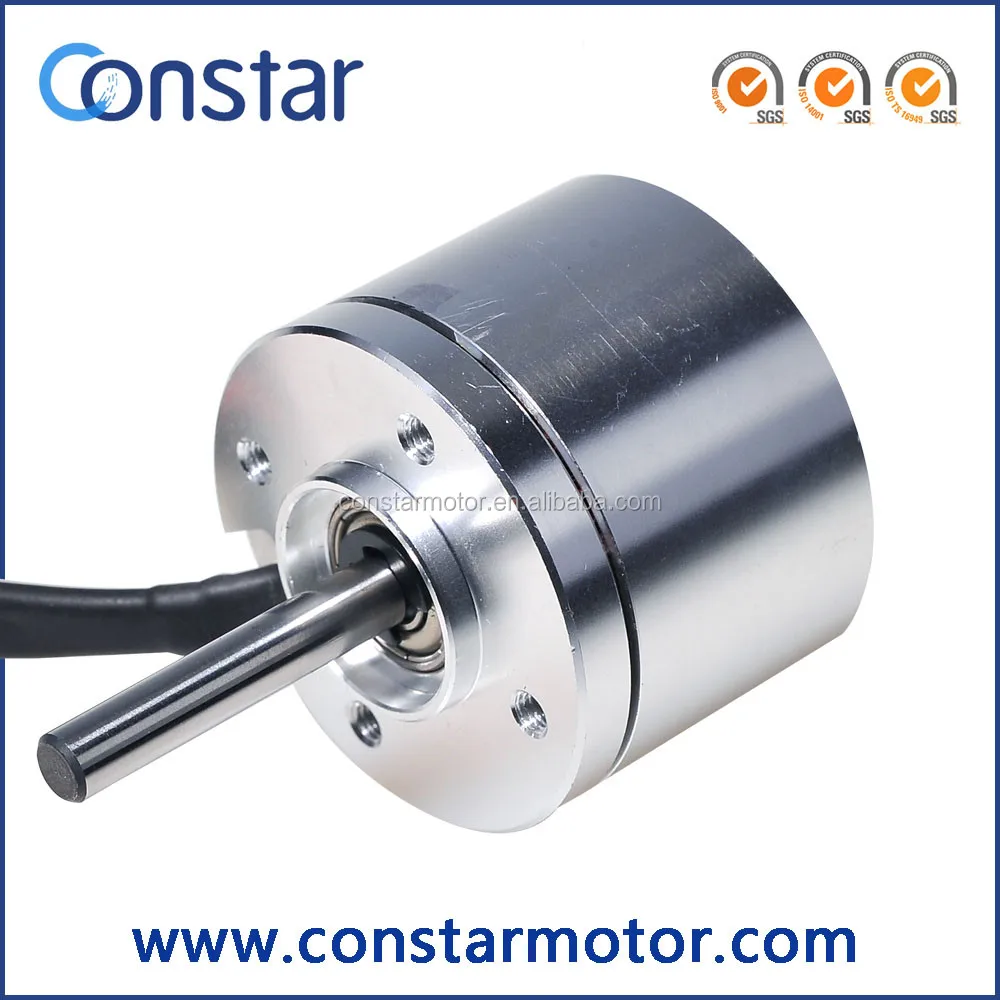

6,Photo:
 |

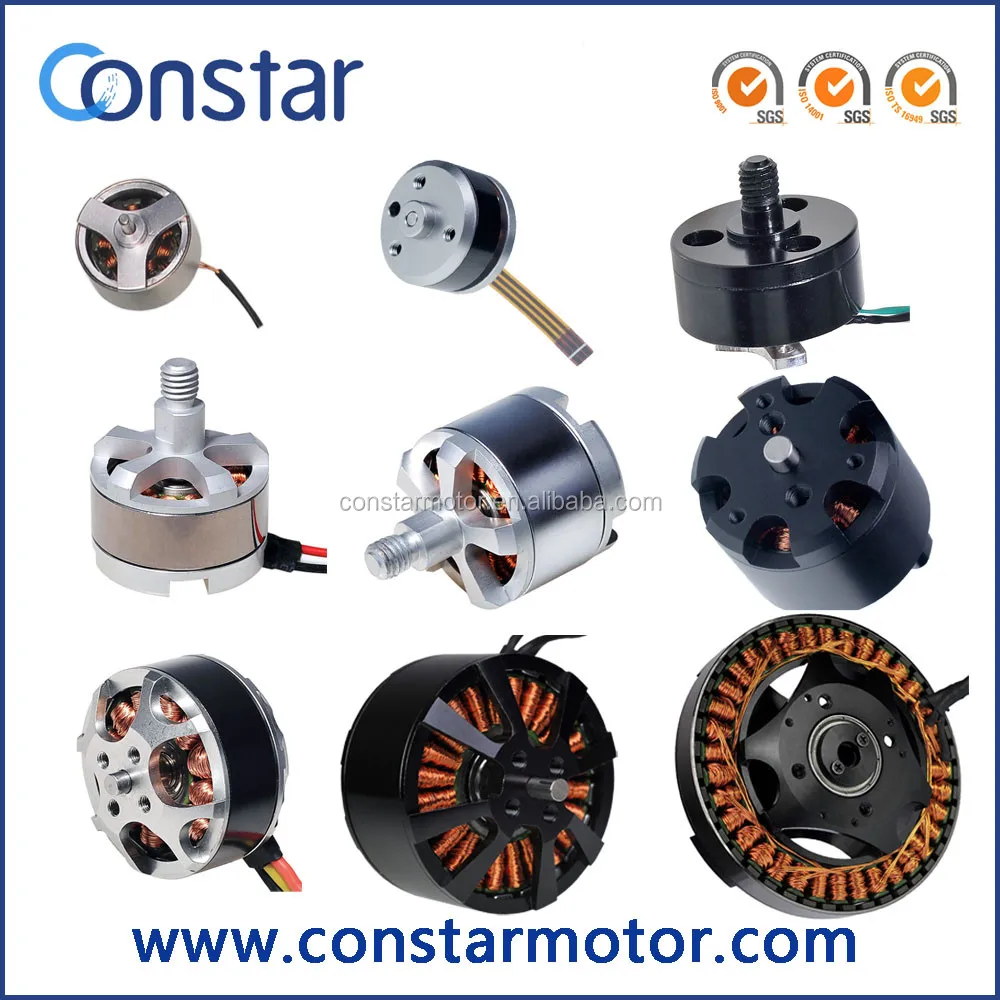

Customized Motor Solutions:
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
7.Other Item
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
48*30MM 10000rpm 24v DC Brushless Motor Electric Thrust Motor
