High Quality Copper Flat Wire Bar Continuous Extrusion Line
- Category: >>>
- Supplier: Shanghai Shineworld Group Co. Ltd.
Share on (60689899479):
Product Overview
Description
Technical Parameter
Dia. Of the groove wheel (mm | Φ630mm | Φ550mm | φ400mm | φ350mm | φ300mm |
Max, speed | 8.5r/min | 8.5r/min | 14r/min | 14r/min | 18r/min |
The range to adjust the speed | 1-8.5 r/min | 1-8.5 r/min | 0-14r/min | 0-14r/min | 0-18r/min |
Main motor power | 600kW | 450kW | 250kw | 160kw | 90kw |
Installed capacity | 650KW | 500KW | 285kw | 185 kw | 115 kw |
Inlet raw material Dia. | Φ30mm | Φ25mm | 18000kg | φ16mm | Free oxygen Copper rod φ12.5mm,alu rod φ9.5mm |
Section of the products | Copper bus-bar 1000~6500mm² | Copper bus-bar 300~5000mm² | 22000kg | 20~800mm2 | Alu flat wire 5~150mm2 Copper flat wire 5~200mm2 |
Max width of the finished products | Copper bus-bar 320mm; Copper rodΦ110mm | Copper bus-bar 260mm; Copper rodΦ90mm | Φ20mm | Copper bus-bar 80mm; Copper rod Φ40mm | Copper flat wire 50mm, Copper rodφ25mm alu flat wire 26 mm |

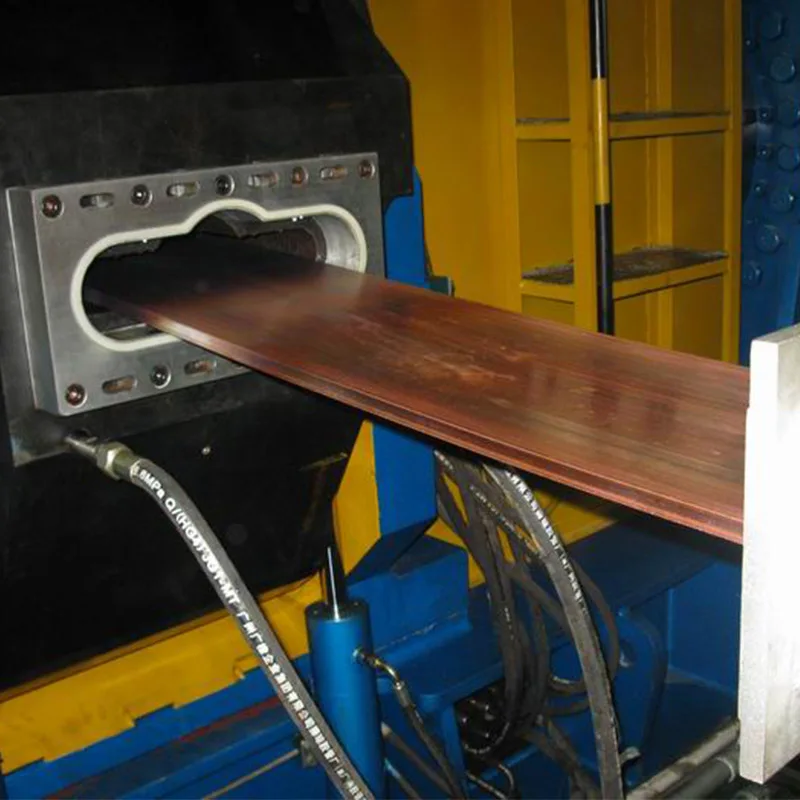

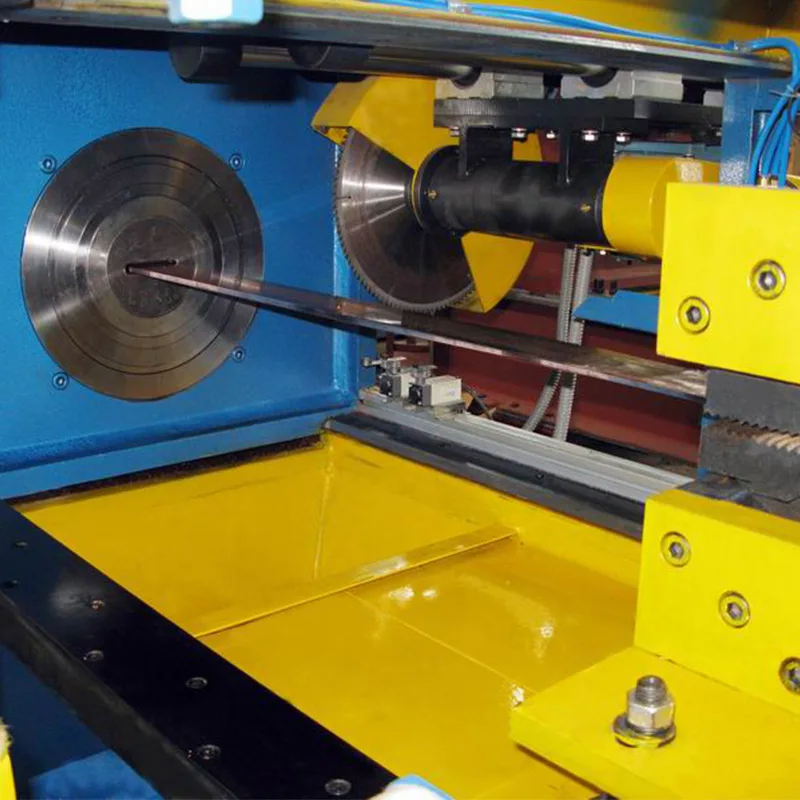

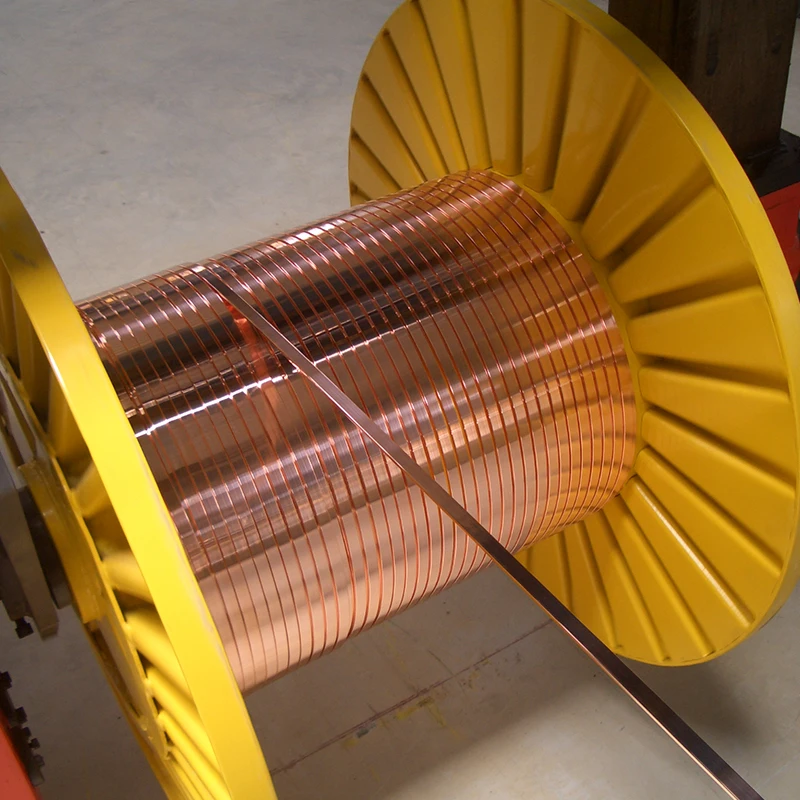

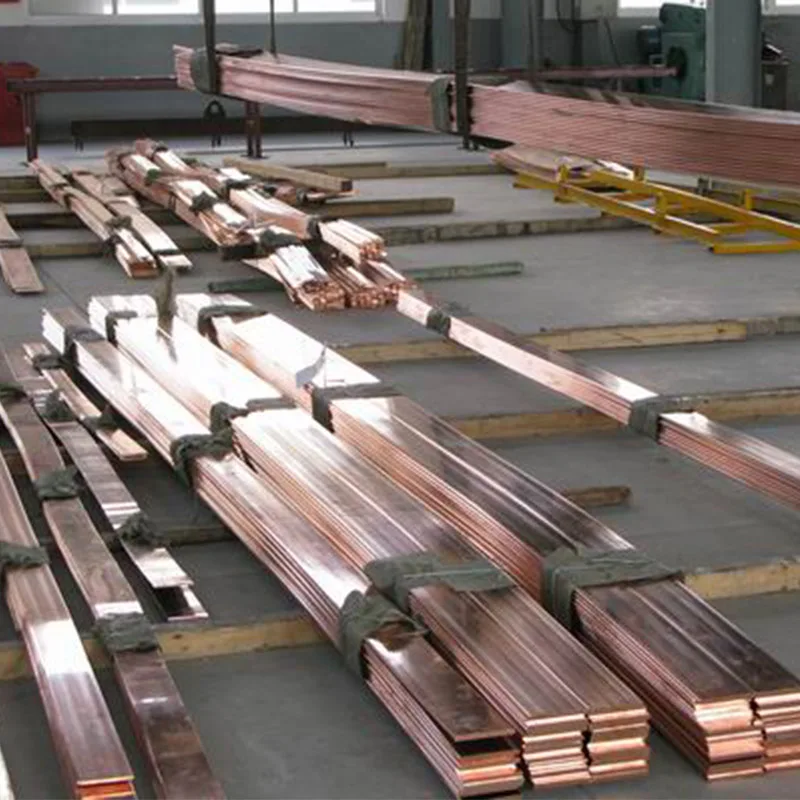

Product show
Advantage
The machine is used for producing copper, Al and Al-alloy flat wires, irregular wires, as well as copper bus-bar, copper tube, aluminum bus-bar, aluminum flat tube, ACS and AL clad cables. Etc.
Main technical parameter for copper continuous conforming line based on different model no
Output capacity | 3000kg/h | 2000kg/h | Copper bus-bar 100~2400mm2 | 800kg/h | Copper 480kg/h alu180kg/h |
Lose material rate | 5~8% | 3~5% | Copper bus-bar 170mm; Copper rodφ80mm | 1-3% | copper1-3%, alu 0.1-0.3% |
Size for L*W*H | 30×7.5×3m | 30×7×3m | 1200kg/h | 25×6.5×3m | 25×6.5×3m |
Take up bobbin size | Φ1250mm-Φ2500mm | Φ1250mm-Φ2500mm | 3-5% | ≤φ1600mm | ≤φ1250mm |
Main extruder weight | 53000kg | 45000kg | 30x6.5x3m | 11000kg | 6500kg |
Total weight | 65000kg | 57000kg | Φ1600mm | 18000kg | 10500kg |
Procedure
why choose us
About us
Success case
Packaging
FAQ
1. Who are we?
Shineworld is based in shanghai, china.Factory is located in changzhou.Established in 2004, with 17 years of experience in wire and cable field trade.It only takes 1 hour from our company to the nearest airport. Welcome to visit our company!
2. How can we guarantee quality?
Online inspect facotry ,production, shipment,and aftersales service in 24 hours.
Always a pre-production sample before mass production.
Always final inspection before shipment;and provide full-process visualization services.
Mechnical parts gurantee 12months, elcctrical parts gurantee 6 months.
Dispatch skilled engineer on spot for installtion ,commisoning and maintanace.
3.What can you buy from us?
Raw materials for wire and cable.
Extruderline for insulation and sheathing.
Pe sheet lagging.
Trunkey projects for wire cable plan.
Accesorries for up casting and CCR.
4. How long is your delivery time?
Generally, 3-7 days for goods in stock and 10-30 days for goods after realsing order.
Make the delivery asap with guaranteed quality.
5. Will the price be cheaper if the order is placed in bulk?
Of course ,will make 5-10% discount!
6. What services can we provide?
Plant solution design and machine design.
Some free samples.
Technical support.
Installtion and commmsioning.
After sales service.
Packaging customization and other customized services.
For details, you can contact online customer service for communication.
